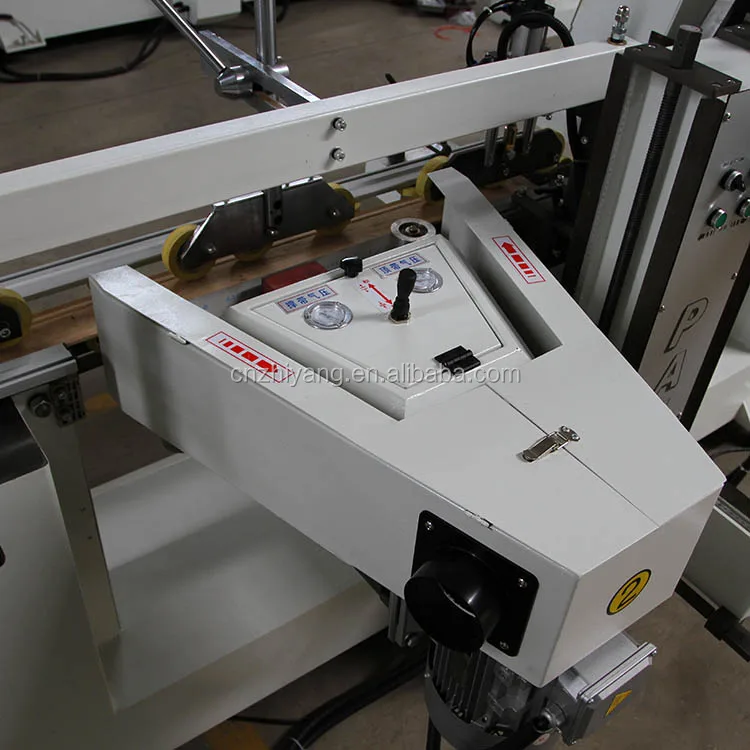

Factory direct sale High quality wood forming sander machine

Product Overview

Description

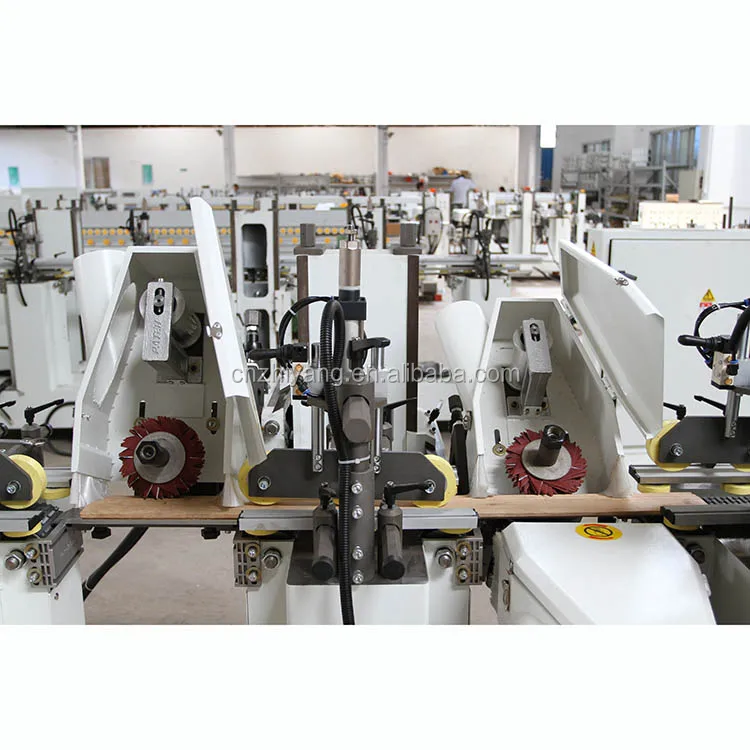

Linear Sander Machine



.Used for sanding flooring, baseboard, moldings, door frames, stairs, shutter ect. (White body and paint)



.We can make the machine according to customers's order.



.We have many combination of this machine,you can send us your product design,so we give you prefessional suggestions.



Wood sample:

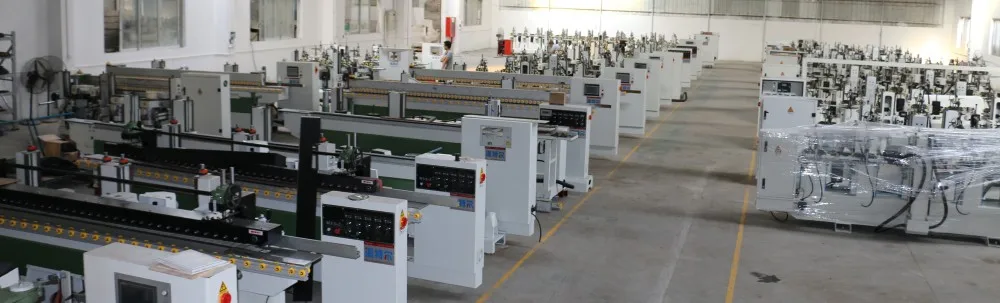

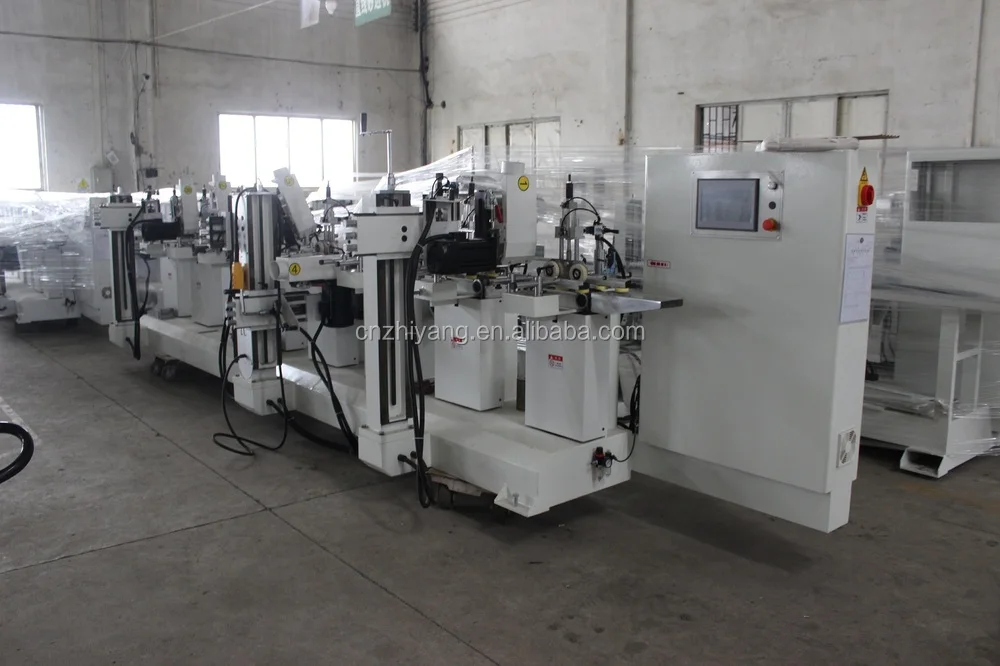

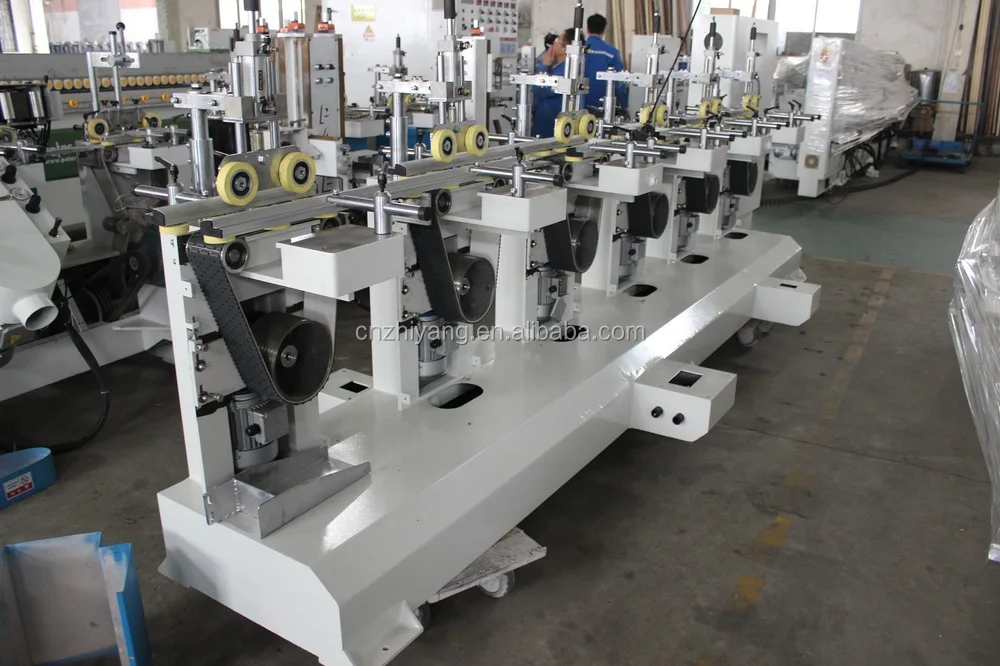

Machine at factory







Specifications:

S3W6:

working width range  10-200mm
Min working length  450mm
Working thickness range  3-100mm

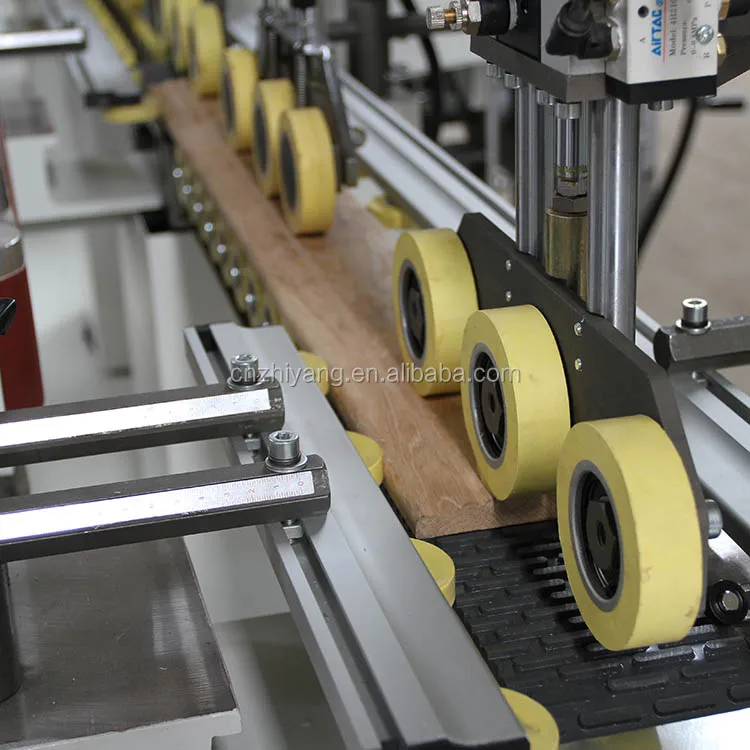

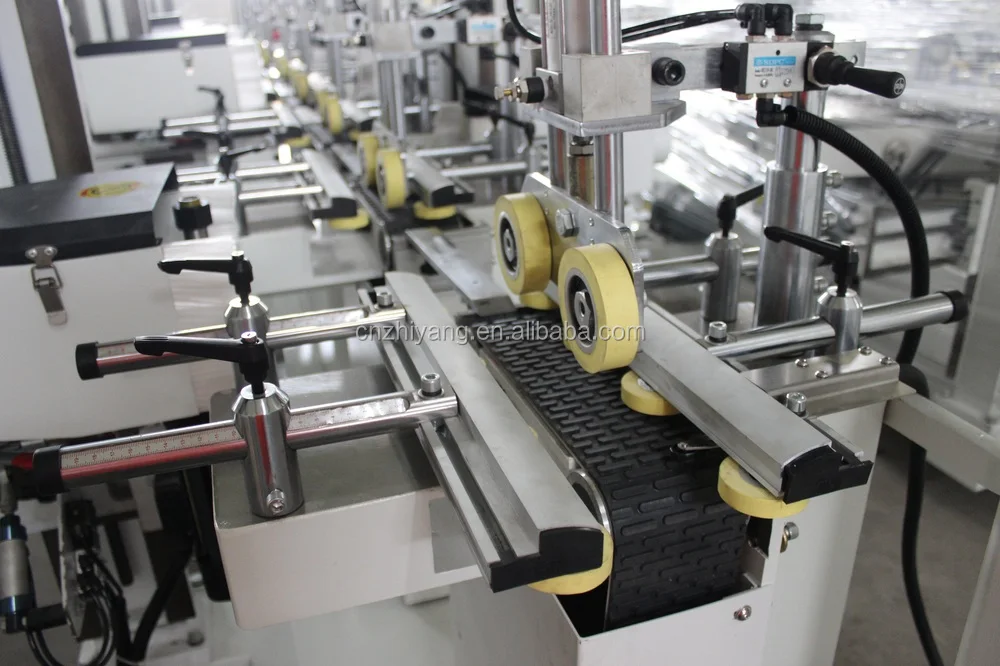

Feeder speed:(machine adjust speed)   10-42m/min
Main spindle configure quantity   9Sets   configure PLC sanding wheel  can automatic replenishment

 Automatic replenishment fit    9Sets   replenishment Qty  0.04mm/Time
Main spindle speed     transducer control 600-4200rpm
Main spindle circumgyrate Can adjust -45---+135 degree
Main spindle size   Dia.X length  .4X100mm

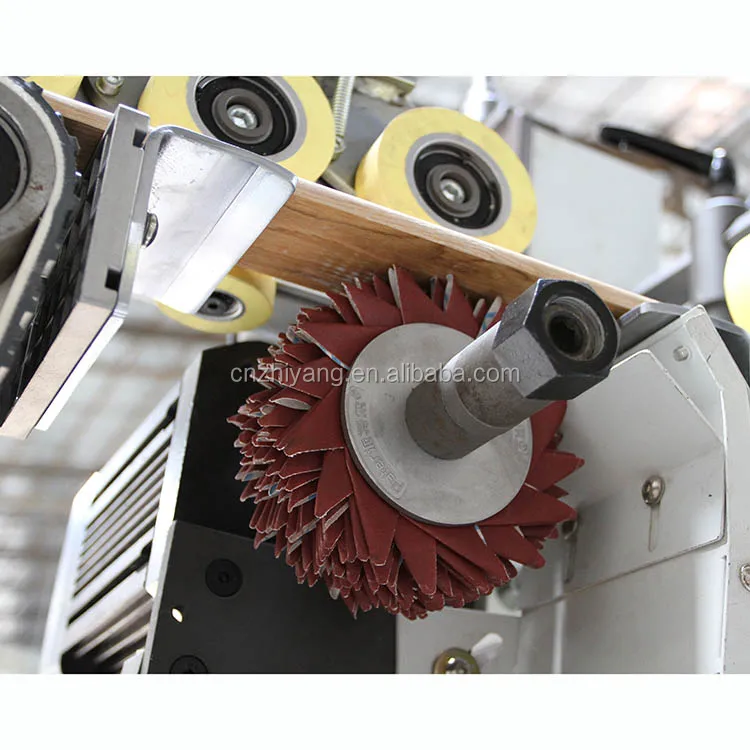

rubbing wheel outside Dia  200mm

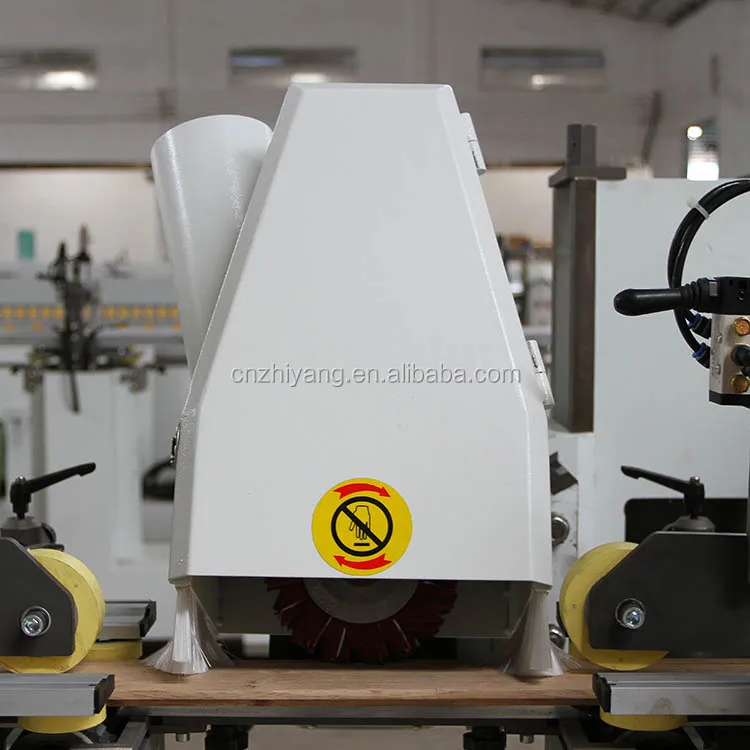

Dust collector pipe size100mm
working air pressure power   0.2--0.6Mpa
Feeder motor power   2.2kw
Main motor power    2.2kwX9Pcs
Motor request    380V/30HZ/3Phase
total Motor power    22kw
overall dimension    5800X1700X1550mm
Weight  2950kg
