830nm laser system prepress CTP machine printing plate making machine CTP
- Category: >>>
- Supplier: Guangdong C.x.k. Printing Material Industry Co. Ltd.
Share on (60704316424):
Product Overview
Description
Product Description
Technical Parameters

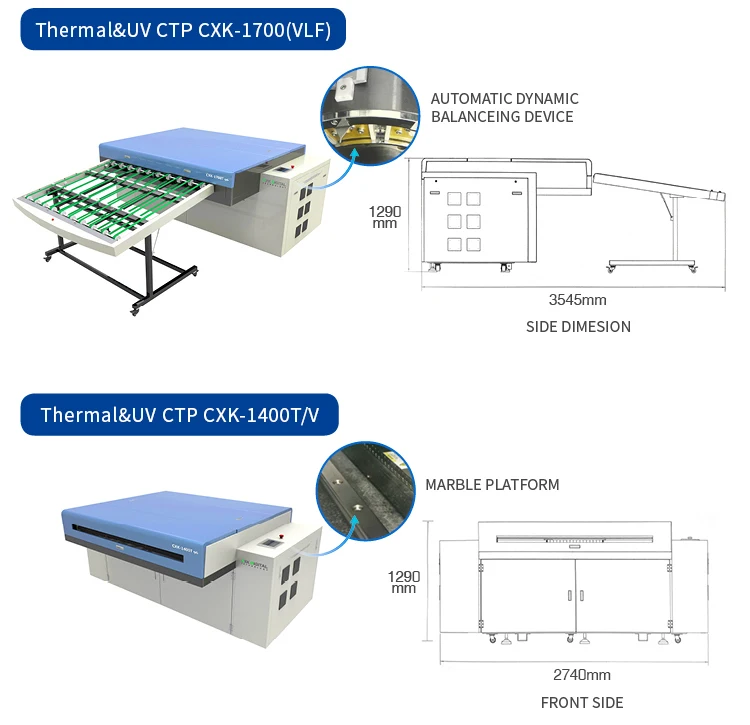

Item Name | Thermal CtP / UV-CtP Machine (CXK 1400T/V) | ||||||
Model | CXK 1400T-1 | CXK 1400T-2 | CXK 1400V-1 | CXK 1400V-2 | |||
Laser System | 830 nm LD 64 Channels | 830 nm LD 96 Channels | 405 nm LD 64 Channels | 405 nm LD 96 Channels | |||
Resolution | 2400 dpi / 1200 dpi (optional) | ||||||
Output Speed | 18 p/h (1450x1150 mm) | 23 p/h (1450x1150 mm) | 18 p/h (1450x1150 mm) | 23 p/h (1450x1150 mm) | |||
Exposure Structure | External Drum | ||||||
Plate Size | Max 1450x1150 mm , Min 650x550 mm | ||||||
Plate Thickness | Thermal (830 nm) 0.15-0.40 mm | UV (405 nm) 0.15-0.40 nm | |||||
Max Hanged Line | 300 lpi | ||||||
FM Dots Output | 20 μm | ||||||
Repeatablity | ± 0.005 mm | ||||||
Power Supply | Three Phase 380V AC/50Hz-60Hz , 6.0KW | ||||||
External Dimension | 2736 mm x 1750 mm x 1350 mm 2000 KGS | ||||||
CAUTION: Output speed might be a slight changed according to different plate sensitivity.

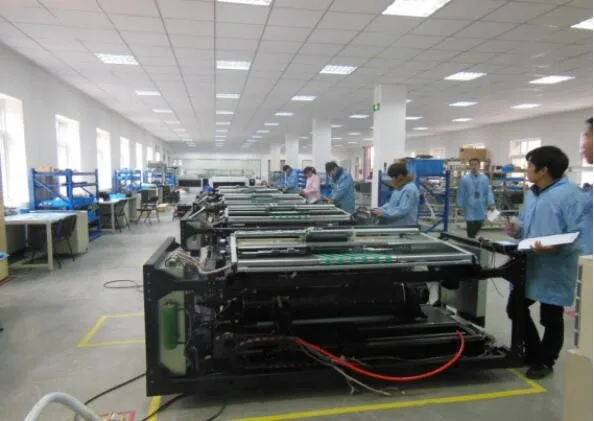

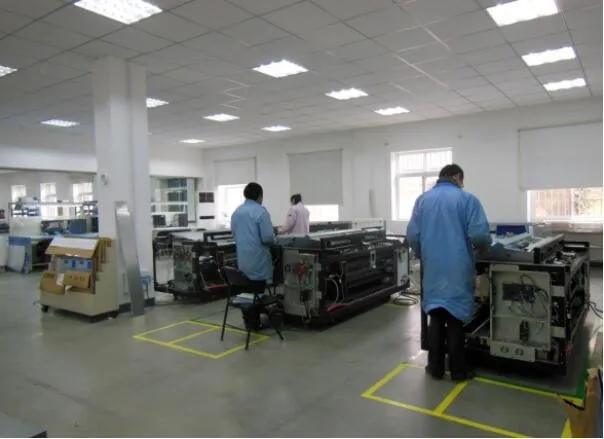

Prepress Equipment Workshop

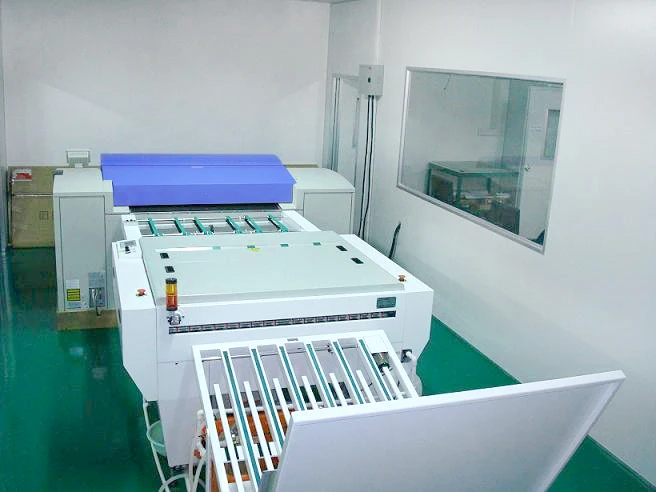

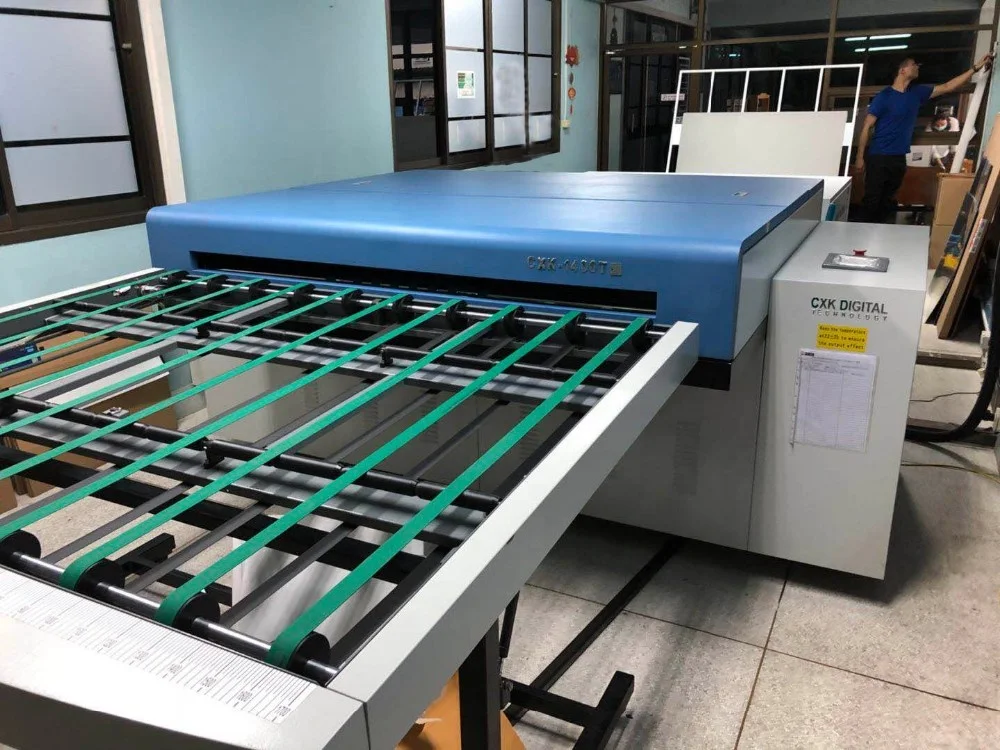

Product Display

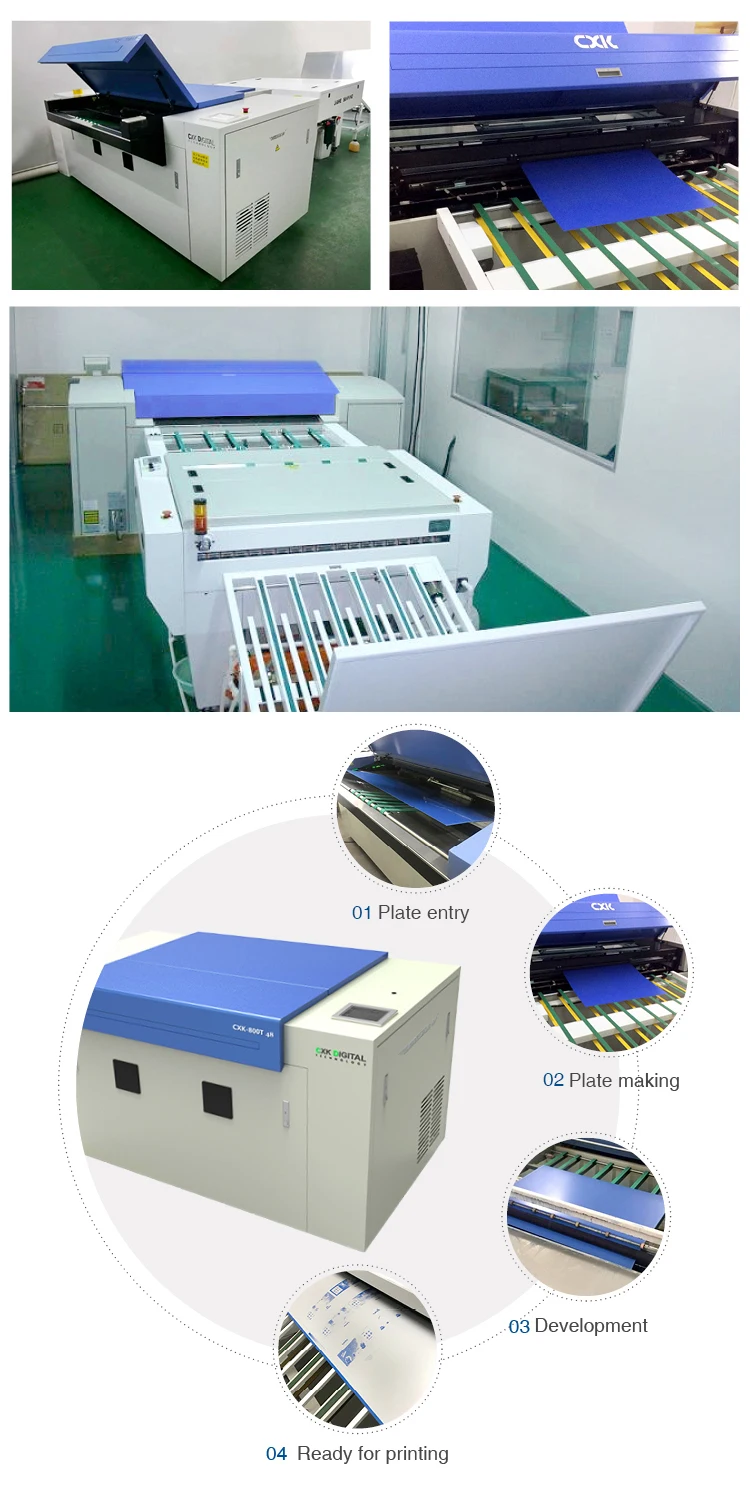

Characteristic
