YBGA628 full automatic high speed electronic sectional warping machine and beaming machine
- Category: >>>
- Supplier: Jiangyin Youbang Textile Machinery Co. Ltd.
Share on (60704357836):
Product Overview
Description
Product Description

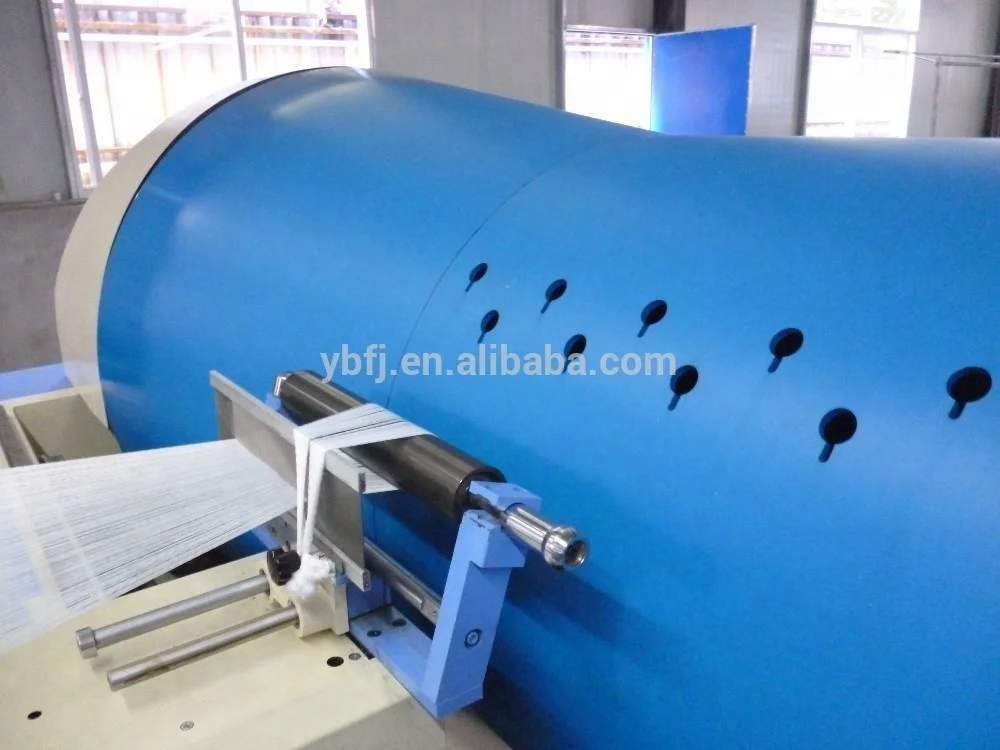

Warping machine | ||
1 | Drum Diameter | 1026mm |
| Drum length | 2400mm(working width 2300mm) |
| Cone angle | 9°(1:6.3) |
| Cone length | 1410mm (full warping φ1000mm beam) |
2 | Drum drive |
|
| Motor | 7.5kw three-phase asynchronous motor |
| Converter | 11kw Delta VFD-B Shared with beaming machine |
| Speed | 0~600m/min |

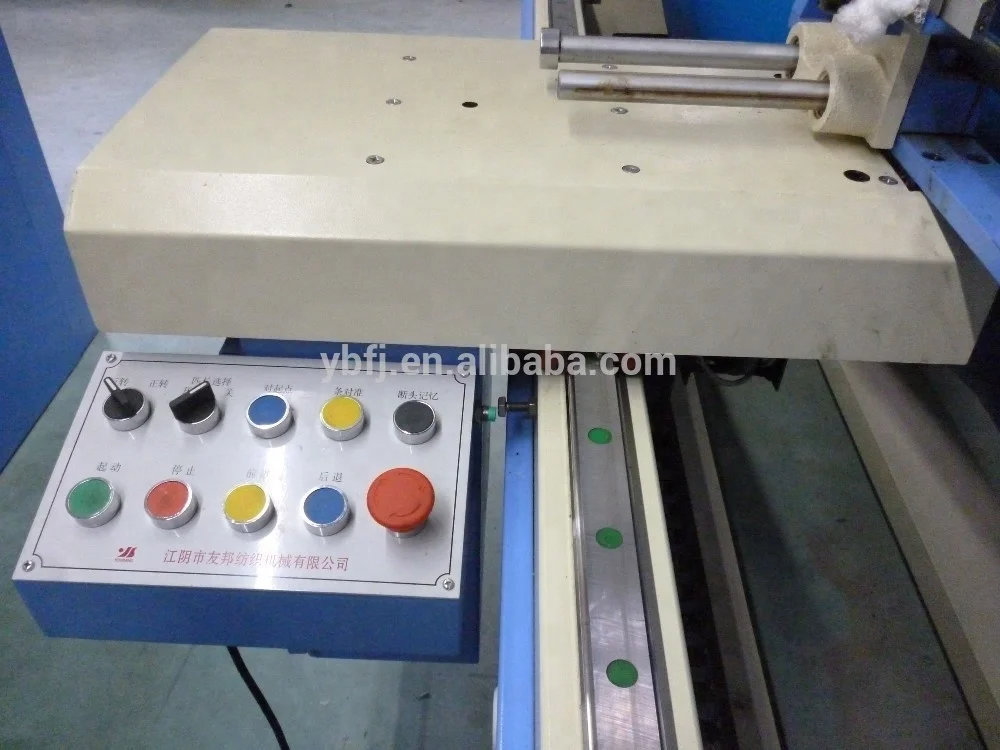

3 | Warping operation table traversing |
|
| Servo motor | 1.5kw AC servo motor (Taiwan TECO) |
| Servo drive | Taiwan TECO |
| Strip traversing speed | 0.001~9.999mm/r |
| Strip location | automatic |
4 | Backwards & forwards of warping operation table | independent motor lead screw drive for equal distance winding |
5 | Brake of drum | clamping brake 4pcs |
| Break medium | special 719 braking liquid |
| Driving force | hydro-pneumatic pressurized device |
| Braking distance | ≤3m (300m/min) |
6 | Beaming tension control | by air pressure adjusting damping |
| Driving force | by air pressure adjusting which according to craft |
7 | Main controller | SIMENS S7—200 1PC |
8 | Operational display | 10.4inch Eview colorful touch screen |
9 | Pneumatic element | air valve (FESTO for beaming tension, Others use JELPE) |
10 | Button | Schneider |
11 | Encoder | axle hole and drum mounted(Koyo) |
12 | Operating Voltage | 380V, 50HZ(according to customer's requirement) |

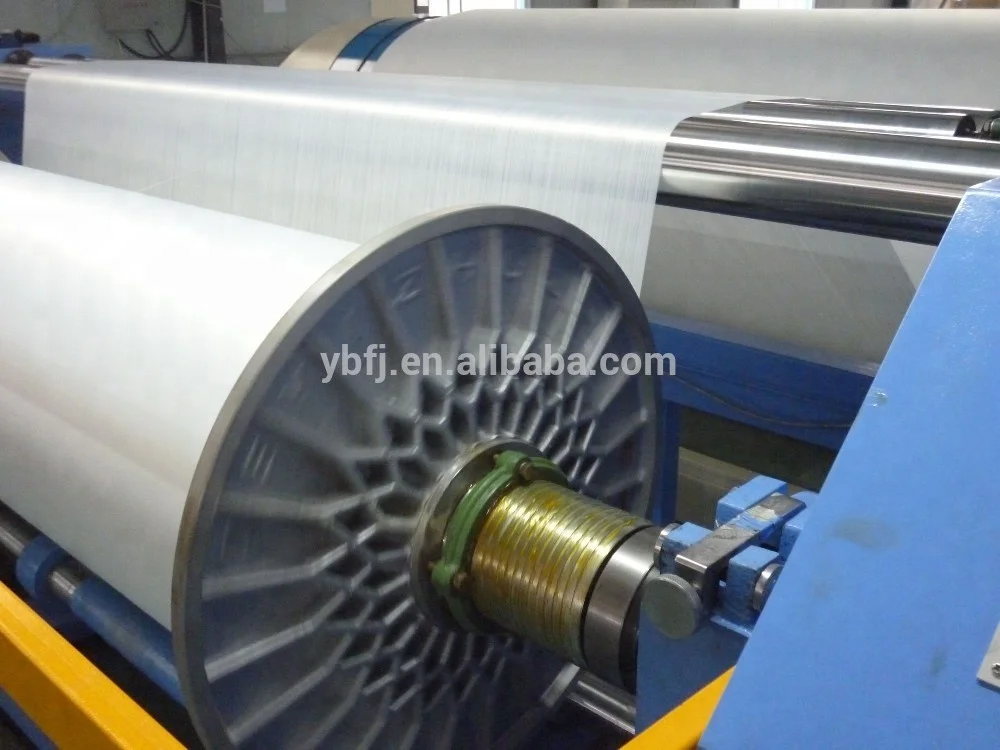

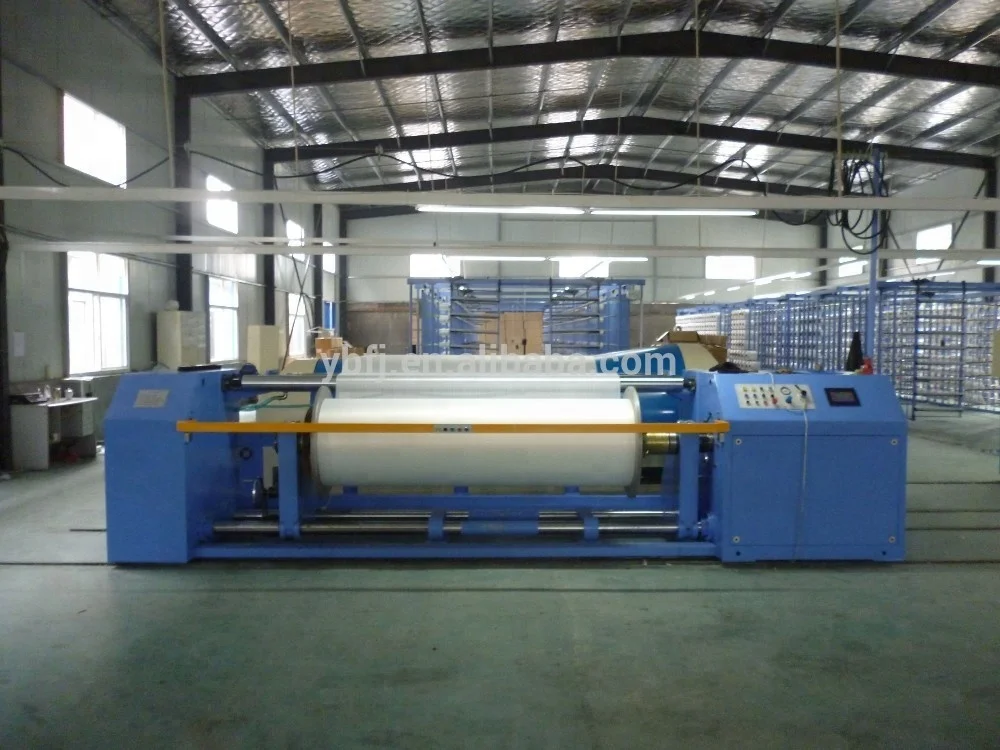

Beaming machine | ||
1 | Type | whole machine fixed |
2 | Frame | welded steel bar |
3 | Beam drive | belt wheel decelerating drive( rate 1:23) |
| Winding direction | C.W or CCW, can be set when it install |
| Motor | 11kw three-phase asynchronous motor |
| Converter | 11kw Delta VFD-B |
| Beaming speed | 0~100m/min |
| Beaming tension | 0~8000N |
4 | Beam brake | air pressure, steel tape brake( width 10cm) |
5 | Load/drop beam | automatic air press, load/drop beam device |
6 | Safety device | safety bar and infrared guard device |
7 | Oiling device | three-roller step-less speed control |
| Revolve | guide roller drives decelerator, then drive Oiling roller |
| Speed | adjustable, synchronous with sectional yarn |
| Pump | stainless steel pump |
8 | Controller | SIMENS S7-200 1PC |
9 | Operating Voltage | 380V, 50HZ(according to customer's requirement) |
Pneumatic reed |

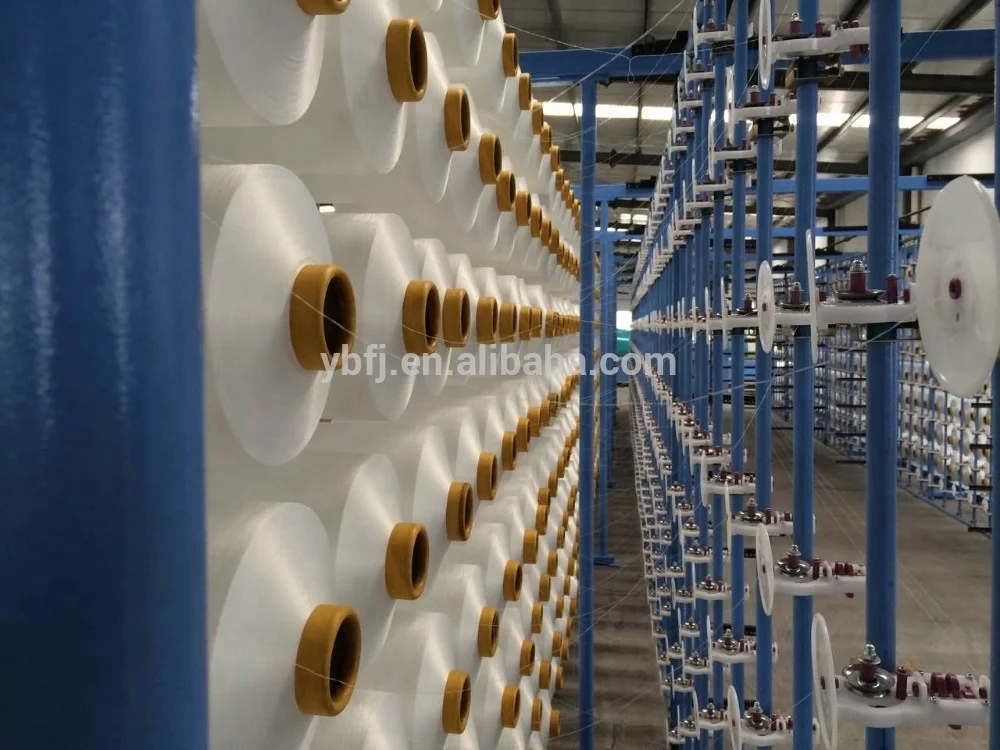

Creel |
Packaging & Shipping
Standard company packaging, Iron stand and plastic membrane cover.
1 set of 2300mm~2800mm warping and beaming machine need 1 40" container.
1 set of 3200mm~5500mm warping and beaming machine need 2 40" containers.
Our Services
1. We will respond your inquiry within 24 working hours.
2. We can arrange running machine inspection for you in China if you need.
3. We can improve the machine reasonably according to customers' requirements to better adapt to the customer's product process.
4. We will send engineers to customer factory to install and debug machines, and train workers to operate machines.
5.We offer a one-year machine warranty period.
6. If we are lucky enough to cooperate with you finally, we will immediately respond to the problems you encounter in machine use, and arrange professional engineers to help you solve the problem in the shortest time.
At last, if you have other requirements, please just contact us and tell us, we'd like to discuss with you and try our best to give you a satisfy reply.
Company Information
Jiangyin Youbang Textile Machinery Co., Ltd. is a professional manufacturer of full automatic high speed warping machines, which is founded in 2002. Our factory is located in Wuxi city, Jiangsu Province, China. There are train stations, airports and sea ports near by. It only takes 2 hours from Shanghai airport and sea port.
Our factory can produce many kinds of warping machines, including direct warping machines, sectional warping machines, fiber glass warping machines and warping-sizing combination warping machines. With reliable quality and reasonable price, we sold around 2000sets machines all over the world and obtained the customers' high praise. Our machines have been exported to Peru, Russia, South Korea, Vietnam, Indonesia, Thailand, Uzbekistan, Ethiopia, Jordan and Bahrain. And we cooperate with Karl Mayer (the most famous manufacturer of warping machines in the world) and UKIL(the most famous manufacturer of warping machines in South Korea) supplying warping machines spare parts to them for many years. They are very strict with the quality of the products and our products have been recognized by them.
We are always trying our best to develop more markets and provide better machines to our customers. Sincerely hope you will be our next customer and business partner.
