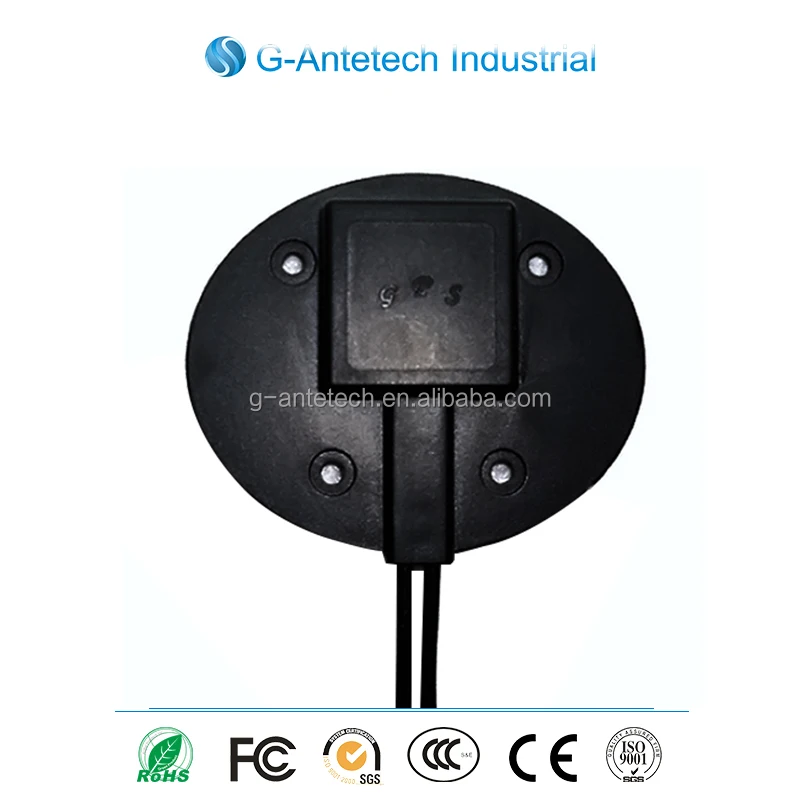

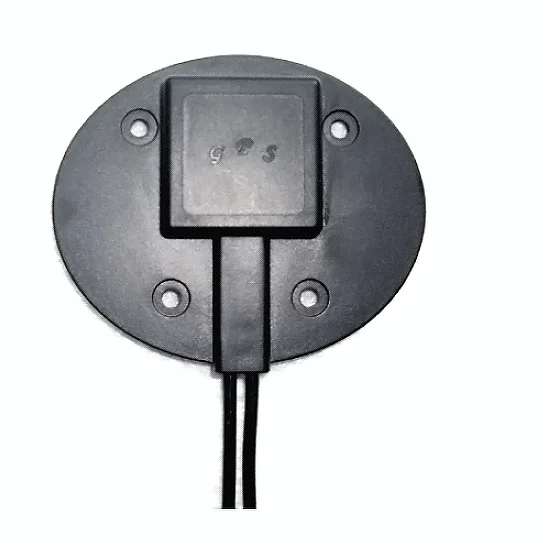

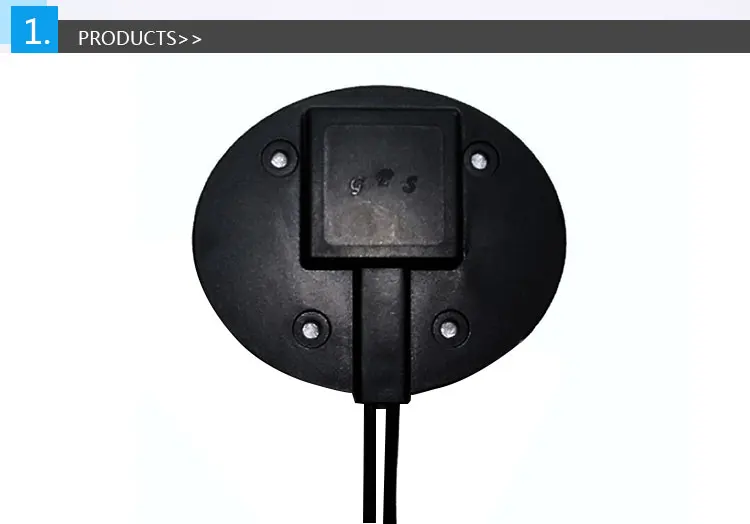

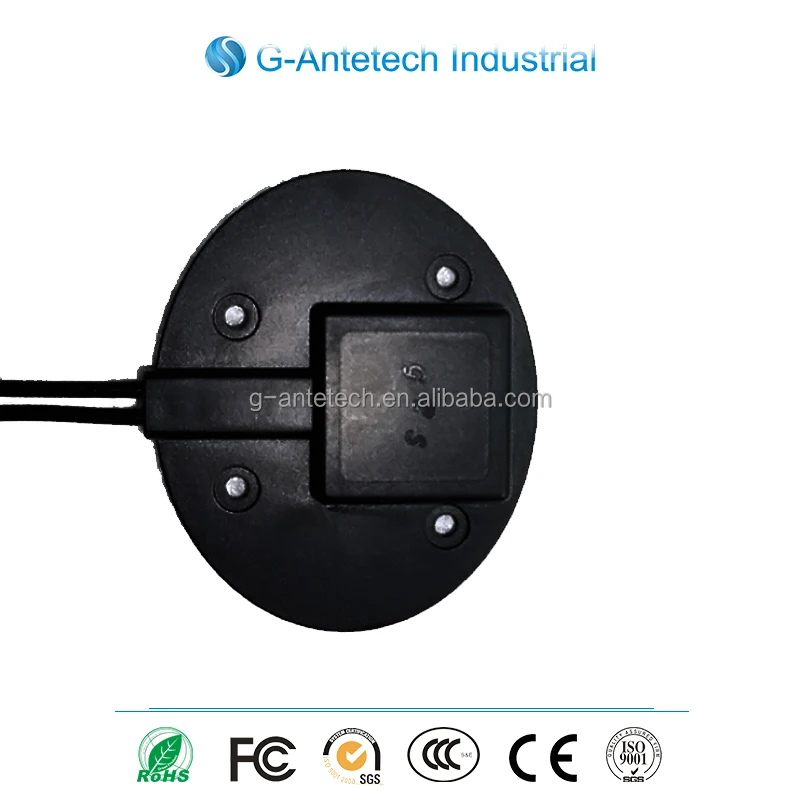

China custom auto gps gprs gsm combo external antenna with SMA/SMB/Fakra connector

GPS Antenna

Dielectric

Antenna

Center frequency

1575.42MHz±1 MHz

Band width

±5MHz

Polarization

RHCP

Gain

5db

V.S.W.R

<1.5

Impendance

50Ω

Axial ratio

3db(max)

LNA

Gain

28±2db

Noise figure

<1.5

Ex-band attenuation

12dB@CF+50MHz/16dB@CF-50MHz

V.S.W.R

<2.0

Supply voltage

2.2~5V DC

Current consumption

5~15mA

GSM Antenna

Frequency range

850/900/1800/1900/2100MHz

V.S.W.R

<2.0

Polarization

Linear

Gain

2.0dBi

Impendance

50Ω

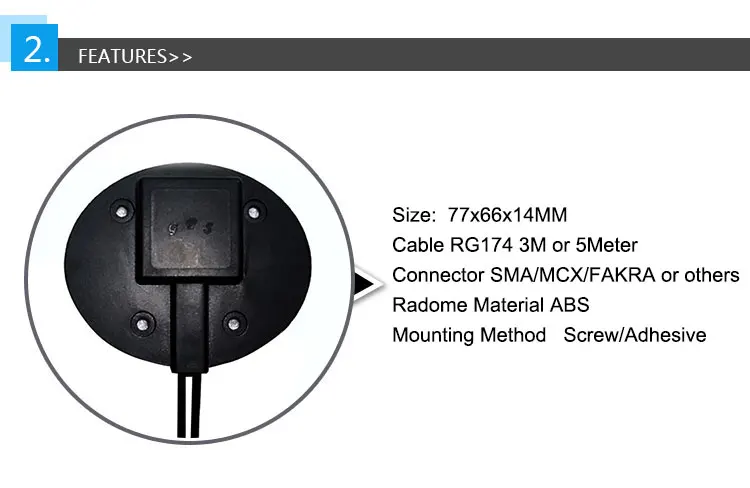

Mechanical

Cable

RG174 3M or 5Meter

Size

77*66*14MM

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Screw/Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
