hot manual function 45mm diameter 50N.m ac Tubular Motor For roller blinds

Product Overview

Description

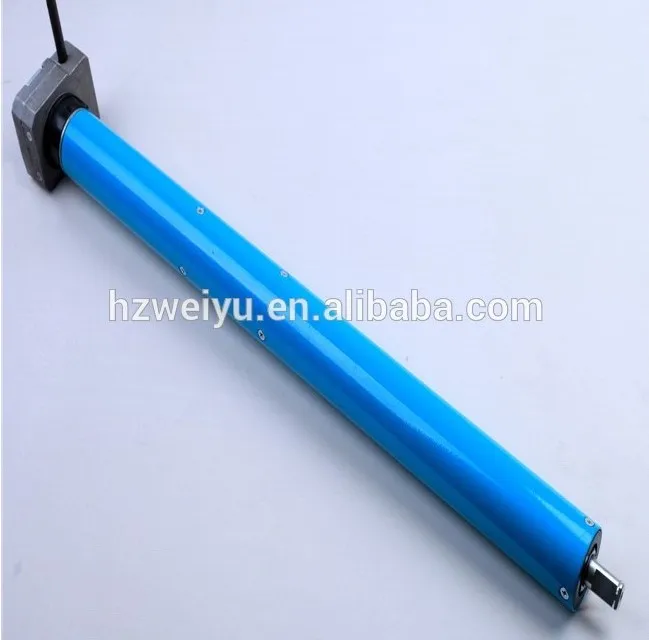

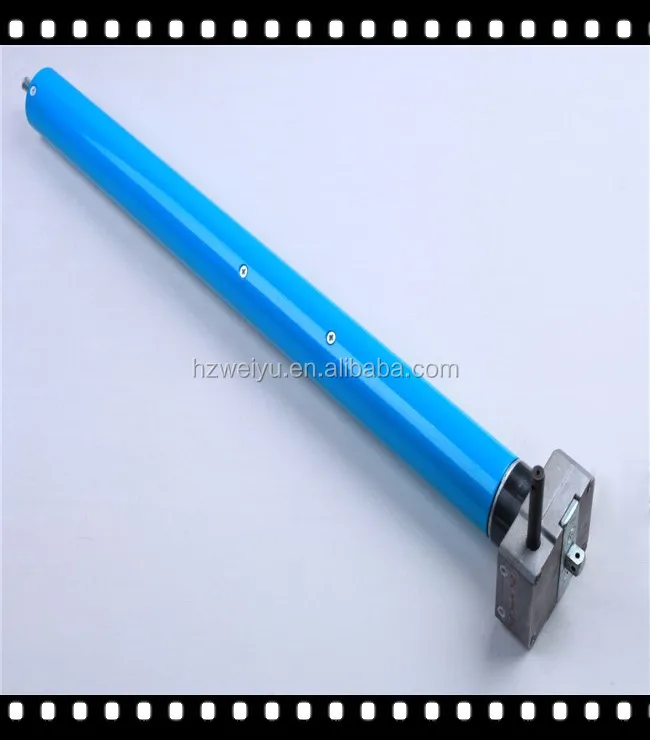

WY45-50M AC Tubular motor

1.The detail information

Model	WY 45-50M	WY 45-50M
Rated Torque(N.m)	50	50
Rated Speed(rpm)	12	14
Rated Power(W)	280	280
Rated Current(A)	1.2	1.5
Running Time(min)	>4	>4
Limit Rating(turn)	30	30
Complete Length(mm)	660	680
Complete Weight(KG)	3.4	3.4
Rated Voltage(V)	220-230	100-110
Rated Frequency(Hz)	50	60
Tube Diameter(mm)	45	45

2.The accessory:

3. The package:

Every one seprate packed in a box; 10 boxes in one carton.
The box dimension: 600*75*75mm
The outer carton dimensions: 660*450*200mm

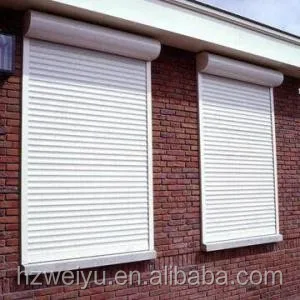

4. The usage: it usually can be used for the electric awnings, blinds, roller shutters and so on.

5. The Warranty:  we promise 5 years

 All of them have passed CE certificate . So you can rest assured the goods quality . the warranty is 5 years .  If the tubular motor cannot work normally during the 5 years , we promise we will resend you new ones free of charge .

 Any inquiry, pls contact me  freely……
