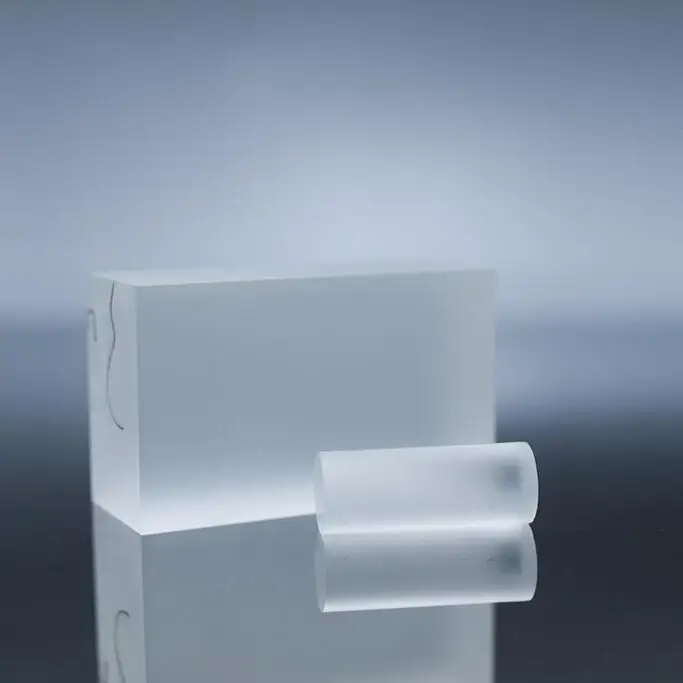

Nonlinear large nonlinear coefficient Beta Barium borate used in electro optical applications

Product Overview

Description

Good mechanical and physical properties of large nonlinear coefficient Beta-Barium borate

 is a nonlinear optical crystal with a combination of unique features:

• Wide transparency region


• Broad phase-matching range


• Large nonlinear coefficient


• High damage threshold


• Wide thermal acceptance bandwidth


• High optical homogeneity

Therefore, BBO provides an attractive solution for various non-linear optical applications like OPO, OPA, OPCPA and other. As a result of large thermal acceptance bandwidth, high damage threshold and small absorption BBO well suits for frequency conversion of high peak or average power laser radiation. The large spectral transmission range as well as phase matching, especially in UV range, makes BBO perfectly suitable for frequency doubling of Dye, Arion and Copper vapour laser radiation, effective cascade harmonic generation (Frequency doublers, triplers, parametric amplifiers and wave mixers) of wide spread Nd:YAG as well as of Ti:Sapphire and Alexandrite laser radiation. Both angle tuned Type 1 (oo-e) and Type 2 (eo-e) of phase matching can be obtained increasing a number of advantages for different applications.





 Features Good mechanical and physical properties of large nonlinear coefficient Beta-Barium borate



Ø Broad phase-matchable SHG range from 409.6 nm to 2500 nm

Ø Wide transmission region from 190 nm to 2500 nm

Ø Large effective second-harmonic-generation (SHG) coefficient

Ø High damage threshold of 10 J/cm2 for 100 ps pulse-width at 1064 nm

Ø Good mechanical and physical properties

Main Specifications Good mechanical and physical properties of large nonlinear coefficient Beta-Barium borate

Diameter	Max 50mm
Length	Max 35mm
Dimensional Tolerance	±0.1mm
Angle Tolerance	±0.5deg
Surface Flatness	<λ/8@633nm
Wavefront Distortion	<λ/4@633nm
Parallelism	<20 arc second
Perpendicularity	<5 arc minutes
Surface Quality	20-10 S-D after coating
Clear Aperture	>90%
Chamfer	Per your request

Physical and Chemical Properties Good mechanical and physical properties of large nonlinear coefficient Beta-Barium borate

Crystal Structure:	Trigonal, space group R3c
Lattics Parameters:	a=b=12.532Å, c=12.717Å, Z=6
Melting point	About 1095℃
Mohs Hardness	4
Density	3.85g/cm3
Thermal Conductivity	1.2W/m/K(c): 1.6W/m/K(//c)
Thermal Expansion Coefficients	a11=4x10-6/K;  33=36x10-6/K



Optical Good mechanical and physical properties of large nonlinear coefficient Beta-Barium borate

Transmitting range	189nm~3500nm
Therm-Optic Coefficients	dno/dT=-9.3x10-6/ °C
	dno/dT=-16.6x10-6/ °C
Optical Homogeneity	delt n≈10-6/cm
Mohs Hardness	4.5
Damage Threshold	1GW/cm2 at 1064nm
	500MW/cm2 at 532nm
Hygroscopic Susceptibility	Low
Thermal Expansion Coefficients	αa=4x10-6
(25 °C - 900 °C)	αa=4x10-6
Linear Absorption Coefficients	a<0.005cm-1 from 300nm to 2300nm
Refractive Indices, Birefringence(delt n=ne-no)  and wal-off Angle at 45 °C(ρ)	ne=1.58462, non=-0.073282; ρ=-4.9532° at 1064nm D=1.65790, ne=1.60206, non=-0.075491; ρ=-5.0407° at 532nm D=1.67755, ne=1.67190, non=-0.089805; ρ=-5.6926° at 266nm D=1.76171
Sellmeier equation(l in μm)	no2=2.7471+0.01878/( λ2-0.01822)-0.01354 λ2











Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 1pcs Q3: What’s the lead time?

A: Sample :2-3 days.Mass production: 15-20 days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer you again and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. OEM is also acceptable.
