Product Overview
Description
Resistance to high temperature air cannons
- 30 years focused on high-end manufacture of export-oriented air cannons

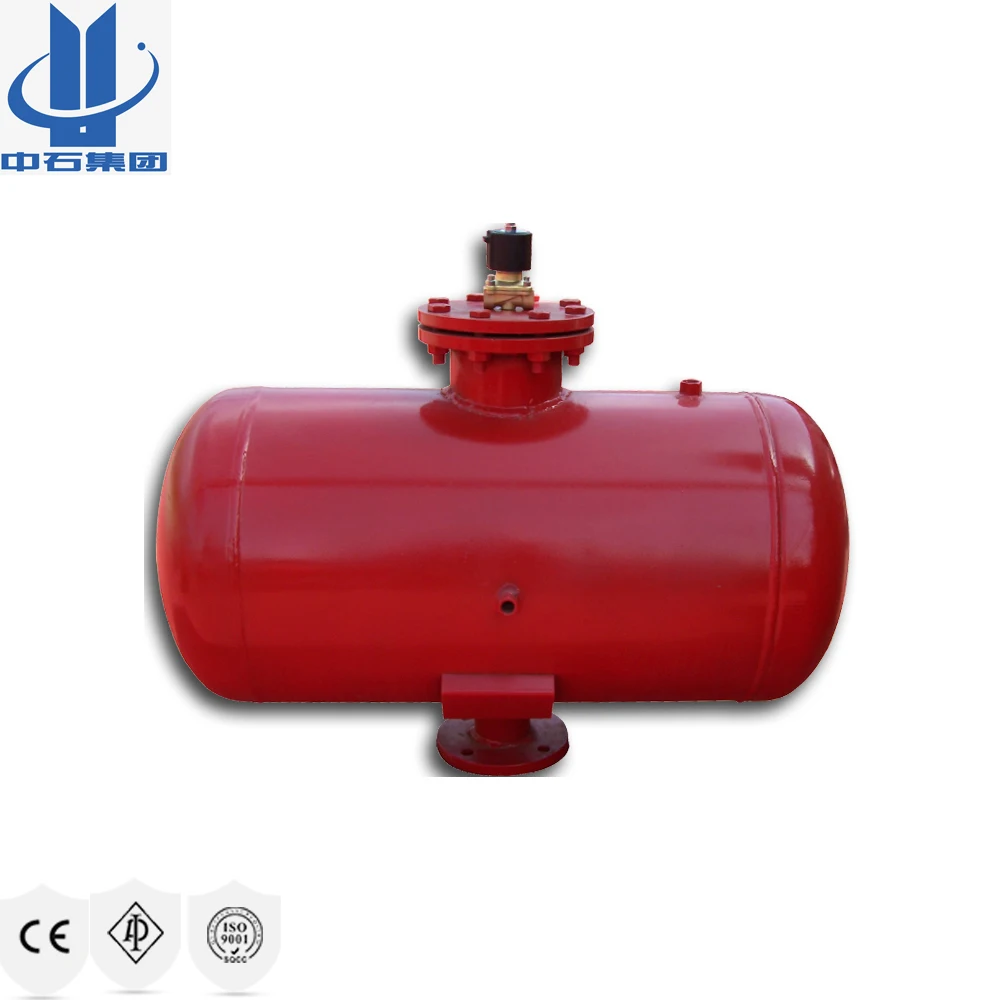

GKQP - B new air cannons combining advanced foreign technology developed by our company is a new type of high temperature resistant,
high impact of a new generation of air cannon. A bunker in high temperature environment, such as cement grate cooler) on the solution of the problem,
provides a more efficient air solution.
GKQP - b-type air cannon has the following features:
1. High temperature resistance, air cannons body motion and seal no rubber parts inside. Especially suitable for gas preheater slope, smoke chamber of cold machine, high requirements, such as significantly reduces the maintenance cost, obviously prolonged the service life. The body moving parts (piston) no elastomer.
2. Self lubricating: unique design of cylinder and piston bearing lubrication.
3. Low maintenance: 250000 trouble-free, remove the replacement parts is extremely convenient
4. Long life: key components using modern design method to optimize design, good air tightness.
5. Strong spray drying, spray drying is strong, 10% higher than that of similar products.
6. Easy to compatible:double coupling method, and the air cannon body can air cannon tank connection with other brands,
reduce the cost of users to upgrade.
GKQP - B type high temperature air cannon technology parameters
No. | Moodel | Capacity | Diameter | Exhaust Diameter | Slinger Hole | Air Intake | Safe Valve Seat | Working Temperature | Working Press | Inpact Force | Explosion Energy | Weight |
Unit | GKQP-B | L | mm | mm | mm | " | " | ℃ | Mpa | N | J | Kg |
1 | GKQP-B-75 | 75 | 410 | 89 | 16 | G1/2 | ZG3/8 | -40-1200 | 0.4-0.8 | 4500-10000 | 123600 | 50 |
2 | GKQP-B-100 | 100 | 410 | 89 | 16 | G1/2 | ZG3/8 | -40-1200 | 0.4-0.8 | 5800-12600 | 129000 | 60 |
3 | GKQP-B-150 | 150 | 510 | 108 | 16 | G1/2 | ZG3/8 | -40-1200 | 0.4-0.8 | 6800-14600 | 221000 | 70 |
4 | GKQP-B-170 | 170 | 510 | 108 | 16 | G1/2 | ZG3/8 | -40-1200 | 0.4-0.8 | 8800-15600 | 251000 | 75 |
5 | GKQP-B-200 | 200 | 510 | 108 | 16 | G1/2 | ZG3/8 | -40-1200 | 0.4-0.8 | 9800-17600 | 271000 | 85 |
6 | GKQP-B-300 | 300 | 510 | 108 | 16 | G1/2 | ZG3/8 | -40-1200 | 0.4-0.8 | 1200-19600 | 321000 | 110 |
Packing details
Company introduction
Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories likebow spring centralizer, solid rigid centralizer,float equipment, cementing plug etc.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
