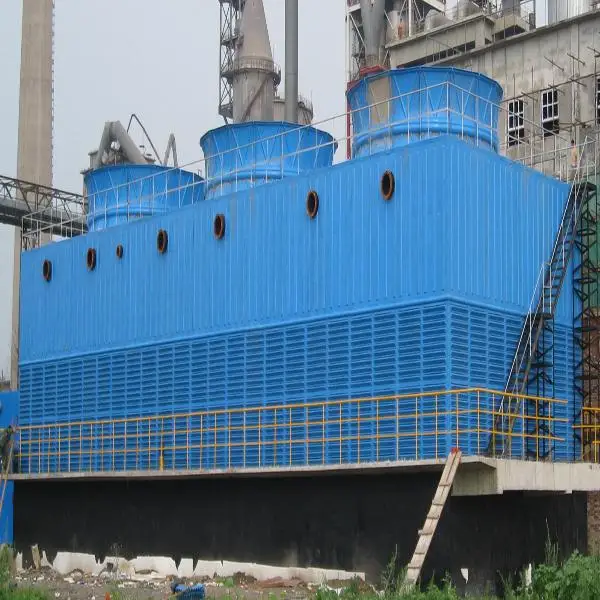

Новая технология, промышленная квадратная башня водяного охлаждения

Product Overview

Description

New technology Industrial square water cooling tower

(also called cooling tower,frp cooling tower,tower,counter flow cooling tower,cross flow cooling tower,FRP counter flow cooling tower,round shape or square shape cooling tower,steel frame cooling water,water cooling tower and so on)

Introduction:

Cooling tower is the equipment that use of air contact (directly or indirectly) water to

cooling water.It take water as circulation coolant, absorb heat from the system and emissions into the atmosphere, so as to reduce the temperature of the circulating water in the tower, and can recycled manufacturing cooling water.

Technology parameter list:

Model	Rated power kW	External dimensions(mm)		Air blower diameter mm	inflow water pressure 104Pa	Dead weight kg	Rotation Weight kg
		B	H
DFN-100	3.0	2600	4170	1800	6.0	1320	2510
DFN-125	4.0	2600	4170	1800	6.0	1470	2970
DFN-150	4.0	3000	4470	2400	6.0	1750	3550
DFN-175	5.5	3000	4470	2400	6.0	1880	3950
DFN-200	5.5	3600	4710	2800	6.4	2160	4560

DFN-250	7.5	3600	4710	2800	6.4	2450	5100
DFN-300	7.5	4300	5400	3400	6.4	2980	6580
DFN-350	11.0	4300	5400	3400	6.4	3440	7550
DFN-400	11.0	4800	5740	3800	6.4	4100	8920
DFN-500	15.0	5300	6030	3800	6.8	4970	11450

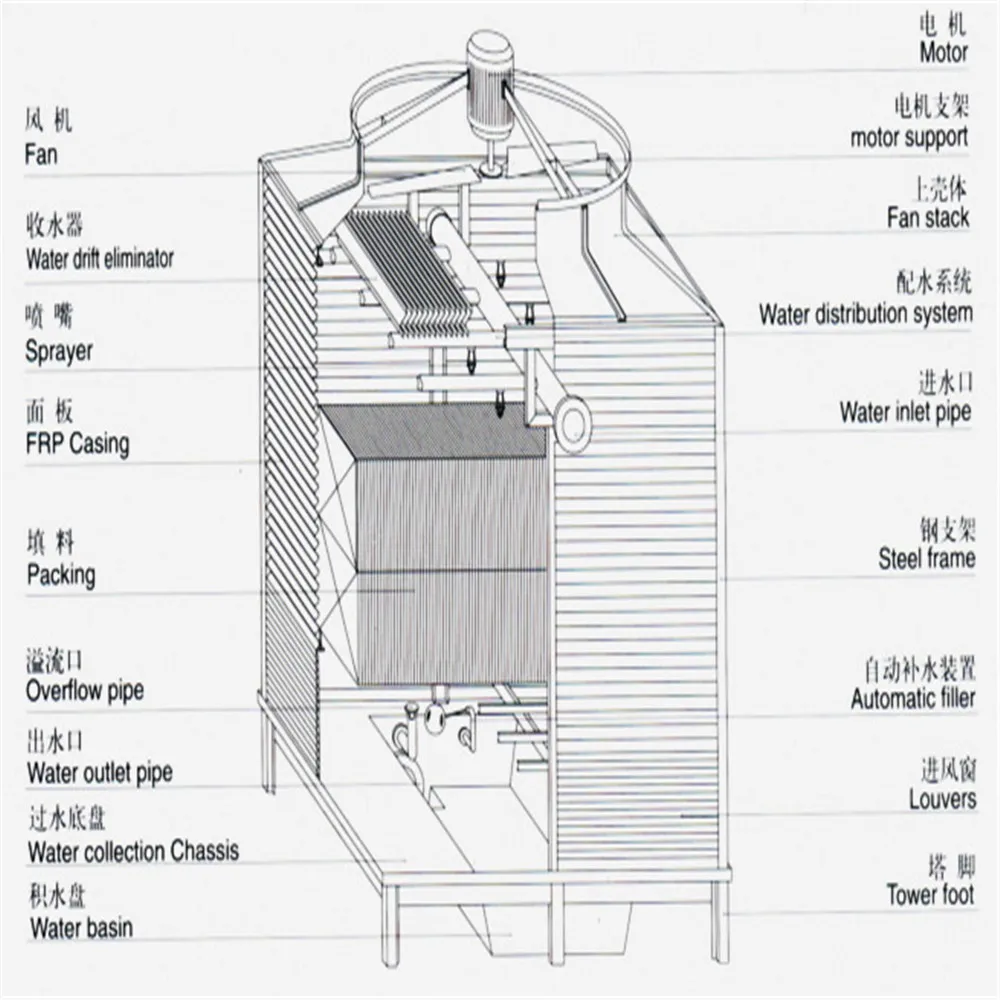

Water cooling tower Structure:

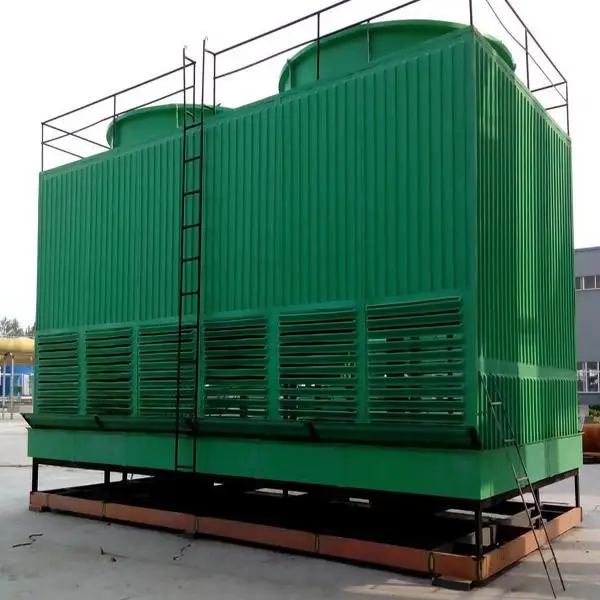

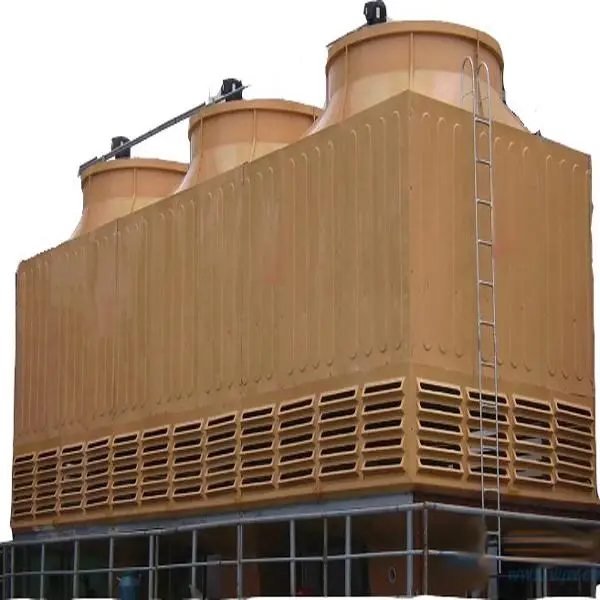

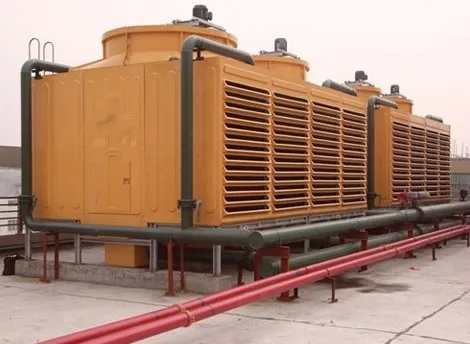

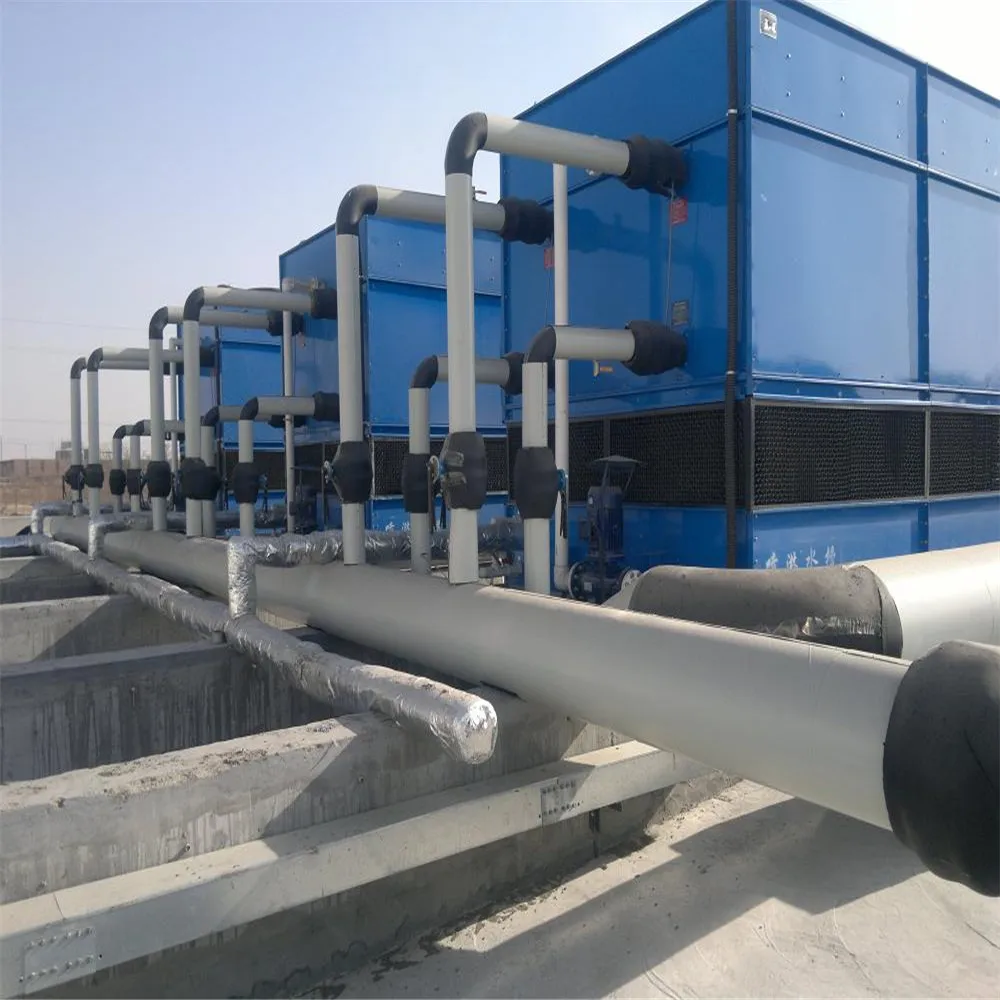

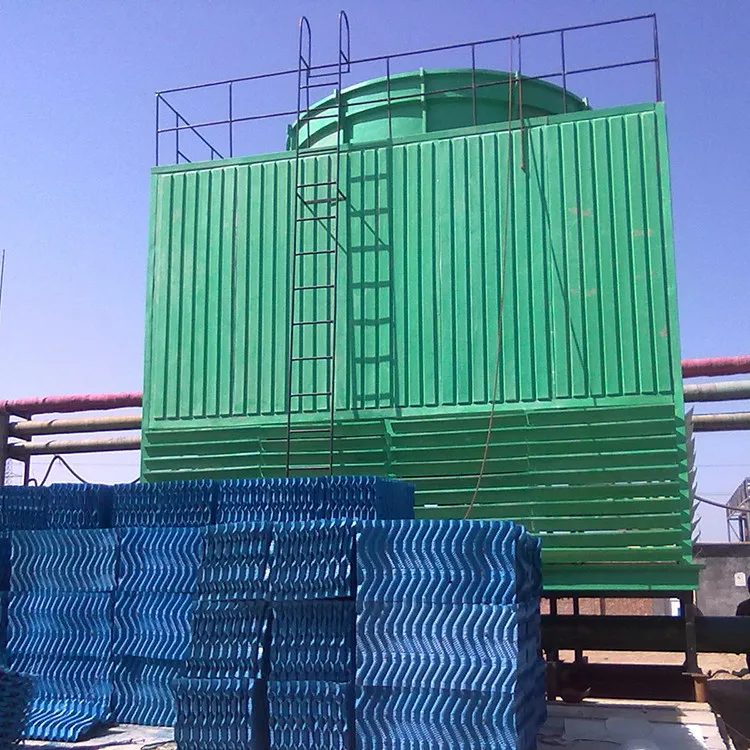

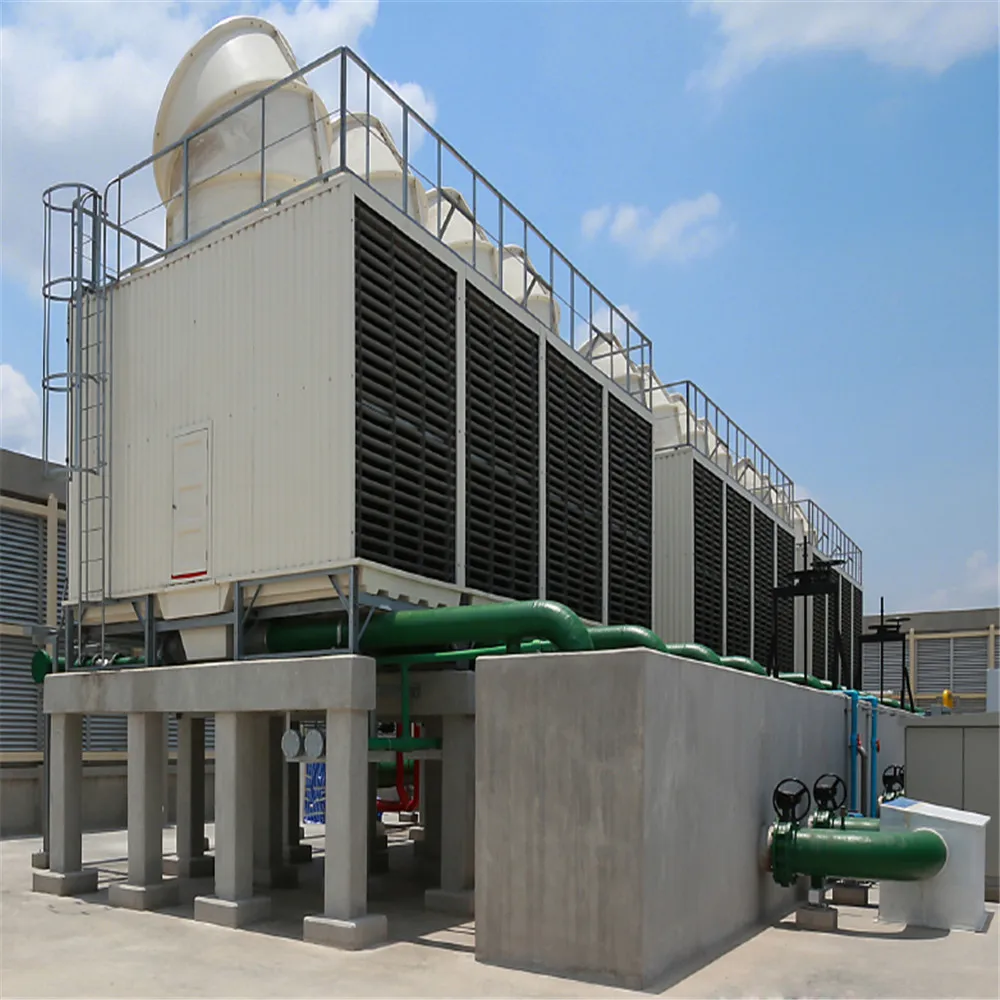

Product Pictures:

Packing And Delivery:

1) How about the delivery time?

 It deponds on the quality. Normally 10 -30 days, we can make delivery.



 2)How about the installation?

 Professional installation team, to help you to install and test. And we have the vedio of installation, which is very clear.It can show you the impotant point  and details of the installation.



 3) MOQ?1 set is OK for cooling tower and water tank.

 4) Which size cooling tower do you have? The smallest cooling tower 12 tons/h.

 The biggest cooling tower 4000tons/h
