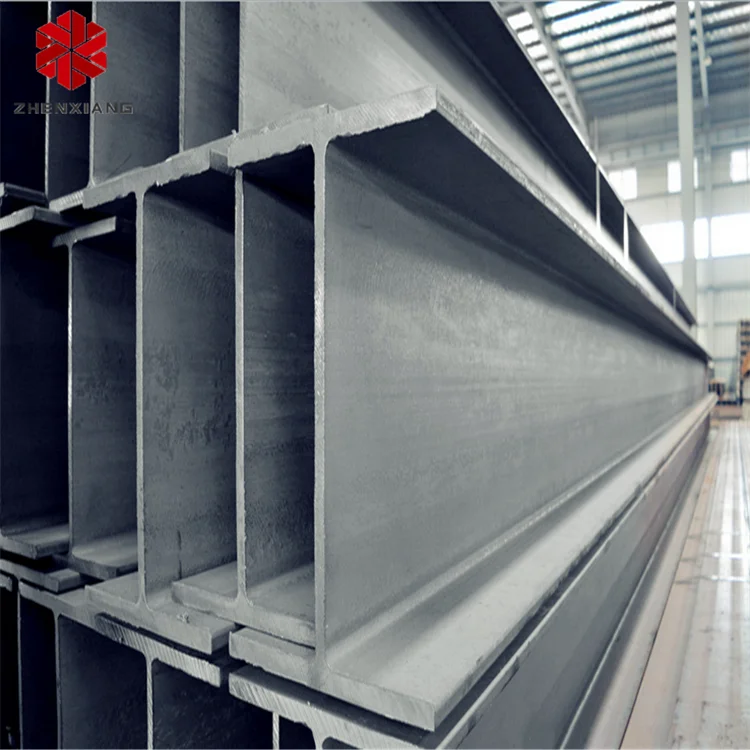

Direct factory price good quality structure ASTM A36 H Beam Section steel


Detail Description:

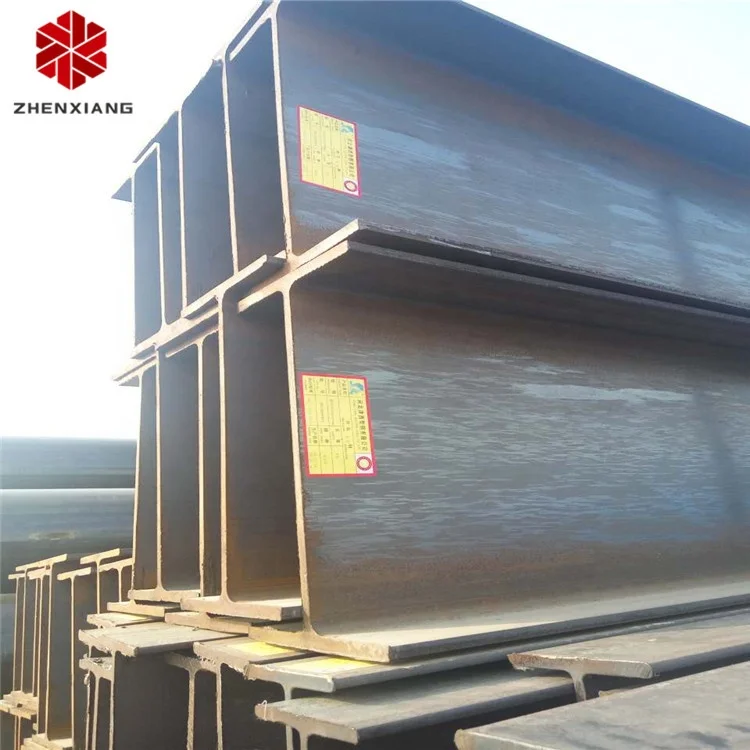

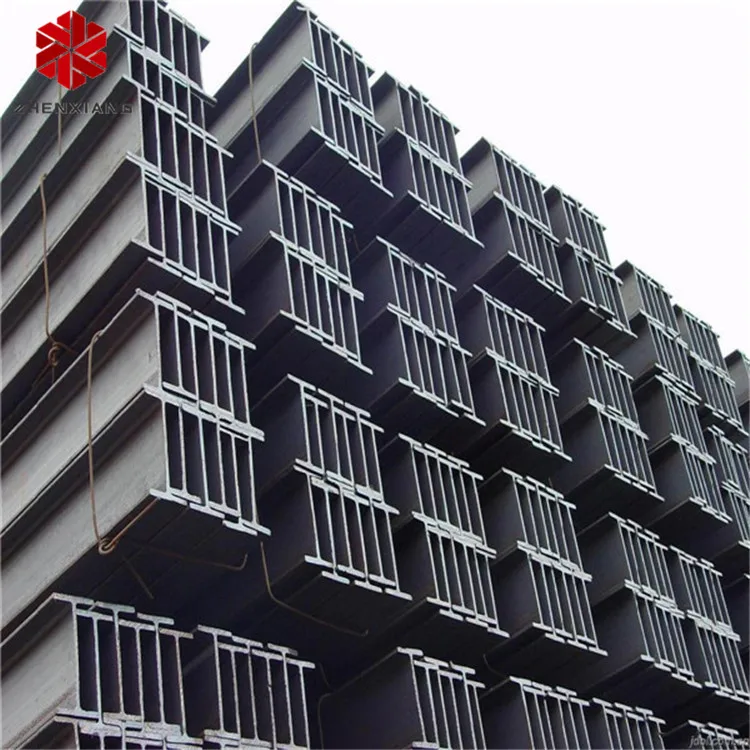

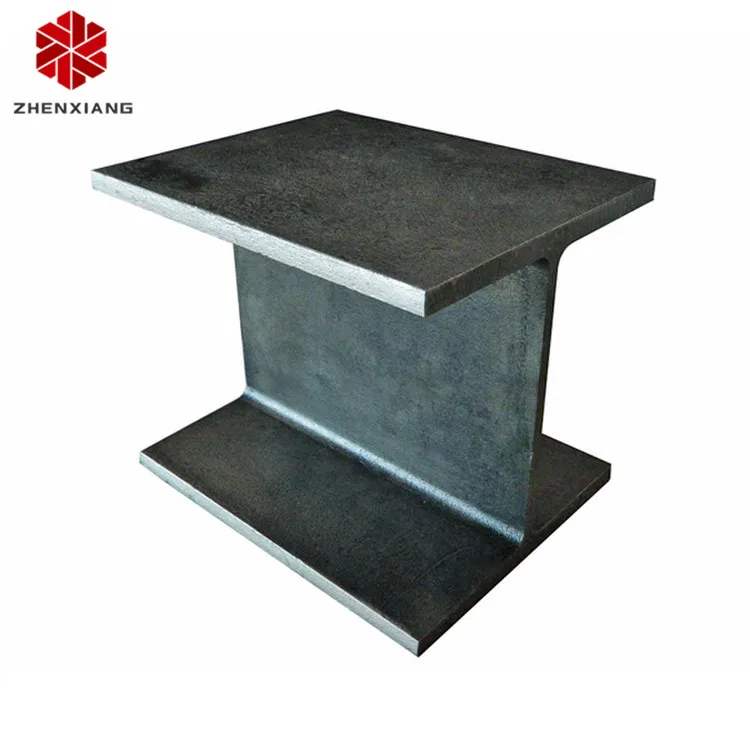

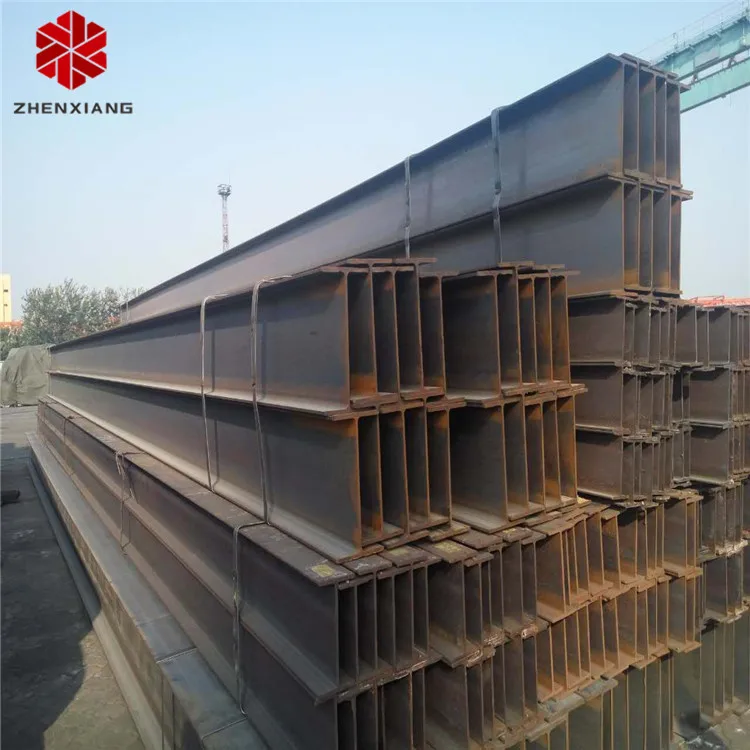

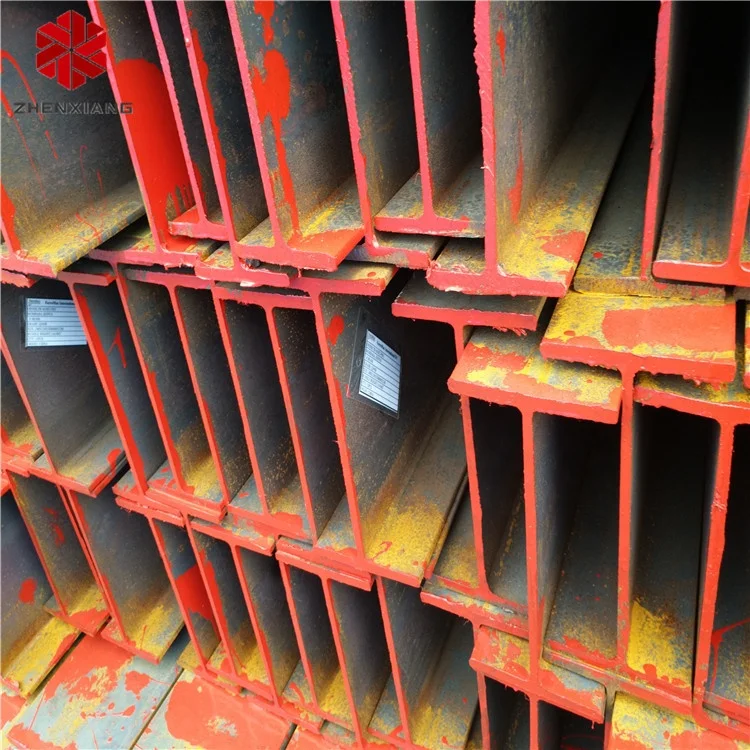

Product :Hot rolled steel H beam
Grade: Q235,Q345,A36,SS400, S235jr,S355JR.
Standard: GB, JIS, ASTM
Raw material : steel bilites
Technology: hot rolled,welded
Business type :manufacture
Supply ability:2000Ton/day
Delivery : on time
General Sizes:
| Height*width | Flange thicknes(mm) | web thickness(mm) | theretical wight kg/m | wight kg/pc |
| 100*50 | 5 | 7 | 9.54 | 114.48 |
| 100*100 | 6 | 8 | 17.2 | 206.4 |
| 125*60 | 6 | 8 | 13.3 | 159.6 |
| 125*125 | 6.5 | 9 | 23.8 | 285.6 |
| 150*75 | 5 | 7 | 14.3 | 171.6 |
| 148*100 | 6 | 9 | 21.4 | 256.8 |
| 150*150 | 7 | 10 | 31.9 | 382.8 |
| 175*90 | 5 | 8 | 18.2 | 218.4 |
| 175*175 | 7.5 | 11 | 40.4 | 484.8 |
| 194*150 | 6 | 9 | 31.2 | 374.4 |
| 198*99 | 4.5 | 7 | 18.5 | 222 |
| 200*100 | 5.5 | 8 | 21.7 | 260.4 |
| 200*200 | 8 | 12 | 50.5 | 606 |
| 200*204 | 12 | 12 | 56.7 | 680.4 |
| 244*175 | 7 | 11 | 44.1 | 529.2 |
| 248*124 | 5 | 8 | 25.8 | 309.6 |
| 250*125 | 6 | 9 | 29.7 | 356.4 |
| 250*250 | 9 | 14 | 72.4 | 868.8 |
| 250*255 | 14 | 14 | 82.2 | 986.4 |
| 294*200 | 8 | 12 | 57*3 | 687.6 |
| 294*302 | 12 | 12 | 85 | 1020 |
| 298*149 | 5.5 | 8 | 32.6 | 391.2 |
| 300*150 | 6.5 | 9 | 37.3 | 447.6 |
| 300*300 | 10 | 15 | 94.5 | 1134 |
| 300*305 | 15 | 15 | 106 | 1272 |
| 340*250 | 9 | 14 | 79.7 | 956.4 |
| 344*348 | 10 | 16 | 115 | 1380 |
| 346*174 | 6 | 9 | 41.8 | 501.6 |
| 350*175 | 7 | 11 | 50 | 600 |
| 350*350 | 12 | 19 | 137 | 1644 |
| 388*402 | 15 | 15 | 141 | 1692 |
| 390*300 | 10 | 16 | 107 | 1284 |
| 394*398 | 11 | 18 | 147 | 1764 |
| 396*199 | 7 | 11 | 56.7 | 680.4 |
| 400*200 | 8 | 13 | 66 | 792 |
| 400*400 | 13 | 21 | 172 | 2064 |
| 400*408 | 21 | 21 | 197 | 2364 |
| 414*405 | 18 | 28 | 233 | 2796 |
| 428*407 | 20 | 35 | 284 | 3408 |
| 440*300 | 11 | 18 | 124 | 1488 |
| 446*199 | 8 | 12 | 66.7 | 800*4 |
| 450*200 | 9 | 14 | 76.5 | 918 |
| 458*417 | 30 | 50 | 415 | 4980 |
| 482*300 | 11 | 15 | 115 | 1380 |
| 488*300 | 11 | 18 | 129 | 1548 |
| 496*199 | 9 | 14 | 79.5 | 954 |
| 498*432 | 45 | 70 | 605 | 7260 |
| 500*200 | 10 | 16 | 89.6 | 1075.2 |
| 506*201 | 11 | 19 | 103 | 1236 |
| 582*300 | 12 | 17 | 137 | 1644 |
| 588*300 | 12 | 20 | 151 | 1812 |
| 594*302 | 14 | 23 | 175 | 2100 |
| 596*199 | 10 | 15 | 95.1 | 1141.2 |
| 600*200 | 11 | 17 | 106 | 1272 |
| 606*201 | 12 | 20 | 120 | 1440 |
| 692*300 | 13 | 20 | 166 | 1992 |
| 700*300 | 13 | 24 | 185 | 2220 |
| 792*300 | 14 | 22 | 191 | 2292 |
| 800*300 | 14 | 26 | 210 | 2520 |
| 890*299 | 15 | 23 | 213 | 2556 |
| 900*300 | 16 | 28 | 243 | 2916 |
| 912*302 | 18 | 34 | 286 | 3432 |
| We also can according our clients reqeusts to make your needs.waiting for you email | ||||

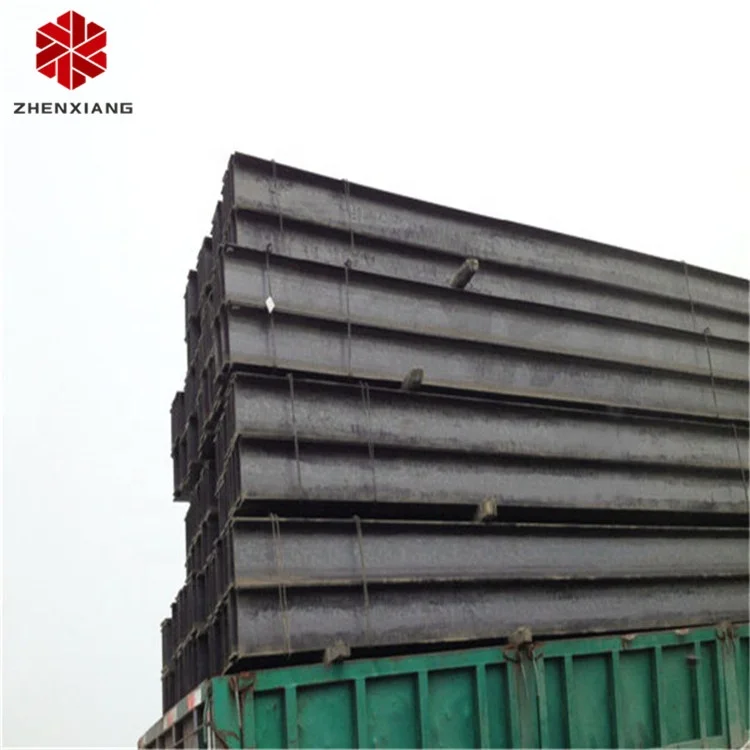

Packaging Details:In bundles with steel wire packing in break- bulk shipment
In Container 20-2
Package:5mt by GP In Standard export seaworthy package

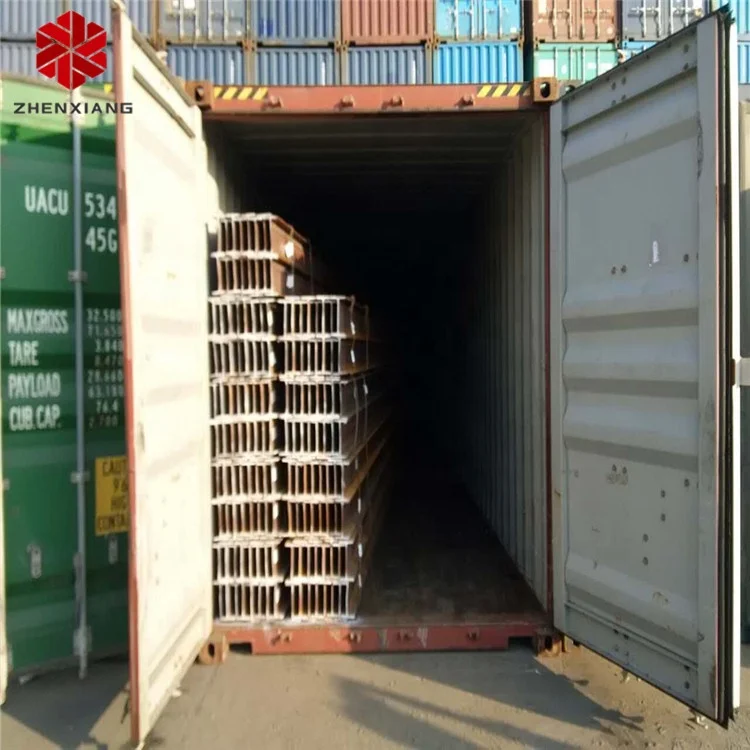

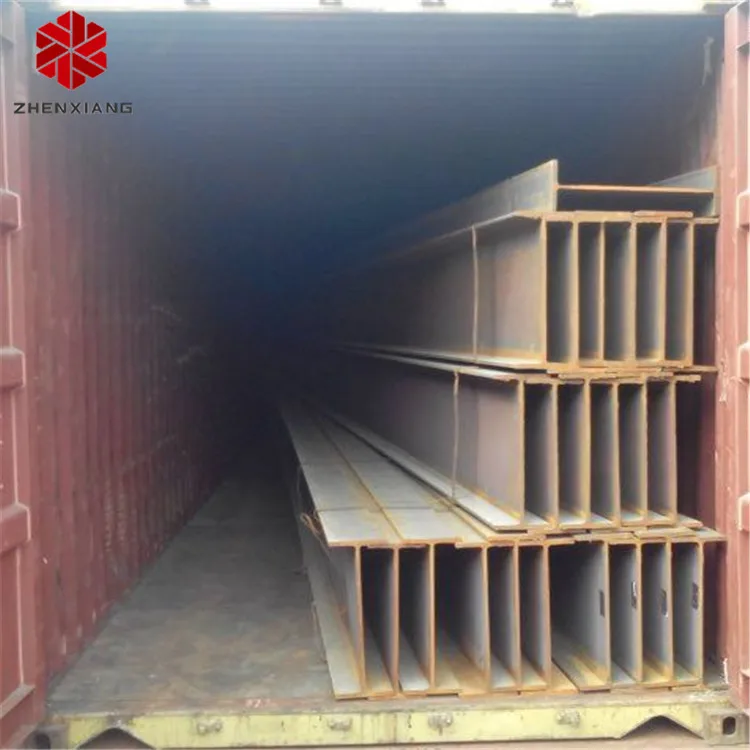

Shippment: in 20/40 GP container or in bulk
Delivery Detail:Within 30 days (depend on the quantity)

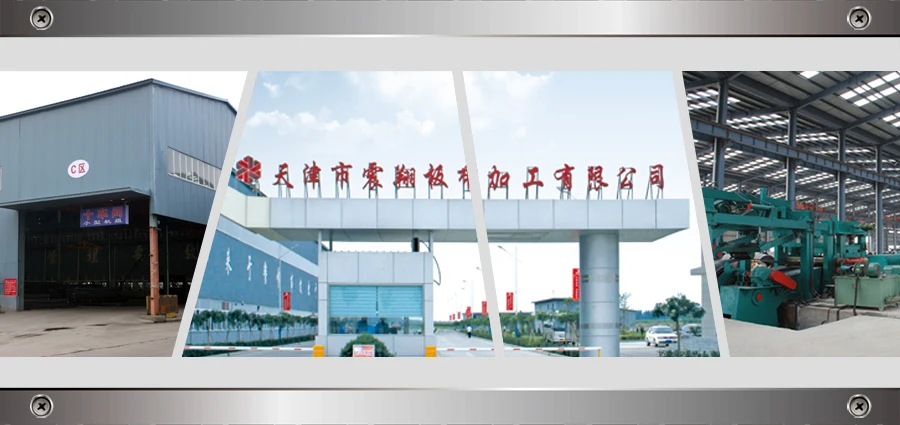

TIANJIN ZHENXIANG STRIP PROCESSING CO., LTD, covering about 150,000 square meters, belongs to one of the five wholly-owned subsidiaries of Nanxiang Group. The number of our staffs is more than 800. At present we have 46 sets of flat bar, angle bar and channel steel production lines. The daily output reaches over 3,000 Metric tons.As an honor, we are named "the biggest strip processing base of steel flat bar in China" in lines with our over 10 years of professional experience in steel industry.
Nanxiang Group which was founded in 2005 is the first strip processing of steel flat bar industry brand in China. As one of the integrated iron and steel enterprises, it’s a composition of strip slitting, hot rolled steel flat bar production, hot dip galvanized processing, international trade, logistics and distribution.
Our main products include steel flat bar, serrated steel flat bar, I type bar, steel pipe & tube, angle bar, channel steel, H beam, I beam, steel plate, steel strip and coils, wire rod, steel rebar and checkered steel plate, etc. With our products exported to Korea, Japan, Southeast Asia, North Africa, Australia, the Americas and Europe, the annual output value has reached 2.88 billion RMB. We have won a very good reputation in steel industry from our various cooperative partners by our reliable quality and good service.
We will always adhere to the principle of “quality first, service supreme, mutual beneficial” to create the splendid mutual development and brilliant future together with you.
