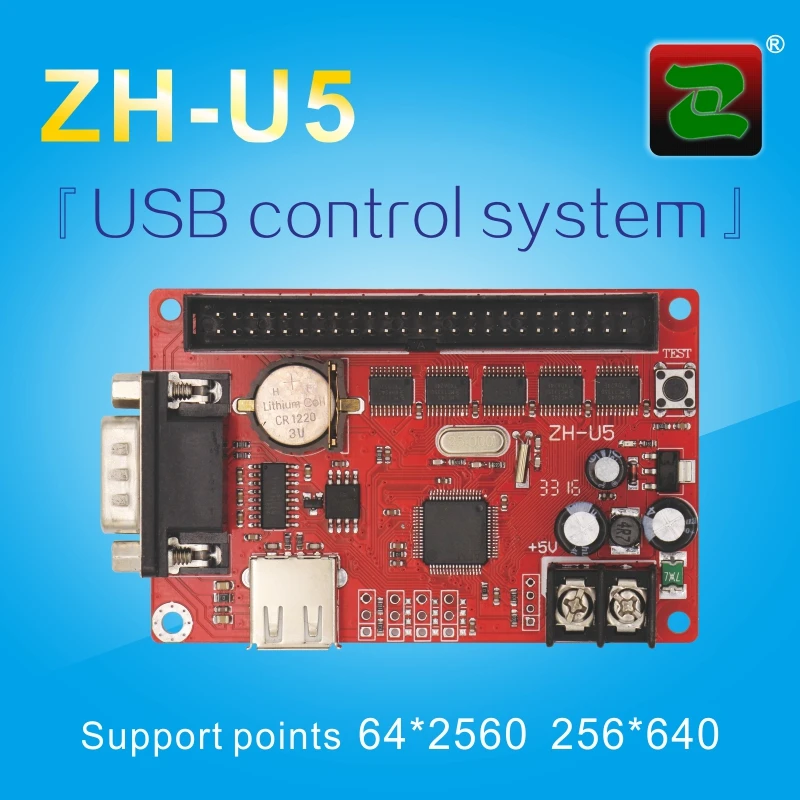

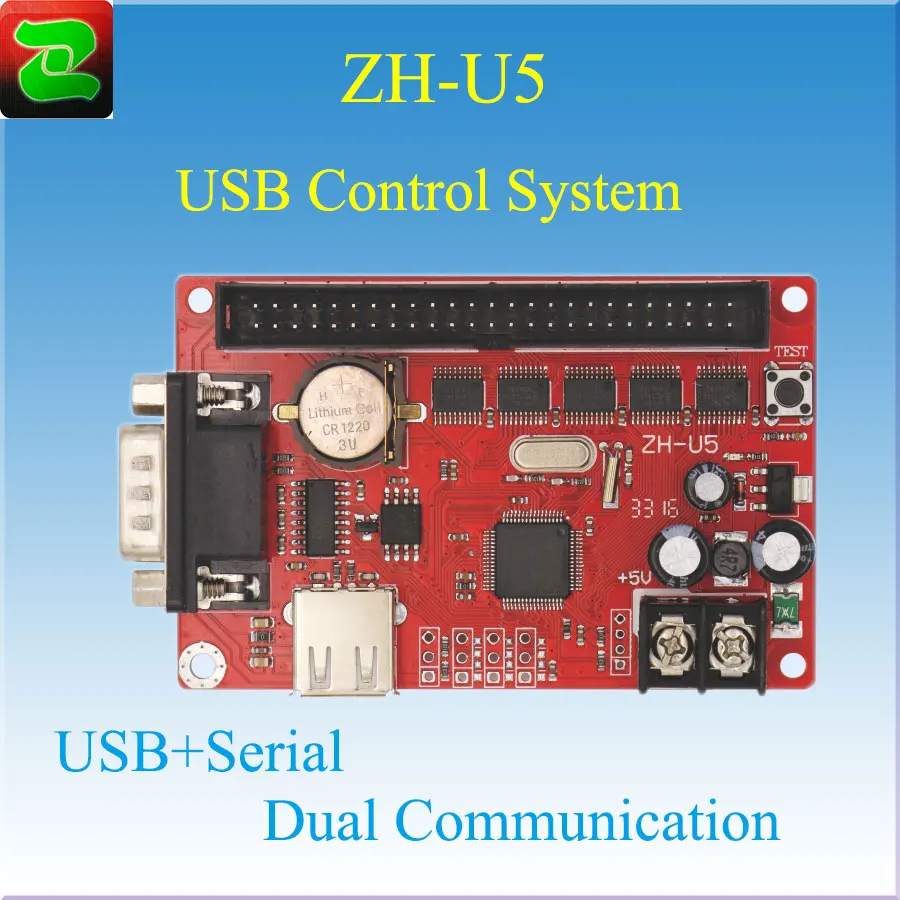

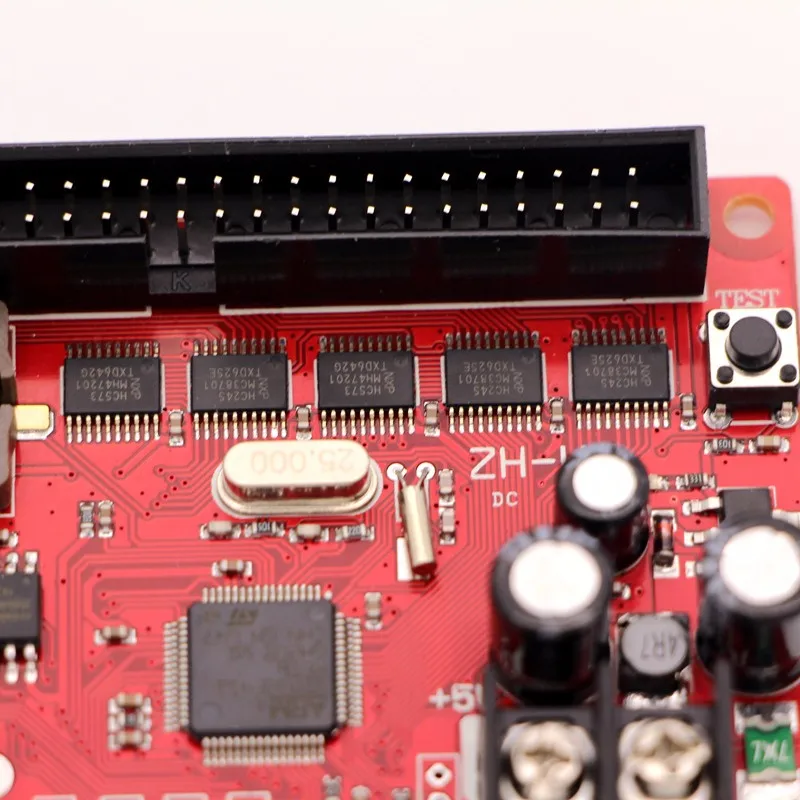

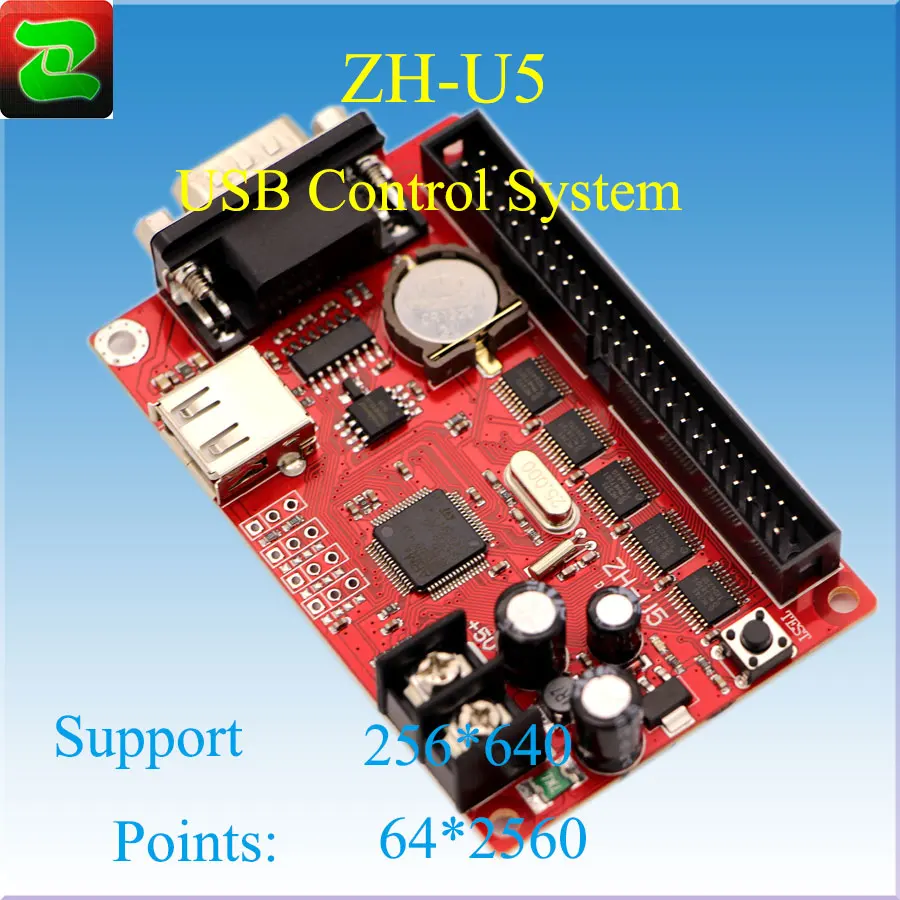

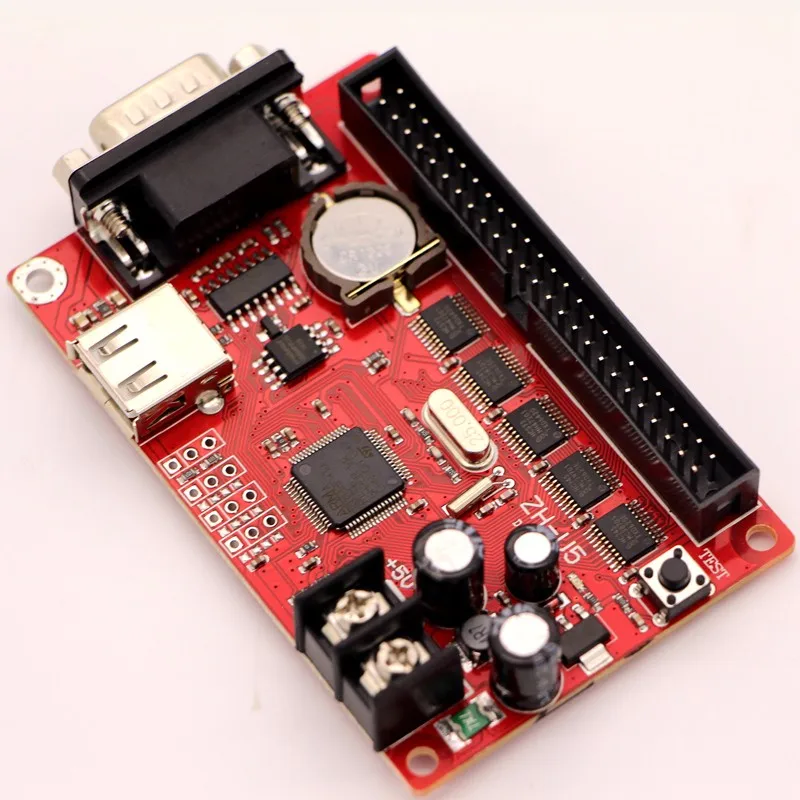

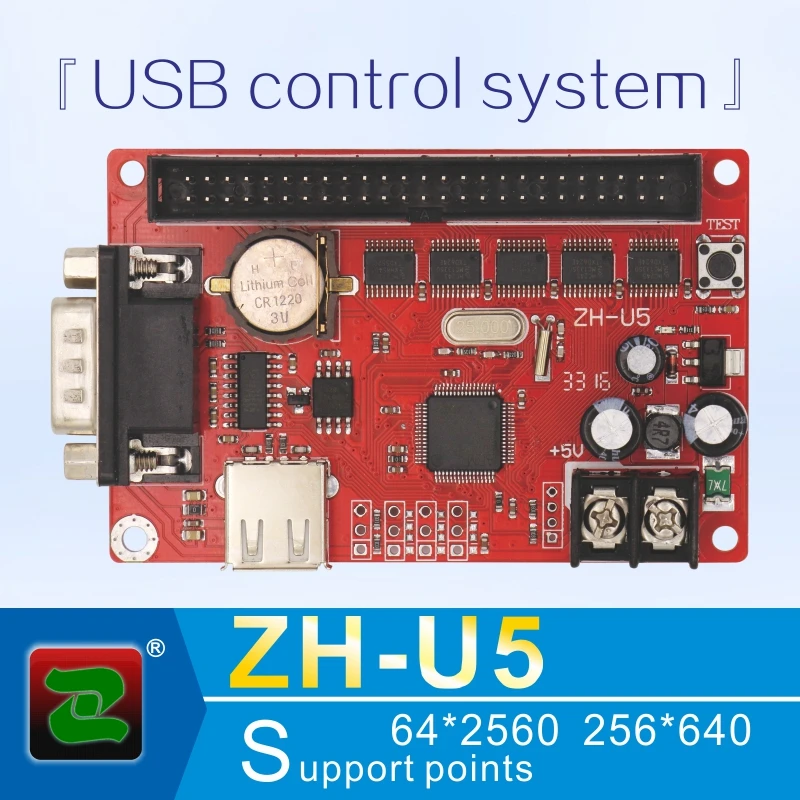

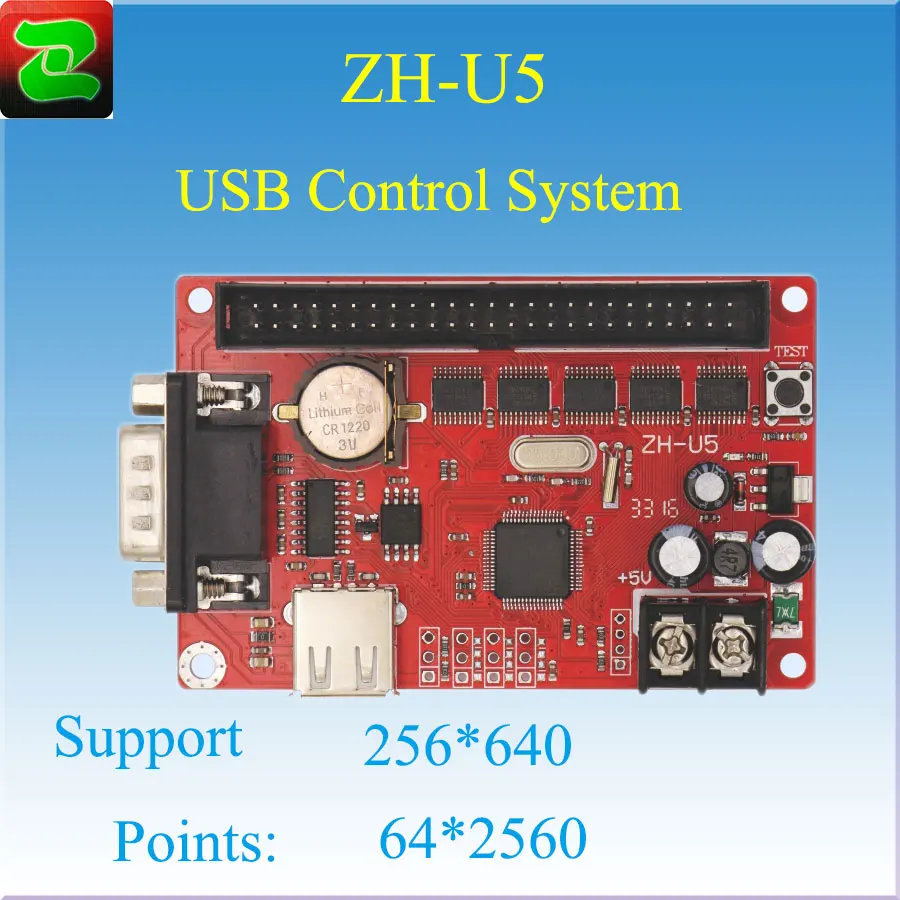

USB/WIFI/RS232 Lan Port P10 Led Display Control Card ZH U5 Controllers

Product features

Random partition, running side, time switch, digital clock, analog clock, 16 levels brightness adjustment, unit plate test, including somersault, bubbling, blowing snow, windmill, vector stretch, laser, scroll open, rhombus, rectangle, fanning, etc.

Hardware

Model number:  ZH-U5
Processor:  ARM7
LedOS system:  With LedOS V3.35 operation system inside
Storage capacity: 8M bit

Communication Distance: RS232 :120 meters

                                                 RS485: 1200 meters(can                                                              customize)

Communication Baud rate: support 9600-115200

Display adapter: T12 2 groups onboard interfaces, a set                                      of interfaces T08
Working voltage:  5V (in the range of 3.2-5.5)
Power:  ≤0.5W
Environment temperature:  -30℃～70℃’

Software

Function display

Multi-program play:  At most add 32 programs, set multi-program fixed time play , timer play, time segment play, single program play
Program types:  Image-text, subtitles, digital time, analog clock, animation
Time switch: Support software forced switch&time switch
Time display:  Support digital time and analog clock
Motion modes: 60 kinds of display ways and 42 kinds of quitting ways arbitrary collocation, over 2000 kinds of random assortments perfect collocation
Running side: Over 10 kinds of running modes, support single partition running mode
Brightness adjustment: Support 0-15 level manual brightness adjustment

How to download the software?

Please download the software on our official website: www.zhonghangled.com/en. Click  Download Center and follow the technical instructions.

Zhengzhou Zhonghang Software Development Co., Ltd

Zhengzhou Zhonghang Software Development Co., Ltd is located in Hi-tech District of Zhengzhou City. Our company is a Hi-tech enterprise which focuses on LED display control card system research, development, production, sale, and service.

Our senior research and development team has professional management personnel, strong production ability, high quality products, excellent after-service. It makes our company rapidly develop into a professional manufacturer and main supplier in LED display control system field. In the future, our company will insist on technical innovation, management improvement and product update, and try our best to provide the best service.

Before-Sales Service:

After-Sales Service:

We promise to provide technical support timely . Please do not hesitate to send me an email or leave me a message if you have any queries. Our customer service team is more than happy to resolve any issues for you.

Free Gift Support:

We will offer you some control cards as gifts according to your order quantity.

Q1. Can I have a sample order for led display controller?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led display control card?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
Secondly, during the guarantee period, we will send new card with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
