Product Overview
Description
keyhole tig welder
Product Application
K-TIG welding is a new method which can realize "Keyhole" welding. It has the appearance of ordinary TIG welding, and it has the characteristics of super penetration of plasma welding.
K-TIG welding technology is a kind of high-speed one-way full penetration welding technology, it does not need any wire and don't need to open groove, also do not need a professional worker, but able to do 10 times faster than normal TIG welding technology on perfectly welding 3 ~ 16 mm thickness plate (such as Titanium alloy). (Note: less than 3% of the welding materials from traditional welding are used to overcome the bite.) The welding seam is 100% of the maternal layer, and there are no multiple fusion lines,completely no slag, air hole and common weld defects. The unrippled welding pool of K-TIG welding ensures the high quality of the covering both layer, and completely does not need the back clearance and surface polishing cleaning and polishing.

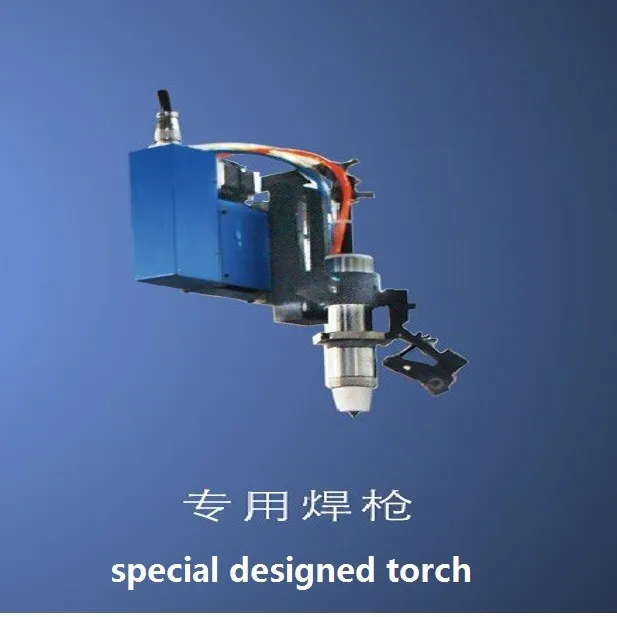

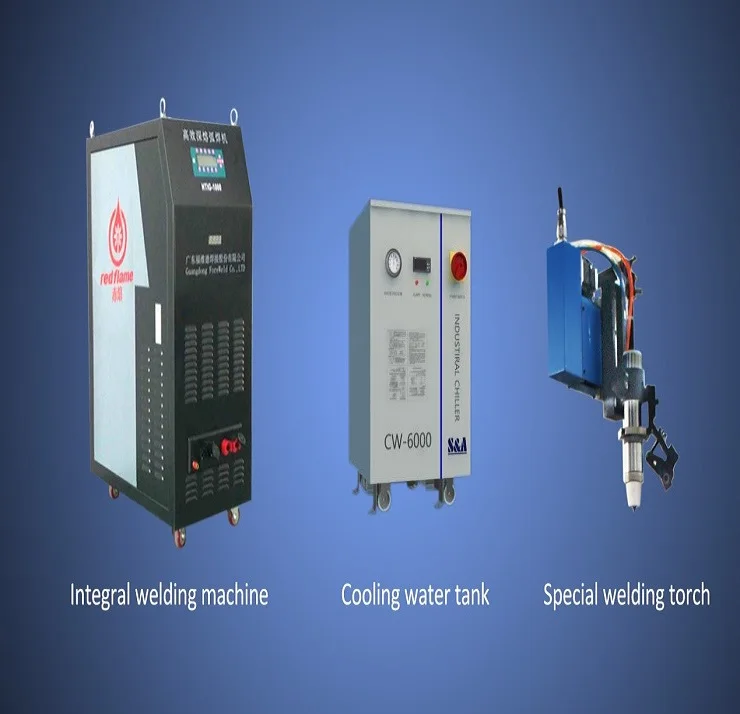

K-TIG welding machine is installed with special welding torch based on the keyhole effect of TIG welding machine control system , precision calculating the welding material, thickness, process parameters through the computer system, realize the precise control of welding process, in order to realize the automation of welding operation, dynamic adjusting the welding parameters by computer program to ensure repeatable high welding quality.
K-TIG welding system can save a lot of manpower, materials and energy for many welding applications. It is suitable for welding stainless steel, nickel base alloy, titanium alloy, zirconium alloy, cobalt alloy etc. These expensive metal processing requires high weld quality and forming, and K-TIG welding can provide high welding quality and efficiency; At the same time, the quality, efficiency and cost advantage of the thick slab welding and thick slabs are better than other technologies. Therefore, it is more competitive than traditional welding and GMAW.
Main Features
K-TIG welding machine is a new kind of high efficiency and energy saving inverter TIG welding machine which can realize stable automatic welding. Have the following advantages:
1、\tAutomatic welding process
2、\teasy operation, worker can independent operate after 2 days training
3、\tfast welding speed, 5 to 10 times faster than normal TIG/GTAW
4、\tUnder certain thickness, the welding machine workpiece does not need to bevelling, one surface welding two surfaces forming, good welding seam, no need to back chipping
5、\tThe back weld width is 2 to 3 mm, the face weld width is usually about 1.5 times the thickness of the plate
6、\tone surface welding two surfaces forming, no need to bevelling, can achieve convex weld without adding material, can cover both side
7、\tstrong error-tolerance, under certain thickness, the gap of the welding machine workpiece can reach to 2 mm
8、\tWelding includes carbon alloy steel, stainless steel, titanium alloy, nickel-base alloy, cobalt alloy and zirconium, able to ensure exceptional welding speed and quality
9、\tthe best choice for thick plate welding, 12 mm thick carbon alloy steel plate, 13 mm thick stainless steel plate or nickel-base alloy plate and 16 mm thick titanium alloy plate, cobalt alloy plate or zirconium plate. More than these should open an "V" shape groove
10、\tusing pure argon to protect during the process
11、\thigh welding efficiency and low energy consumption
12、\tlow maintenance costs
Detailed Images tig

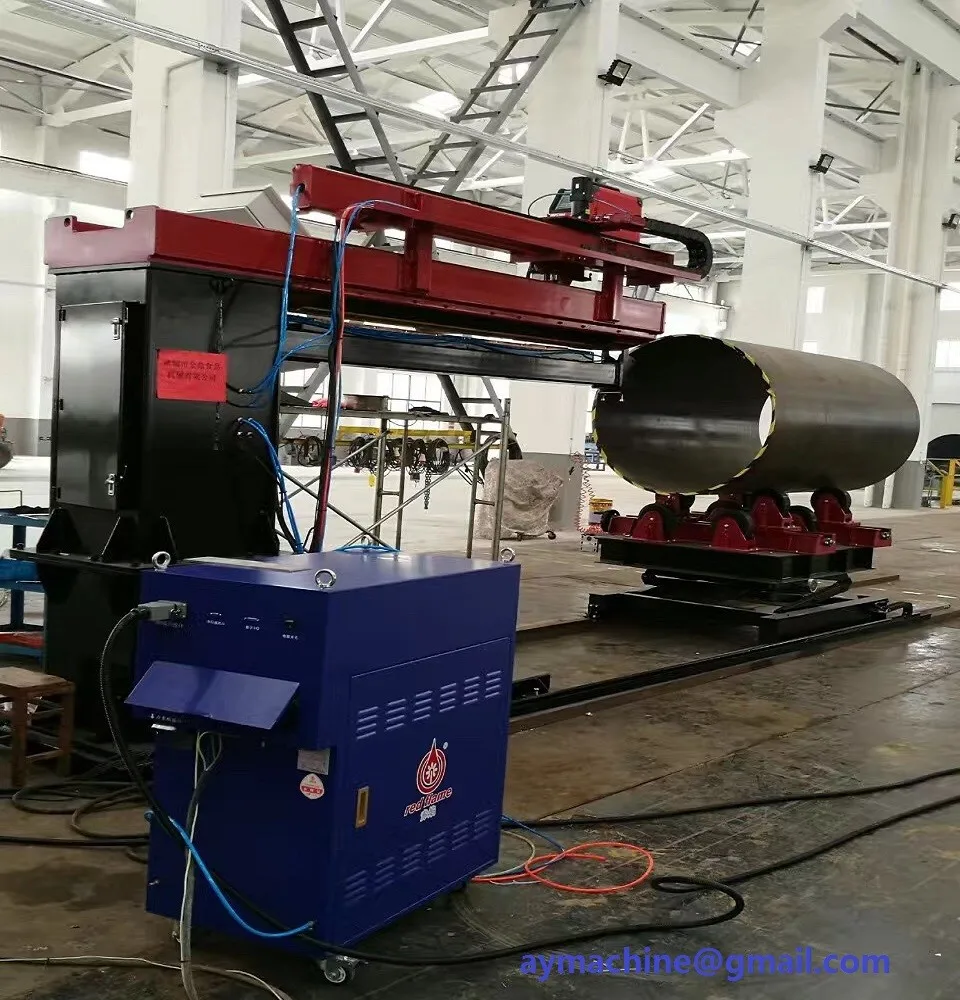

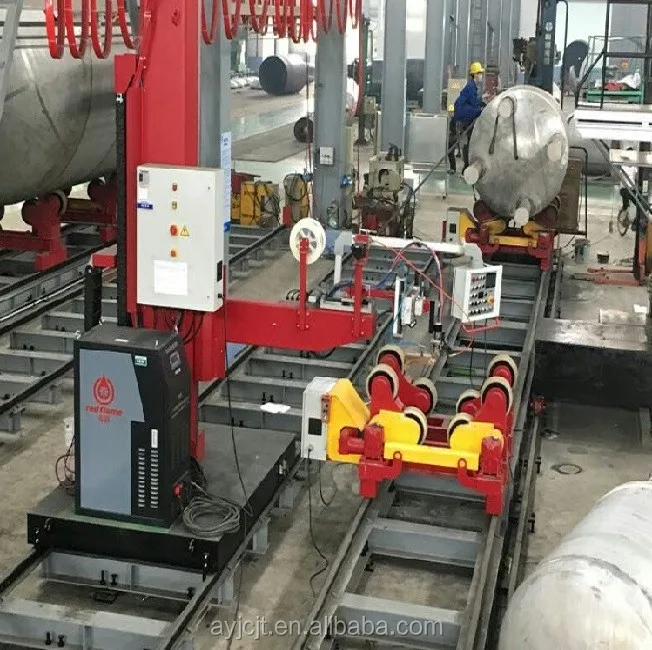

Longitudinal seam welding

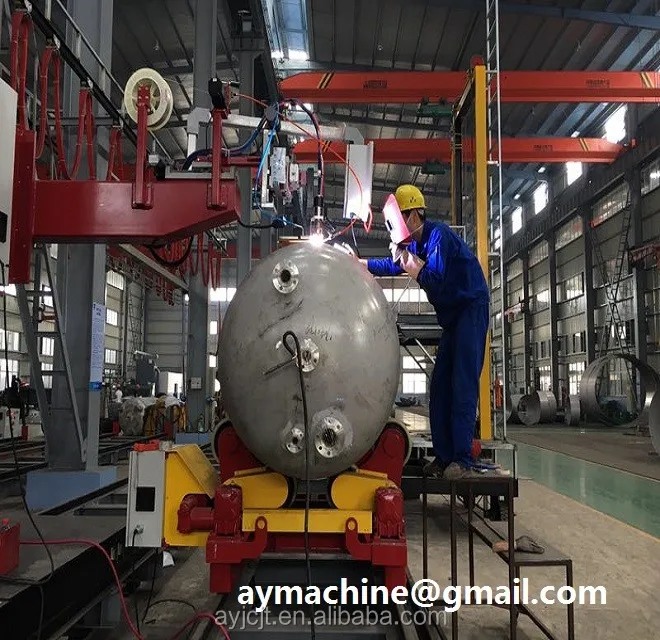

circular seam welding

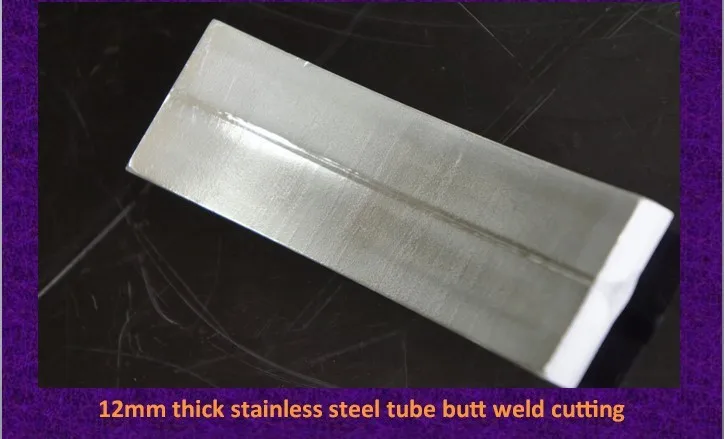

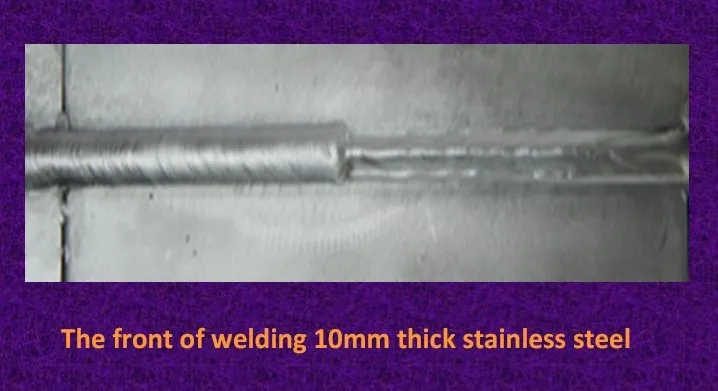

stainless steel
right side :one pass full penetration without wire
left side : after covering with wire
stainless steel back formation
one pass full penetration
oneside welding with back formation
Certificationstig
Our Service tig
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year free maintenance, lifelong caring
* Free technical consultant
* Technical service responding in 2 hours
* Continuous support with software and hardware after free maintenance
