10L 10 Liter Rotovap condenser for ethylene glycol
- Category: >>>
- Supplier: Shanghai Hjlab Instruments Co. Ltd.
Share on (60704636334):
Product Overview
Description
Product Description

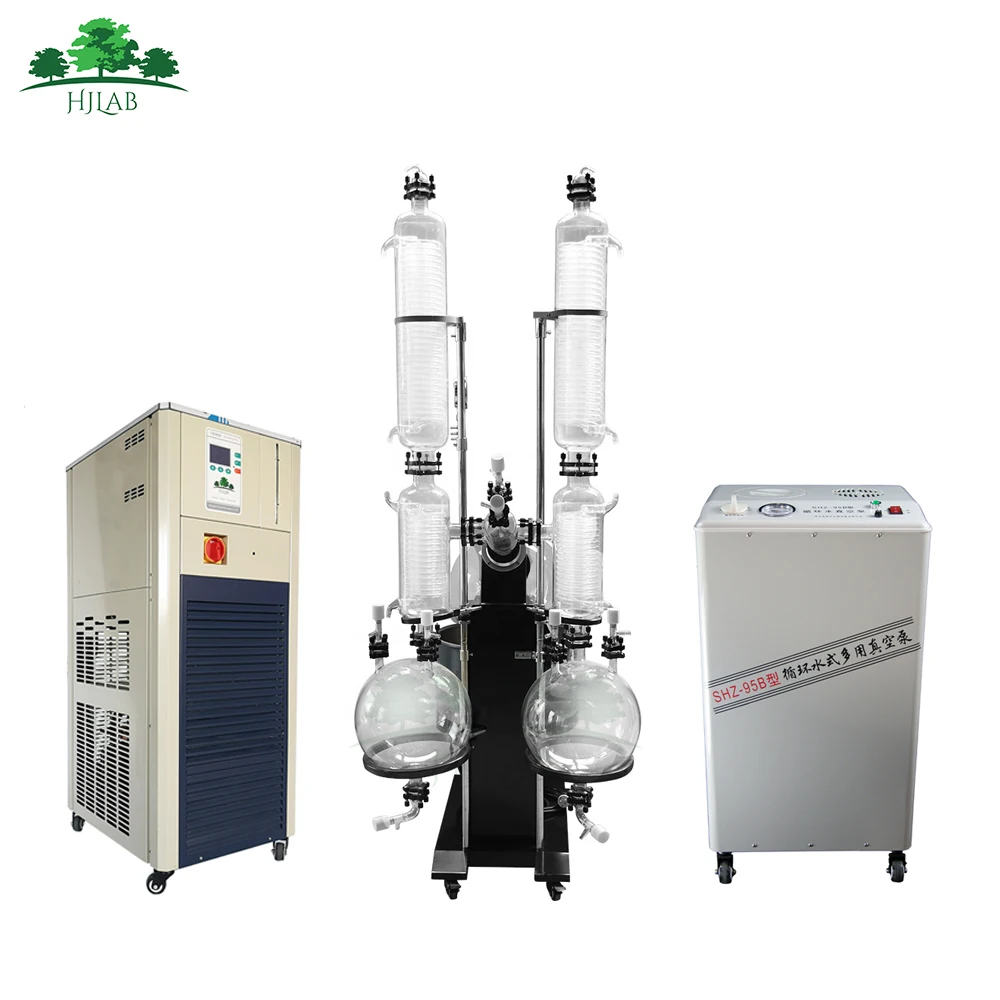

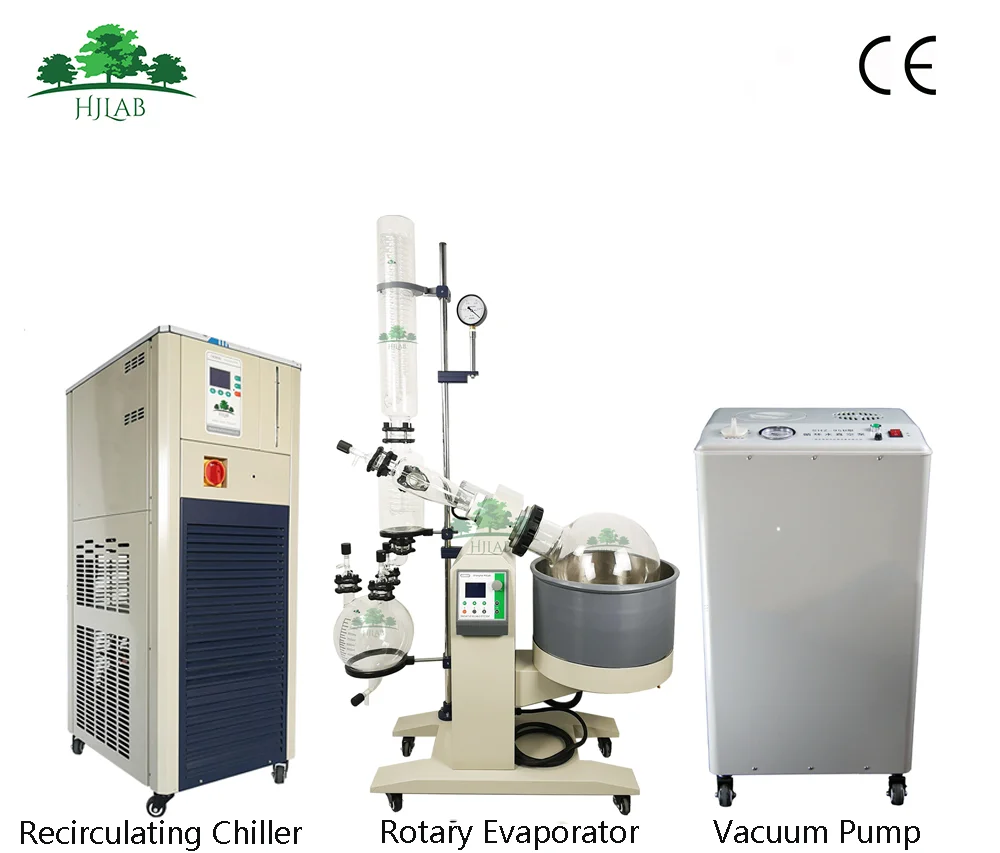

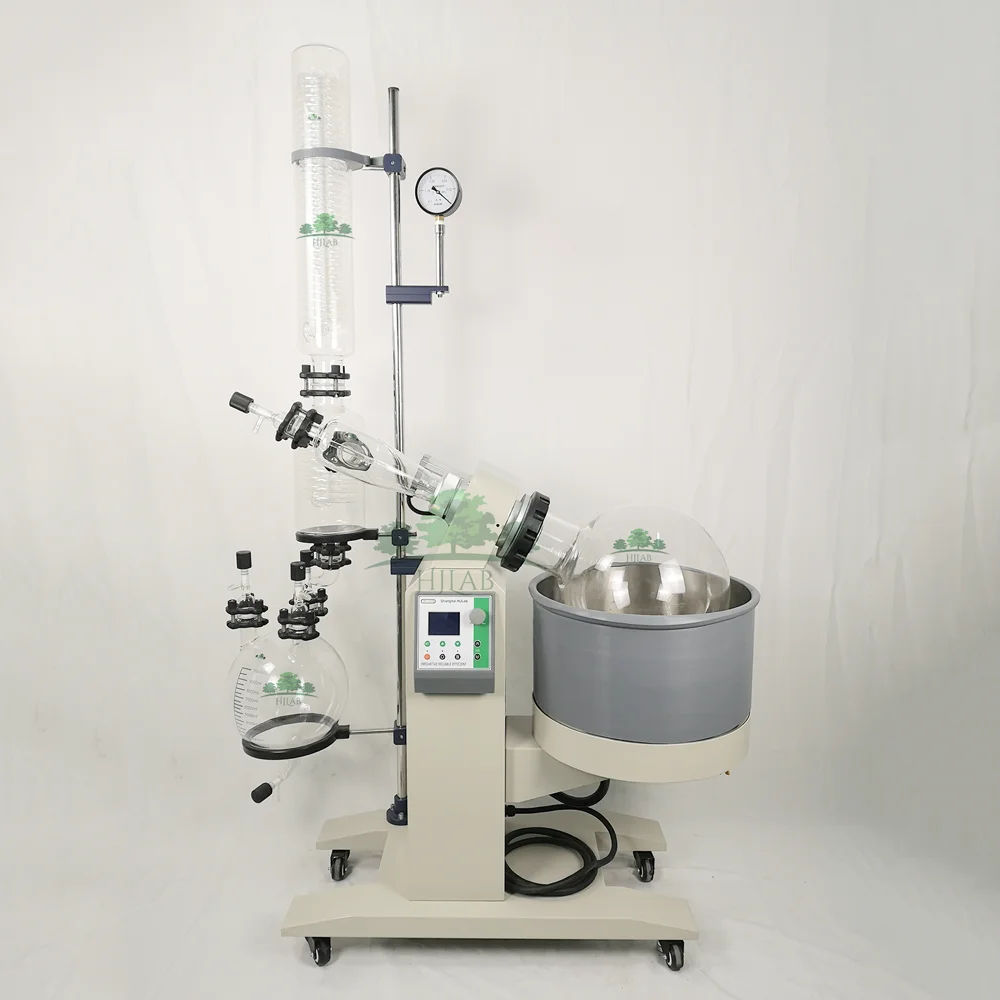

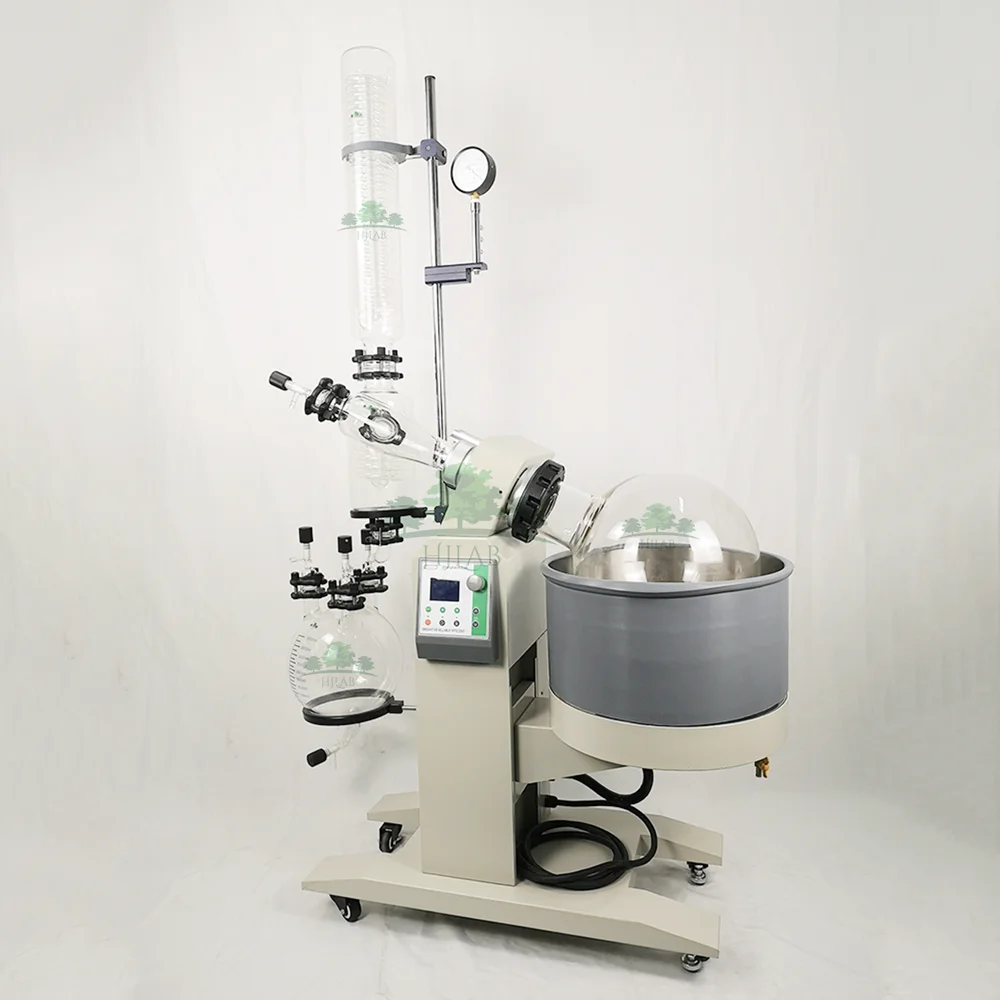

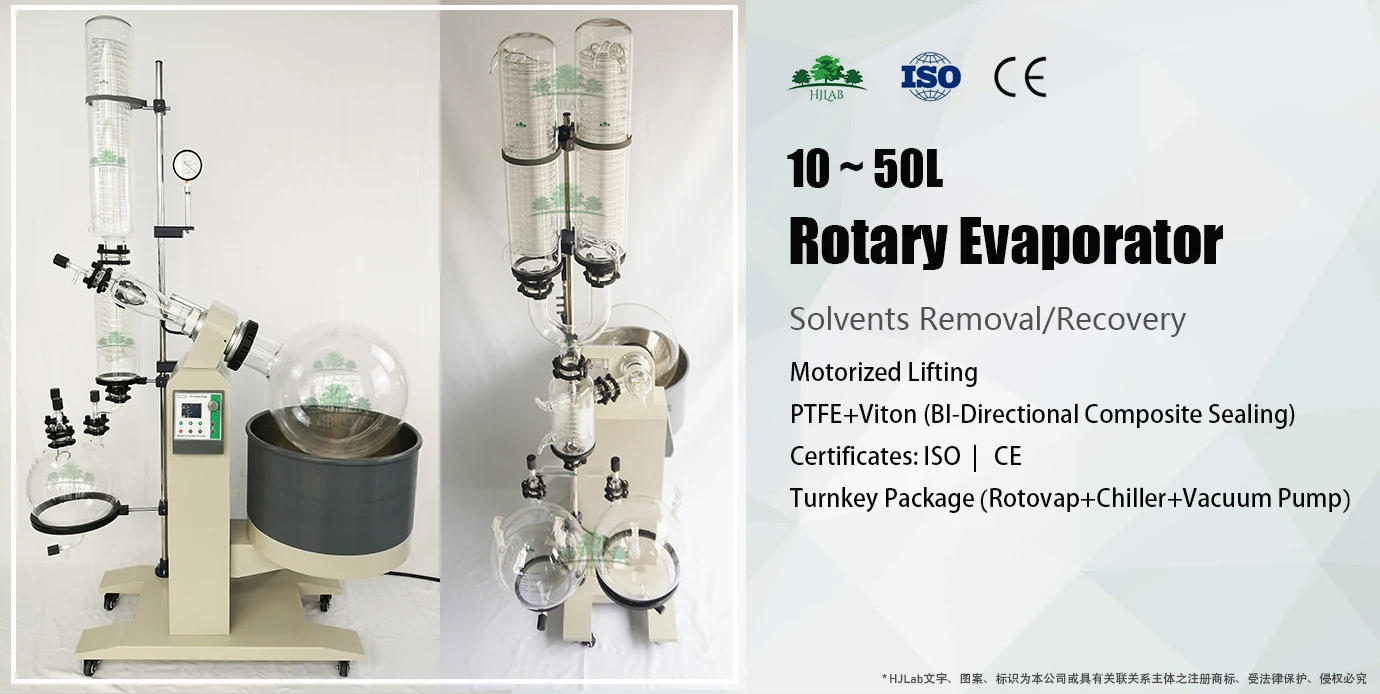

10L 20L 50L Industrial Rotary Evaporator
with Vacuum Pump and Chiller
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a n hexane or
ethyl acetate from compounds which are solid at room temperature and pressure.
ethyl acetate from compounds which are solid at room temperature and pressure.
Benefits | ||||||

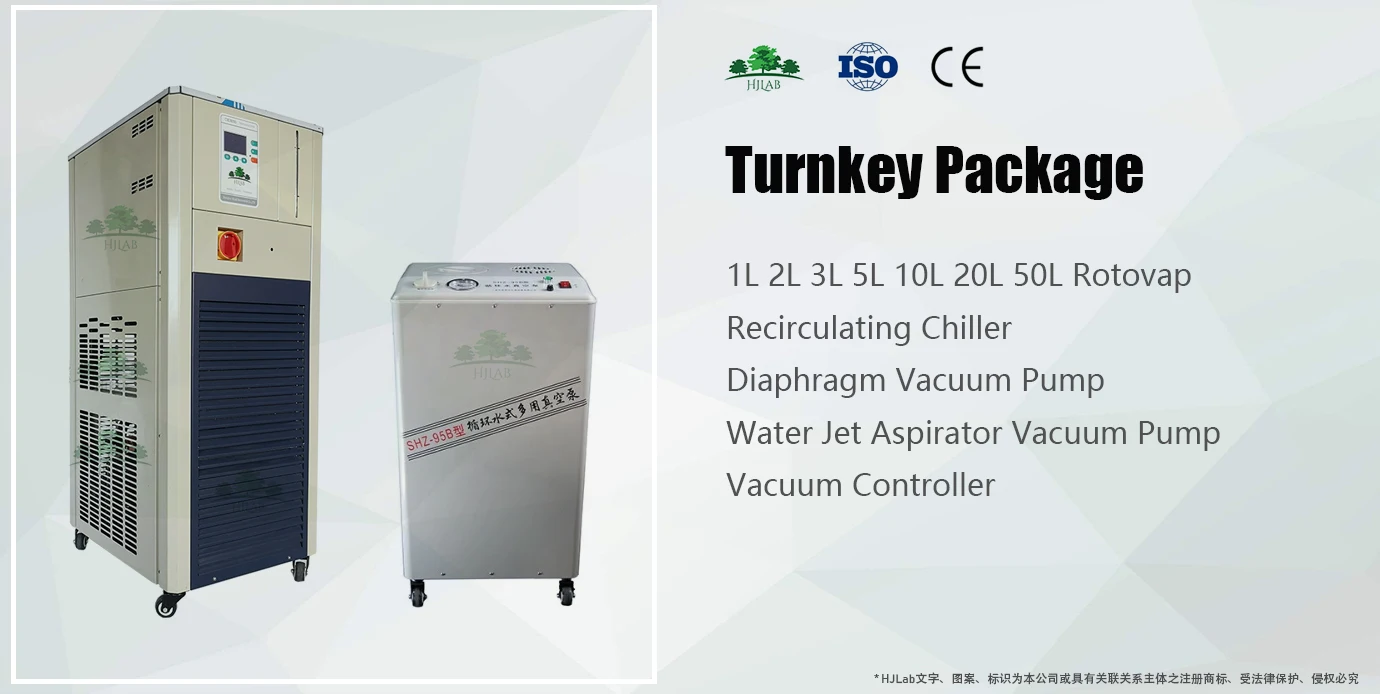

High performing | • Fast distillation due to high heating capacity • Large batches in a flask of 10, 20, 30, 50 and 100 liters • We offer the following related product for completing your portfolio 1) Recirculating Chiller 2) Water Circulating Vacuum Pump 3) Diaphragm Pump 4) Vacuum Controller | |||||

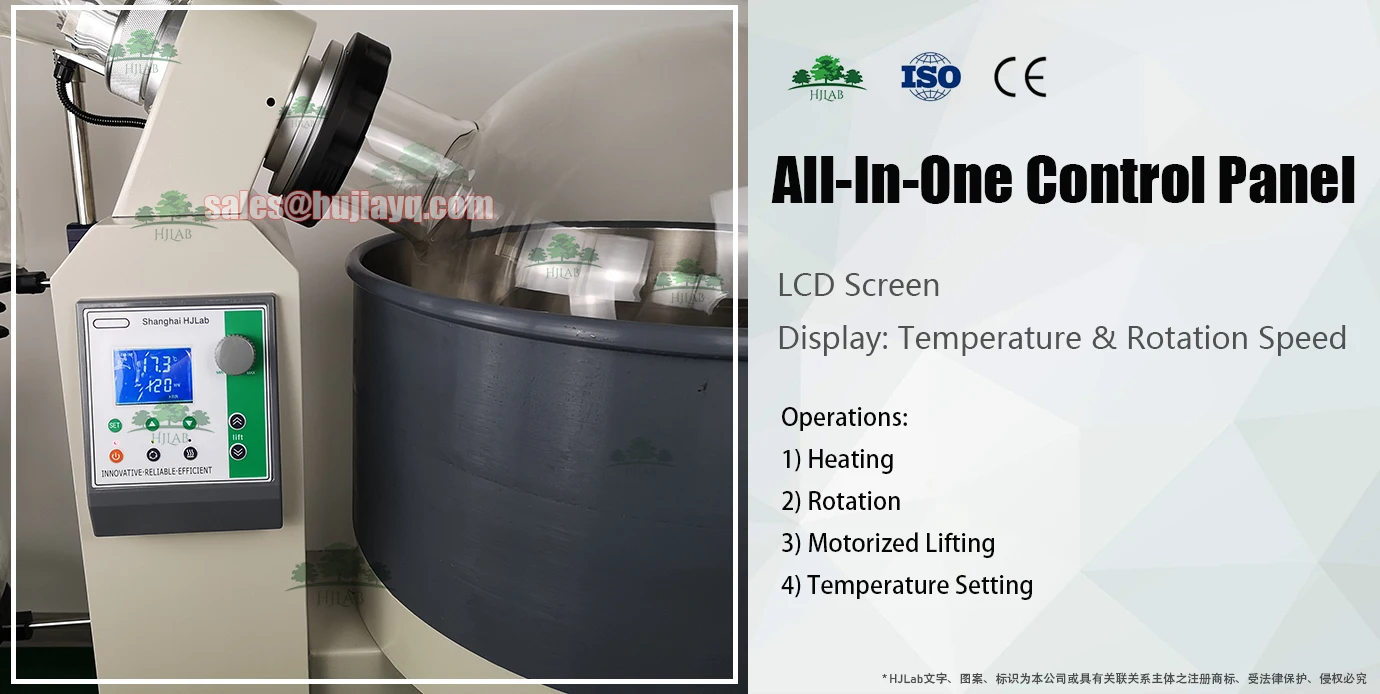

Easy and safe | • Intuitive operation of the Rotary Evaporator and its vacuum controller(optional) • Excellent handling by large and easy readable display • Easy flask handling due to the unique flask coupling • Safe handling and spring loaded valves protect the glass | |||||
Durable | • Long life time due to exclusive use of corrosion-free stainless steel • Low maintenance by using high chemical resistant materials • Trouble-free operation thanks to robust industrial valves | |||||
Specifications | ||
Electrical Requirements | 110V 220V 50/60Hz, Single Phase RE-5210 (10L): 17.3A, 3800 watts RE-5220 (20L): 20A, 4250 watts RE-5250 (50L): 29A, 6400 watts | |
Glass Material | High Borosilicate Glass 3.3 | |
Evaporating Flask | Maximum Load: Not to exceed 60% of the flask's capacity Sealing Flange: 4.9'' diameter Rotation Speed: 10 to 120 RPM RE-5210 (10L): Capacity: 2.6 gallon (10 liters or 0.35 cu ft) Evaporating Speed: 0.75 gallon/hour (water), 1.5 gallon/hour (alcohol) RE-5220 (20L): Capacity: 5.28 gallon (20 liters or 0.7 cu ft) Evaporating Speed: 1 gallon/hour (water), 2 gallon/hour (alcohol) RE-5250 (50L): Capacity: 13.2 gallon (50 liters or 1.8 cu ft) Evaporating Speed: 2 gallon/hour (water), 4 gallon/hour (alcohol) | |
Receiving Flask | RE-5210 (10L): 1.3 gallon (5 liters or 0.18 cu ft) RE-5220 (20L): 2.64 gallon (10 liters or 0.35 cu ft) RE-5250 (50L): 5.28 gallon (20 liters or 0.7 cu ft) | |

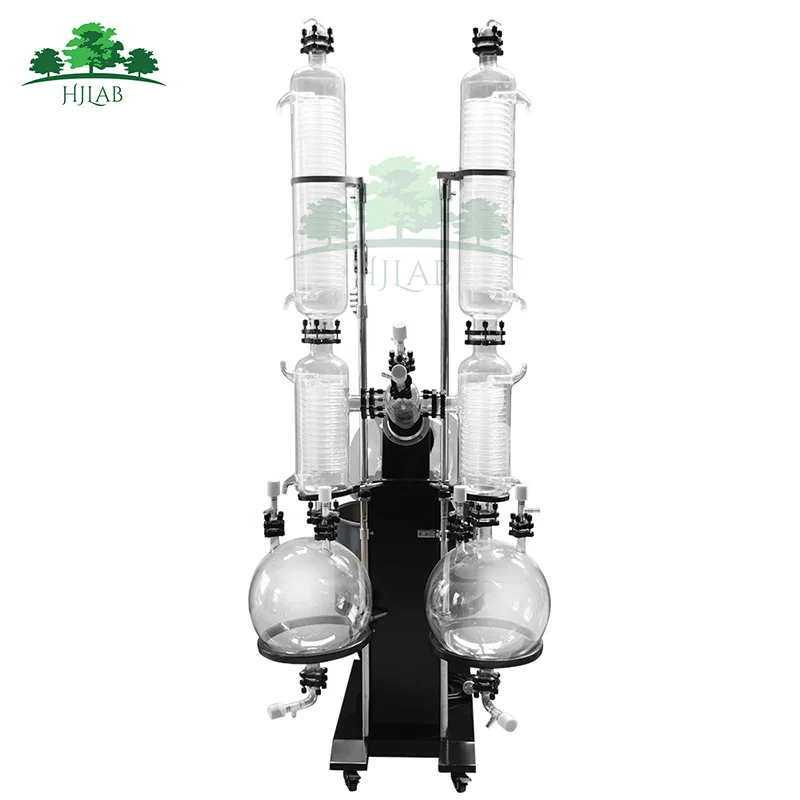

Condenser | Glassware: Main + Auxiliary triple-circulating cold traps, vertical Chilling fluid connection: 3/8'' hose barb * 4 (2 on main + 2 on auxiliary) RE-5210 (10L): Main Condenser: 3,900 cm^2 Auxiliary Condenser: 2,530 cm^2 RE-5220 (20L): Main Condenser: 9,480 cm^2 Auxiliary Condenser: 3,580 cm^2 RE-5220 (20L): Main Condenser: 11,500 cm^2 Auxiliary Condenser: 4,000 cm^2 | |
Water Bath | Temperature Range: RT to 99°C (210°F) Temperature Controller: Digital Material: Stainless Steel Media: Distilled Water or Oil (Dual-Purpose) Max. Water Level: Not to exceed 1'' from the top rim of the bath Number of heaters: 2 Drain Port: 1 Exterior Liner: rubber Lifting: Motorized RE-5210 (10L): 12.5'' diameter * 11'' height RE-5220 (20L): 17.5'' diameter * 12'' height RE-5250 (50L): 22.1'' diameter * 12.2'' height | |

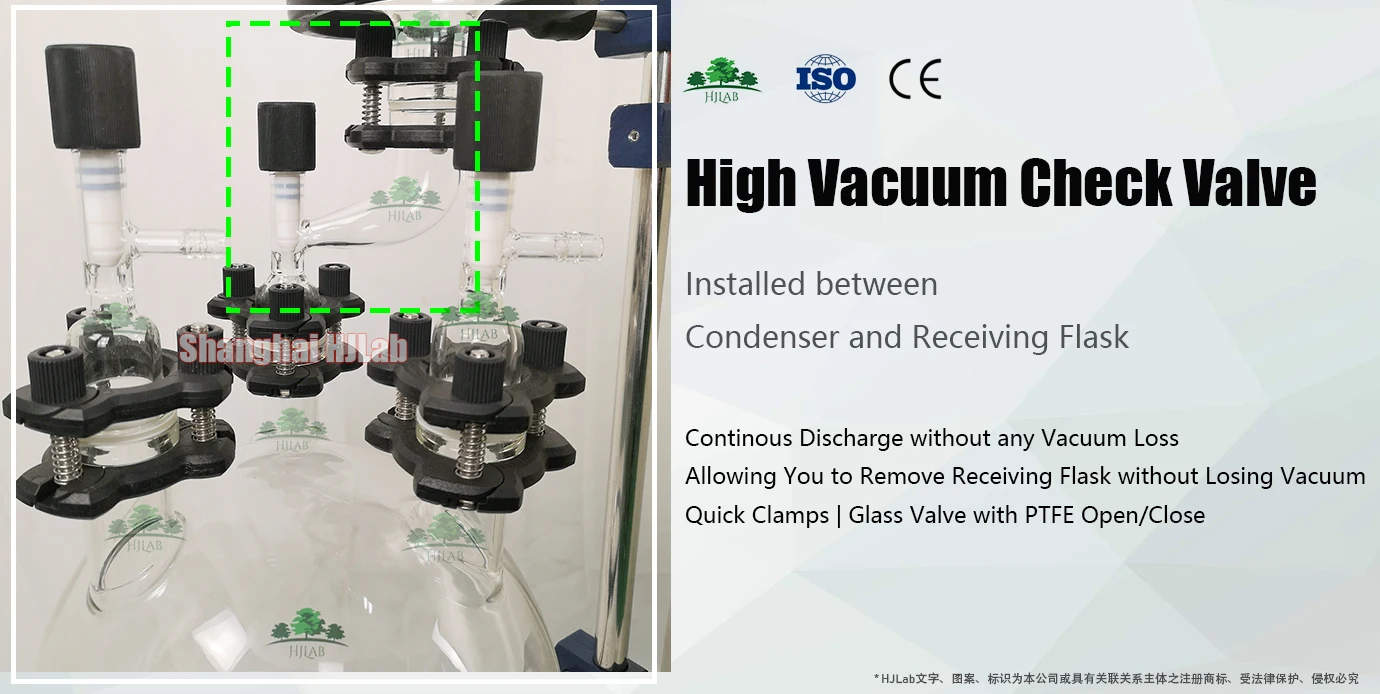

Vacuum | Vacuum Level: < 3 torrs Vacuum Sealing: PTFE + Viton Gaskets Vacuum Connection: Glass hose barb on top of main condenser | |
Swivel Casters | Four, built-in with locks New swivel casters can be securely adjusted to accommodate uneven floor | |
Safety | Dry-Run, Over-Temp shut-off, built-in circuit breakers | |
Product Detail

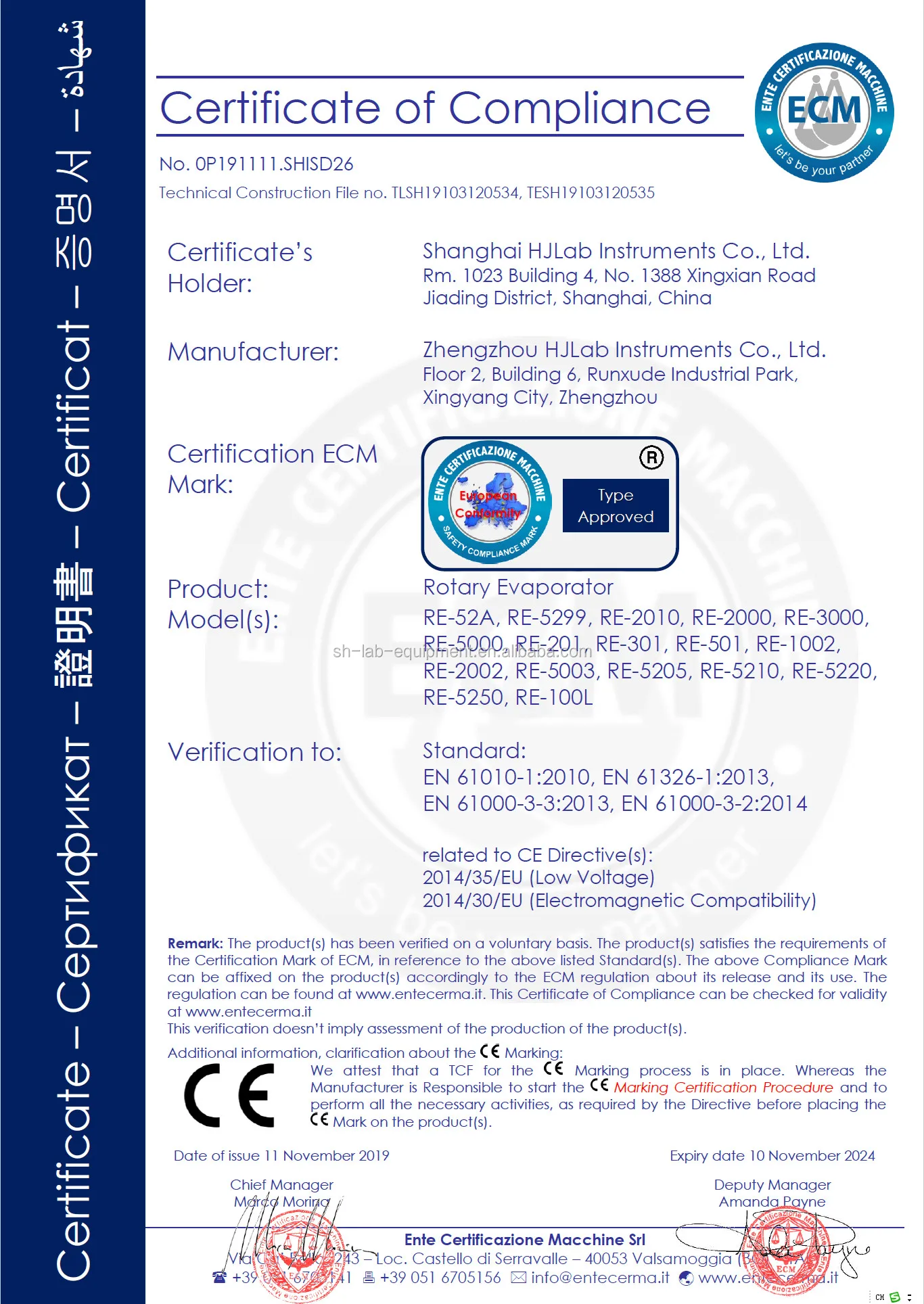

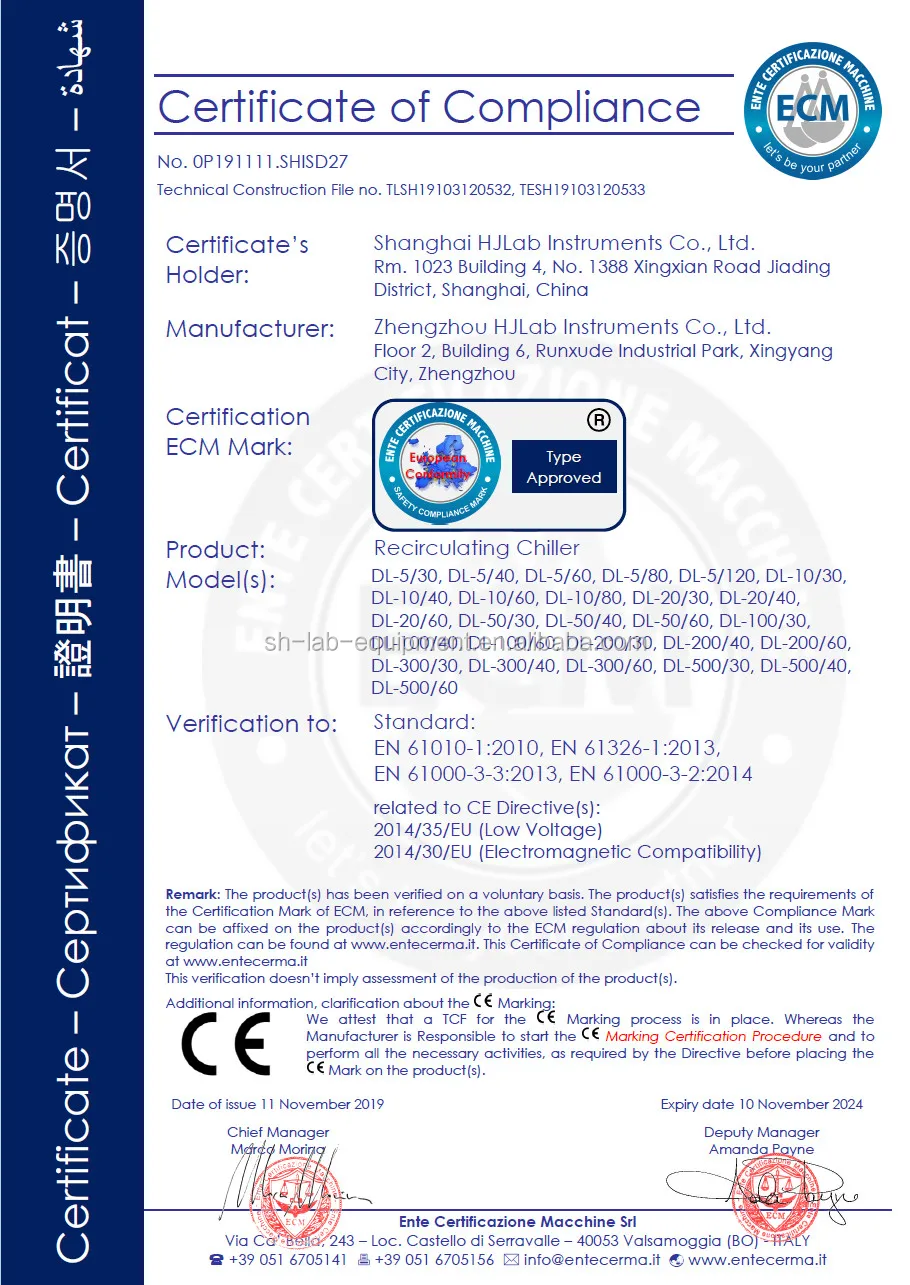

Certifications
Related Products
Glass Reactor
Jacketed & Double Jacketed
1L ~ 200L
Automatic Lifting
Reaction Vessel Rotation

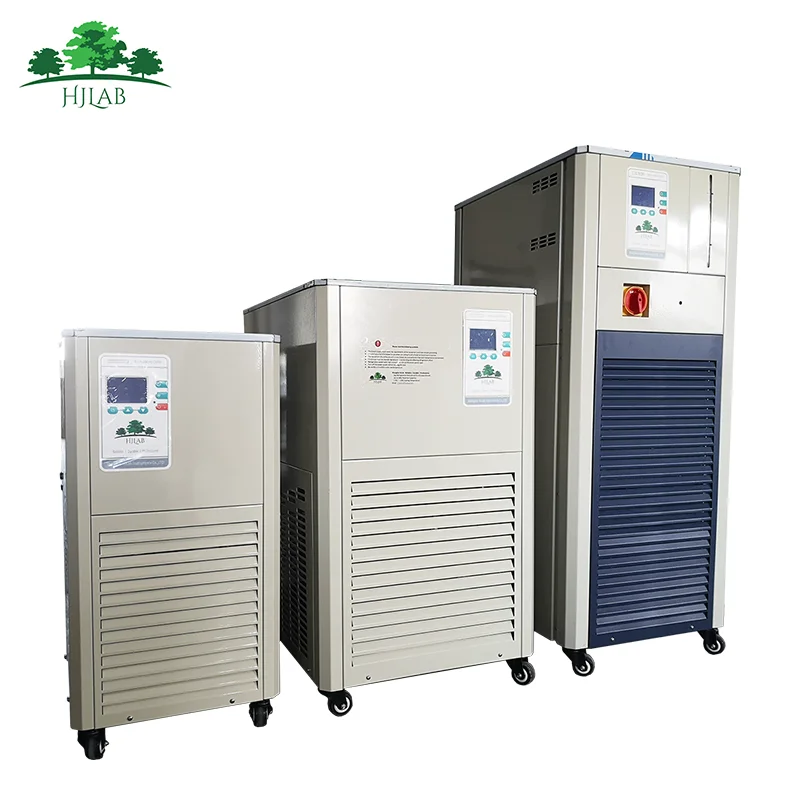

Recirculating Chiller
Reservoir Capacity: 5L ~ 1000L
Cooling Temperature: -20C, -30C, -40C, -60C, -80C,-100C, -120C
2 Types Chiller:
1) Top opening mouth with cooling coil
2) Full-closed loop with heat plate exchanger

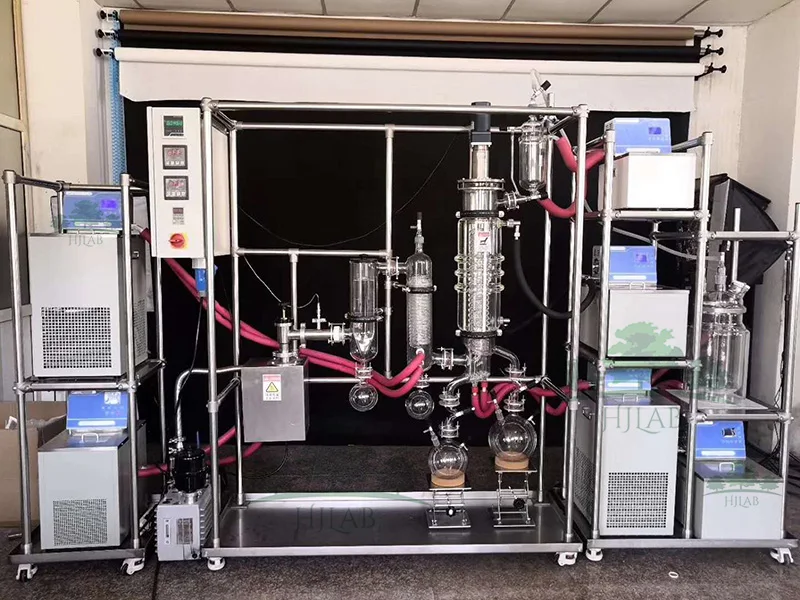

Wipe Film Evaporator
Barrel Size: 60mm, 80mm, 120mm, 150mm, 200mm, 230mm
Material: High Borosilicate Glass 3.3
Material: Stainless Steel
