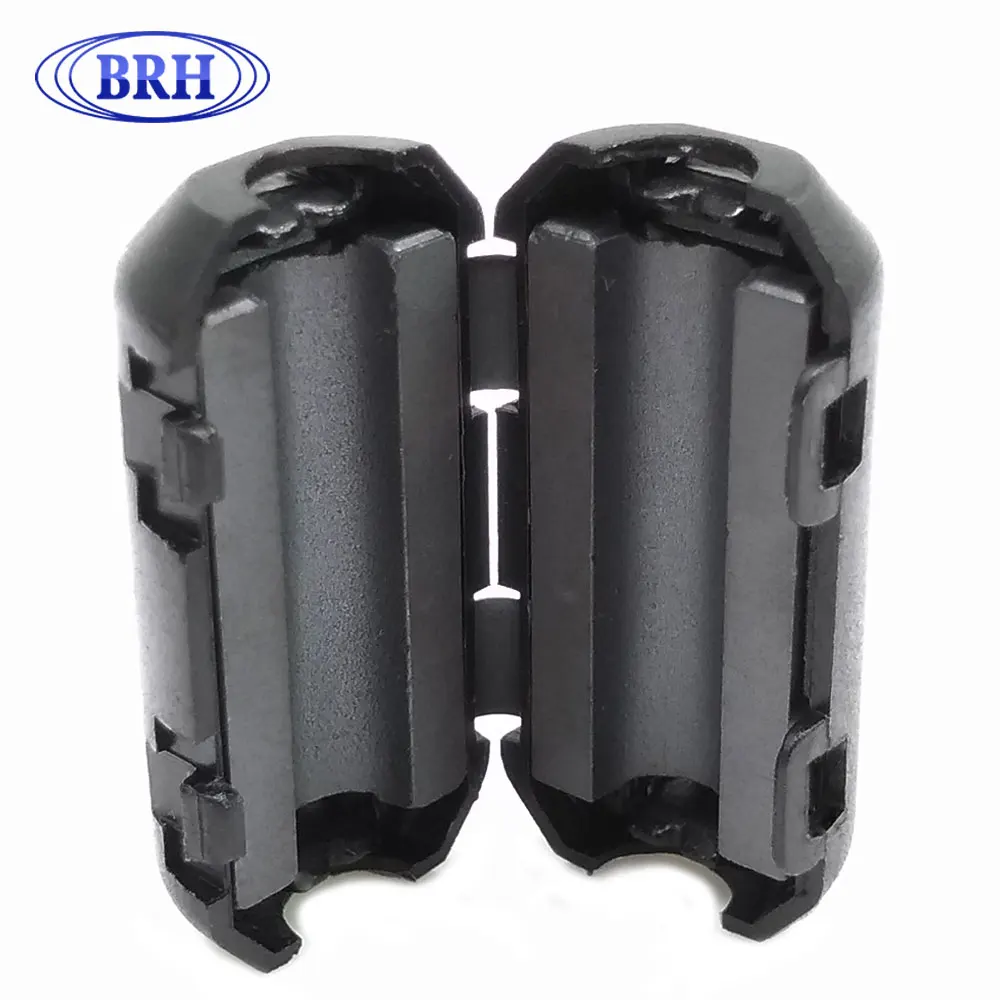

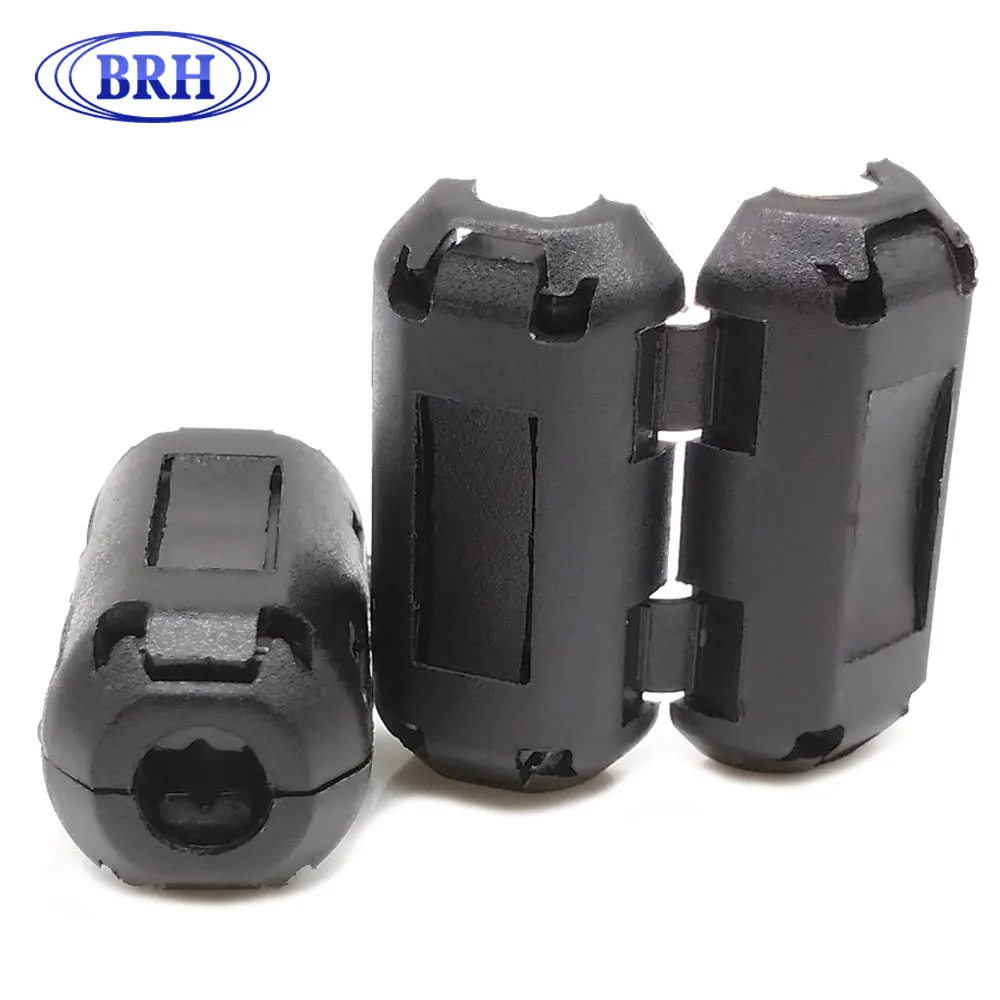

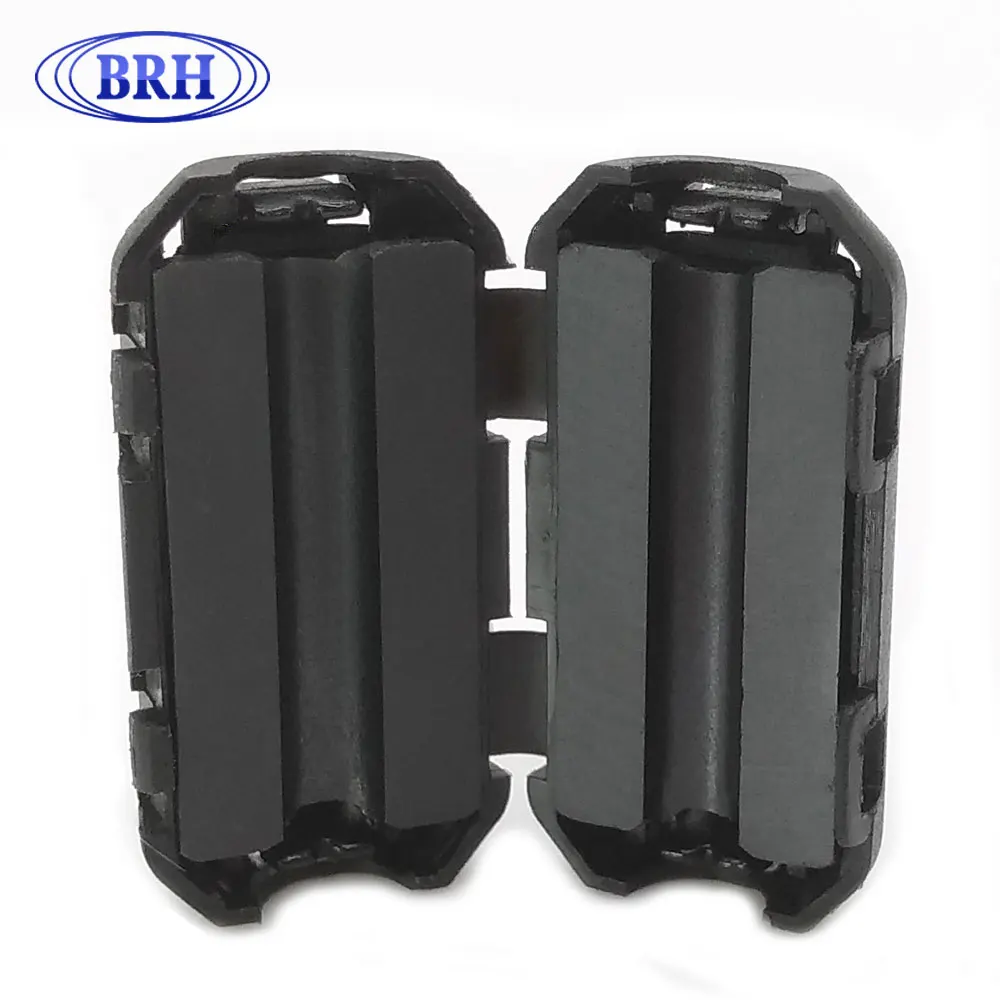

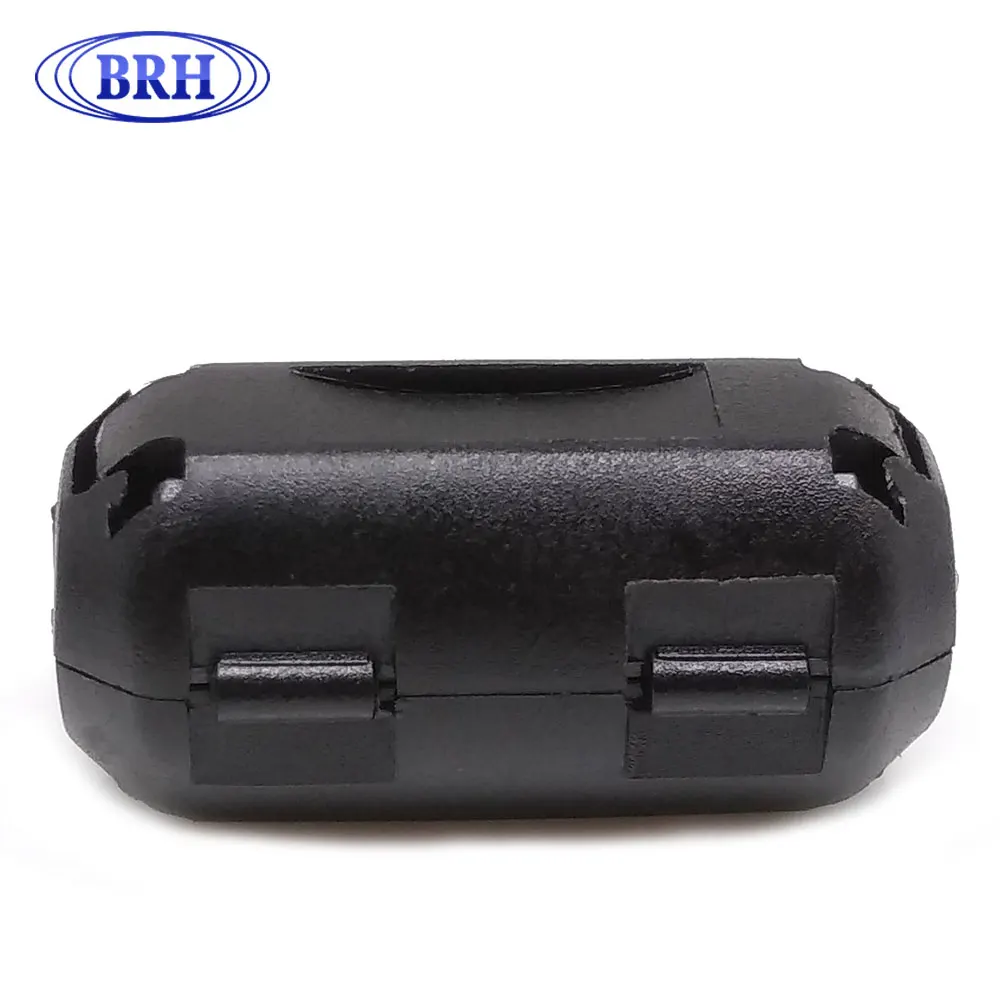

High frequency large size ring core ferrite core for Emc
High frequency large size ring core ferrite core for Emc
High frequency large size ring core ferrite core for Emc
High frequency large size ring core ferrite core for Emc
High frequency large size ring core ferrite core for Emc
High frequency large size ring core ferrite core for Emc

High frequency large size ring core ferrite core for Emc

Share on (60704654336):


Price:

Quantity:


Product Overview

Description


Description
\t

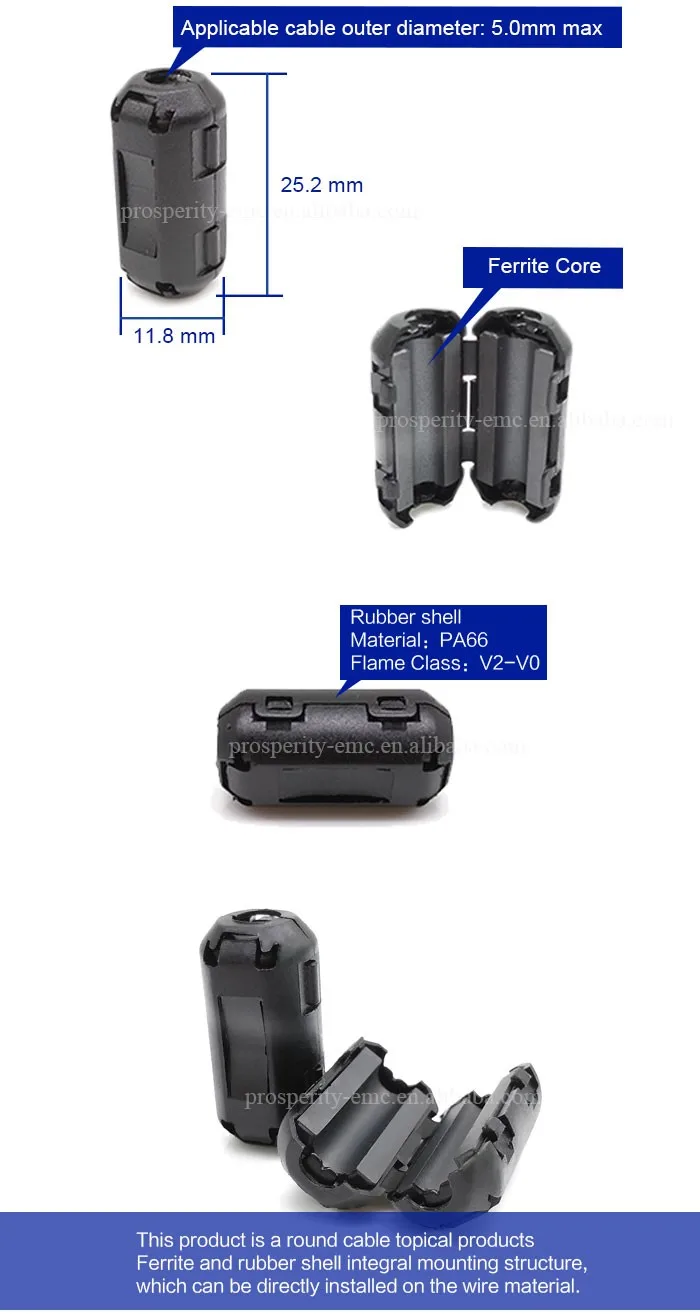

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
D
\t
A2 RC 10*20*5-MB
\t
13.0±1.00
\t
11.8±1.00
\t
5.0±0.80
\t
25.2±1.00

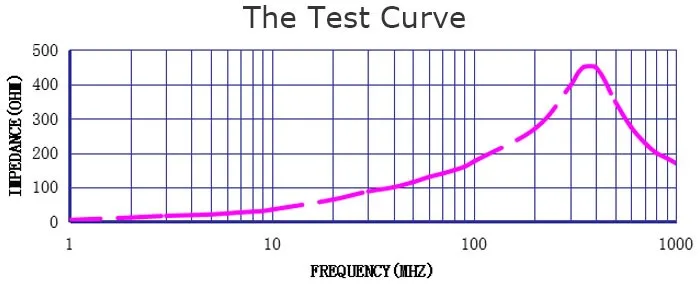

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 RC 10*20*5-MB
\t
at 25 MHz
\t
60Ω MIN
\t
at 100 MHz
\t
130Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
Ω AT 25MHz
\t
Ω AT 100MHz
\t
      A       m/m
\t
  B     m/m
\t
    C      m/m
\t
     D       m/m
\t
Suggest
\t
60Ω MIN
\t
130Ω MIN
\t
13.0±1.00
\t
11.8±1.00
\t
5.0±0.80
\t
25.2±1.00
\t
1
\t
72.00
\t
171.20
\t
13.15
\t
11.84
\t
5.10
\t
24.82
\t
2
\t
73.80
\t
173.50
\t
13.12
\t
11.85
\t
5.12
\t
24.90
\t
3
\t
72.50
\t
172.80
\t
13.08
\t
11.90
\t
5.15
\t
25.01
\t
4
\t
74.50
\t
171.90
\t
13.08
\t
11.89
\t
5.12
\t
25.05
\t
5
\t
73.20
\t
173.20
\t
13.14
\t
11.91
\t
5.10
\t
24.98
\t
6
\t
73.20
\t
172.50
\t
13.12
\t
11.88
\t
5.08
\t
25.10
\t
7
\t
73.50
\t
173.60
\t
13.09
\t
11.90
\t
5.09
\t
25.11
\t
8
\t
72.80
\t
172.10
\t
13.15
\t
11.91
\t
5.14
\t
25.07
\t
9
\t
73.20
\t
171.90
\t
13.11
\t
11.88
\t
5.12
\t
24.96
\t
10
\t
74.60
\t
172.80
\t
13.06
\t
11.87
\t
5.11
\t
24.96
\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
73.33
\t
172.55
\t
13.11
\t
11.88
\t
5.11
\t
25.00
\t
R
\t
2.60
\t
2.40
\t
0.09
\t
0.07
\t
0.07
\t
0.29
\t
The above test data for reference,Actual results may differ due to different production batches
