2mm 3mm 5mm Thickness esd two layer rubber matting for static control

Product Overview

Description

2mm 3mm 5mm Thickness Rubber Mat for ESD Worksurface and Static Control Area



Description:

ESD Rubber Mats are made of two layers with the top one as a static dissipative rubber layer laminated to a black conductive to bottom layer. Surface resistivity of the top layer is 10E6-10E9 ohms and bottom layer is 10E3-10E5 ohms. The ESD Rubber material offers excellent resistance to heat,chemicals, oil, grease and most common solvent.





Features:

High quality nature rubber ESD Table mat

Resistant to solder Iron and chemical agents

Oil resistance

Low reflecting

Easy to clean

Anti-skidding surface(alternative)

Excellent flexibility and comfort



Specifications:

Product Name:	ESD Rubber Mat
Model Number:	SC-Green-2mm
Material:	Rubber
Surface Resistance:	Top dissipative layer: 10E3-10E5 ohms
	Bottom conductive layer: 10E6-10E9 ohms
Thickness: 2mm	Top dissipative layer: 0.5mm
	Bottom conductive layer: 1.5mm
	1.6mm-5mm thickness are avialable
Width:	0.3m-1.5m
Length:	10m, 15m, 20m, 25m, 30m per roll
Color:	Light Green, Green, Dark Green
	Light Blue, Blue, Dark Blue
	Gray, Brown, Black, Yellow
	any color as required
Decay Time:	<0.1 second
Abrasive Loss:	<0.02
Gross Weight:	about 3kg/square meter
	30kg/roll for size:T2mmxW1.0mxL10m
Certificate:	SGS, RoHS







































































Appications:



Table top use to provide static safe work surface for static sensitive products in Aviation, Clean-rooms, computer Operators, Computer Technicians, Fiber Optic, Hospitals, and Pharmaceutical Industries in high temperature setting. Aerospace Assembly, Electronic Manufacturing, Electronic Repair, Medical Assembly and Soldering.



Detailed Pictures:



Shiny Green



Dull Green







Dull Gray

Shiny Gray



Textured Gray



Dull Blue

Shiny Blue



Textured Blue

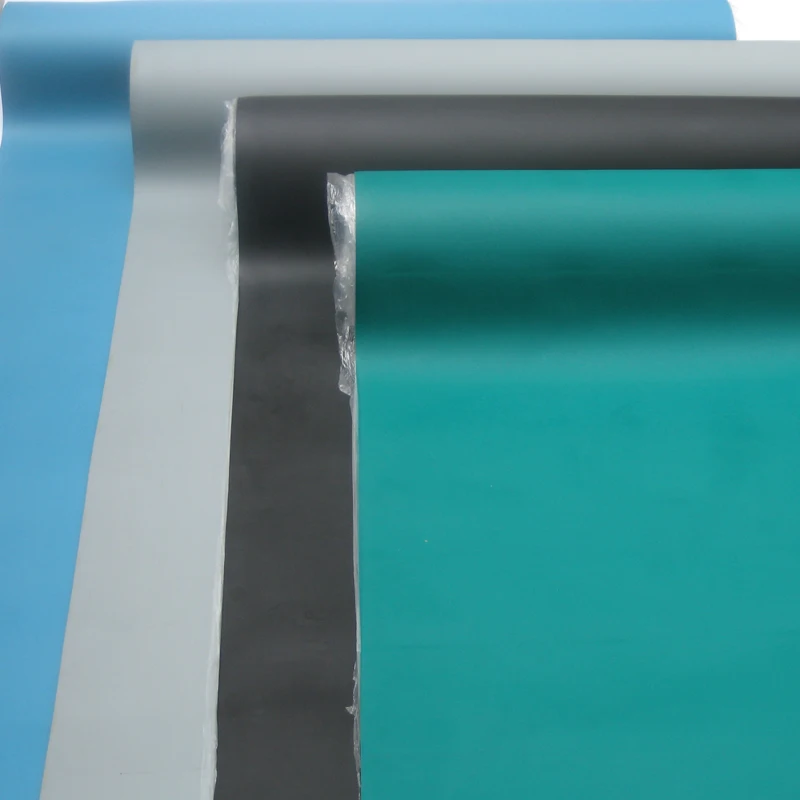

Different size, color and surface are available

We can cut it into size 600mm x 1200mm, 600mm x 900mm, 450mm x 900mm or any other size required.

Gray/Blue cutted ESD mat (with rounded corners and male studs)

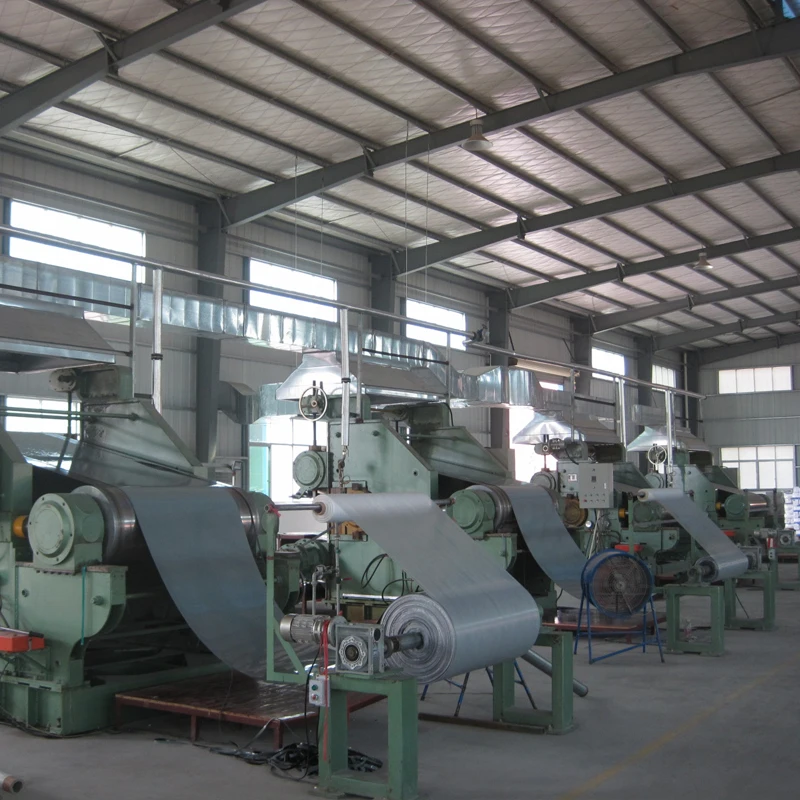

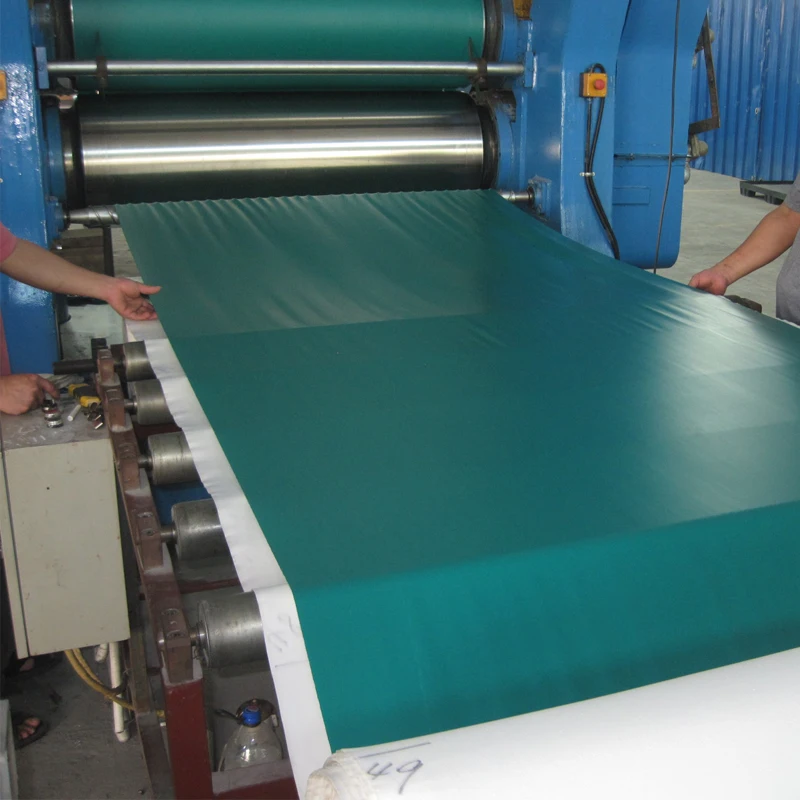

Factory Production

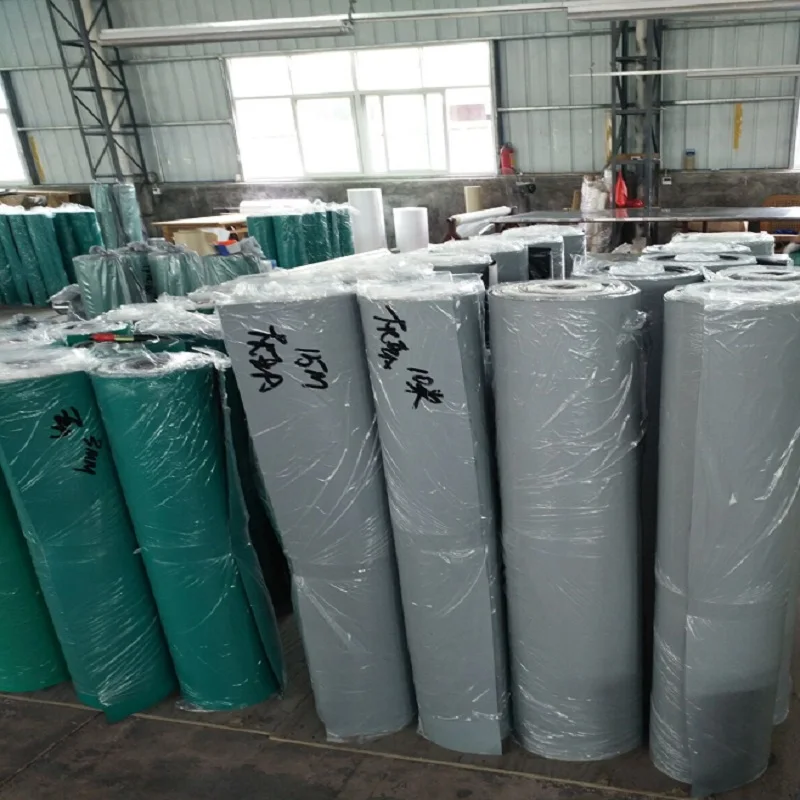

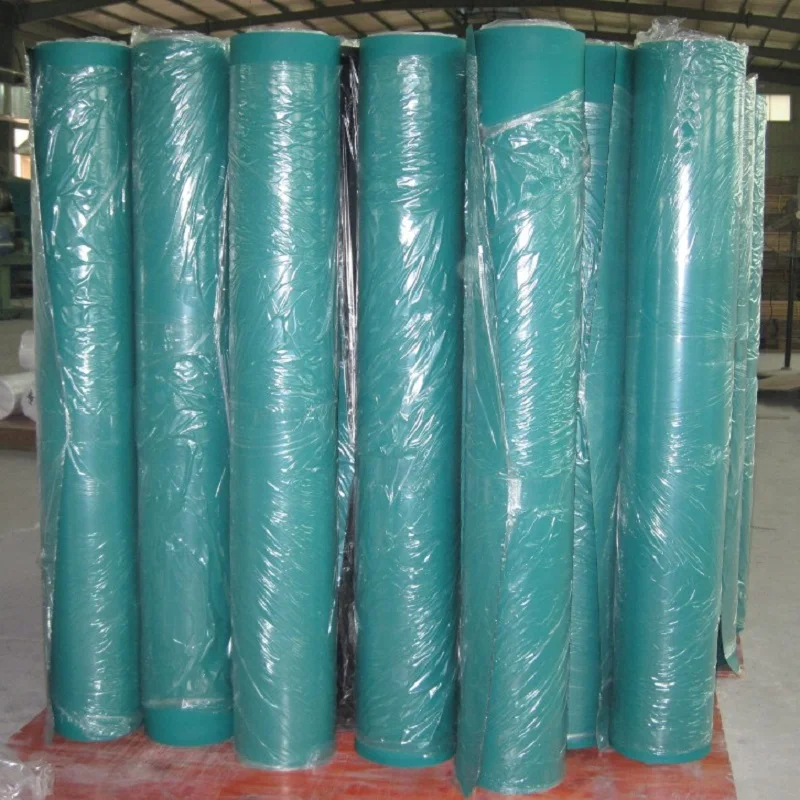

Outer Packing:
