Product Overview

Description


Product Description
\t
PRODUCT NAME
\t

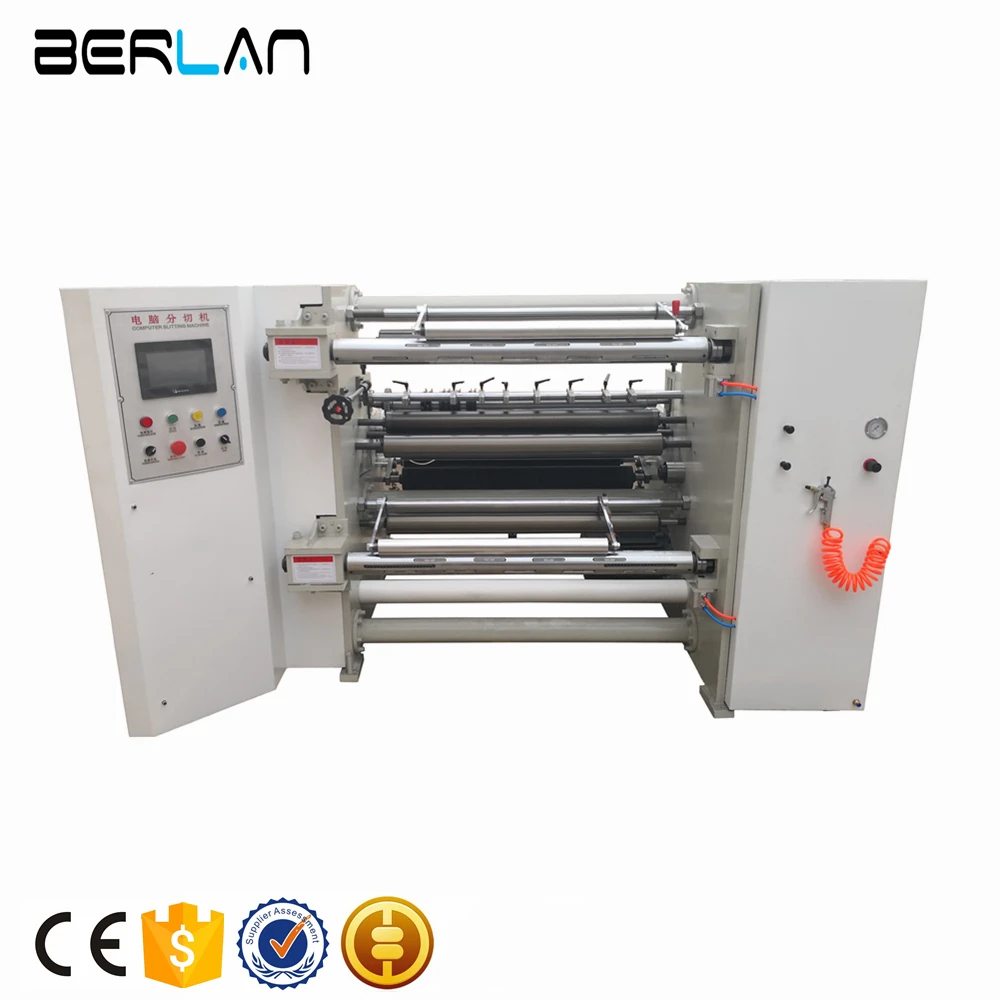

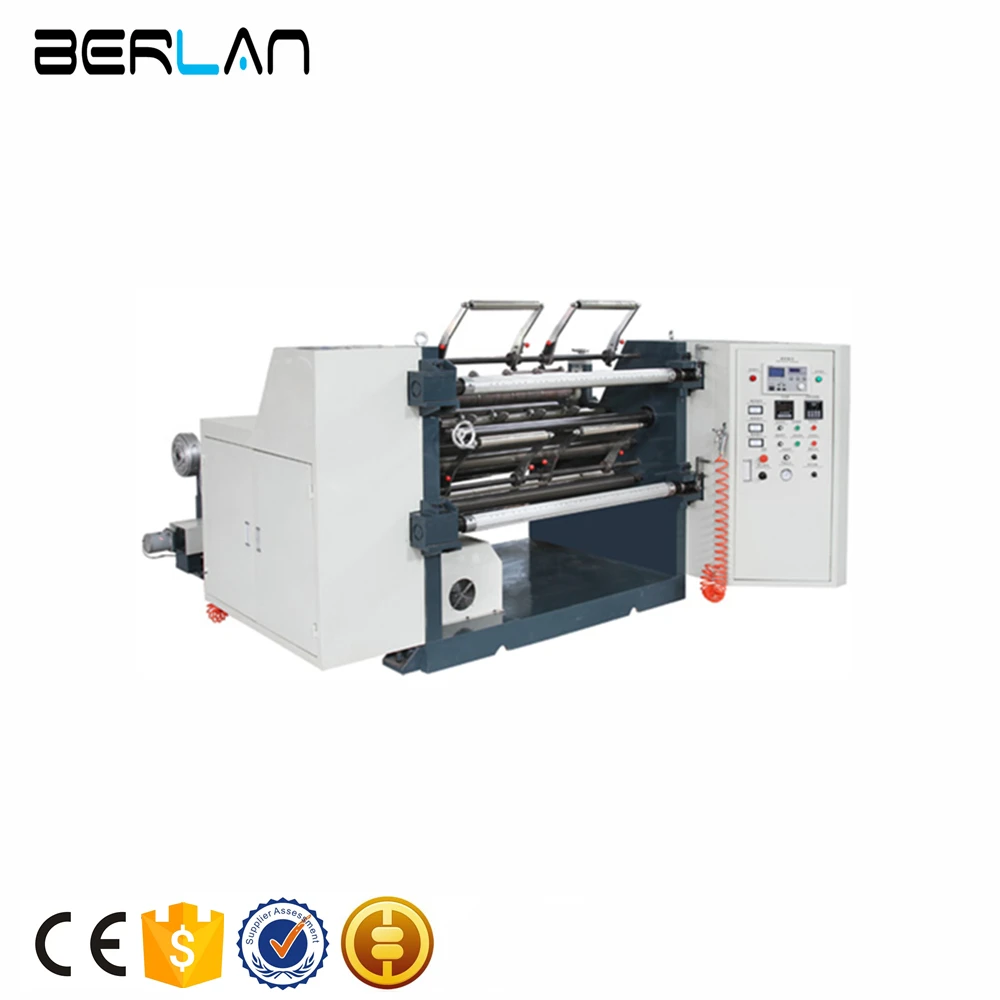

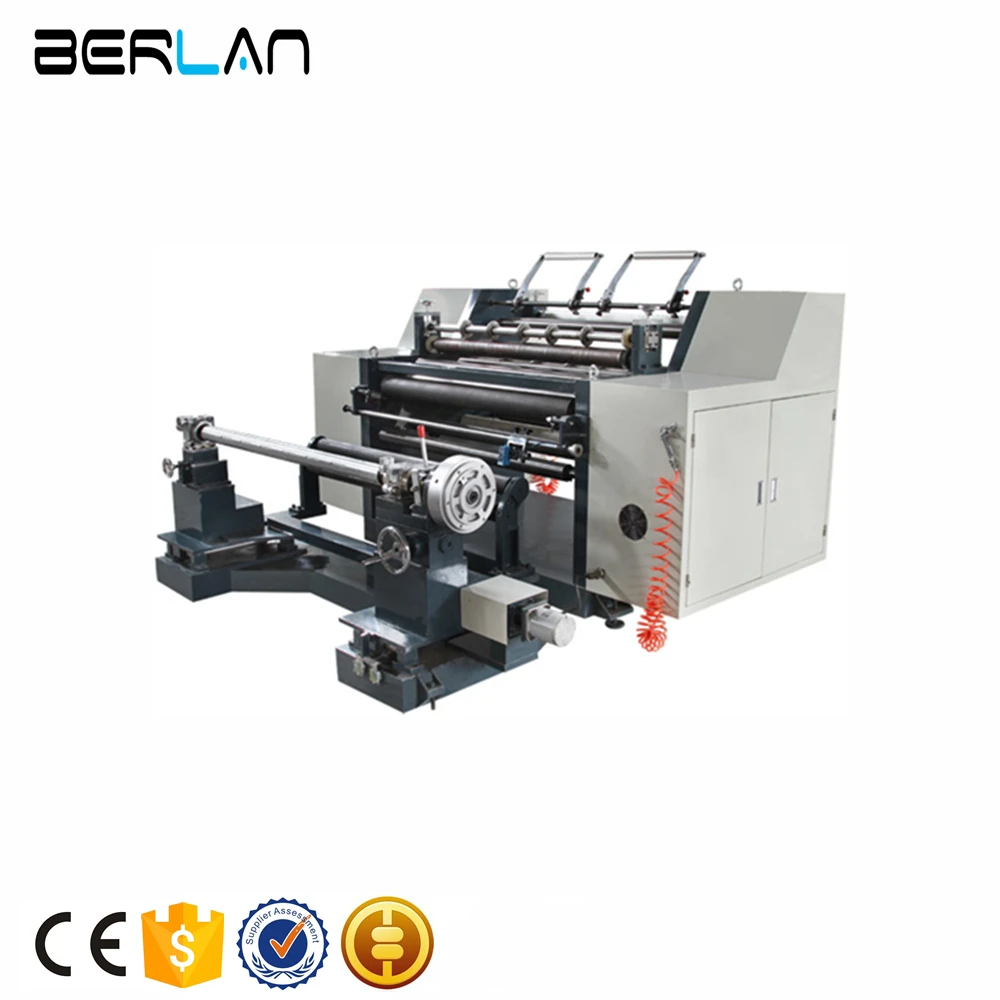

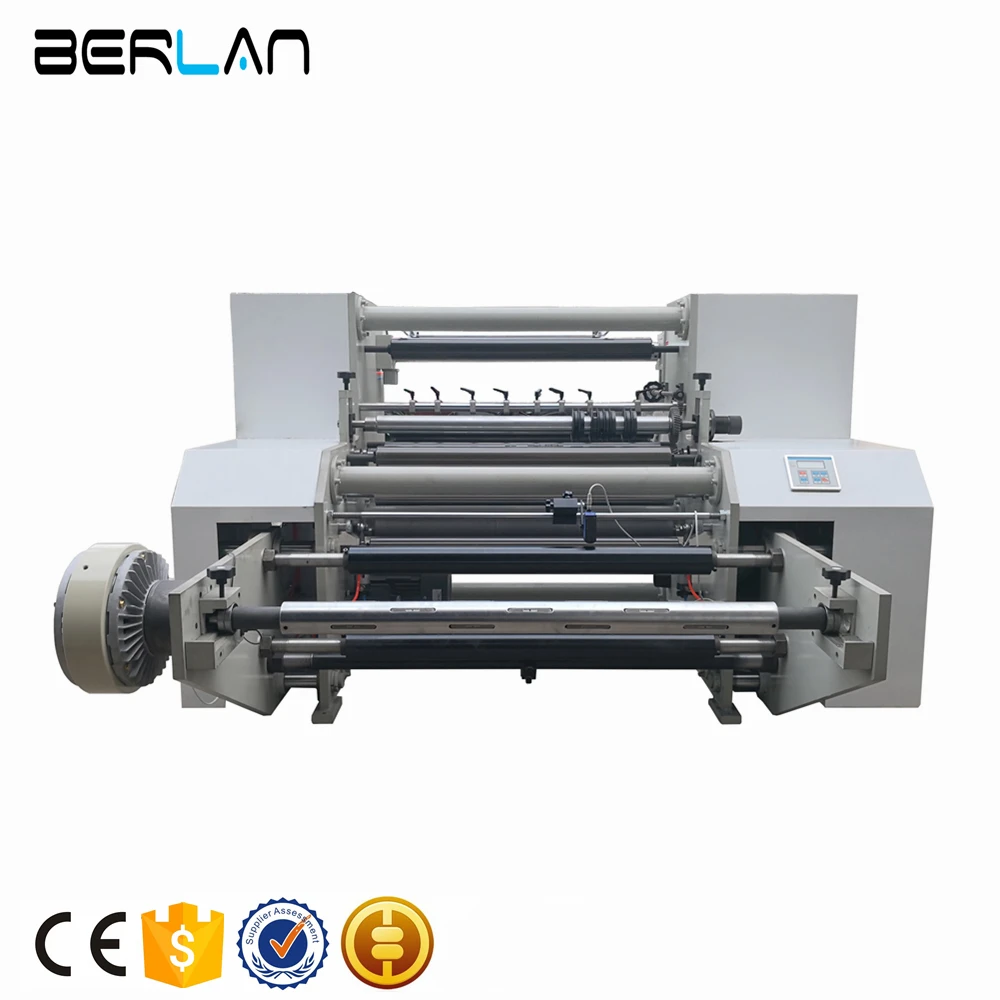

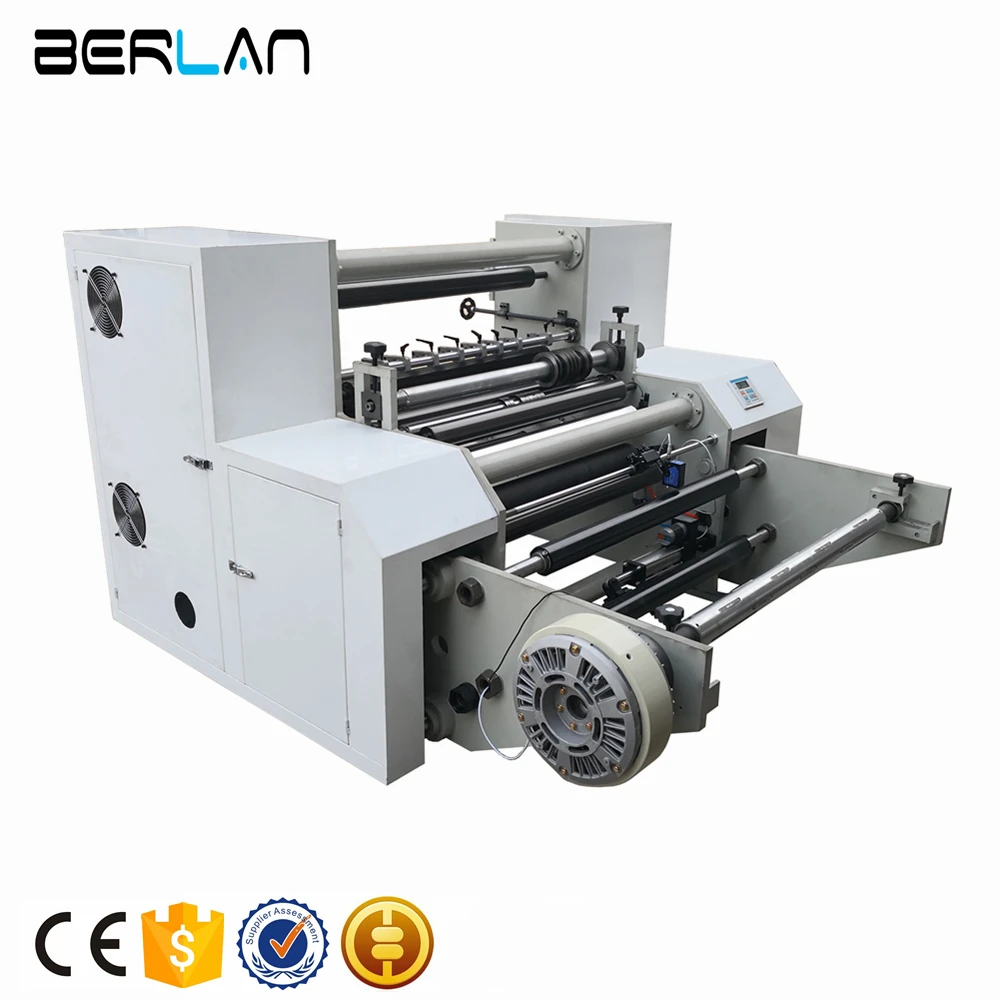

FQ-D Horizontal Slitting Rewinder
\t
USAGE
\t
Slitting&Rewinding Laminated, Printed, Coated, Paper ,Nonwoven,BOPP, PET, PE, PVC,Adhesive Label, Fiberglass Mesh Etc.
Product Video
Feature&Parameter

1.FQ-D Series Slitting Machine Is Horizontal Type, Machine Frame Made Of 2.5CM Thickness Steel Plate.

2.Equipped with Servo-Simulation Web Guiding System.


This Servo simulator system widely use in each package machine and other automatically deviation correct control machine ,Can tracking line and edge. High reflection.

3.Material Guiding Part Equipped with pneumatic press roller & guide roller equipped with encoder.


Encoder will make tension controller more precision , make unwinding & rewinding process synchronously, will effect final product smoothly and uniformly tightness

4.Unwinder with photocell eye to check unwinding deviation correction


International Famous Brand Photocell Eye.

5.High inner density Unwinding & Rewinding air expanding shaft.

5.Equiped with PLC(Programmable Logic Controller) system , 5.7inch touch screen . Make operation more easy.

Touch Screen

PLC

7.If you need automatic lifting unwinder. Need add 600-800USD. Also we can offer other customize service for slitter.
\t
Model
\t
FQ-D1100
\t
FQ-D1300
\t
Max.Material Width
\t
1100mm
\t
1300mm
\t
Unwinding Diameter
\t
800mm
\t
800mm
\t
Rewinding Diameter
\t
600mm
\t
600mm
\t
Slitting Width
(Depend on material specification)
\t
20-1100mm
\t
20-1300mm
\t
Slitting&Rewinding Speed
\t
10-180M/min
\t
10-180M/min
\t
Deviation correct accuracy
\t
±0.2mm
\t
±0.2mm
\t
Total Power
\t
5.5kw-4p
\t
5.5kw-4p
\t
Machine Demension(mm)
\t
L2700×W2300×H1500mm
\t
L2700×W2500×H1500mm
\t
Weight(Kgs)
\t
2000Kgs
\t
2200Kgs
Our Workshop
Packing & Delivery
\t

*The normal package is fumigated wooden box.

*Machine will cover with PE water proof film to prevent moisture from the ocean.

*Gear and Bearing will paint with lubricating oil. all guide roller will paint with antirust oil.
Our Certifications


CE Certificate

Our Service

Warranty

* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*In Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. We have engineer in Vietnam, Indonesia ,Malaysia&Philippines.

Q: How long is your delivery time?

A: Generally it is 30-40 days after getting deposit.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery.
