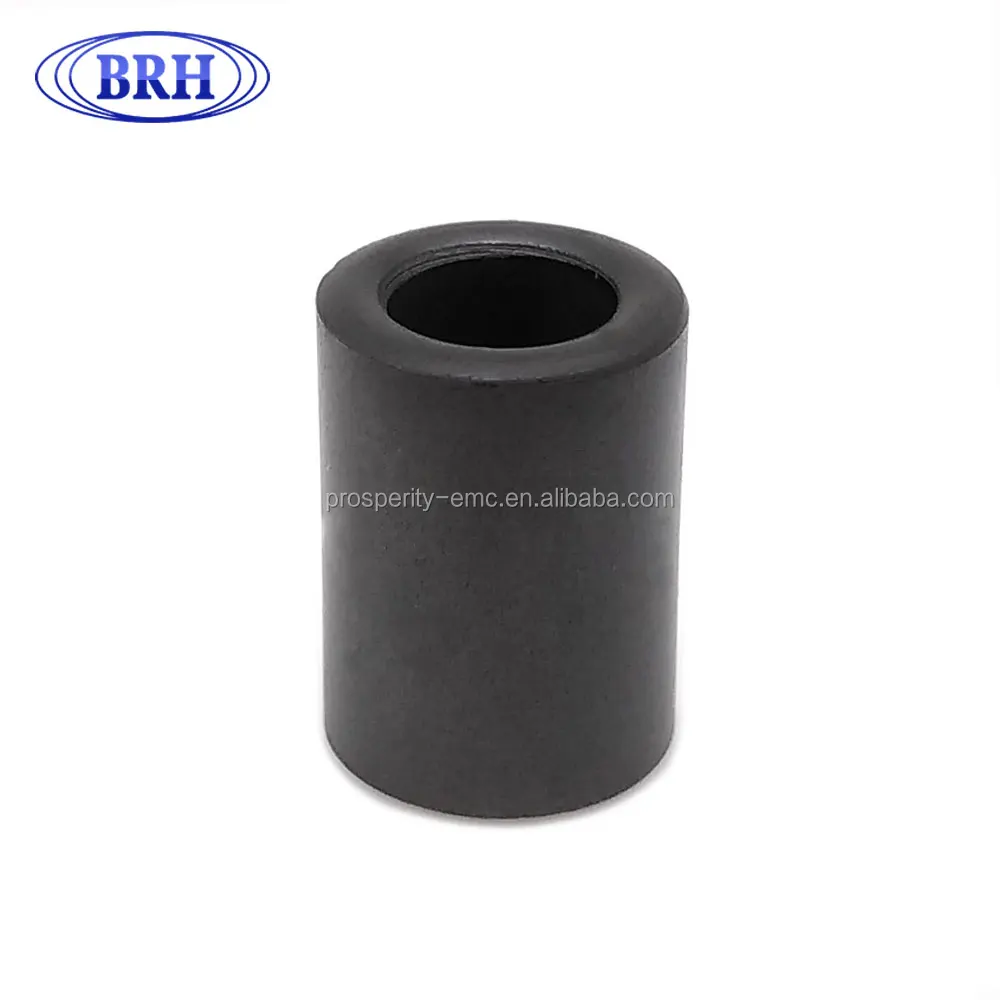

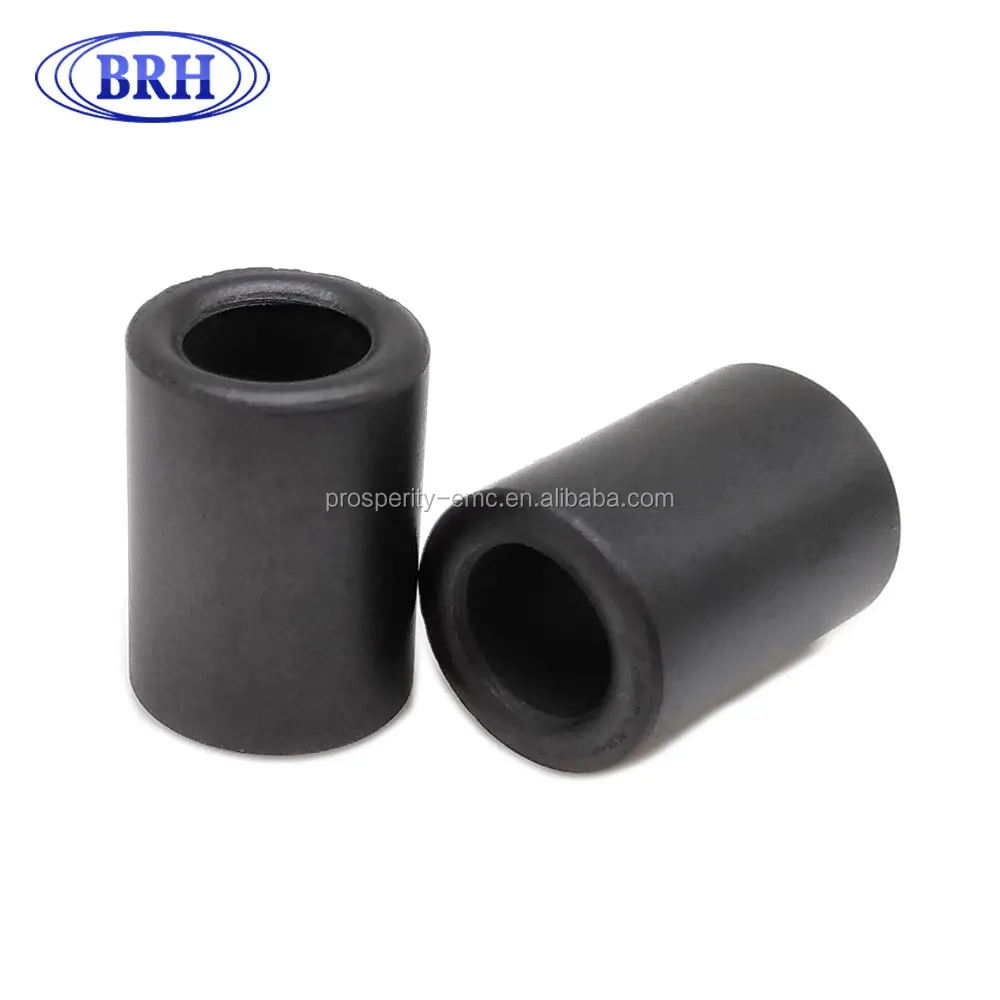

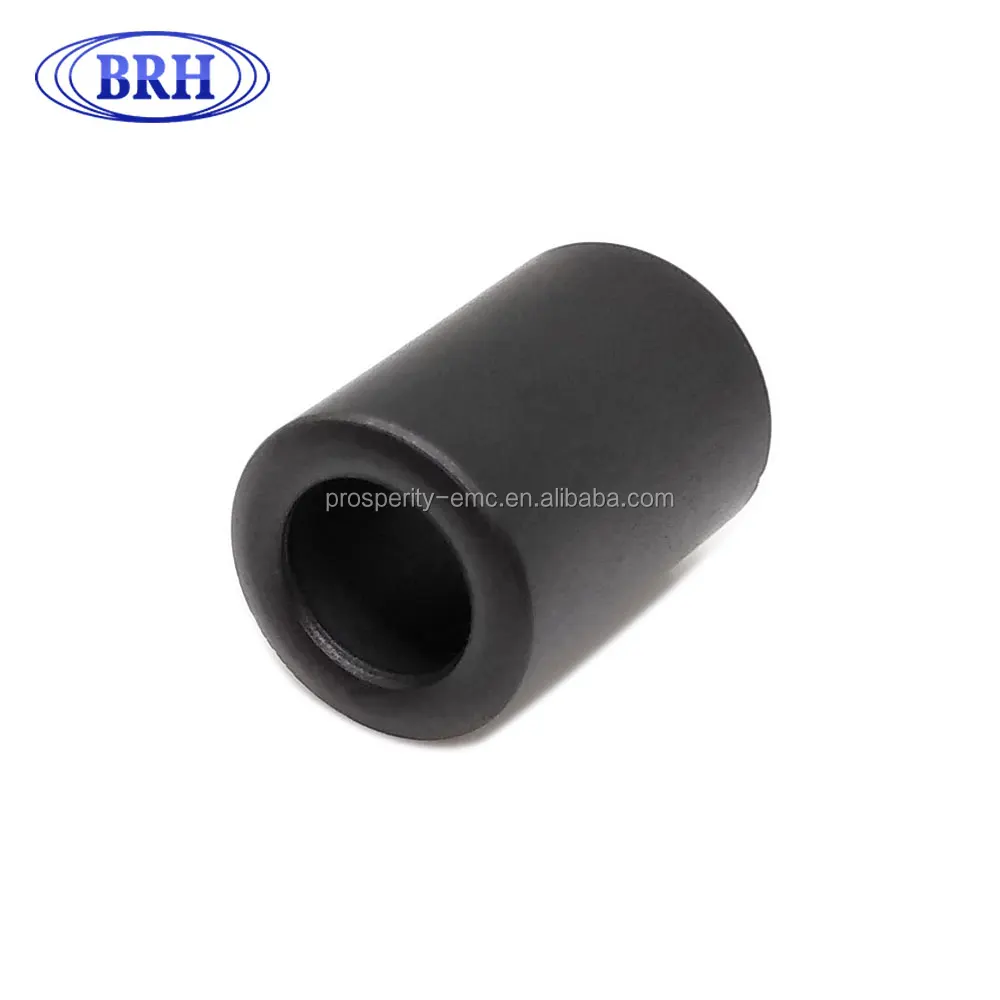

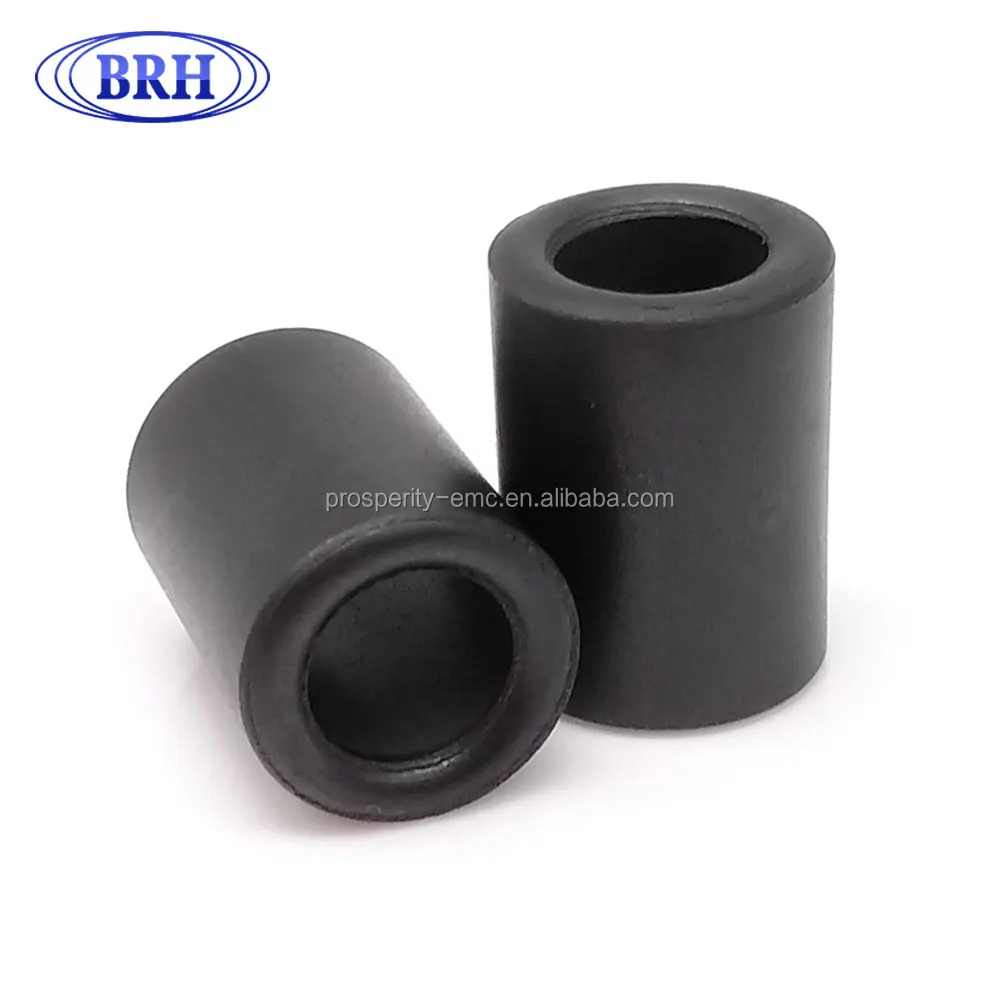

Product Overview

Description


Description
\t

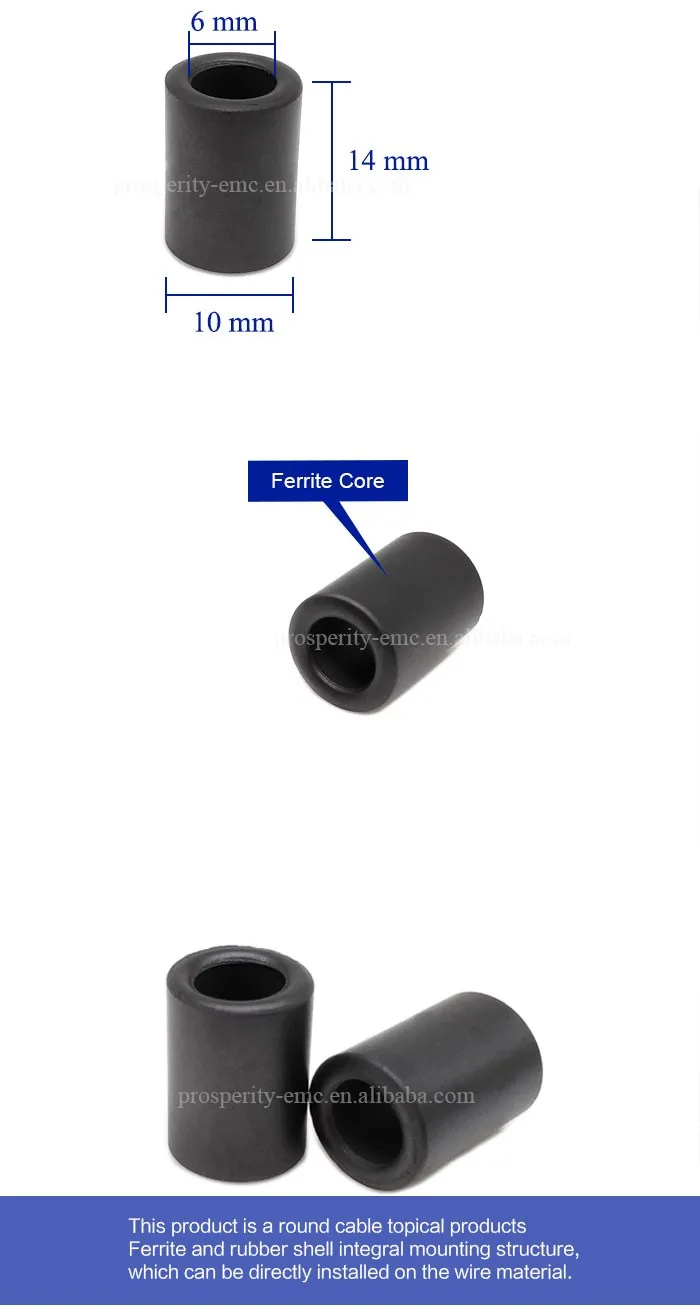

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
A2 RH 10*14*6
\t
10.0±0.60
\t
14.0±0.60
\t
6.0±0.50

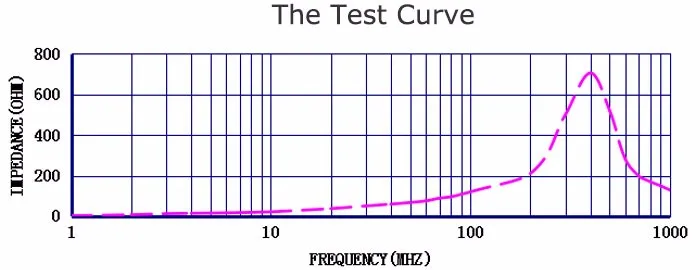

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 RH 10*14*6
\t
at 25 MHz
\t
35Ω MIN
\t
at 100 MHz
\t
98Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
Ω
AT 25MHz
\t
Ω
AT 100MHz
\t
A
m/m
\t
B
 m/m
\t
C
m/m
\t
Suggest
\t
35Ω MIN
\t
98Ω MIN
\t
10.0±0.60
\t
14.0±0.60
\t
6.0±0.50
\t
1
\t
43.01
\t
110.01
\t
9.96
\t
14.05
\t
6.03
\t
2
\t
41.02
\t
109.05
\t
9.92
\t
14.10
\t
6.08
\t
3
\t
42.05
\t
120.04
\t
9.90
\t
13.95
\t
5.98
\t
4
\t
44.01
\t
120.01
\t
9.89
\t
13.95
\t
5.96
\t
5
\t
45.01
\t
119.05
\t
9.93
\t
13.93
\t
6.02
\t
6
\t
43.21
\t
116.02
\t
9.92
\t
14.05
\t
6.01
\t
7
\t
43.50
\t
117.45
\t
9.89
\t
14.08
\t
5.99
\t
8
\t
42.15
\t
120.05
\t
9.86
\t
13.93
\t
5.98
\t
9
\t
42.61
\t
120.15
\t
9.95
\t
13.80
\t
5.85
\t
10
\t
43.15
\t
120.01
\t
9.90
\t
13.89
\t
5.96
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
42.97
\t
117.18
\t
9.91
\t
13.97
\t
5.99
\t
R
\t
3.99
\t
11.10
\t
0.10
\t
0.30
\t
0.23
\t
The above test data for reference,Actual results may differ due to different production batches
