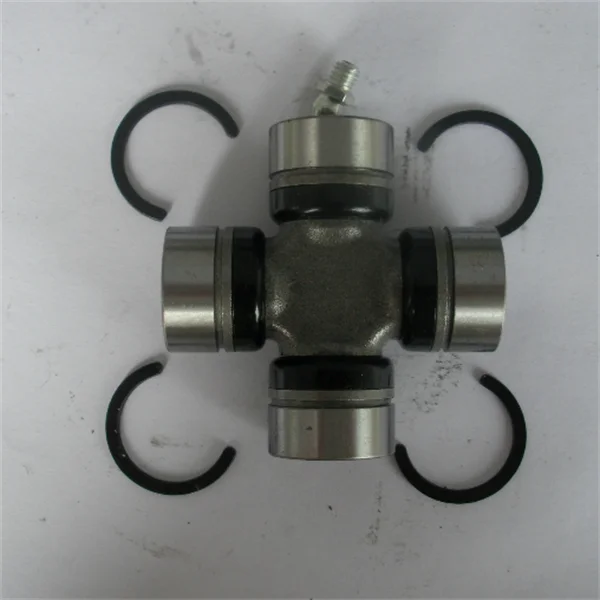

27*46.1mm Universal Joint cross bearing GUN 46 for NISSAN

Product Overview

Description

27*46.1mm Universal Joint cross bearing GUN-46 for NISSAN

     A universal joint has four needle roller bearings that provide the strength and life which is most important and both the axes of the spider are inserted into two yokes. In the bearing, a seal is located to prevent dust, water, etc.from ingress and to prevent grease egress. For heavy duty vehicles with high torque transmission, such as large size vehicles and various industrial machine vehicles, a wing type (3 kinds: block, wing, delta) is used. Bolt-fastening mechanism and key-way are incorporated to the bearing and a precise circle is on its back. By receiving the torque through the key-way, even if a bolt is loosely tightened, the shearing stress does not apply to the bolt.



 Application:
     A power transmission universal joint cross assembly is widely used in automobile types including: middile and high end salon, off-road vehicles, most of the trucks, agriculture machinery, mine and heavy-duty machine, specifical purpose vehicles



 Feature:
     A universal joint is fitted between the driveshaft and the differential axle to transmit power through the axis of rotation. Perfectly smooth rotation is required, in order to handle the constantly changing angles of the rear axle caused by the vertical movement of uneven surfaces transmitted through the suspension system. In other words, a universal joint efficiently transmits power through both fixed and fluctuating angles. Moreover, since the universal joint is lightweight and compact with superior durability, it has proved to be a safe and positive product for power transfer in Automotive and Industrial applications. In recent years, we have been working to develop and produce the press type bearing which is aimed at improvement in intensity and durability and reduces cost further.





NISSAN
FIG	PART NO	D	O	L	GMB	ORIGINAL NO	KOYO	MATSUBA
B	GUN28	20.01	35		GUN28	37125-18025	N2057
B	GUN29	28	53		GUN29	39625-21025	N2880BA	UJ112
A	GUN30	30.188		92.08	GUN30	37125-85461	N3092
I	GUN31	32		107	GUN31	37125-50001	N32111	UJ114
A	GUN32	35.5		119.2	GUN32	37125-58026	N36119	UJ115
I	GUN33	43		128	GUN33	37125-99901	ND43128	UJ119
B	GUN34	25	52		GUN34	37125-76025	N2580	UJ113
A	GUN36	25		77.6	GUN36	37125-4101(6510)	NP2578	UJ120
B	GUN38	26	45.6		GUN38	37125-68200		UJ121
I	GUN41	43		135.5	GUN41	37125-90128	ND43142	UJ120
I	GUN43	55.1		163.8	GUN43	37125-90027	ND43128B	UJ125
A	GUN44	20.5		56.6	GUN44	48155-99000		UJ118
A	GUN45	20.7		52.4	GUN45	37125-H8500
B	GUN46	27	46		GUN46	37126-01G25		UJ124
A	GUN47	27		81.75	GUN47	37125-25025
A	GUN48	27		81.75	GUN48	37125-7F025
