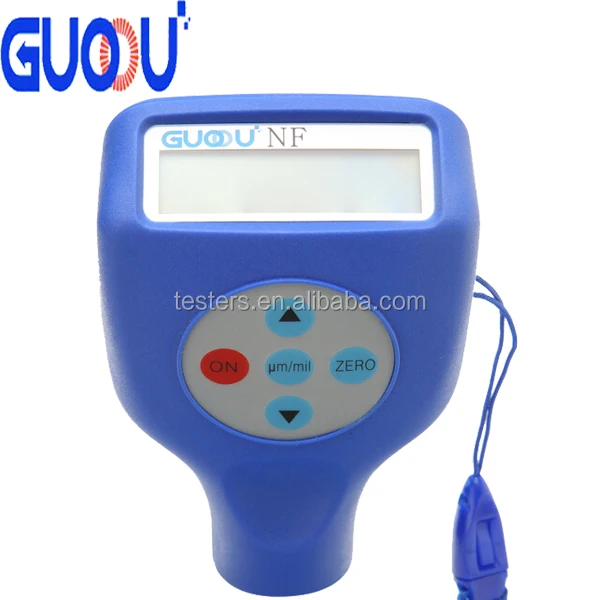

Paint Detective Coating & Paint Thickness Gauge
Paint Detective Coating & Paint Thickness Gauge
Paint Detective Coating & Paint Thickness Gauge
Paint Detective Coating & Paint Thickness Gauge

Paint Detective Coating & Paint Thickness Gauge

Share on (60704714254):


Price:RUB 12,130.88

Quantity:


Product Overview

Description

Product Description

Digital Portable paint coating thickness tester

The instrument is a portable measuring instrument, it can quickly, without injury, precision coating, coating thickness measurement. Can be used for laboratory, can also be used for the project site. By using different probes, you can also meet the needs of a variety of measurements. The instrument can be widely used in the manufacturing, metal processing industry, chemical industry, commodity inspection, and other testing areas. Is the material protection professional necessary equipment.
Different models:
Ordering Guide
Measurement methods
Model
Dimensions
Fe iron metal base (steel, iron) non-magnetic coating
Integral stype
Magnetic method (F-type probe)
GTS810F
102mm*66mm*24mm
Split type
GTS820F
102mm*66mm*24mm
NFe Non-ferrous metal (aluminum copper) on the insulation coating

Integral stype
Eddy current method (N-type probe)
GTS810NF
102mm*66mm*24mm
Split type
GTS820NF
102mm*66mm*24mm
Fe/NFe all metal(Dual purpose)
Integral stype
Magnetic method (F-type probe)

Eddy current method (N-type probe)
GTS8102
102mm*66mm*24mm

Split type
GTS8202
102mm*66mm*24mm

                Battery: two fifth Battery                                                                       Probe: 8mm


Measurement methods:


The instrument uses magnetic and eddy current two thickness measurement methods, can be measured without loss of magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.) on the thickness of non-magnetic coating (such as aluminum, chromium, copper, enamel, Rubber, paint, etc.) and non-magnetic metal substrate (such as copper, aluminum, zinc, tin, etc.) on the thickness of non-conductive coating (such as: enamel, rubber, paint, plastic, etc.).



Eddy current method (N type probe)

The use of high-frequency alternating current in the coil to produce an electromagnetic field, when the probe and the cover layer contact, the metal matrix on the eddy current, and the feedback coil in the probe, by measuring the size of the feedback effect can be derived cover thickness of.

Certifications
Detailed Images

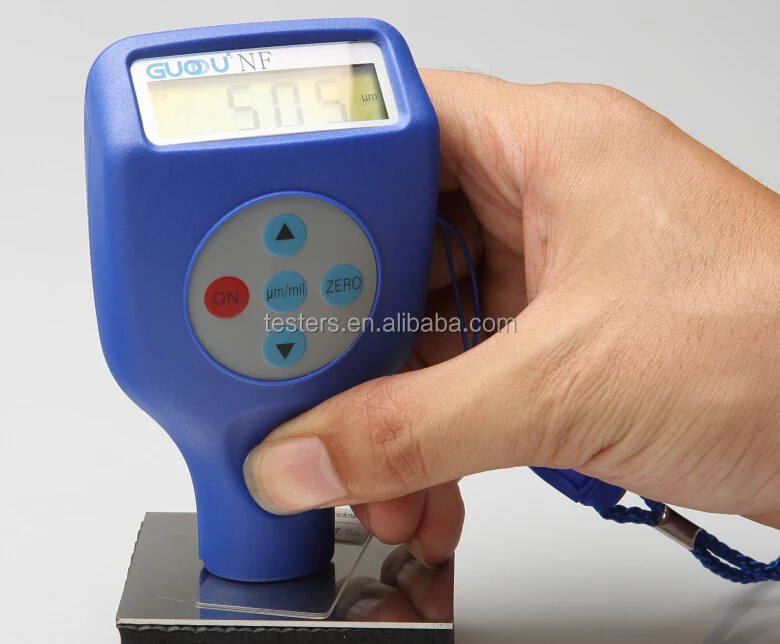

Measure the powder coating thickness on steel Aluminum





Measure the aluminum oxide film thickness



Measure the dacro





Measure the aluminum oxide film thickness
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Packing & Delivery
Packaging
Size
28(L) * 24 (W) * 10 (D)cm
Weight
0.7Kg



Packaging Details
Inner packaging:
Size:102*66*24(mm)
Packaging Materials:Plastic box packaging

Outer packaging:
Size:280*240*100(mm)
Packaging Materials:Carton
Delivery
Ways
DHL,FEDEX,UPS ,ARAMEX
Time
deliver it within 2days after receive the payment .


How many days will arrived
It depens on the country you are .
Normally :3-5days will received by your hand .
