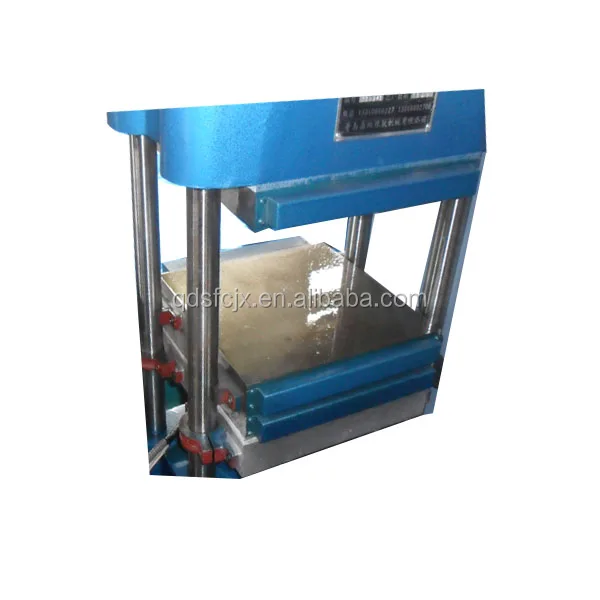

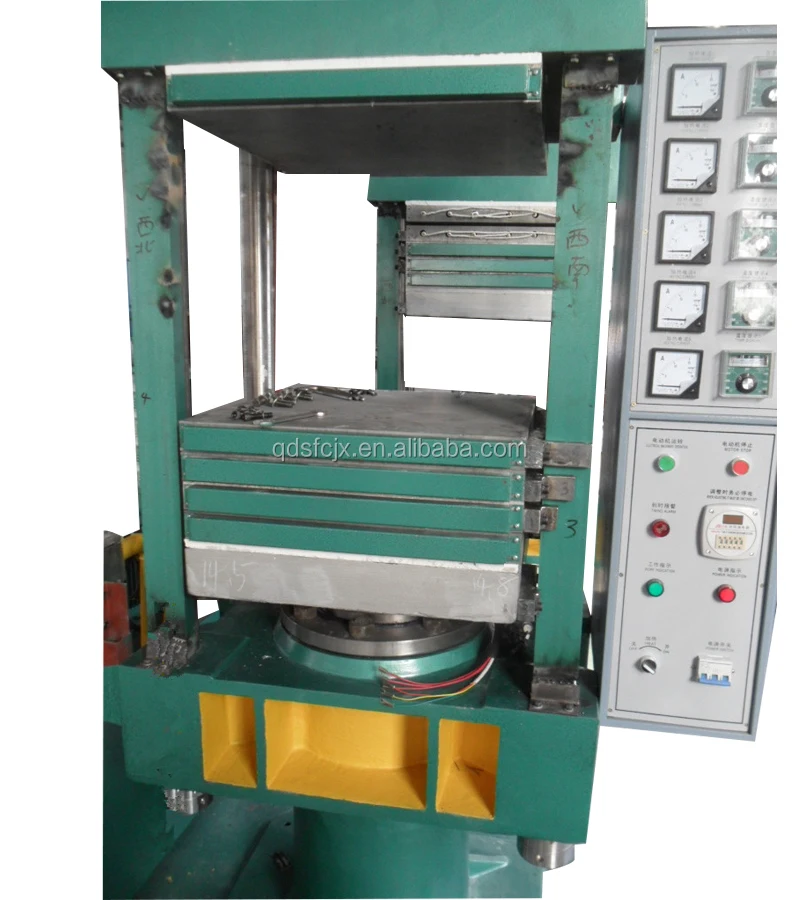

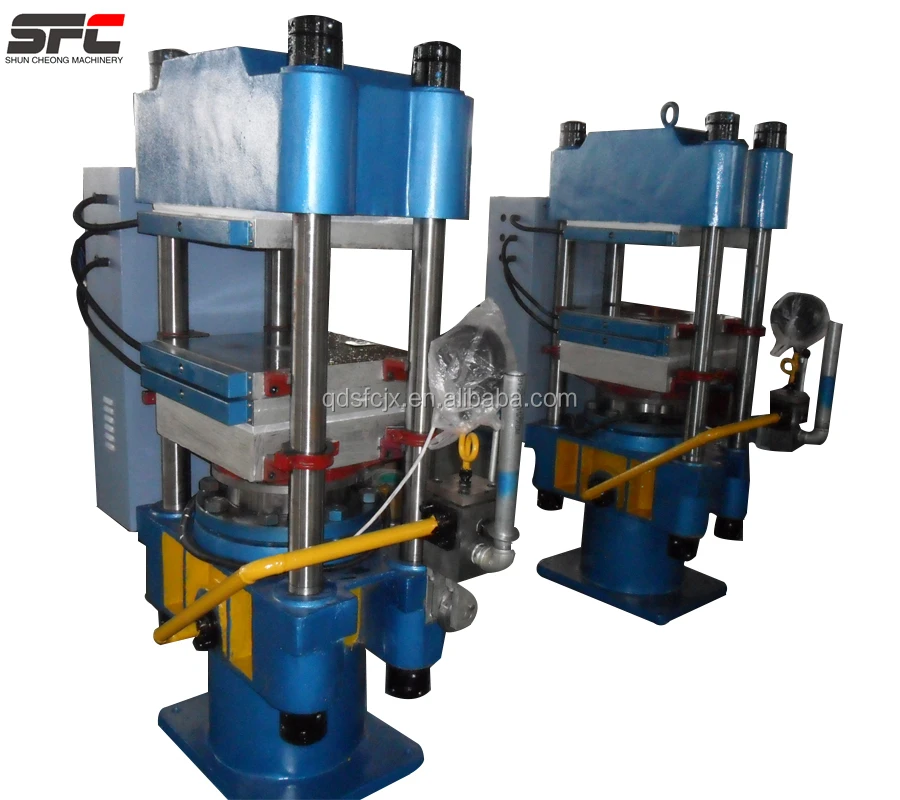

25Tons High Quality New Technology Pillar Type Plate Vulcanizing Hydraulic Press Machine

Product Overview

Description

25Tons High Quality New Technology Pillar Type Plate Vulcanizing Hydraulic Press Machine





Model	Total Pressure (MN)	Daylight (mm)	Working  Layer	Piston Stroke (mm)	Main Motor Power (KW)	Dimension  (L×W×H)(mm)
XLB-240×240×2	0.15	125	2	250	2.2	1200×350×1300
XLB-350×350×2	0.25	125	2	250	2.2	1400×480×1380
XLB-400×400×2	0.25	125	2	250	2.2	1600×500×1480
XLB-500×500×2	0.63	125	2	250	2.2	1750×600×1540
XLB-600×600×2	1.00	125	2	250	2.2	1880×720×1680
XLB-700×700×2	1.20	125	2	250	2.2	2000×850×1750
XLB750×850×2	1.60	200	2	400	3	2250×1200×2200
XLB-900×900×2	2.00	200	2	400	5.5	1400×900×2400
XLB-1200×1200×2	3.15	200	2	400	5.5	1685×1320×2450
XLB-1300×2000×1	5.60	400	1	400	7.5	2000×1860×2500

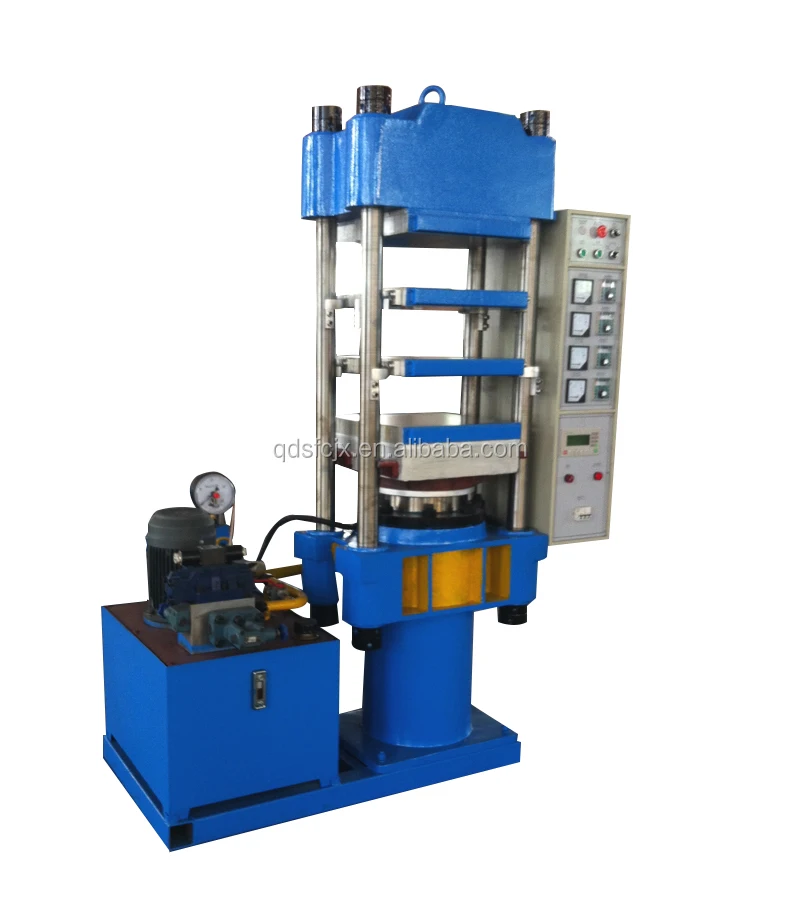

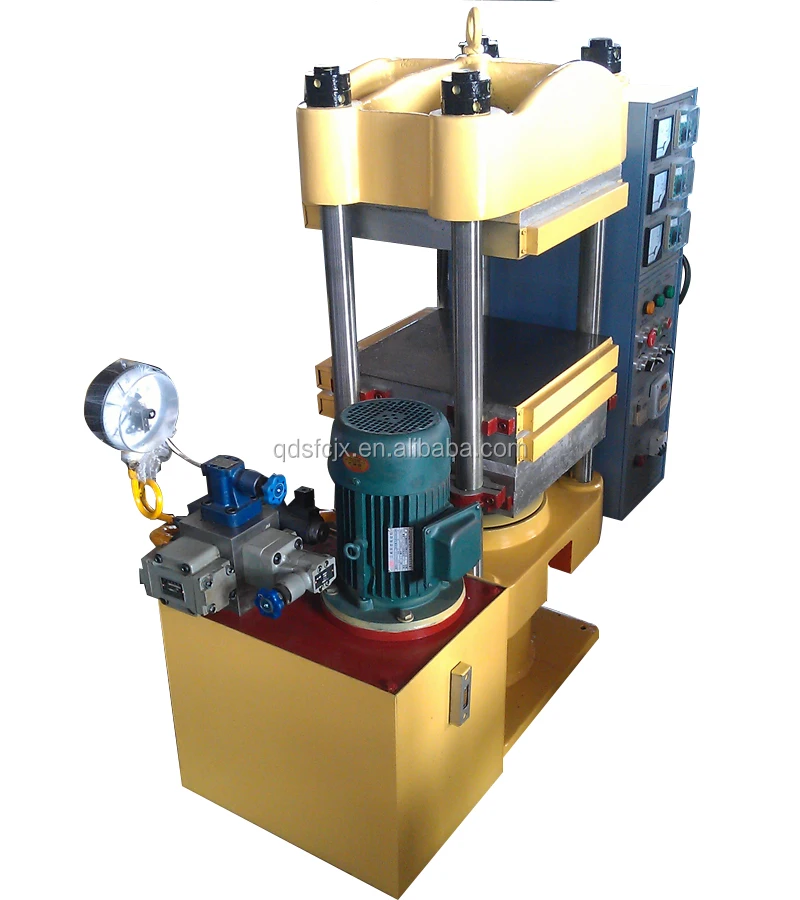

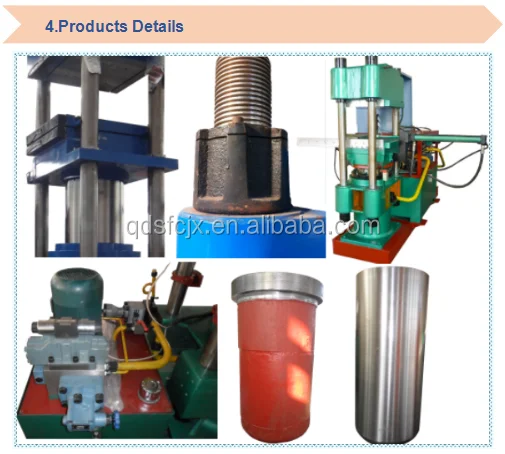

1. Hydraulic vulcanizing press machine mainly consists of host machine, hydraulic system, and electronic control system.
2. Fuel tank is installed on the left of host machine, won't be affected by the temperature of host machine.
3. Adopts hydraulic system drive, PLC control, the vulcanizing time, pressure and temperature are all adjustable.

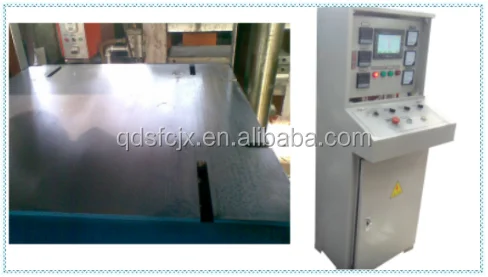

4. Hot platens' temperature is controlled by temperature control system to guarantee the high precision and good quality of final products.
5. PLC control system can accurately realize auto lifting, auto mould open/close, auto air exhausting, auto pressure filling, also with the vulcanizing timing function, vulcanizing alarms function, automatic control & manual control switch function.
6. Mould push-pull device can be configured to improve the efficiency and save labor.
