Price:$5,000.00

Quantity:


Product Overview

Description


Product Description

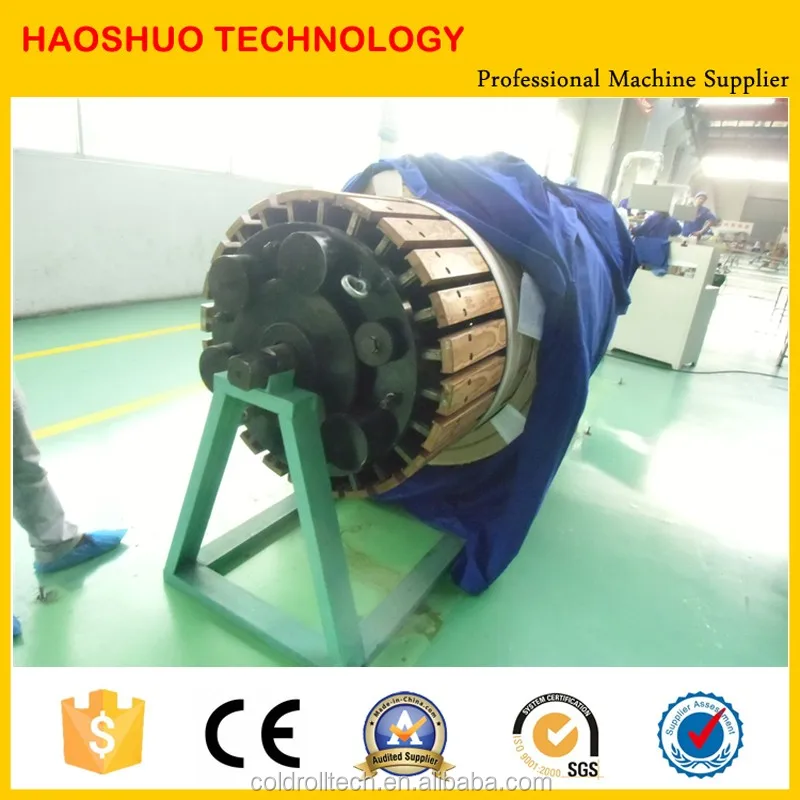

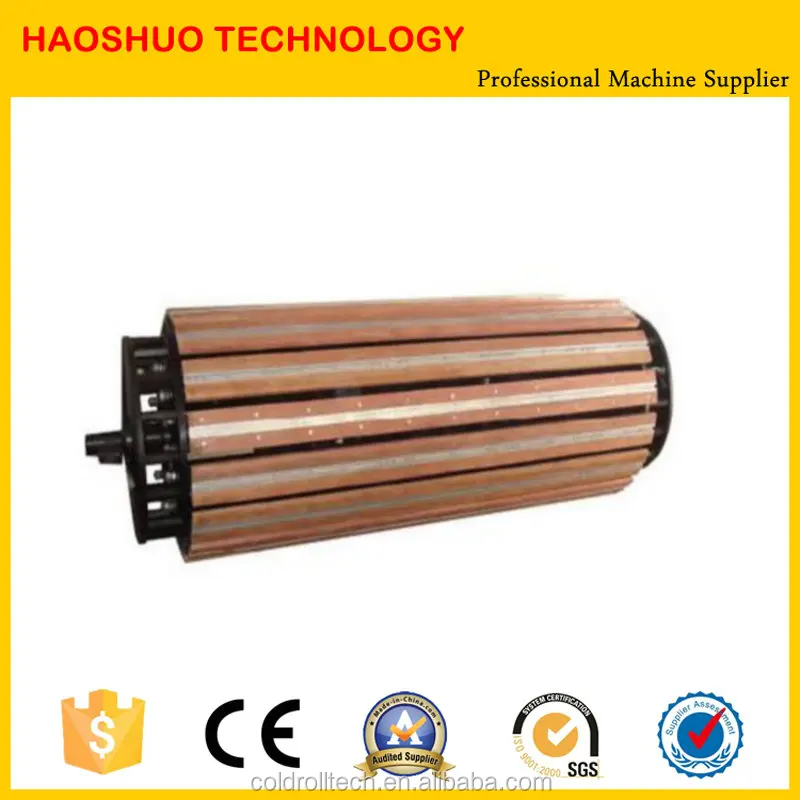

The Mandrel is for coil winding machine use. Its outer diameter is expandable, motorized or manual adjustable. The diameter variation is big, taking-off is convenient, suitable for both horizontal coil winding machine and vertical coil winding machine.


In need of any transformer machine please feel free to get a quotation from us!

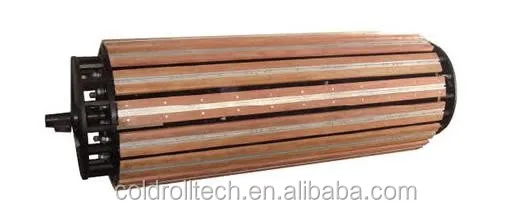

Detailed Images
\t
Spec
\t
Expanding range/mm
\t
Expanding range with pad/mm
\t
Max coil weight/t
\t
Bar length
\t
KTM-1
\t
Φ200-Φ300
\t
Φ300-Φ400
\t
1
\t
1200
\t
KTM-2
\t
Φ300-Φ400
\t
Φ400-Φ500
\t
2
\t
1200
\t
KTM-3
\t
Φ400-Φ500
\t
Φ500-Φ600
\t
2
\t
1500
\t
KTM-4
\t
Φ500-Φ600
\t
Φ600-Φ700
\t
3
\t
1500
\t
KTM-5
\t
Φ600-Φ700
\t
Φ700-Φ800
\t
5
\t
2000
\t
KTM-6
\t
Φ700-Φ800
\t
Φ800-Φ900
\t
5
\t
2000
\t
KTM-7
\t
Φ800-Φ900
\t
Φ900-Φ1000
\t
8
\t
2000
\t
KTM-8
\t
Φ1000-Φ1200
\t
Φ1200-Φ1400
\t
10
\t
2500
\t
KTM-9
\t
Φ1200-Φ1400
\t
Φ1400-Φ1600
\t
10
\t
2500
\t
KTM-10
\t
Φ1400-Φ1600
\t
Φ1600-Φ1800
\t
10
\t
2500
\t
KTM-11
\t
Φ1600-Φ1800
\t
Φ1800-Φ2000
\t
15
\t
3000
\t
KTM-12
\t
Φ1800-Φ2000
\t
Φ2000-Φ2200
\t
15
\t
3000
