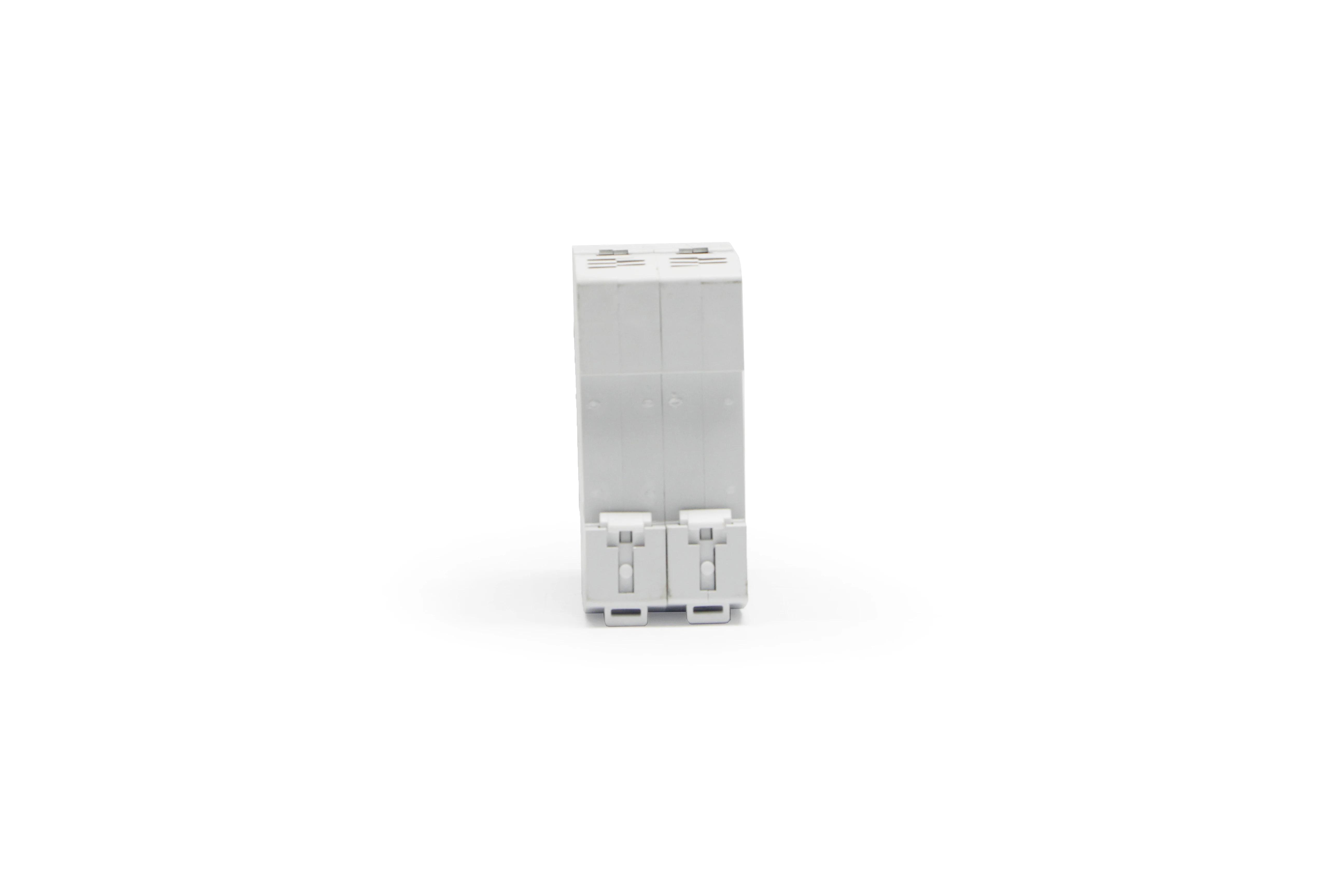

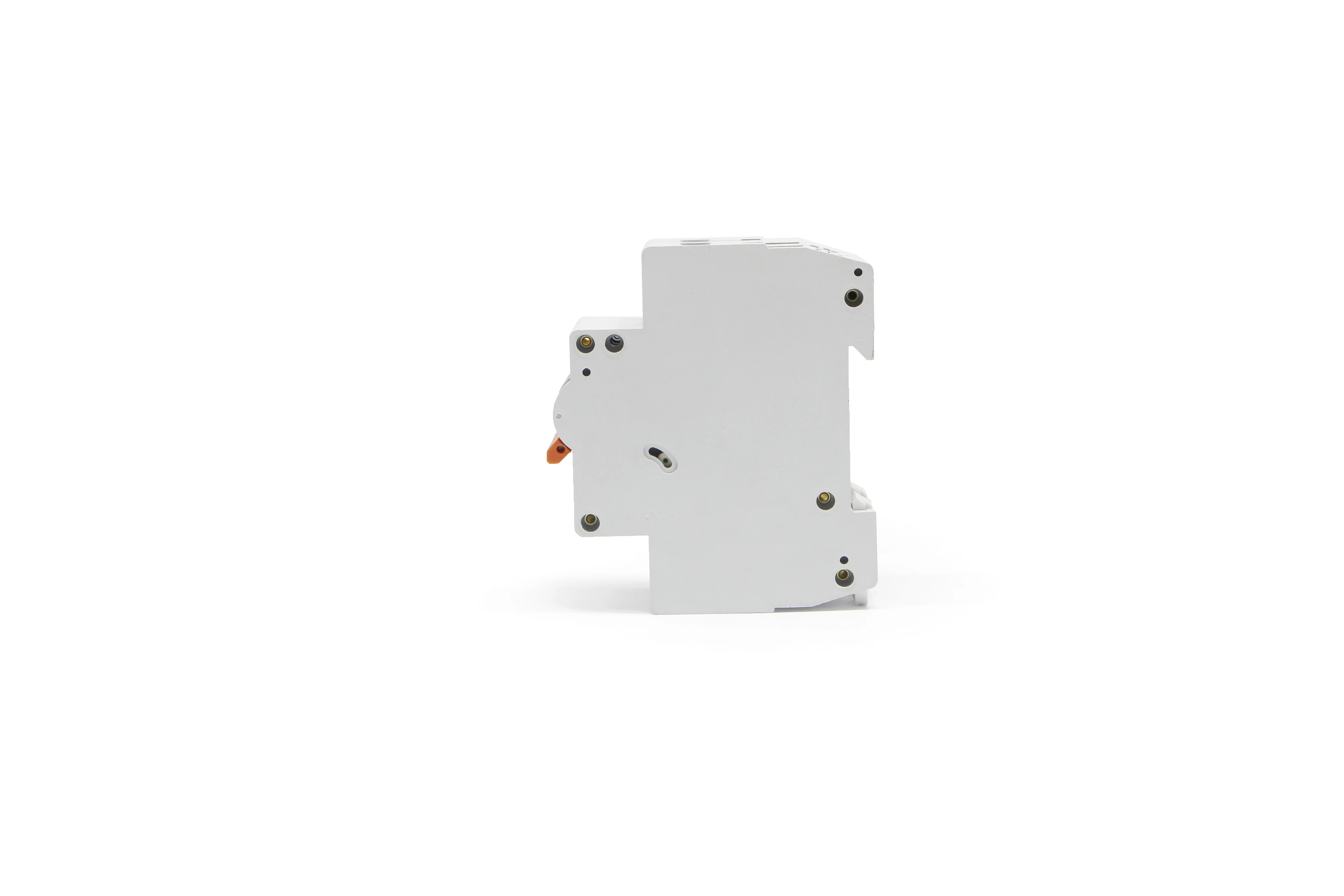

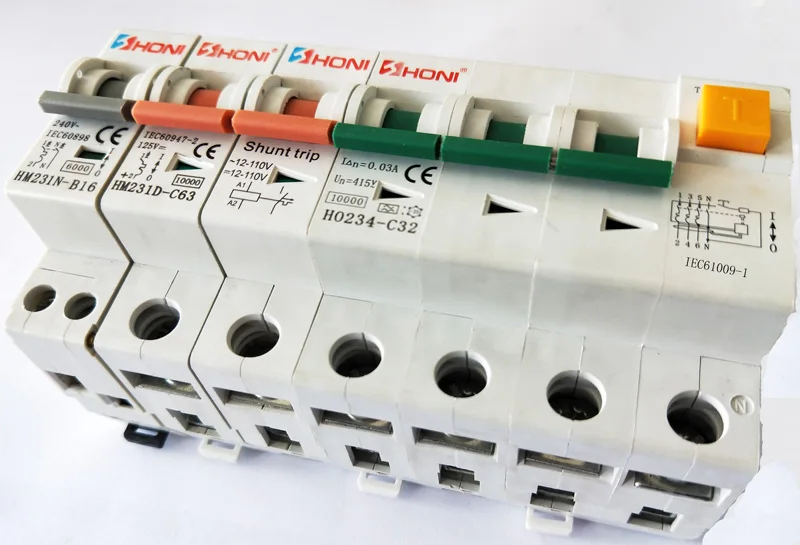

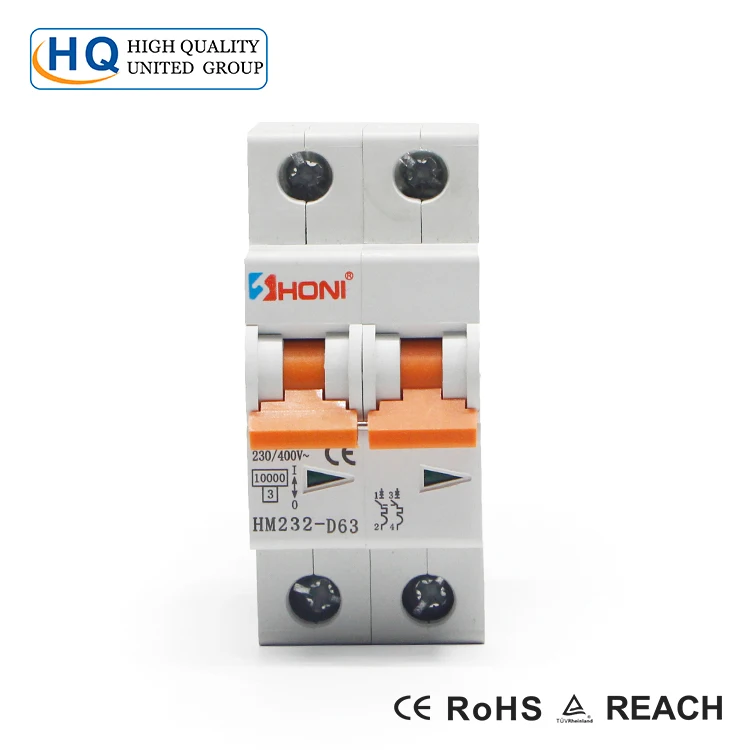

L7 Model 16A 20A 63amp single phase pole 1p 2p 3p 4p mini electric mcb dc ac circuit breaker

Product Overview

Description

L7 Model DC  48V 110V,220V,250V,400V,500V,630V,800V,1000V Circuit breaker

Production details:

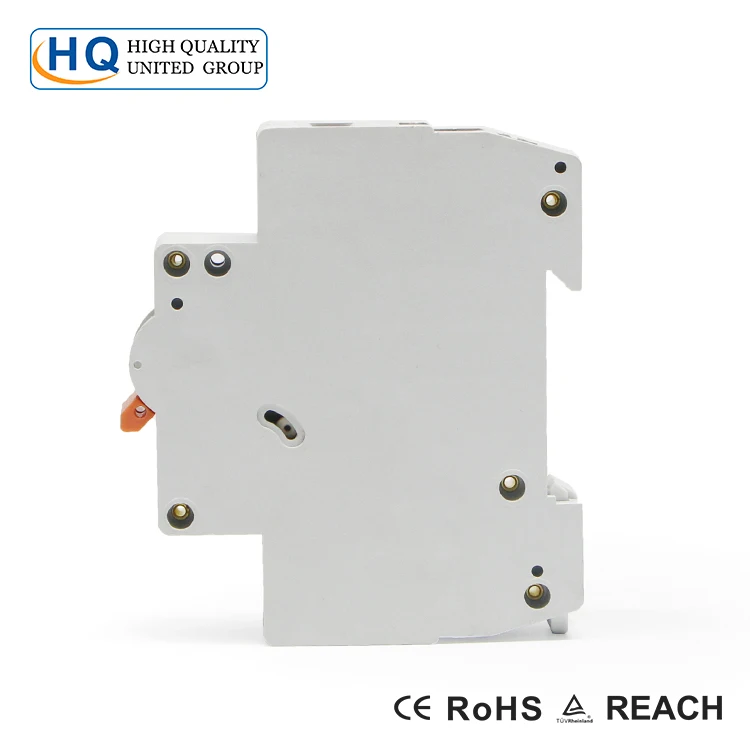

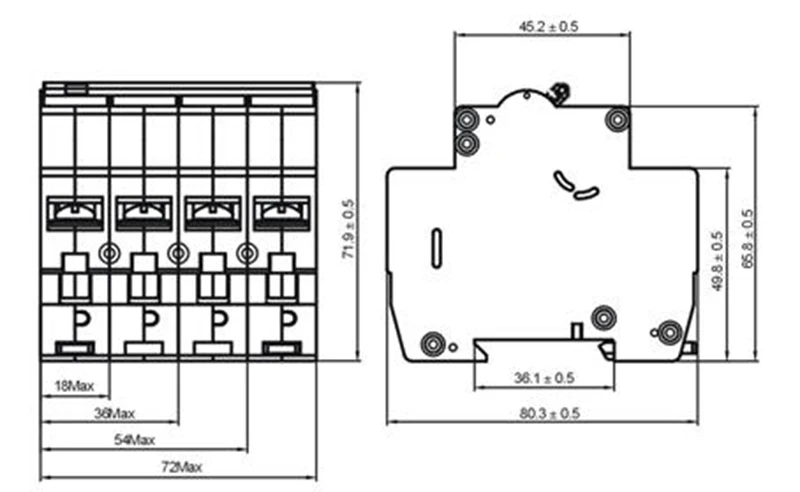

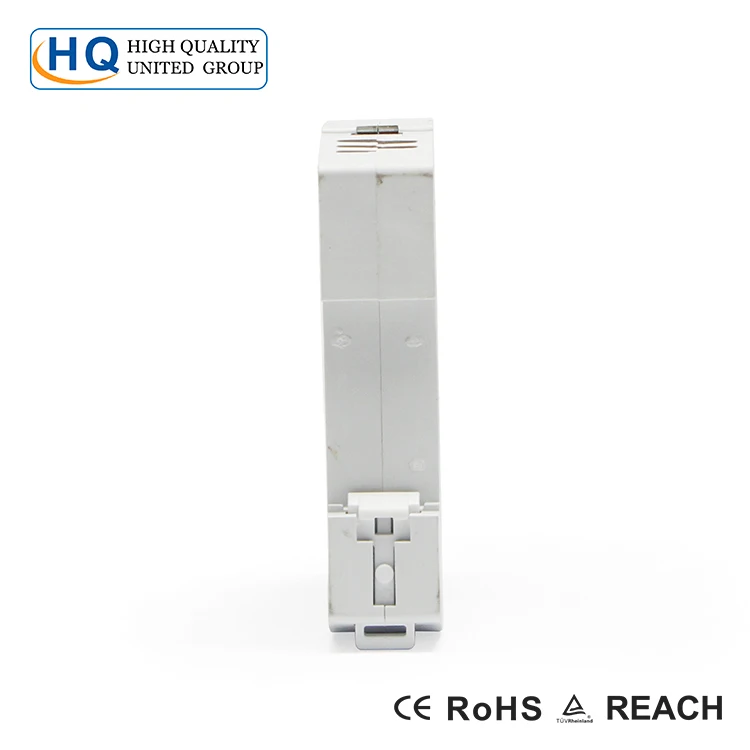

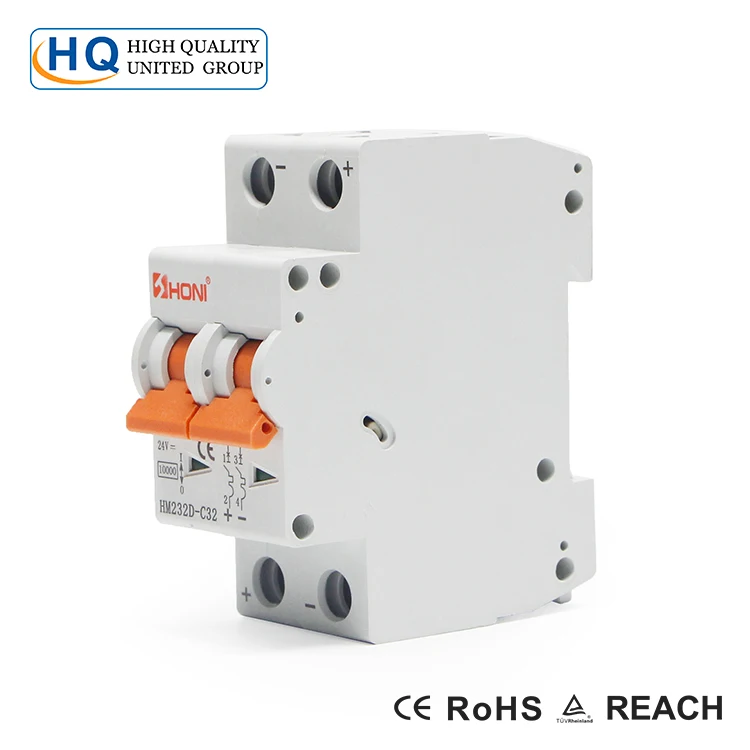

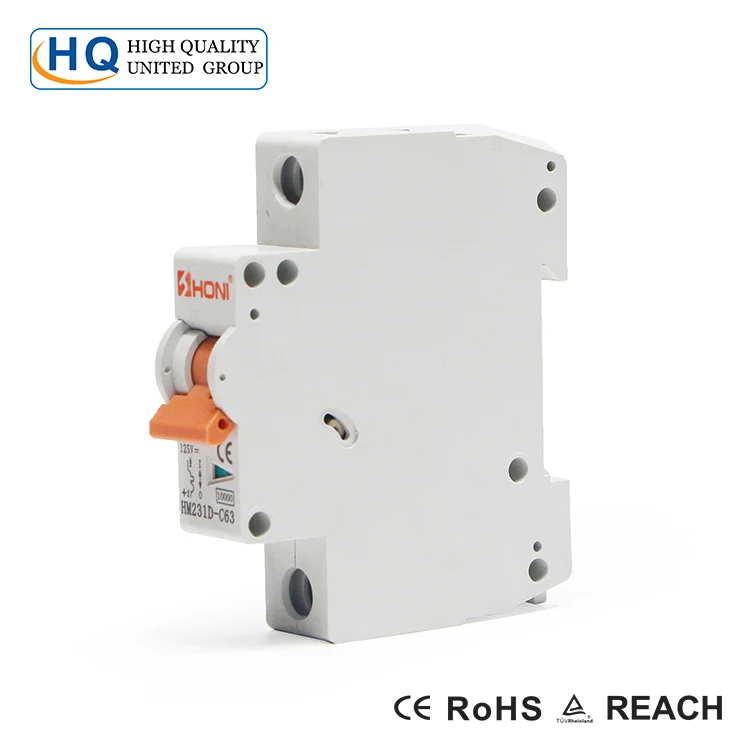

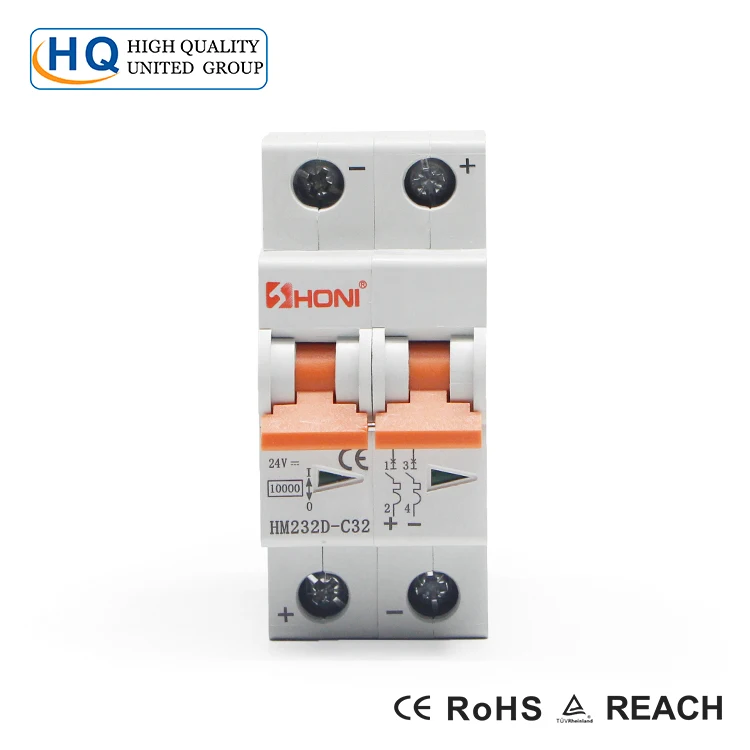

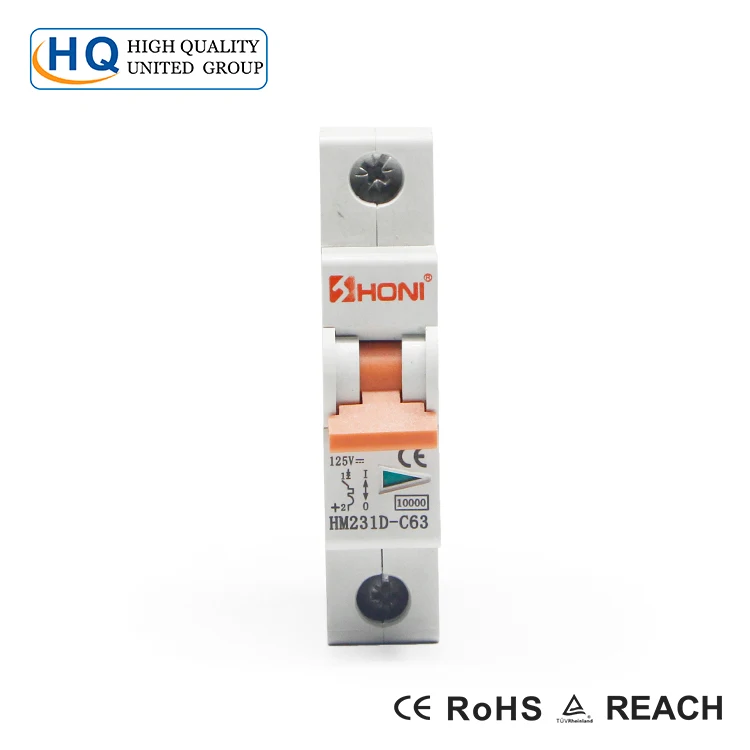

HM232D DC Miniature Circuit Breaker ( DC MCB )

This DC MCB Was designed for direct current(DC) control circuit applications,used for short -circuit and over-current protection within appliances or electrical equipment.

It provide optimization products for DC system applications such as

1. In large capacity, high voltage power system or power plants,DC system offer steady power supply for relay protection, operation control, signal and emergency lighting audio equipment .Mini dc circuit breaker will guarantee the safty of the power system

2. PV ,EPS,UPS Power system

3. Special Rapid analysis DC circuit breaker is important for rail transit and electrocar

4. In Marine power system,Dc circuit breaker is one of the most important components  to  ensure the safety of power supply system and electrical equipment of ships.

Construction and Feature

Protection against both overload and short circuit

High short-circuit capacity

Contact position indication

Applicable to terminal and pin/fork type busbar connection

Easy mounting onto 35mm DIN rail

Technical Data

Pole No.: 1P ,2P, 3P, 4P

Rated voltage: DC 48V 110V,220V,250V,400V,500V,630V,800V,1000V

Rated current (A): 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63;

Tripping curve: B, C

Rated short-circuit capacity (Icn):10kA

Rated frequency: 50/60Hz

Energy limiting class: 3

Rated impulse withstand voltage: 6.2kV

Electro-mechanical endurance:6000

Contact position indication

Connection terminal:

  Screw terminal

  Pillar terminal with clamp

Connection capacity: Rigid conductor up to 25mm2

Fastening torque: 2.0Nm

Installation:

  On symmetrical DIN rail 35mm

  Panel mounting
