EWP BWRO P412 Series Reverse Osmosis Systems Brackish Water Treatment
- Category: >>>
- Supplier: Environmental World Products (China) Inc.
Share on (60704852725):
Product Overview
Description
Products Description
What is an RO System?
Reverse Osmosis is a method that uses micro-porous spiral-wound membranes to separate the dissoluble solids, organic matter, colloids and bacteria from the water. With certain pressure, the raw water is carried to the RO membrane, passes through its small aperture, and pure water is produced. The rejected matter is drained with the concentrate water. RO membranes can remove over 98% of dissoluble solids, over 99% of organic matter and colloids and almost 100% of bacteria.
An RO system is one of the most advanced water purification systems available. Low cost running expense, easy operation and reliability make it an excellent choice for producing pure water.

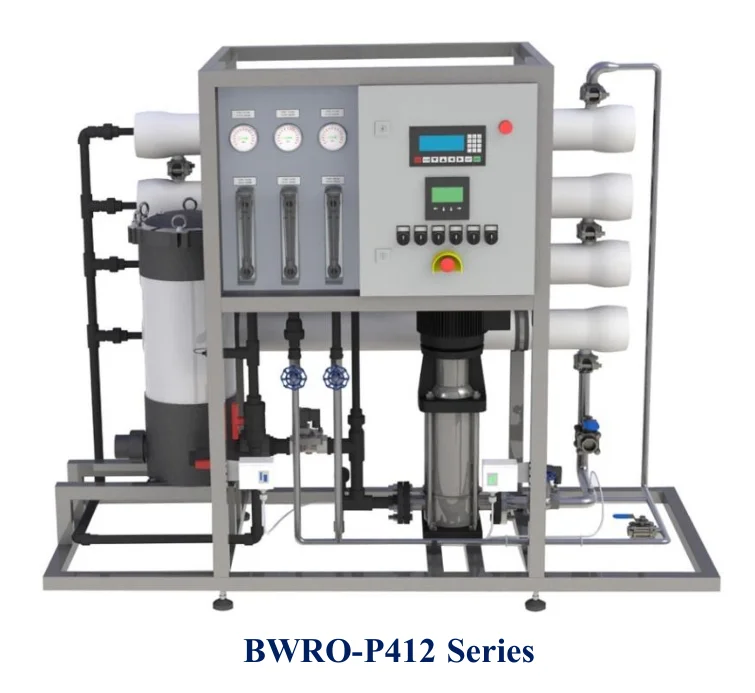

BWRO-P412 Series
RO Systems from 5000GPD to 18000GPD(Feed Water TDS<3000ppm).

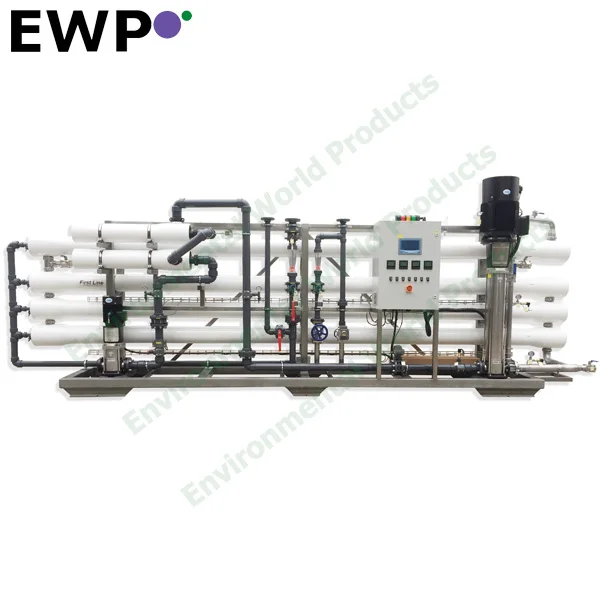

The smart, clean utilitarian industrial design of the BWRO-412 Series allows for convenient installation, user-friendly operation, ease of maintenance. These skid-mounted, packaged systems are pre-plumbed and pre-wired complete on a steel frame with panel-mounted pressure and flow instrumentation allowing for straight forward system monitoring and control. EWP offers an assortment of both basic and premium designs of pure water systems that can be private labeled or customized.
Benefits
* Expandable and skid mounted
* Components easily accessible
* Pre-plumbed wired and assembled
* Individually tested and preserved
* Individually tested and preserved
* Low operation and maintenance costs
* Easy maintenance and servicing
* 1-Year limited warranty
Applications
* Drinking water
* Food & Beverage* Electroplating
* Power plant
* Preparation of medicine
* Petrochemical industry
* Eyeglass
* Waste water reuse
* Metallurgy
* Pretreatment of EDI or Mixed Bed
* Municipal
* Hospital
* Agriculture
* Refinery
* Boiler feed
* Hospital
* Agriculture
* Refinery
* Boiler feed
* Hotel

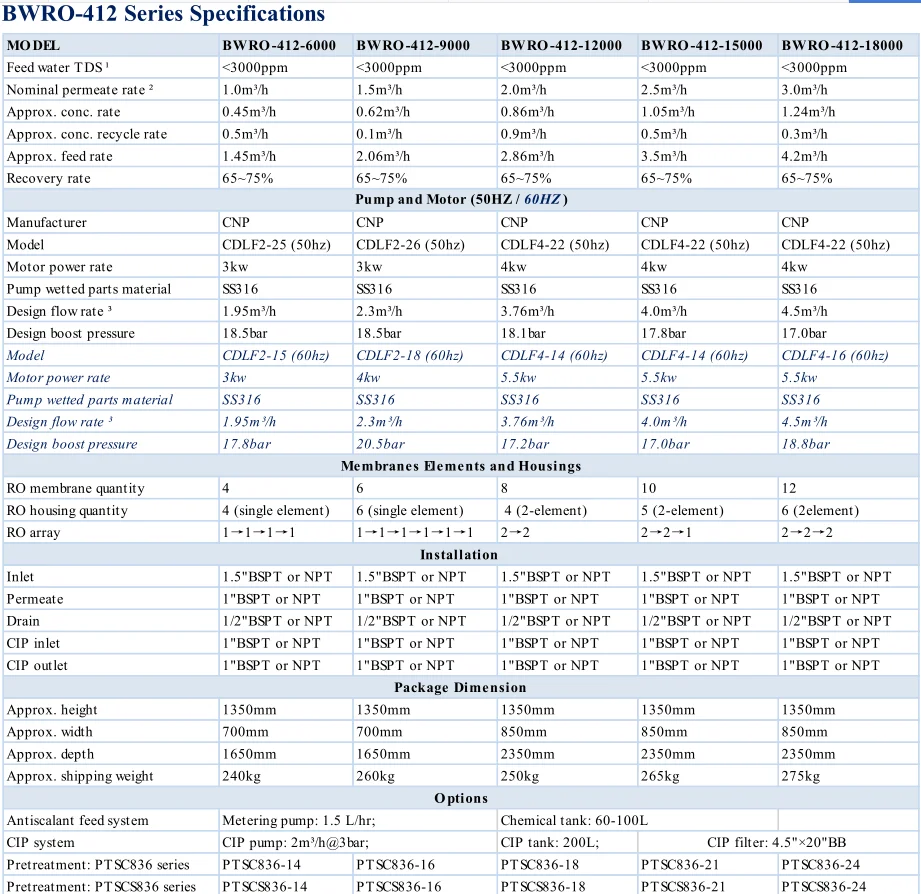

Specifications
Cartridge Filtration
●Housing --- 4.5" × 20"
●Sediment filter --- 4.5" × 20"; 5 micron
●Quantity --- 2 set
●Sediment filter --- 4.5" × 20"; 5 micron
●Quantity --- 2 set
Membrane Elements and Housings
●Membrane model --- TW30-4040●Membrane manufacturer --- DOW Filmtec
●Membrane rejection – 99.5%
●Housing Spec. --- FRP, 300psi, End port/side port
Boost Pump
●Type --- Vertical multi-stage centrifugal
●Pump Material --- SS304
●Connection --- DIN Flange
●Pump Brand --- CNP
●Pump Material --- SS304
●Connection --- DIN Flange
●Pump Brand --- CNP
Connection Port
●Feed Inlet Port
●Permeate Port
●Drain Port
●Clean-in-Place (CIP) Ports
●Feed Inlet Port
●Permeate Port
●Drain Port
●Clean-in-Place (CIP) Ports
Solenoid Valve
●Feed Solenoid Valve --- SS304; 10bar
●Flush Solenoid Valve --- SS304; 15bar
●Feed Solenoid Valve --- SS304; 10bar
●Flush Solenoid Valve --- SS304; 15bar
Documentation Included
●Operation and maintenance manual
●Drawings: P&ID, Electrical diagram
●Operation and maintenance manual
●Drawings: P&ID, Electrical diagram
Material of Construction
●High - pressure piping --- UPVC
●Low - pressure piping --- UPVC
●Frame --- SS304
●Control box --- IP54 ( painted carbon steel)
●High - pressure piping --- UPVC
●Low - pressure piping --- UPVC
●Frame --- SS304
●Control box --- IP54 ( painted carbon steel)
Control System
●Relay and timer control
●Timer adjustable
●Tank level control
●Low pressure/High pressure protection
●Auto flush
●Pre-treatment lockout control backup
●Relay and timer control
●Timer adjustable
●Tank level control
●Low pressure/High pressure protection
●Auto flush
●Pre-treatment lockout control backup
Instrumentation
●Flow meters --- Permeate, concentrate, concentrate recycle
●Conductivity --- Permeate
●Pressure gauge--- Pre-filter, post - filter, pump discharge, concentrate
●Pressure switch --- Feed, RO membrane inlet
●Flow meters --- Permeate, concentrate, concentrate recycle
●Conductivity --- Permeate
●Pressure gauge--- Pre-filter, post - filter, pump discharge, concentrate
●Pressure switch --- Feed, RO membrane inlet
Detailed Images

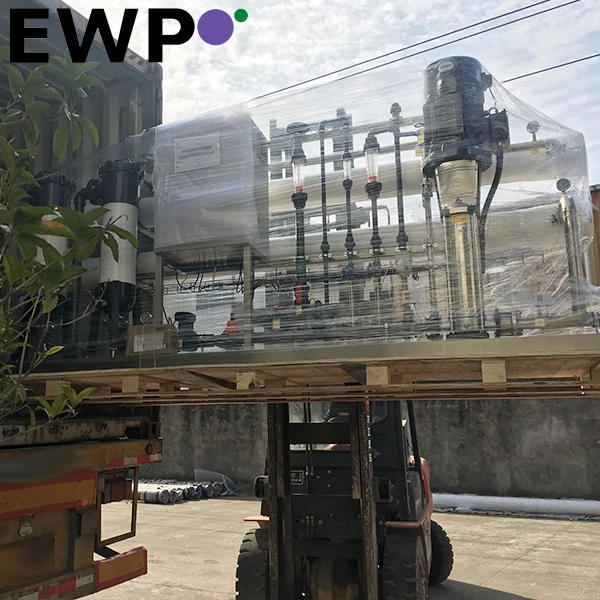

Packing and Delivery
Company Profile
Environmental World Products
Founded in 2004, EWP is an international group with diversified cultures. We have members in USA, South Africa, Nigeria, Malaysia and China.
Through international networks around the world, we are able to provide a variety of water treatment products from residential, commercial and industrial components as well as systems.
EWP is aimed at a better quality standard environment by supplying water treatment-related products. EWP hopes to establish a better living standard for the present and in the future.
Through international networks around the world, we are able to provide a variety of water treatment products from residential, commercial and industrial components as well as systems.
EWP is aimed at a better quality standard environment by supplying water treatment-related products. EWP hopes to establish a better living standard for the present and in the future.
Why Choose Us
Our Values
* always provide exceptional value.
* always provide outstanding service.
* always promote technological innovation.
* always act ethically and lawfully.
* always act environmentally responsible.
* always act socially responsible.
* always build relationships based on mutual respect.
* always provide outstanding service.
* always promote technological innovation.
* always act ethically and lawfully.
* always act environmentally responsible.
* always act socially responsible.
* always build relationships based on mutual respect.
Our Strength
EWP’s engineering team possesses technology and experience to assemble RO systems for over 20 years, and with degree in
electrical, structural, mechanical and hydraulic.
Our engineering team focuses on providing the best quality and continuously improving products made by EWP.
electrical, structural, mechanical and hydraulic.
Our engineering team focuses on providing the best quality and continuously improving products made by EWP.
Our Services
-Software: Solidworks, ROSA, AutoCAD, CAD 3d Plant
-Licensed welding etc.
-Technical drawings: 3-dimensional drawing, electrical wiring diagram, P&ID drawings, flow chart, instruction manual and other
documents upon requests.
-Licensed welding etc.
-Technical drawings: 3-dimensional drawing, electrical wiring diagram, P&ID drawings, flow chart, instruction manual and other
documents upon requests.
Recommend Products
FAQ
Q: Are you trading company or manufacturer?
A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.We have experience over 20 years.
Q: What's the information you need to know before order?
A: What's your raw water?
B: What's the capacity per hour of the equipment?
C: What’s the requirement of purifier water?
Q: Which machine should I choose?
A: It depends on your raw water quality and your requirements.
Q: How long is your delivery time?
A: Generally it is 5-6 weeks, depending on your project.
Q: How can you control the quality and delivery?
A: Production strictly according to CE / ISO standards.
B: All our machines will be 100% tested before delivery. Wooden package is strong and safety for long delivery.
Q: What’s your warranty?
A: Our warranty is 1 year.
A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.We have experience over 20 years.
Q: What's the information you need to know before order?
A: What's your raw water?
B: What's the capacity per hour of the equipment?
C: What’s the requirement of purifier water?
Q: Which machine should I choose?
A: It depends on your raw water quality and your requirements.
Q: How long is your delivery time?
A: Generally it is 5-6 weeks, depending on your project.
Q: How can you control the quality and delivery?
A: Production strictly according to CE / ISO standards.
B: All our machines will be 100% tested before delivery. Wooden package is strong and safety for long delivery.
Q: What’s your warranty?
A: Our warranty is 1 year.
