High Strength Grass Paver Geocell used in road construction

Product Overview

Description

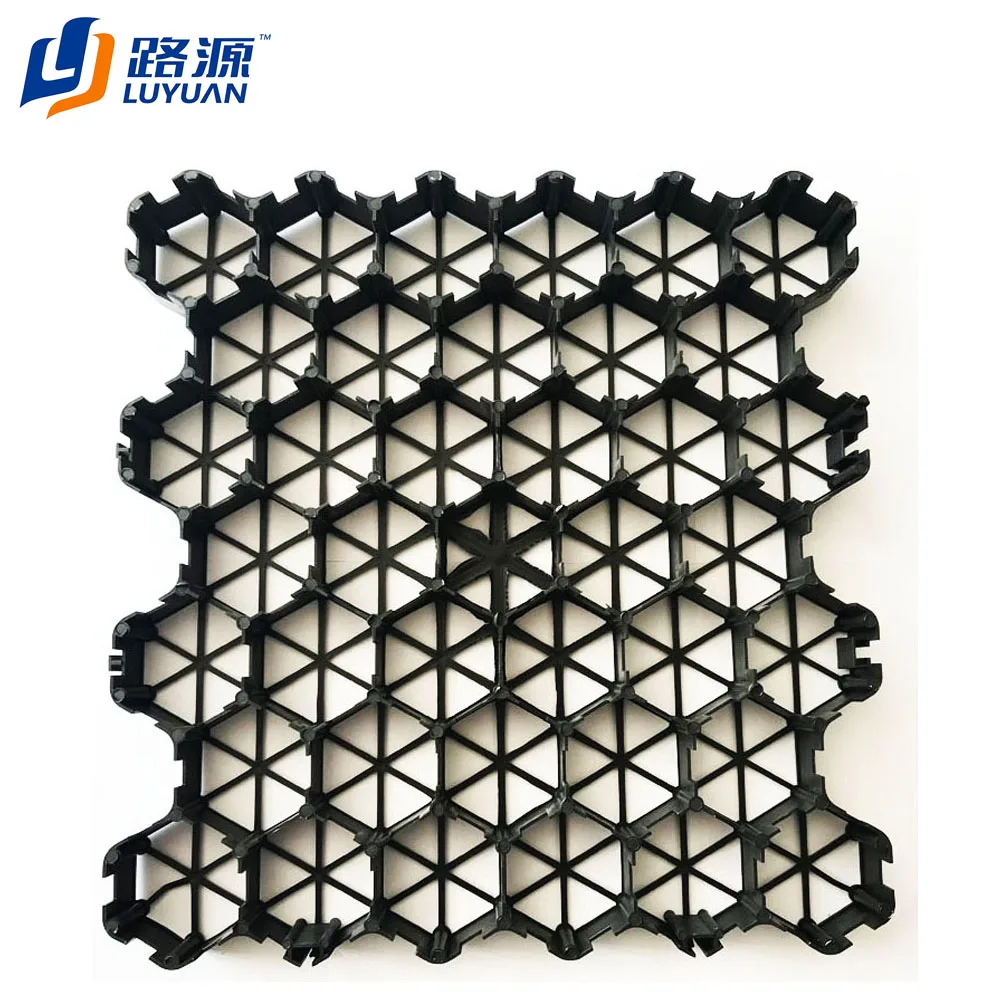

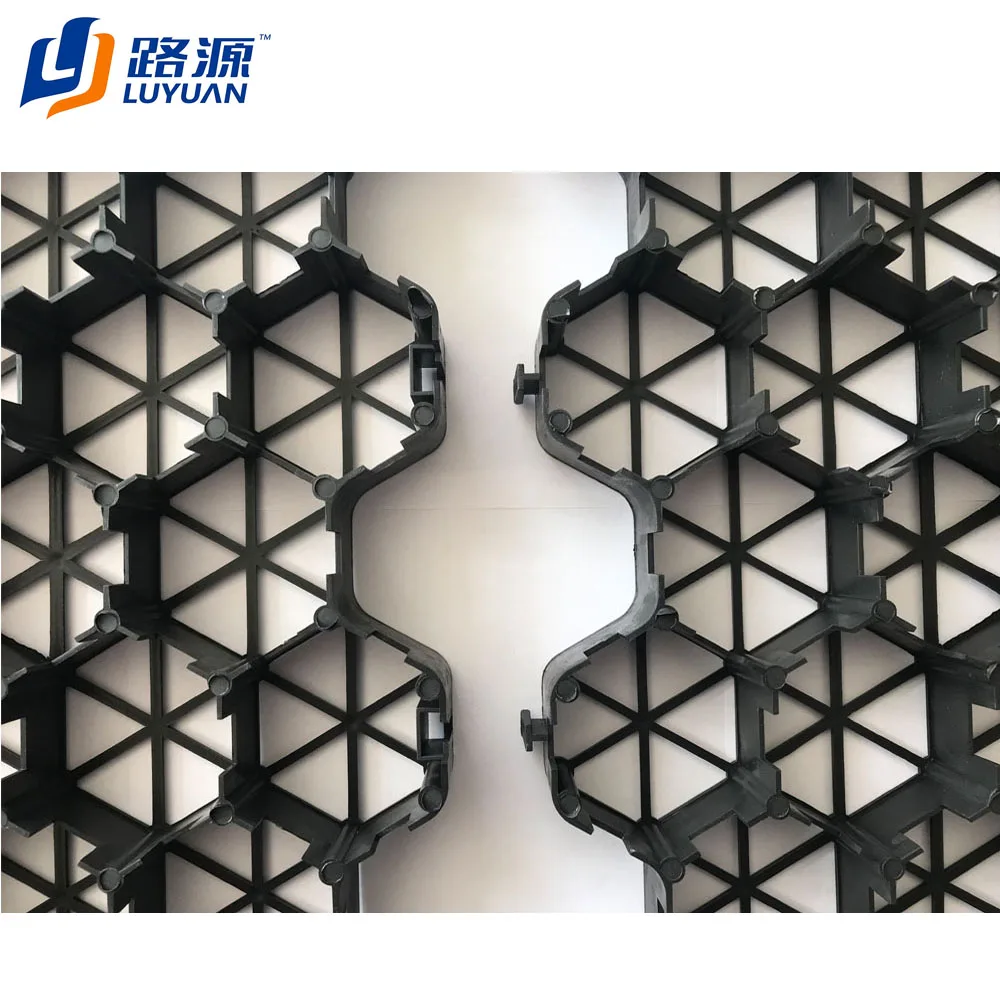

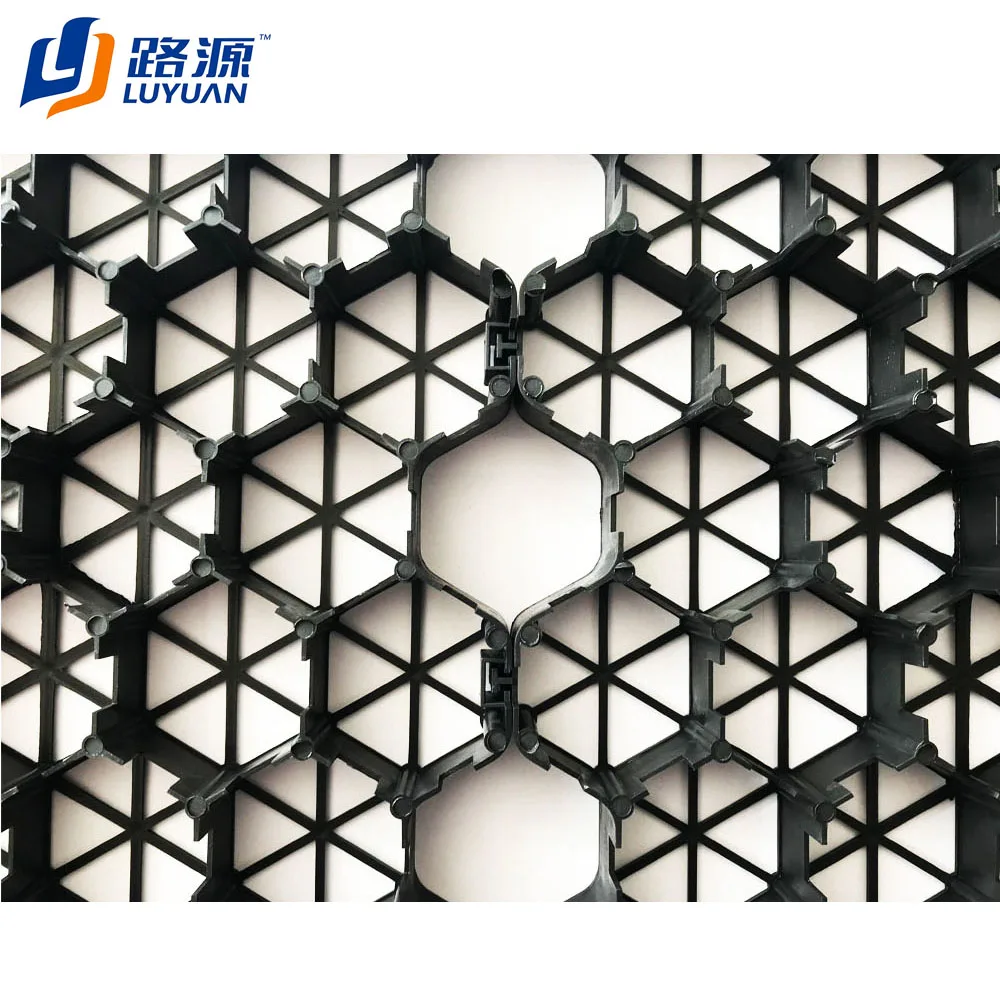

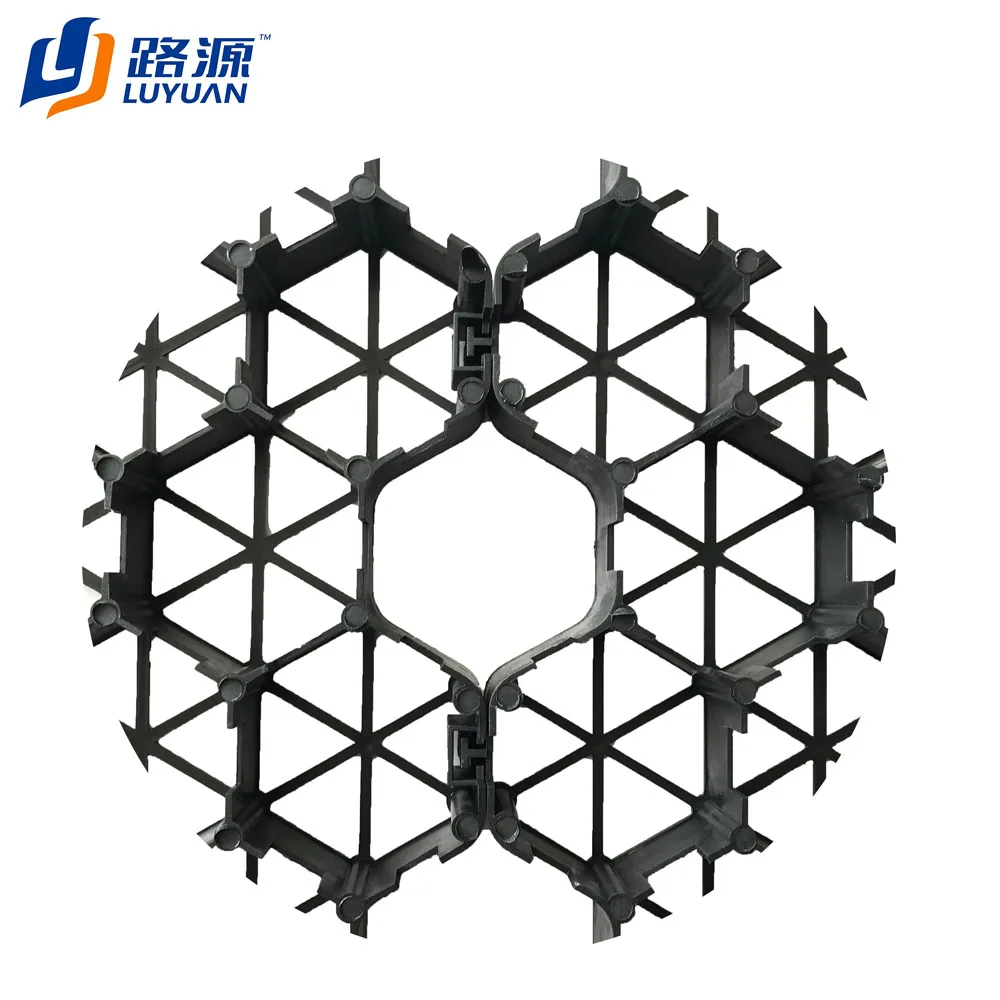

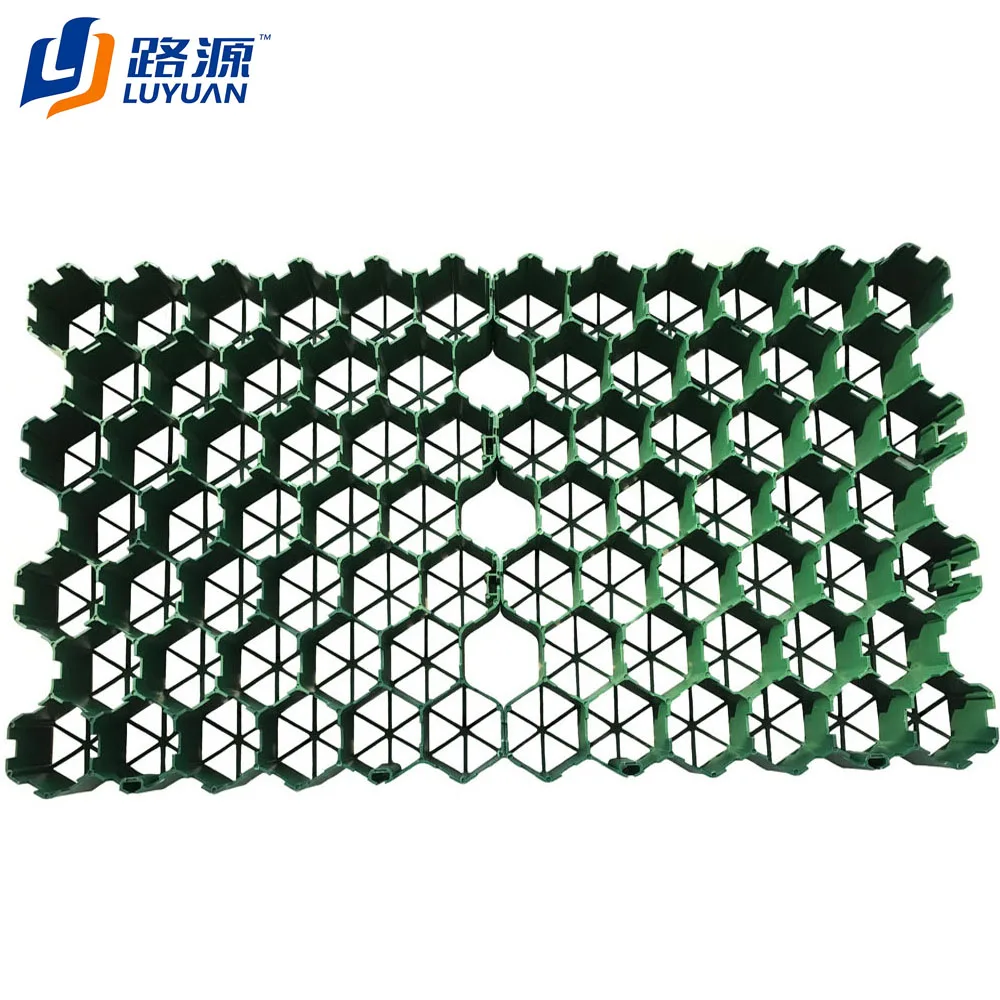

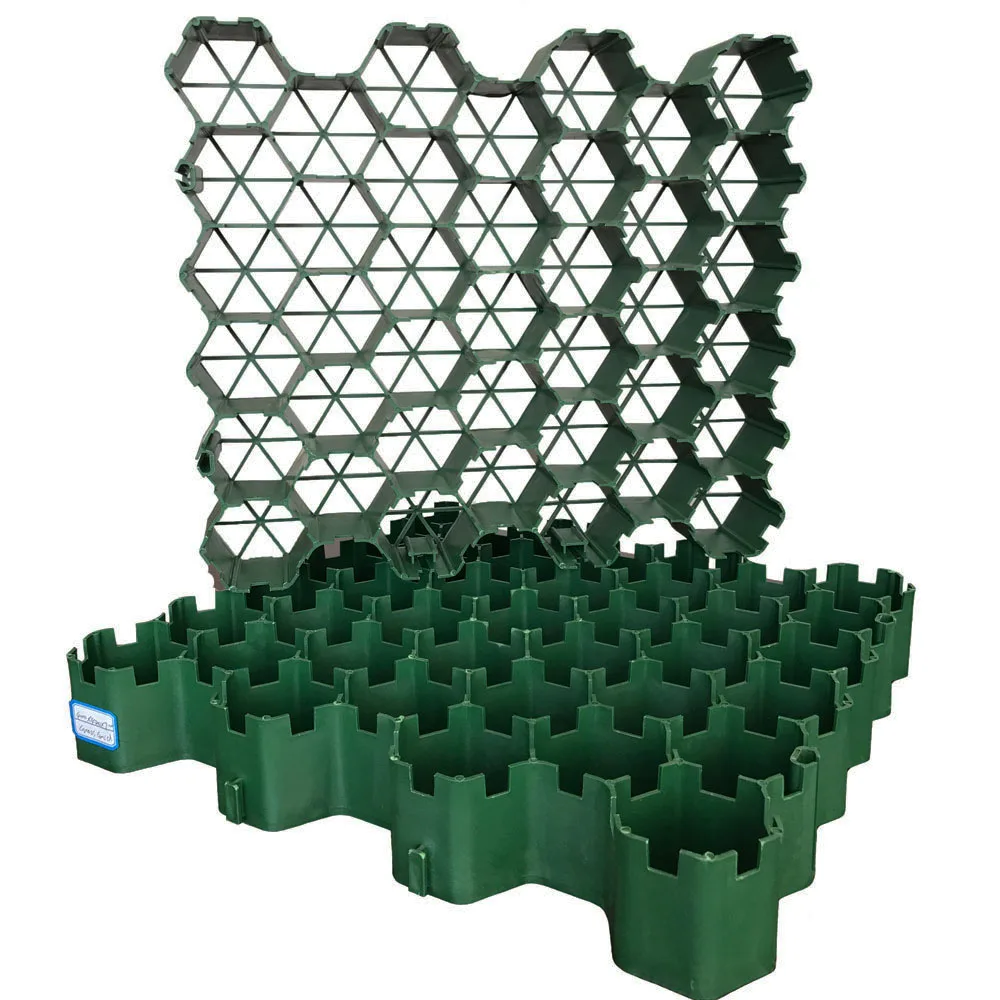

Plastic grass mat for pathway or driveway



Product Description:

Our grass grid is made of HDPE or PP material. Through a special processing technology, it can be made into a whole board one time. with advanced technology and high quality raw material, our grass grid has high crush resistance,abrasion resistance and corrosion resistance. Its weight capacity can reach 100 Ton/sq.m.





Product Feathers:

1.Material: HDPE or PP
2.Size: 410*390*38mm (L*W*H)
           410*390*50mm (L*W*H)
           410*390*70mm (L*W*H)
           420*400*38mm (L*W*H)
           540*470*50mm (L*W*H)
3.Weight: 3.1-5.2 kg/m2
4.The compressive tube number:
5.The weight capacity: 100 Ton/sq.m



Usage:

Parking lot, driving way, or greening the community





Specification



Material	PP or HDPE
Specification	400mm(L)×390mm(W)×70mm(H)±5mm
Anti-pressuring cylinder size	80mm(long)×60mm(width)×40mm(high)±5mm
Weight	≥3.0Kg/m2
Anti-pressuring cylinder number	≥128/m2
Anti-pressuring cylinder wall thickness	≥2.0mm
Anti-pressuring cylinder compressive strength	:≥200ton/m2
Anti-pressuring cylinder pore number	≥4
Shape	square or round





Package and shipping:



12pcs in one bundle, 24 bundles in one pallet and belt with plastic film and strips
