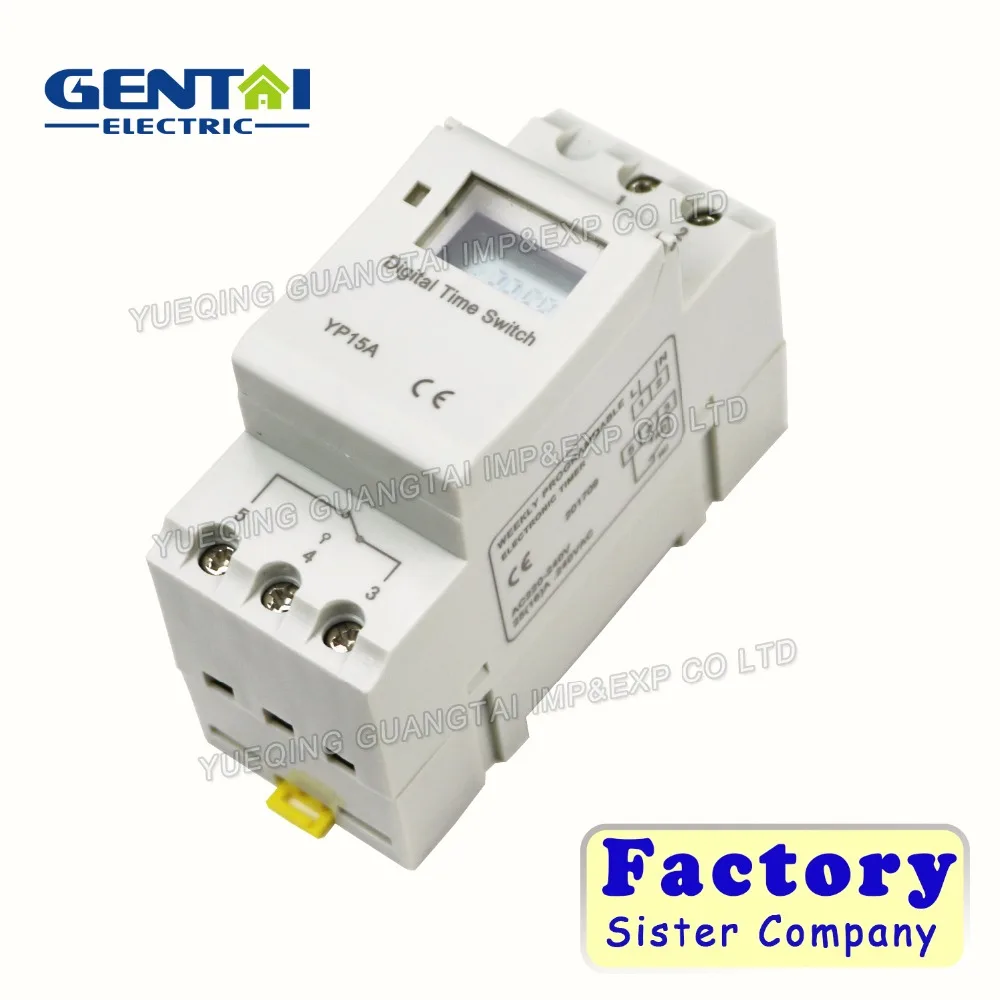

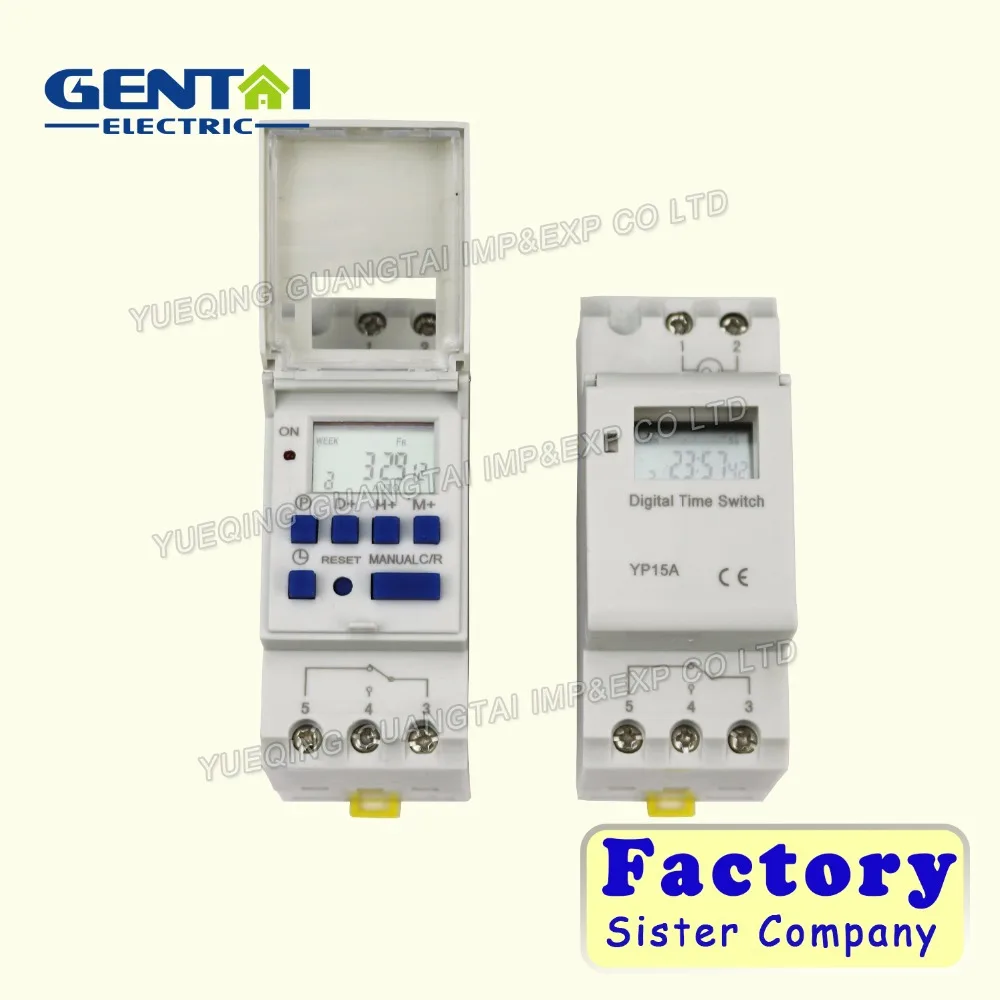

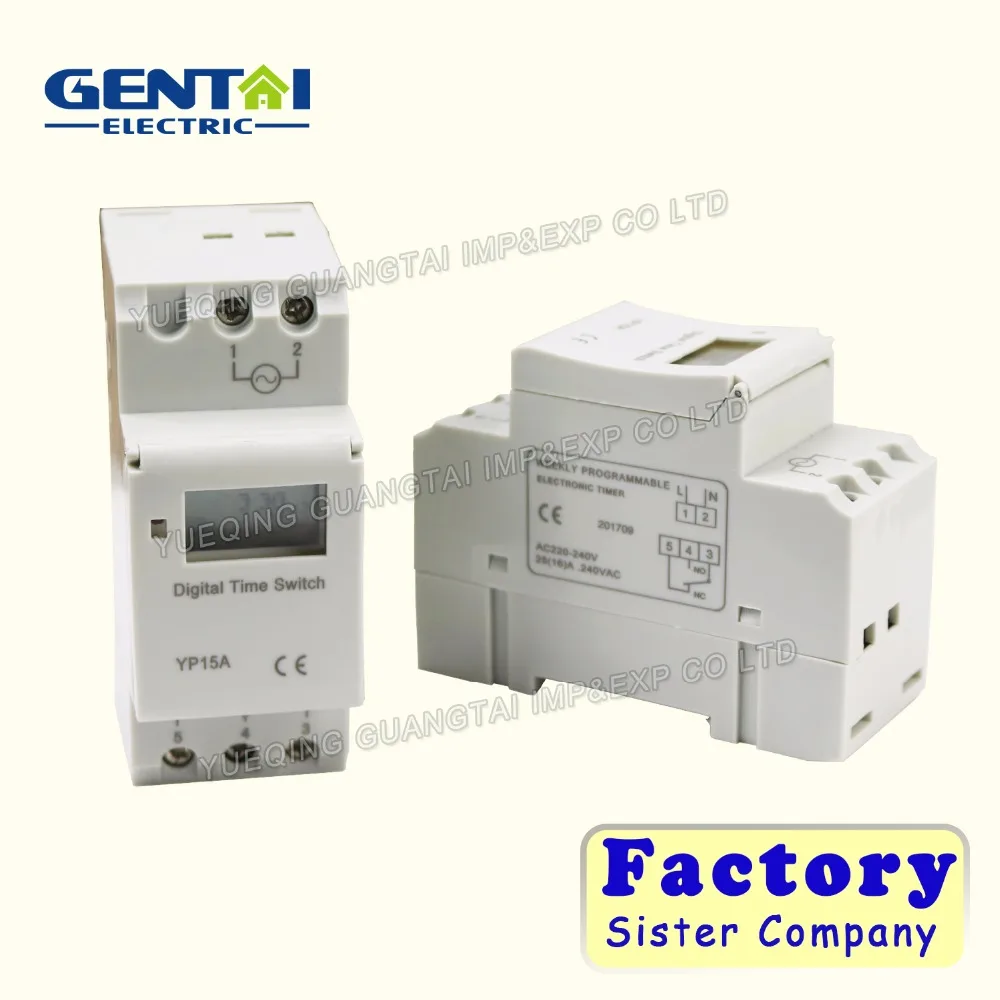

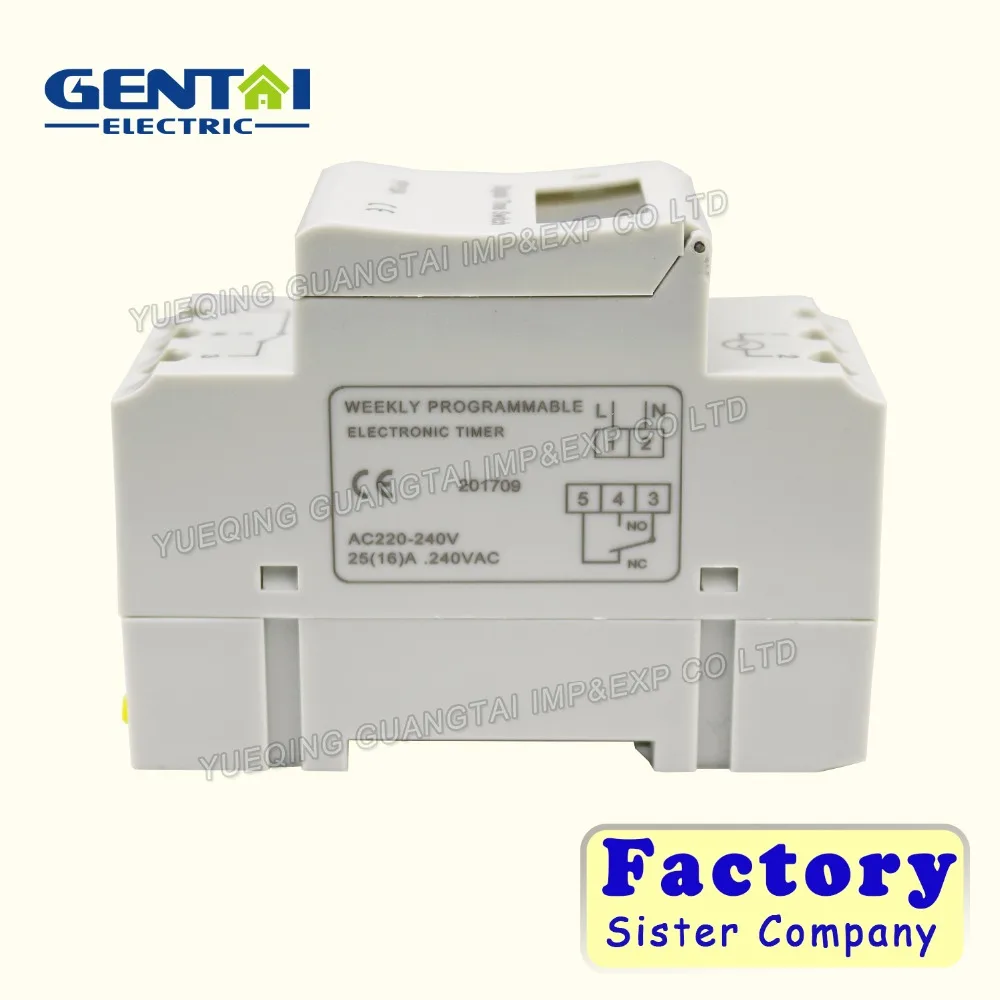

Weekly or Daily Mechanical Digital Programmable Timer Switch 220V 20A 16A Time Control Types of Timer Switch with Battery

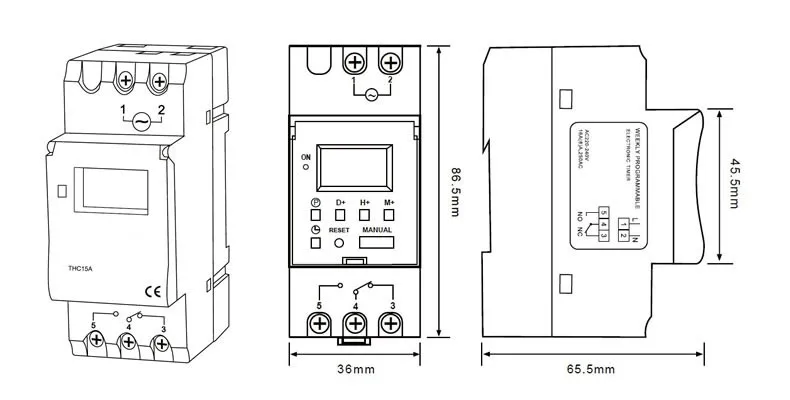

Dimension Bottom View :
AHC15A Microcomputer when the control switch is mainly used in the multi-stage time period to control multiple circuits on or off, that have more and more contact output cycle setting. These products both industrial and civilian high degree of intelligence and easy to operate.
Timer switch, time relay,timer relay,timing switch, weekly timer,electric timer,din rail mounting timer, timer relay switch,automatically off switch.
Feature:
Programmable Digital Timer relay AHC15A
1. Din Rail Installation.
2. Advanced pre-setting one week before.
3. Digital electronic general purpose time switch with daily and weekly programs.
4. Repeat programs with 8 ON/OFF settings.
5. To-the-minute setting accuracy.
6. LCD displays real time to Hour/Minute and ON/AUTO/OFF.
Model | AHC15A LCD Digital Din Rai Time Switch |
Dimension (MM) | 81*36*66 |
Full Timing Range | Per week or per days cycle |
Rated Voltage | AC 220V 50*60HZ 85% ~110% |
Contact Capacity | 16A/250VAC |
Contact Form | 1Z |
Accuracy | Less than 2S/ day |
Expectancy Display | LCD |
Mounting Form | Din rail |
Electrical Life | More than 100000 times |
Mechanical Life | More than 100000 times |
Ambient Temperature | -20°C~+50°C |
Programmable | 16 times/ week or day |
Work Mode | 15 days |
Weight | 125g |

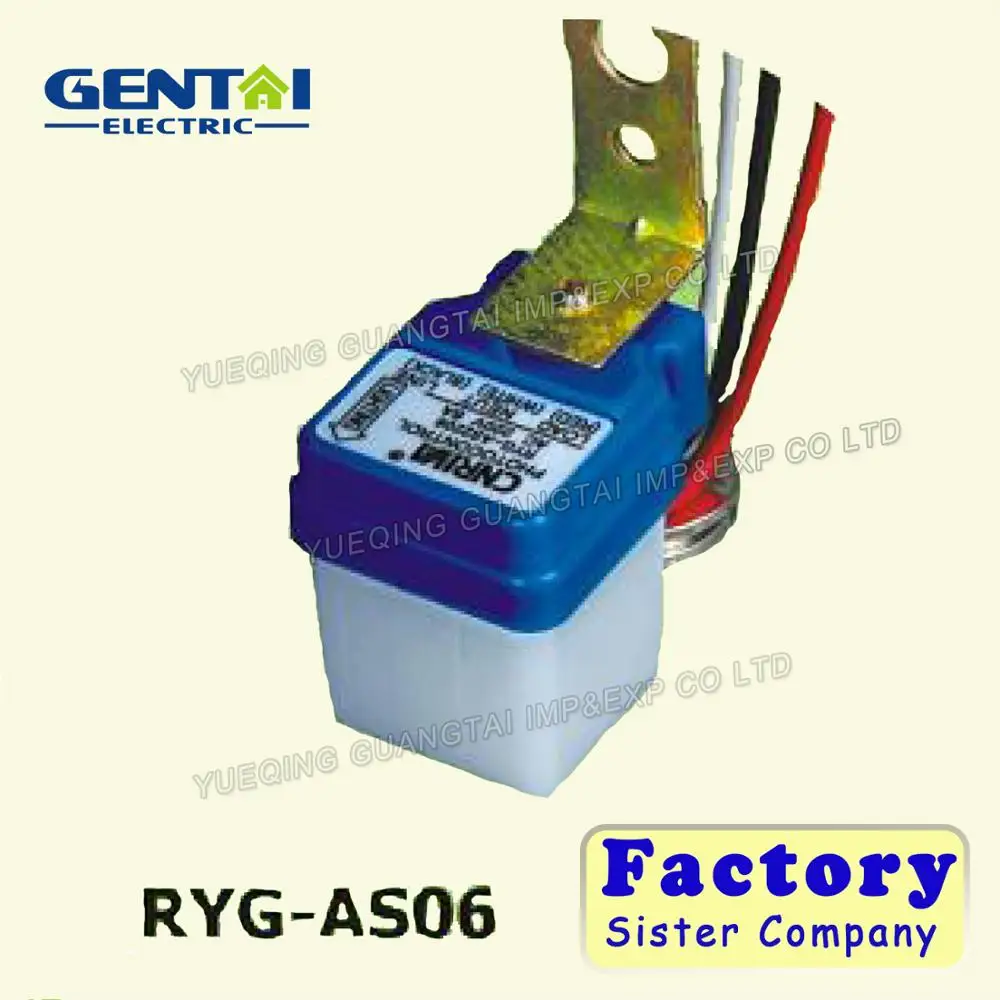

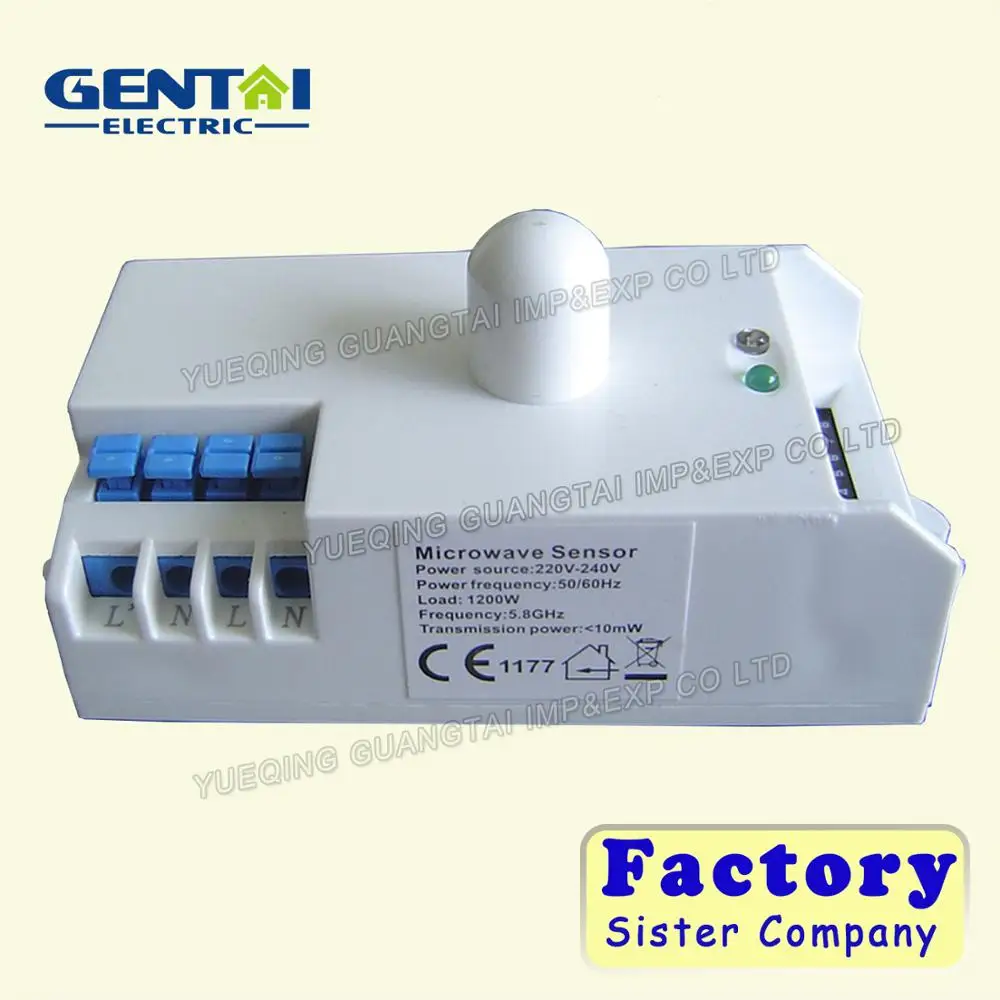

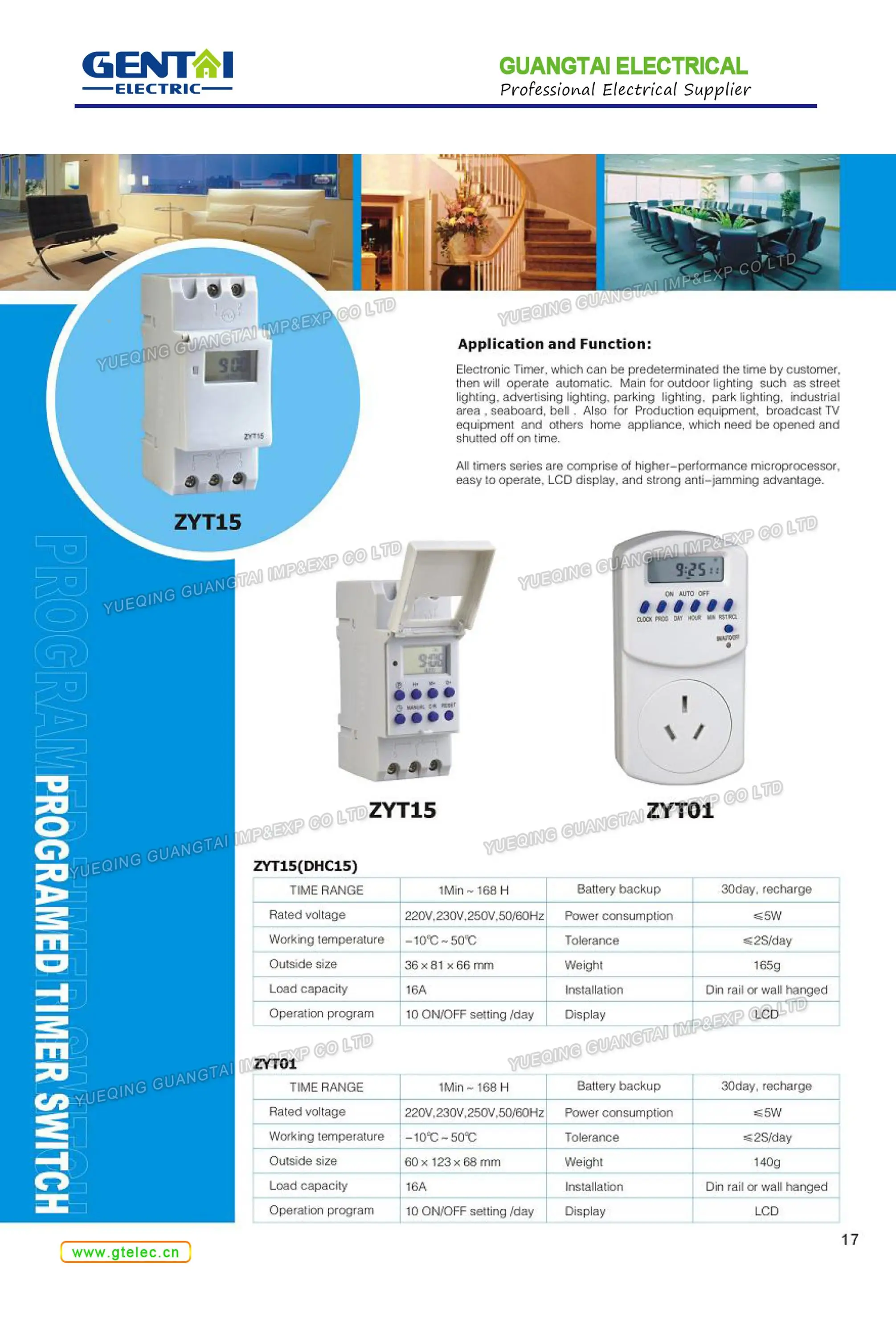

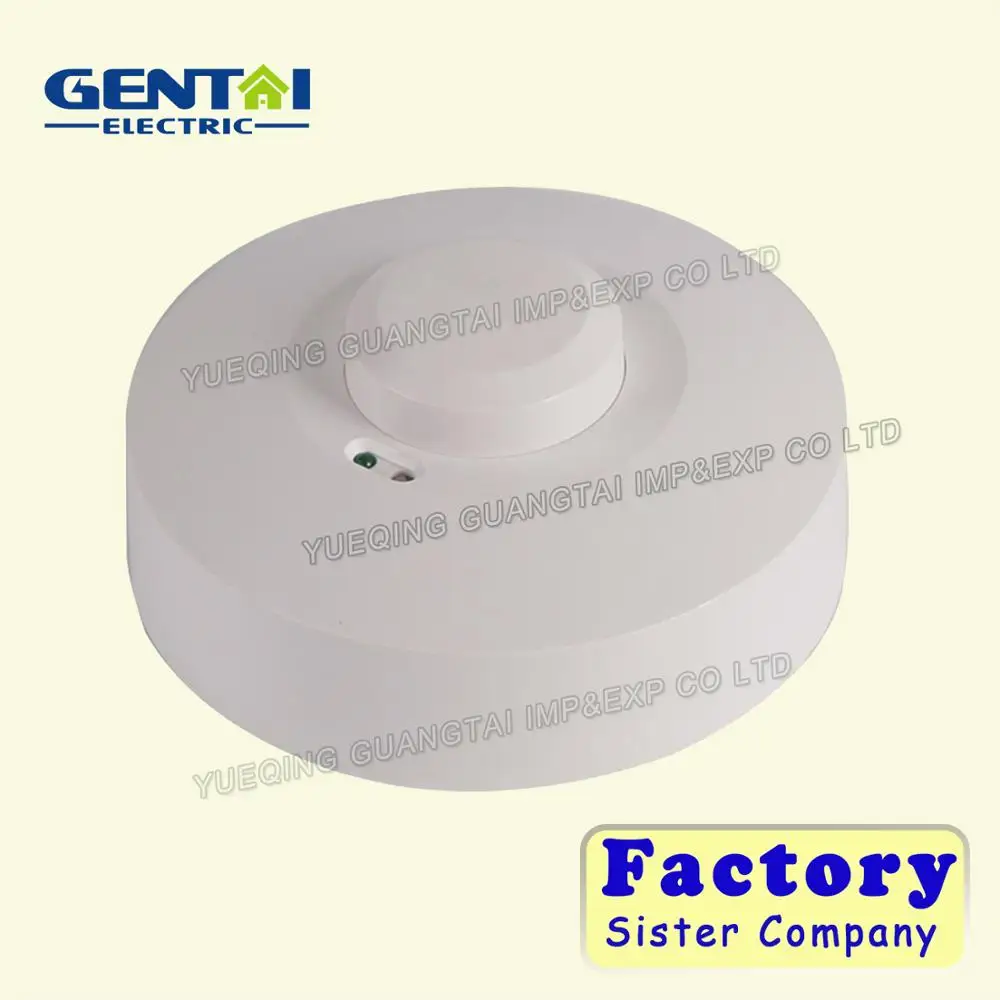

Related Product :

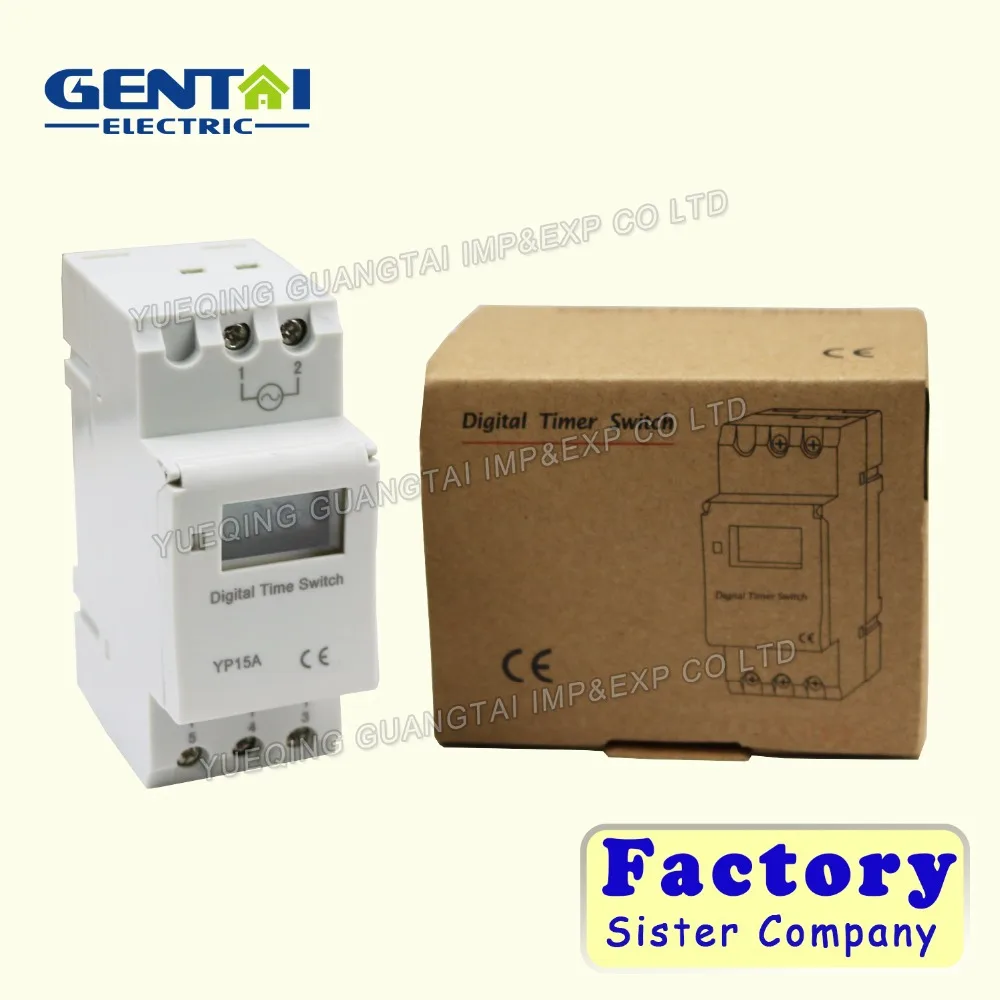

Packing & Delivery :
