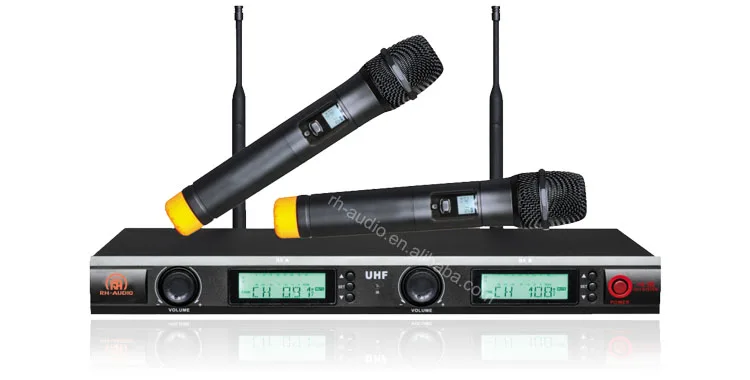

RH-AUDIO Professional Two Channel UHF Wireless Microphone System

Features & Specifications:
Using UHF740-840MHz band to avert interferencing frequency.
All using quartz crystal oscillating circuits so the frequency is very steady.
Special design companding circuit, strongly improve S/N ratio.
Multilevel quiet control circuit,to avoid interference signal from outside open the mute system.
Using excellent dynamic cardioid direct cartridge, the timbre bright and clear.
All ready output and input socket,it will be more convenience to connect every equipment.
|
OVERALL |
RECEIVER |
WIRELESS MICROPHONE |
|
Carrier frequency range: UHF740-840MHz |
Power requirement: DC15-18V |
RFpower:+12dBm |
|
Stability:more than ±20ppm |
Power:4WATER |
Modulation:FM |
|
Dynamic range more than 95dB |
Image rejection: 85dB |
Frequency deviation:±40KHZ |
|
T.H.D:more than 0.5% |
Sensitivity:5dBu(SINAD=20dB) |
Power:Handheld 1.5V* 2 |
|
Frequency response:50HZ~18KHZ ±3dB |
Receiving mode:quartz locked |
|
|
Audio out:mix:0~300mV |
Dimensions:420x210x43mm |
