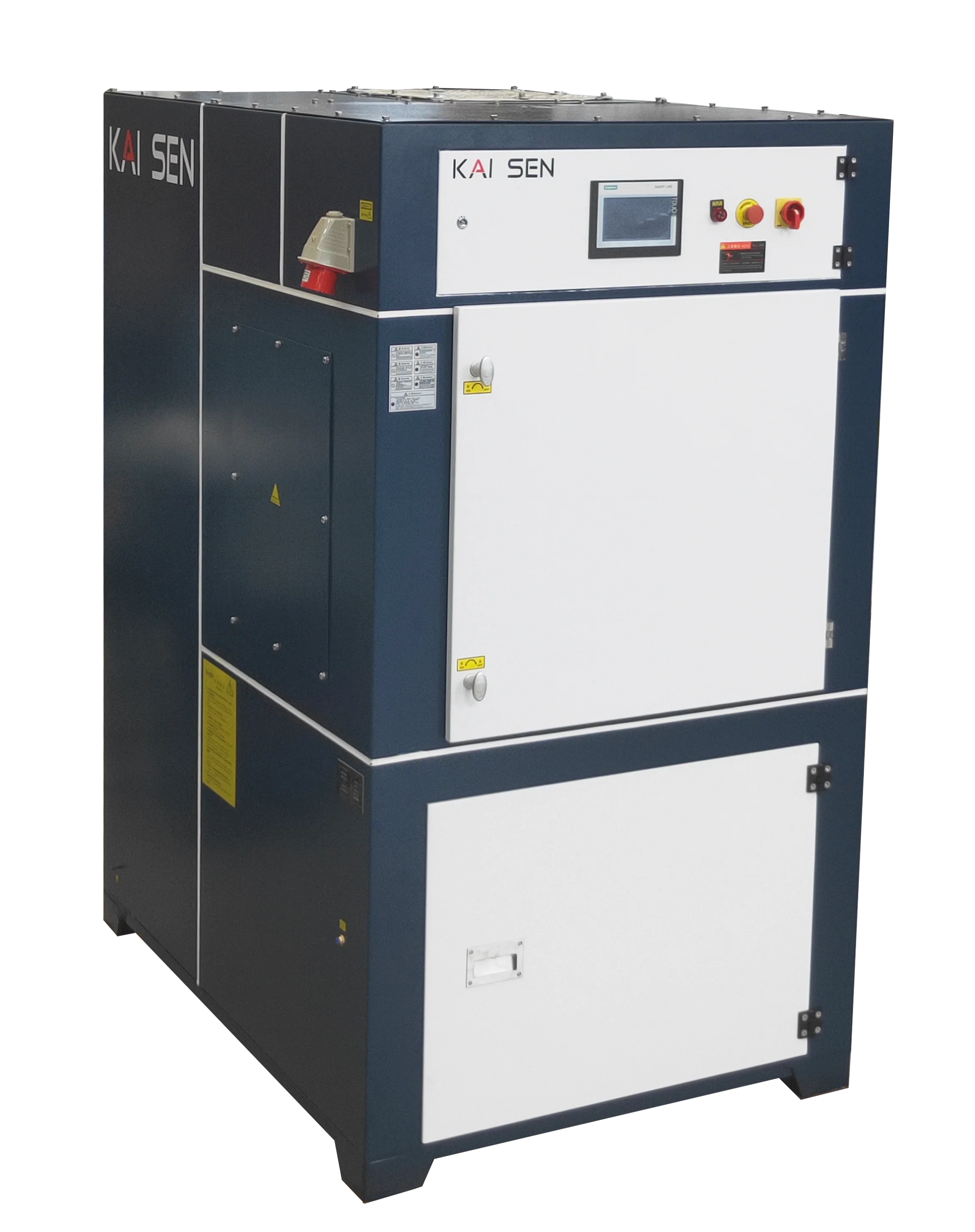

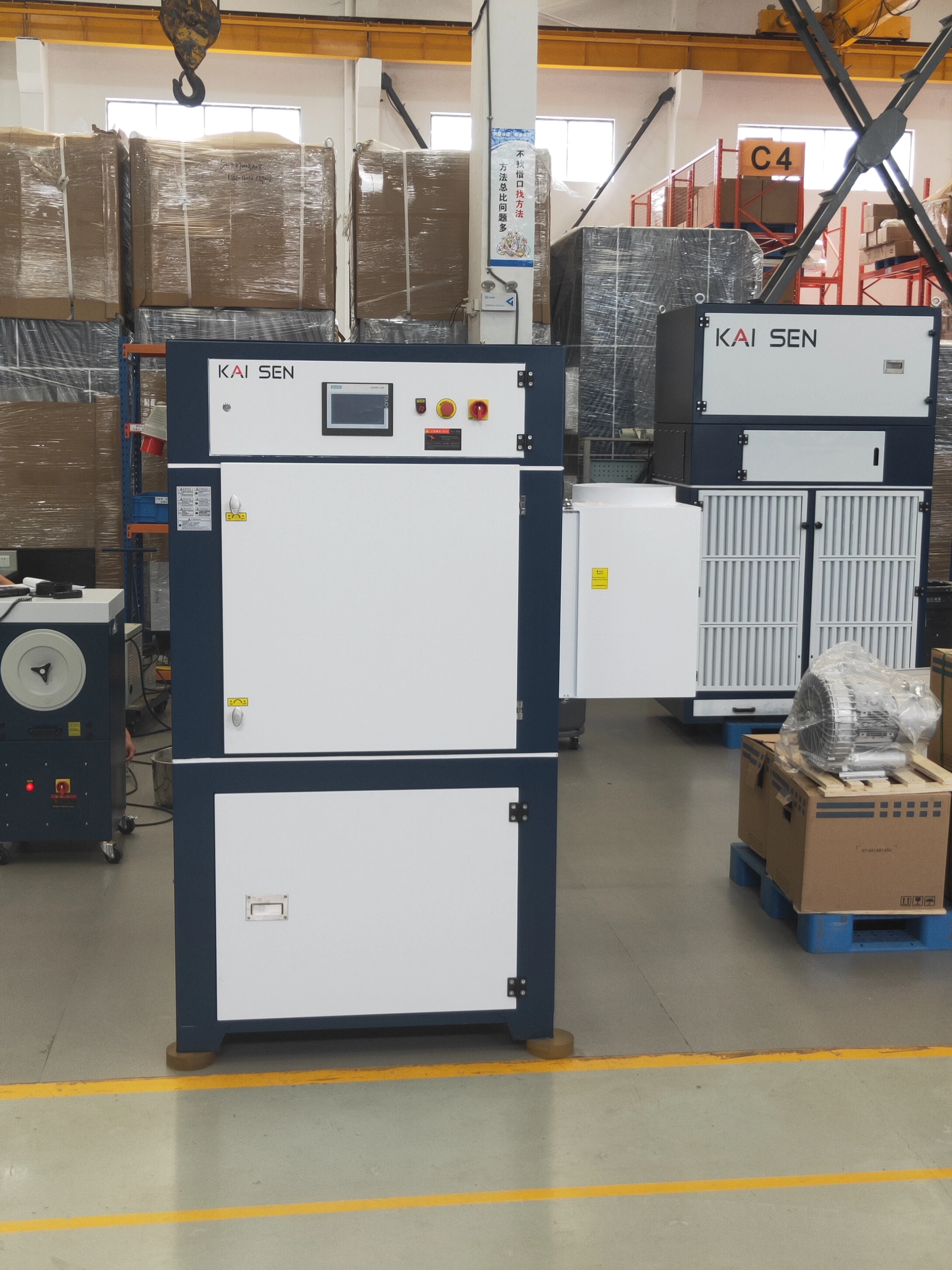

new machine fan motor is configured at the back of the extractor KSDC 8604B series dust collector
- Category: Dust Collector >>>
- Supplier: Shanghai Kaisen Environmental Technology Co. Ltd.
Share on (60705058787):
Product Overview
Description
Product Description
Product photos
Featurs
Dust extraction
Feature
1. Central fume extractor is a series of products developed by our company based on the requirements of different site conditions.
2 .We can design the best fume & dust capturing device and piping system according to different site conditions, and choose suitable purification system according to air flow.
3. Design fume & dust capturing device according to the welded particle's size, shape, welding position, welding craft fume properties, site environment.
4. Its filtration efficiency can reach 99.9%.
5. We can provide various suction arms, fume suction nozzle, suction welding caps, suction welding torch etc. for common production.
6. The structure of integrated design is compact and reasonable.
7. A complete series of models have been developed to meet the different site conditions.
8. Welding rooms of different size and shape, manual/pneumatic/electric hood and the other kinds of dust capture device can also be designed for special sites need.
Notice:

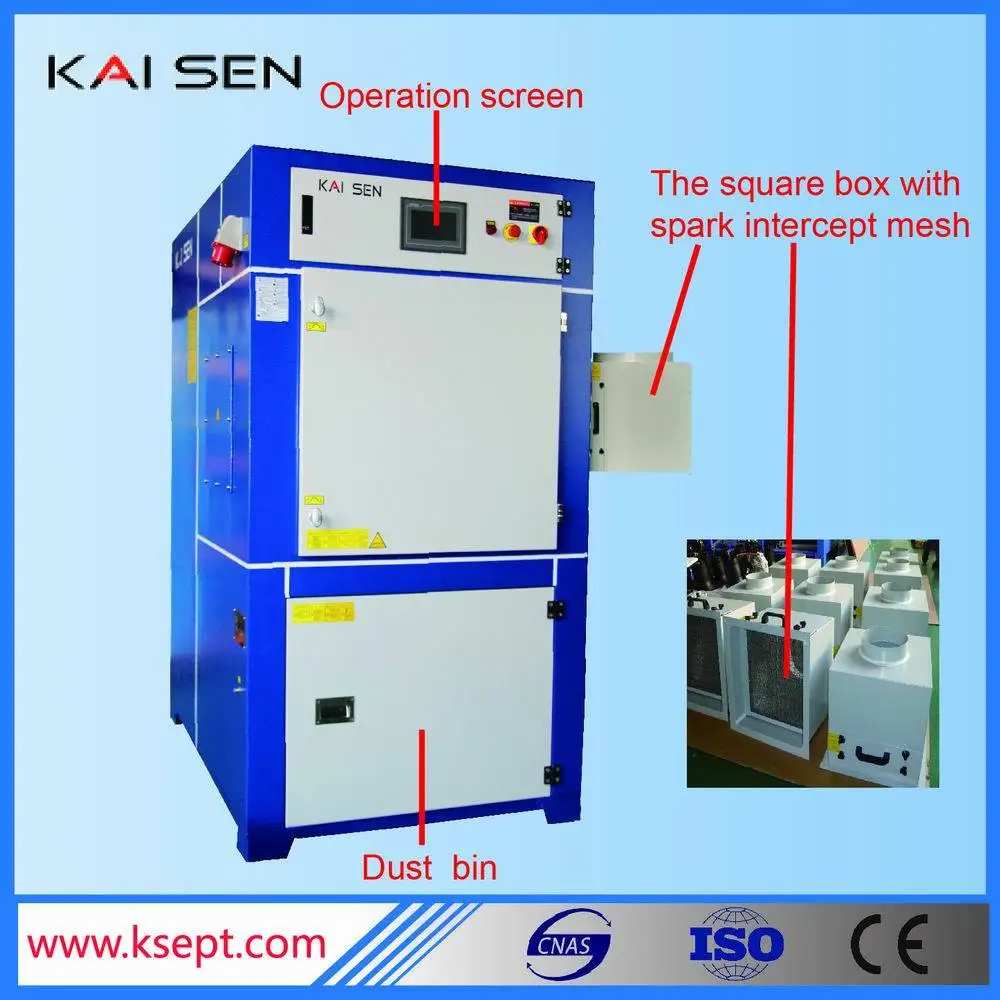

For KSDC-A series fan motor is configured on top of the extractor, it occupies smaller space but height is relatively higher. For KSDC-B series fan motor is configured at the back of the extractor, it occupies larger space, but heights is relatively lower.
Parameters
Parameters
KSDC-8604B/B1 Series Central Fume Extractor(Integrated Type)
| Air Volume | 6000±300m³/h |
| Air entrance | 5000m³/h |
| Motor Power | 5.5kW |
| Working Voltage | 3×380V/50Hz |
| Filtering Area | 60m2 |
| Cleaning Way | Full-automatically cleaning |
| Compressed Air | 0.5~0.6MPa |
| Filtration Efficiency | >99.9% |
| Noise Level | ≤72±5dB(A) |
| Dimension | 1170(W)×1663(D)×2150(H)mm |
| Filtering cavity weight | 750±20KG |
| Air Volume | 8000±300m³/h |
| Air entrance | 6500m³/h |
| Motor Power | 7.5kW |
| Working Voltage | 3×380V/50Hz |
| Filtering Area | 60m2 |
| Cleaning Way | Full-automatically cleaning |
| Compressed Air | 0.5~0.6MPa |
| Filtration Efficiency | >99.9% |
| Noise Level | ≤72±5dB(A) |
| Dimension | 1170(W)×1663(D)×2150(H)mm |
| Filtering cavity weight | 780±20KG |
| Order No. | Description |
| C0607075001 | Central fume extractor(Integrated Type) |
| KSDC-8604B Series | 4 pcs filter cartridges |
| C0607075002 | Central fume extractor(Integrated Type) |
| KSDC-8604B1 Series | 4 pcs filter cartridges |
