1) Higher adhesive strength: Special elastomer is added inour recipe of thermoplastic road marking paintin order to improve the adhesive strength
2) Stronger crack resistance:Our recipe compounded a special additive which is seasoned with the temperature. Thus it avoids possible deformation of the melted film caused by nature temperature variation.
3) Bright color: Our recipeintroduced high quality color filler withreasonable mixture proportion. And it helps thermoplastic paint lasts for years without color change.
4) Enhanced wet night visibility
5) Immediate retroreflectivity
We produce different standards of thermoplastic road marking paint, such as Chinese standard, BS standard, AASHTO standard and so on. The contents and raw materials are different with different standards.
Gravity, g/m3
2.1 g/m3
Color
Yellow, Orange, Red and etc
Heating Temperature
150℃-220℃
Softening Point, ℃
110 ℃
Coating Appearance
No wrinkles, dots, blisters, cracks, fall-out & stick tyres
Drying Time, min
Within 3 minutes
Chroma Performance
Reverse material (white)
Compressive Strength, MPa
26
Abrasive Resistance, mg
42
Water Resistance
Great(in water for 24 hours)
Alkali Resistance
Great(in saturated solution of calcium hydroxide for 24 hours)
Glass Beads, %
19%
Fluidity, s
40s
Coating Resisitance
Resist -10℃ for 4 hours
Heat Resistance
Under 200℃-220℃ for 4 hours
Material
C5 Petroleum Resin, CaCO3, Wax, Glass Beads, EVA, PE and so on.
Package
25kg/bag, by plastic woven bag. One 20’ container can load Max. 25 tons.
Application:
Rroad marking, straight line, dotted line, curve, oriented arrow, letter and etc.
Related Products
Thermoplastic Convex Paint
Thermoplastic convex paint is a kind of improved paint on the basis of thermoplastic paint. By shortening its dry time and improving the compressive strength and softening point, its convex blocks will possess compressive strength strong enough to withstand the crushing of vehichles after cooling down.
Specifications:
Components
Specification
Test Result
Resin
≥20%
20.5%
Titanium Dioxide
≥5%
6%
Glass Beads
≥10%
12%
Other Related Products
Packaging & Shipping
For a small quantity of orders or sample order, we will generally choose to transport by air (DHL, TNT, etc)
Large orders we generally use theocean shipping.
The shipping time is as follows:
Type of shipping
Area
Shipping time
By express
All around the world
1-7 days
By air
All around the world
7-14 days
By sea
North America
20-30 days
South America
40-50 days
Africa
40-50 days
Europe
20-30 days
Oceania
20-30 days

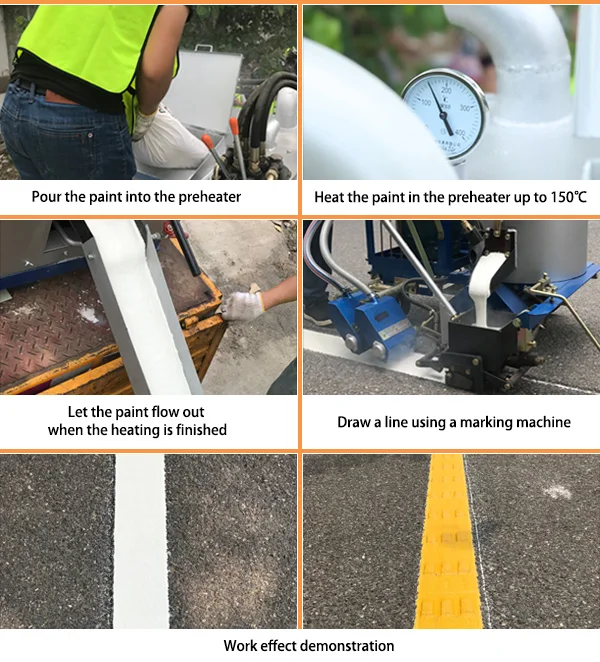

Construction
[1] Face must be clean, dry, temperature in 0 ° above construction.
[2] temperature should be controlled in 180-220 ° c, the insulation between more than five minutes
[3] The full mix the material.
[4] Oil processing to fully, bottom oil dry after coating lines.
[5] New completion of cement road surface, try to delay or on construction of special for three months.

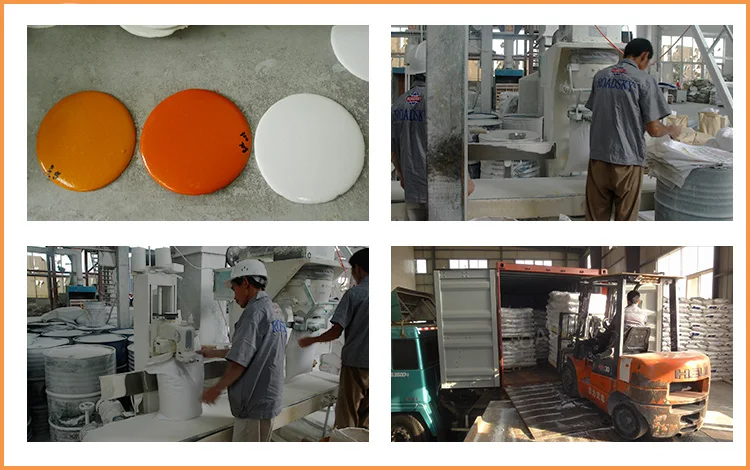

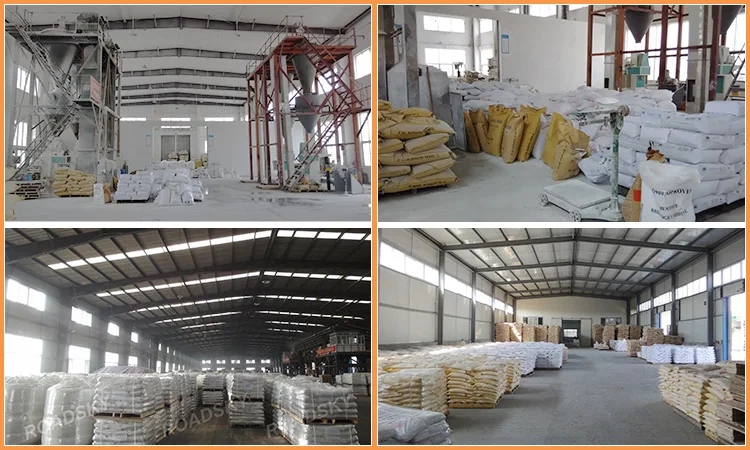

Our Factory
Our Factory
FAQ
FAQ:
Q: How long is the storage time of the paint, and is it suitable for long-term storage?
A: Normally, storage time of thermoplastic paint is 1 year in dry and well ventilated condition. It is not suitable for long-term storage.
Q: How to calculate the space of the marking area drawn by certain weight of paint?
A: According to the thickness of the marking lines, 1.6mm thickness per square meter need 4kg of paint, 1.8mm thickness per square meter need 4.5kg of paint, 2mm thickness per square meter need 5kg of paint.Take 1 ton of paint for example, it can draw 250 square meters of 1.6mm thick lines and 200 square meters of 2mm thick lines.
