NNC micro switch NV 16Z 1C25 hinge lever 16A 21A 125v/250v for home application
- Category: >>>
- Supplier: Clion Electric Co. Ltd.
Share on (60705129166):
Product Overview
Description

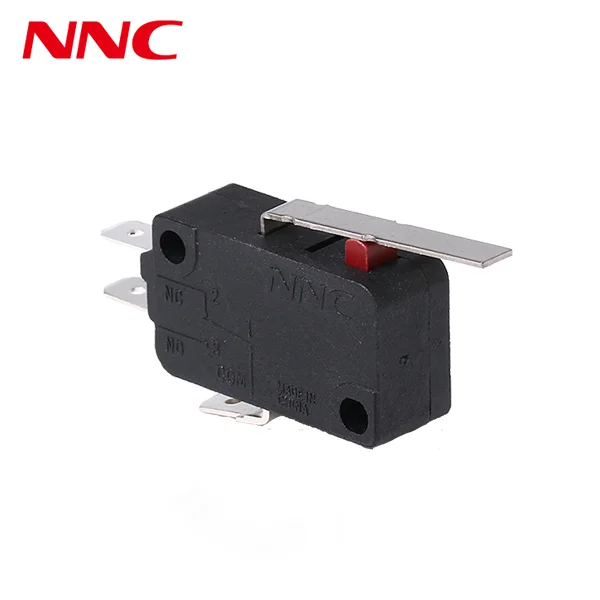

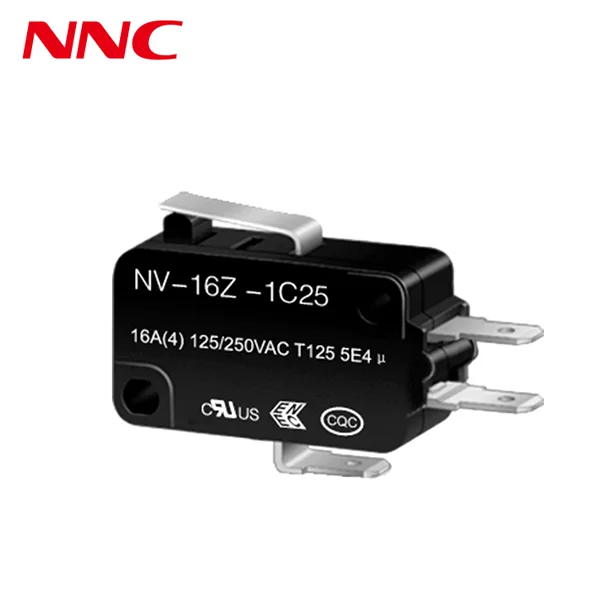

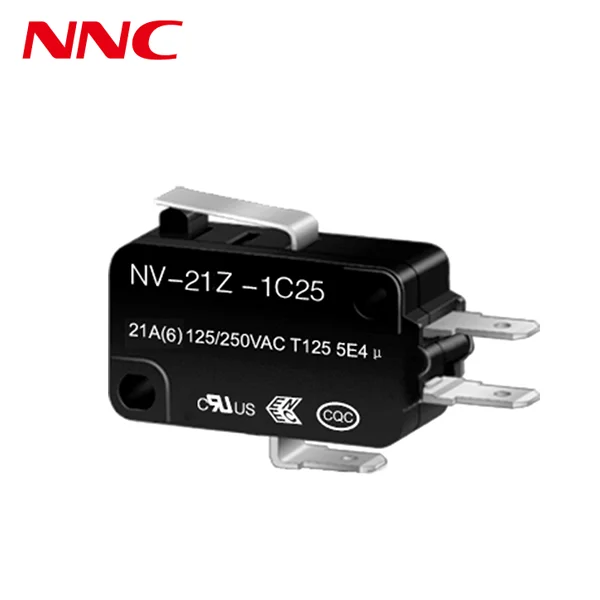

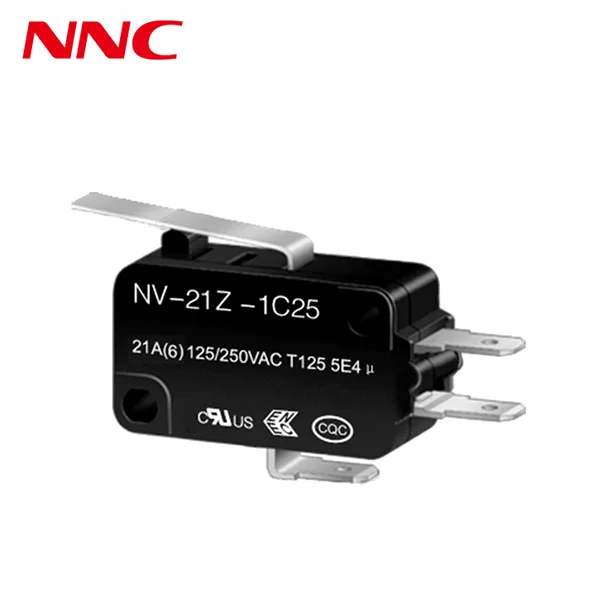

Product display
Product display
Contact Form

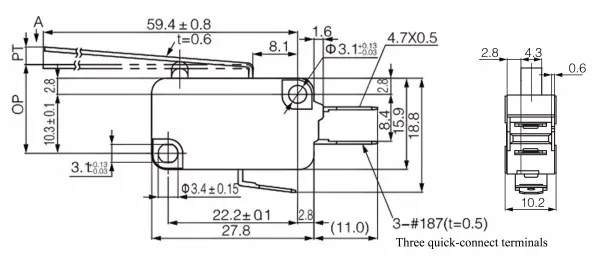

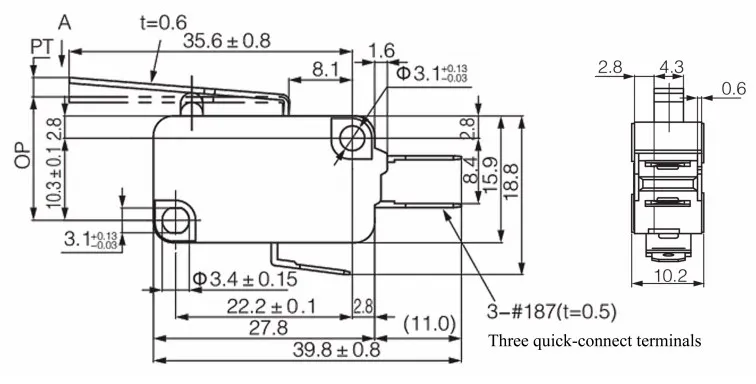

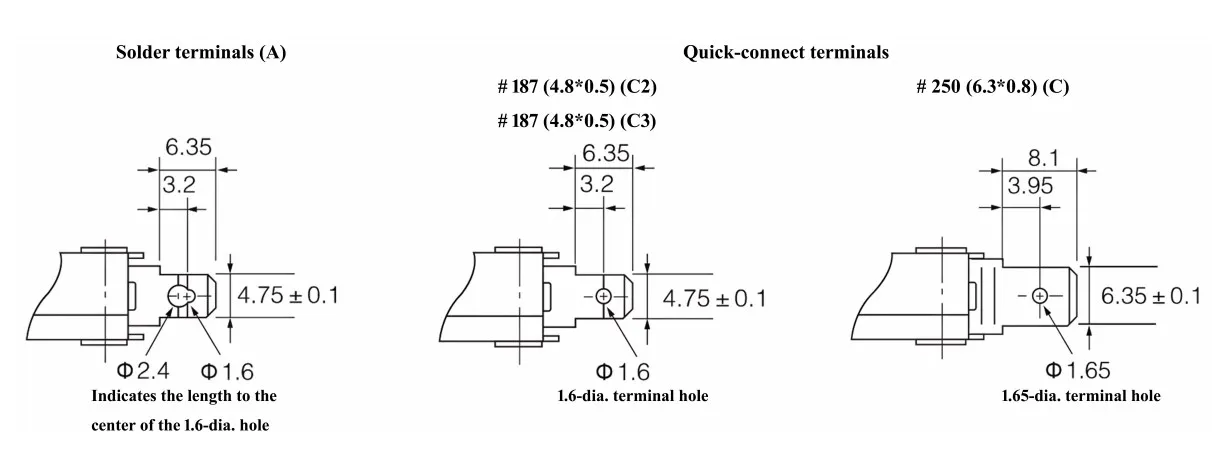

Terminal Dimesions

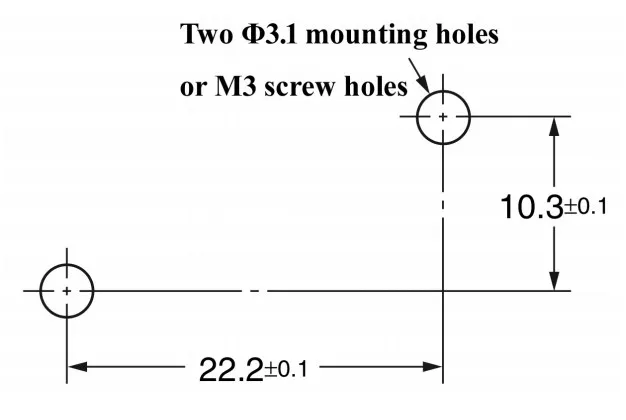

Mounting Holes(Unit:mm)
Hinge Lever

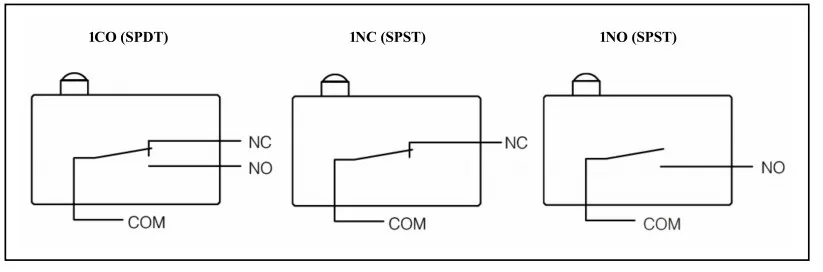

Wiring Diagram

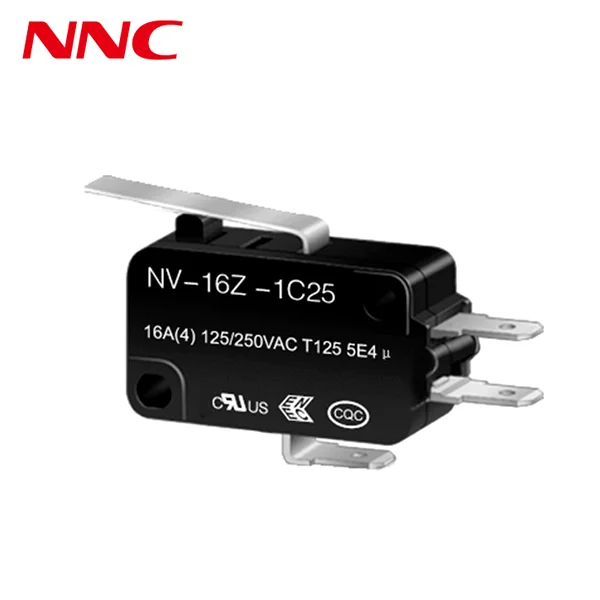

Short Hinge Lever
Wiring Diagram

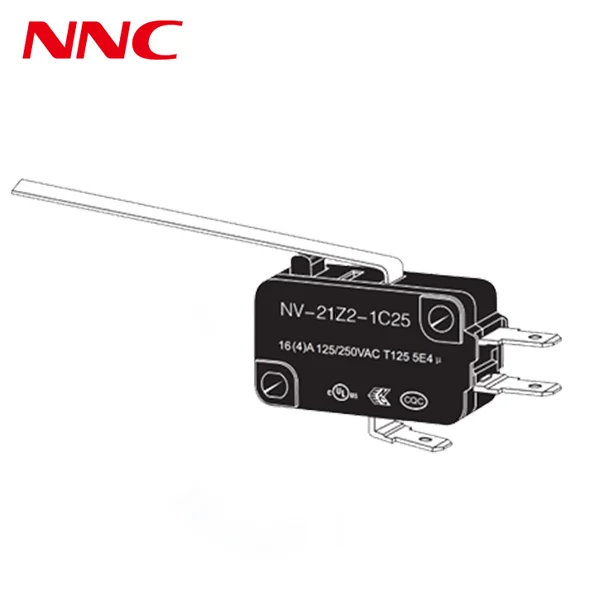

Long Hinge Lever
Specification
Model | NV-16Z | NV-21Z | |||||
Rated voltage | AC250V | DC125V | DC250V | AC250V | DC125V | DC250V | |
Resistive load | 16A | 0.6A | 0.3A | 21A | 0.6A | 0.3A | |
Light load | 2A | 0.1A | 0.05A | 3A | 0.01A | 0.05A | |
Inductive load | 10A | 0.6A | 0.3A | 12A | 0.6A | 0.3A | |
Motor load | 4A | 0.1A | 0.05A | 6A | 0.1A | 0.05A | |
Contact appearance | Rivet | ||||||
Contact material | AgSnO2 | ||||||
Min applicable load | DC5V 160mA | ||||||
Operating speed | 0.1mm~1m/s | ||||||
Permissible operating frequency | Mechanical:200 operations/min Electrical:30 operations/min | ||||||
Contact resistance | 30mΩ max. (Initial value) | ||||||
Insulation resistance | 100mΩ min.(at DC500V) | ||||||
Dielectric strength | 1000V, 50/60Hz 1min between terminals of the same polarity | ||||||
1500V, 50/60Hz 1min between each terminal and no-current-carrying metal parts | |||||||
1500V, 50/60Hz 1min between current-carrying metal parts and ground | |||||||
Protection grade / PTI | IEC IP40 / 175 | ||||||
Protection grade of electric shock | Class Ⅰ | ||||||
Operating ambient | Temperature: -25°C ~ 125°C(with no icing or condensation) Humidity: 60% RH max. | ||||||
Endurance | Mechanical: 1,000,000 operations min. Electrical: 50,000 operations min. | ||||||
Certification | CQC(GB15092.1), UL(UL61058, CSA-C22.2 No. 61058-1), ENEC(EN61058-1) | ||||||
