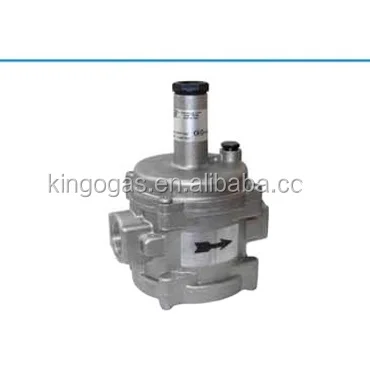

Natural Gas Standard Control Normal Temperature Manual 1/2 3/4 1 1 Pcs General Aluminum OEM GAS Pressure Regulator(madas) 5bar
- Category: >>>
- Supplier: Taizhou Kingo Gas Technology Co. Ltd.
Share on (60705132019):
Product Overview
Description
Specifications
1:In line with european standard .
2:high quality, cheap price.
3:100% air leakage test.
4:Certificate--ISO9001 CE
Materal: Aluminum
Specifications:
1:Inlet Pressure: P1: 400-500 mbar;
2:Outlet Pressure: P2: 16mbar-60mbar
3:In line with European norm BS EN88 and standard UNI-CIG7430
Technical Data:
1. Inlet Pressure:P1: 0.5 - 5 bar;
2. Outlet Pressure: P2: 10mbar-20mbar / 20mbar-50mbar /30 mbar -300 mbar
3. Flow Range: Q=15-3000Nm3/h (natural gas);
4. Accuracy: Plus-minus 5%;
5. Grade: A-level (Consistent with European Standard BS EN88);
6. Applicable Medium: Gas, natural gas and liquefied petroleum gas and other non-corrosive gases;
7. Metallic Material: Die-casting Aluminum, Stainless Steel and Brass;
8. Non-metallic Material: Diaphragm, valve gasket and other rubber parts, corrosion-resistant NBR with the synthetic fiber to strengthen;
9. Material of Impulse Tube: Copper Tube;
10. Connection: Thread Interface (DN15-DN50) In line with ISO 7/1 Standard
Flange Interface (DN65-DN100) In line with ISO 7005 Standard;
11. Temperature: Minus 15 celsius degree - 60 celsius degree
12. Maximum coperating Temperature: 60 celsius degree
13. Nominal Pressure: PN16.
Quality and inspection:
Our product aims to the benefit of the customer and all service for consumers,our product are high quality during the processing with 100% air leakage test.
