Hot Sale 80W Portable Soldering Fume Extractor Manufacture for Laser Cutting Machine

Product Overview

Description

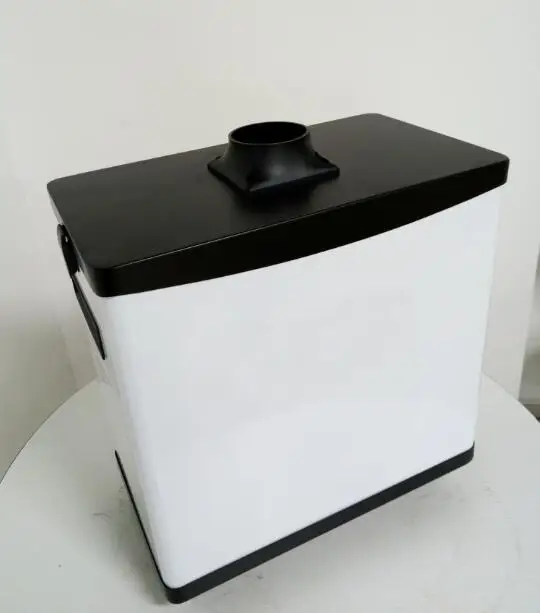

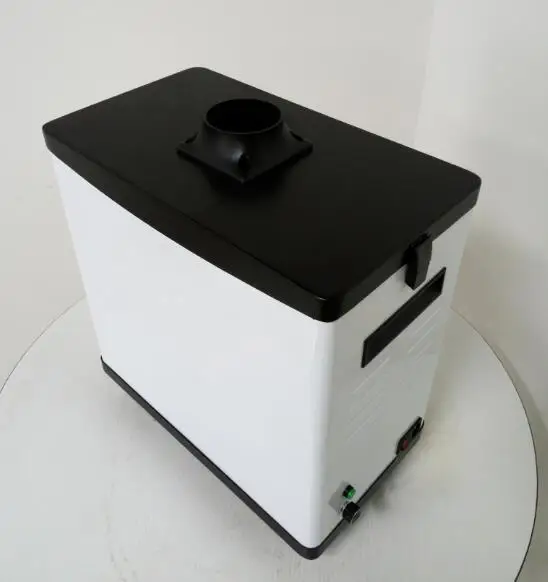

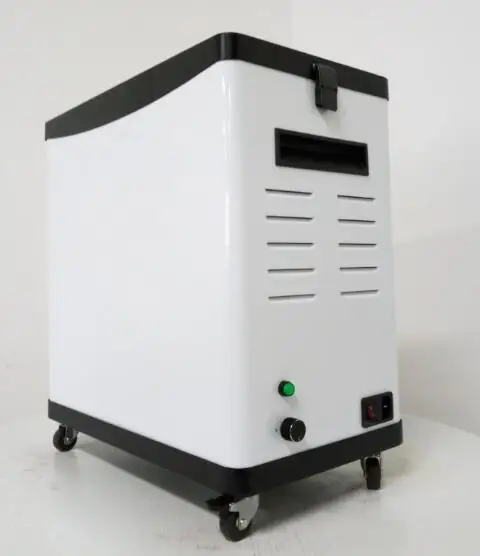

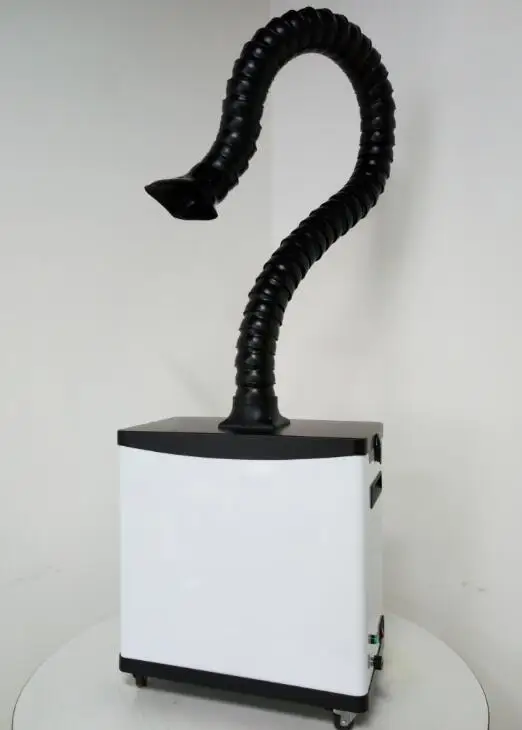

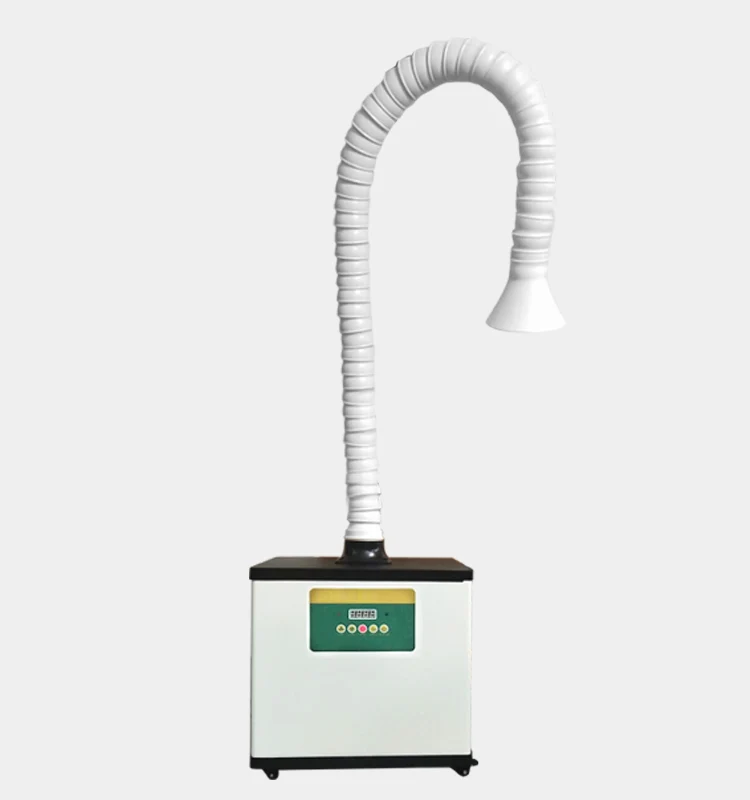

Hot Sale 80W Portable Soldering Fume Extractor Manufacture for Laser Cutting Machine





Model	Voltage	Power	Systemic Flow	Iniet Flange	Filtering Efficiency	Noise	Dimensions	Weight

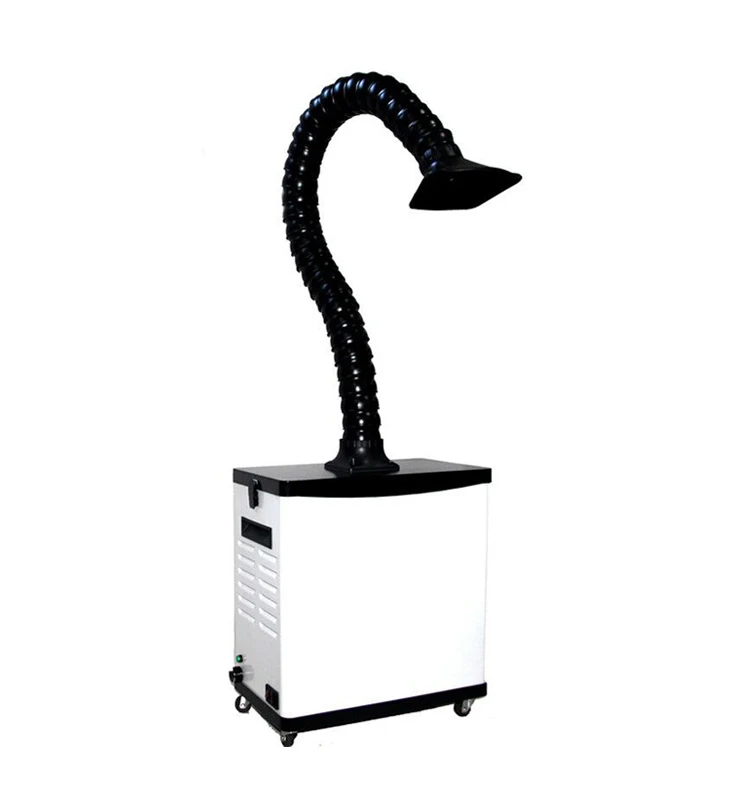

C100	110V/220V	80W	250m3/h	φ75mm	0.3μm 99.97%	50dB	L425xW250xH480mm	15Kg







1, Willdone fume purifying and filtering system is for cleaning of both particles and gases.

2, It's designed to filter the harmful substances, such as hydrocarbon and cyanide, during the

    process of soldering, tin dipping in the solder pot, laser marking, and carving, printing, etc.

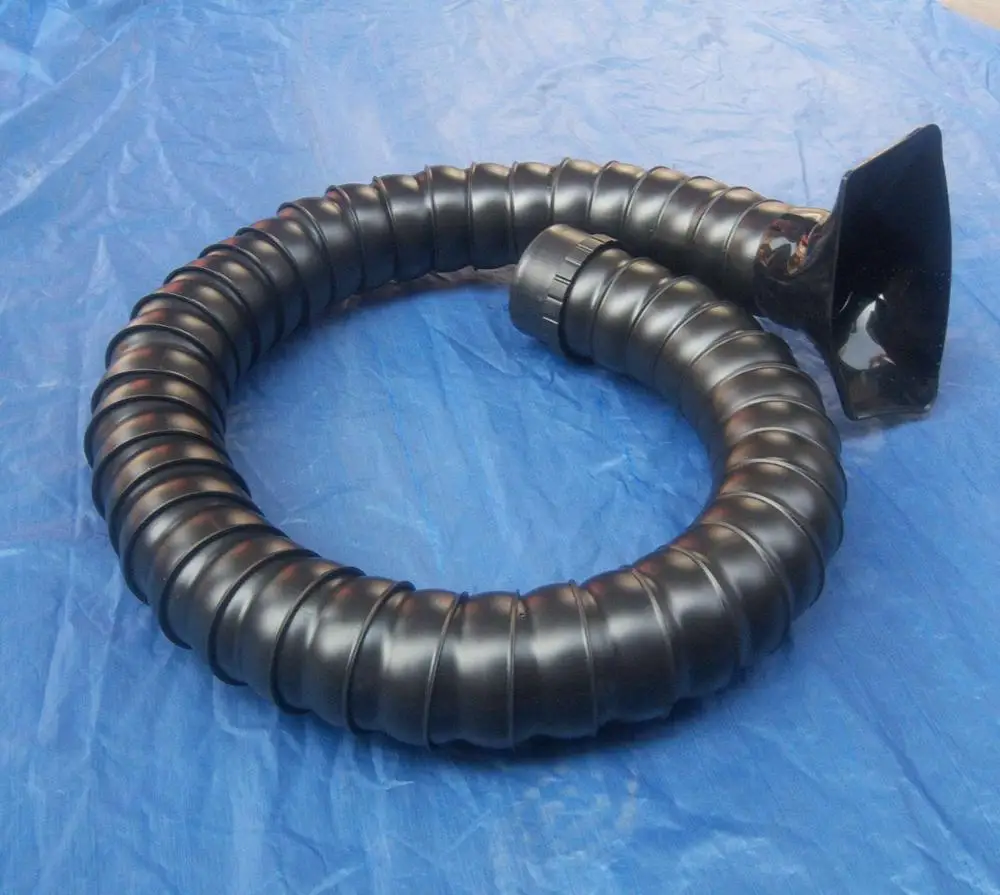

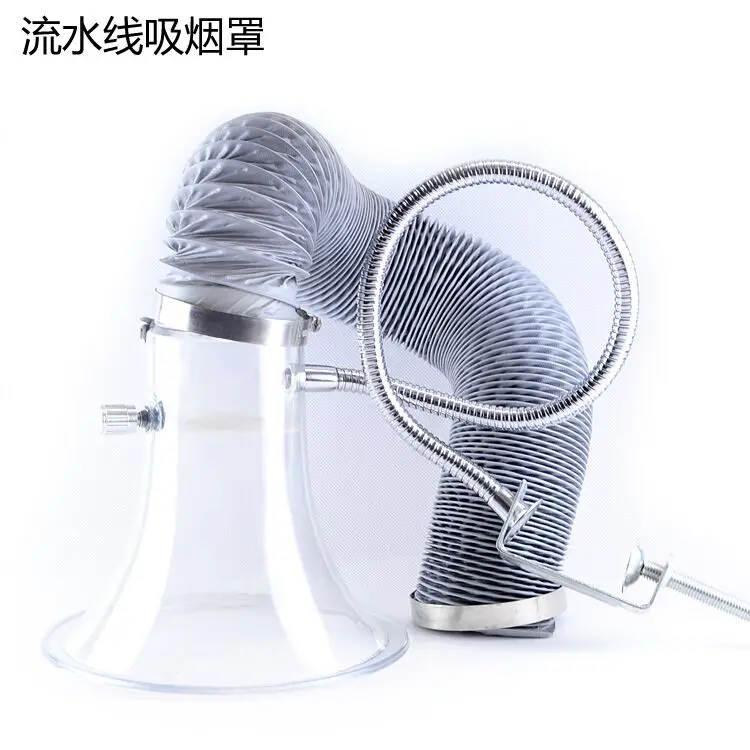

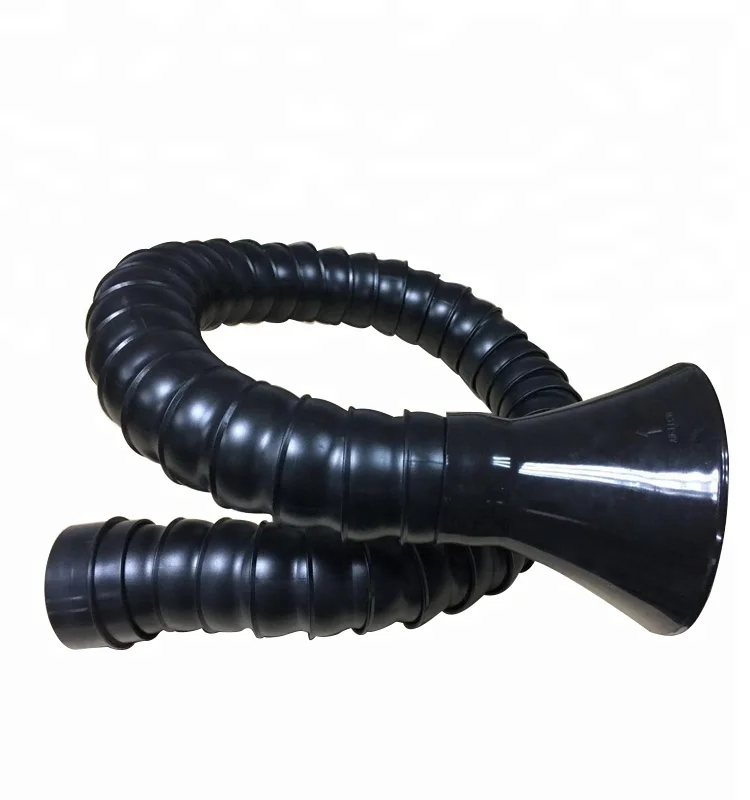

3, It catches harmful smoke with freestanding ducts and adjustable air volume to significantly

    improve your working environment.

4, It has a triple-filter system:

    1) Pre-filter: The large size pad filter can filter large particles of dust;

    2) Middle filter: It filters the bigger powders for prolonging the main filter's life;

    3) Main filter: It includes HEPA(high effeciency) filter and gas filter. The HEPA cleans the gas

        and powders filtering from the pre-filter and then carry them to the gas filter, which with

        the carbon and other chemical combination, filters off the deleterious substance and then                 outputs the clean air.







Other Models Available:







Model	Voltage	Power	Systemic Flow	Iniet Flange	Filtering Efficiency	Noise	Dimensions	Weight
C100	110V/220V	80W	250m3/h	φ75mm	0.3μm 99.97%	50dB	L425xW250xH480mm	15Kg
C100-E	110V/220V	80W	235m3/h	φ75mm	0.3μm 99.97%	50dB	L425xW250xH410mm	13Kg

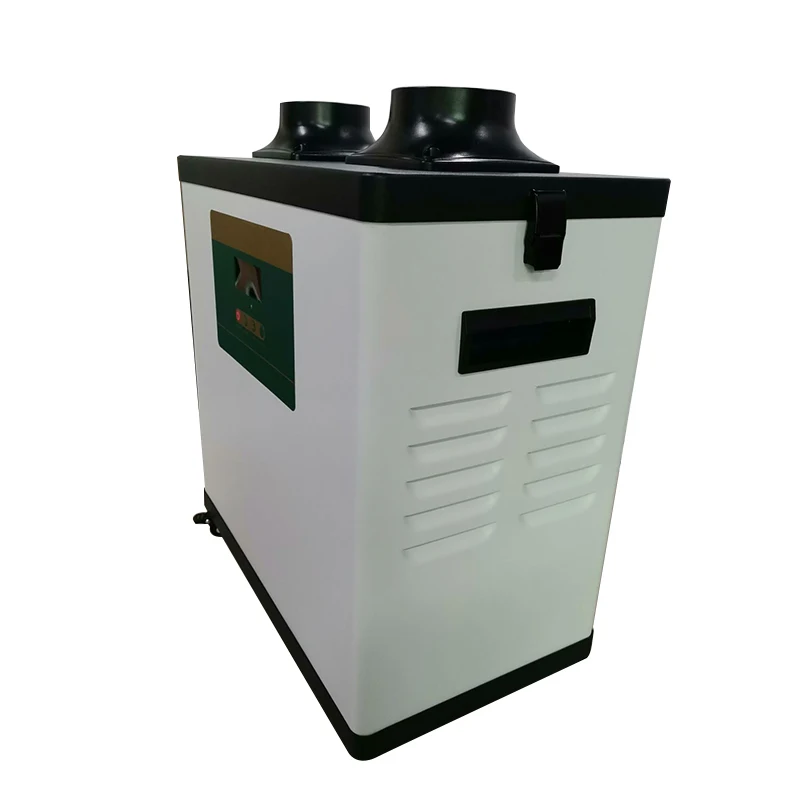

C200	110V/220V	200W	348m3/h	2xφ75mm	0.3μm 99.97%	55dB	L425xW250xH480mm	15Kg
C200-E	110V/220V	200W	2x150m3/h	φ75mm	0.3μm 99.97%	<55dB	L425xW250xH410mm	13Kg
C200-Y	110V/220V	200W	2x150m3/h	φ75mm	0.3μm 99.97%	<55dB	L425xW250xH410mm	13Kg
CN300	110V/220V	600W	650m3/h	φ90mm	0.5μm 99.99%	≤65dB	L440xW340xH820mm	50Kg
CN301	110V/220V	300W	375m3/h	φ75mm	0.5μm 99.99%	≤65dB	L440xW340xH520mm	25Kg
