BiGa BC20 3V 3 Axes DRO Digital Readout Display For Milling Lathe EDM Machine

Product Overview

Description

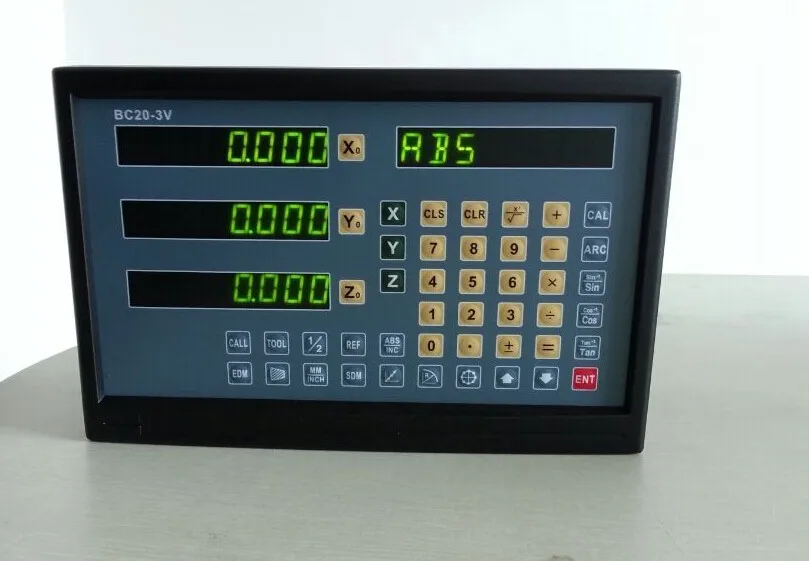

*Specifications of BC20-3V Multi-functional  Digital Readout * :



BC20-V multi-function DRO, it can be used on milling machine, boring machine, lathe machine, grinding machine, electronic spark machine etc.



1.PCD circular sub-holes (for milling, EDM)
2.Slash punch (for milling machine)
3.Tool compensation function (for milling machine)
4.Taper measurement function (for lathe)
5.Slope processing (for milling machine)
6.R arc function (for milling machine)
7.200 tool magazine (for lathe)
8.EDM functions (for EDM, ordered separately)
9.RS-232 communication (ordered separately)



*Feature of BC20-3V Multi-functional Digital Readout :*



Display:	Bright Green LED
Case:	metal
Power :	110…240 VAC (50/60 Hz)
Storage Temperature:	-20oC to +70oC
Operating Temperature:	0oC to +50oC
Relative Humidity:	20% to 85%
Dimensions (H x W x D):	290mm x 190mm x 105mm





Delivery and Packaging:

Delivery time: 3 working days after get your payment

Packaging:standard export packaging

After-sale service:

Warranty period:1 year

During the warranty period, we will offer free spare parts and fauty goods replacement  for free.

Afetr the warranty period, we will also offer technical support and your request will be replied within 12 hours.

 Thanks for your time and best regards!
