The Lowest Price 3d papad snacks pellet cracker processing line
3D pellet snacks extrusion machine
1. Frying Pellet Processing Line adopts flour, corn starch and potato starch as raw material, makes food through the process of extruding, cooking, shaping, drying and frying.
2. By choosing different dies, you can make different shapes food such as shell, screw, square tube, round tube, lotus root slices etc. The food is very popular in market.
3. The core machine of this line is single screw extruder.

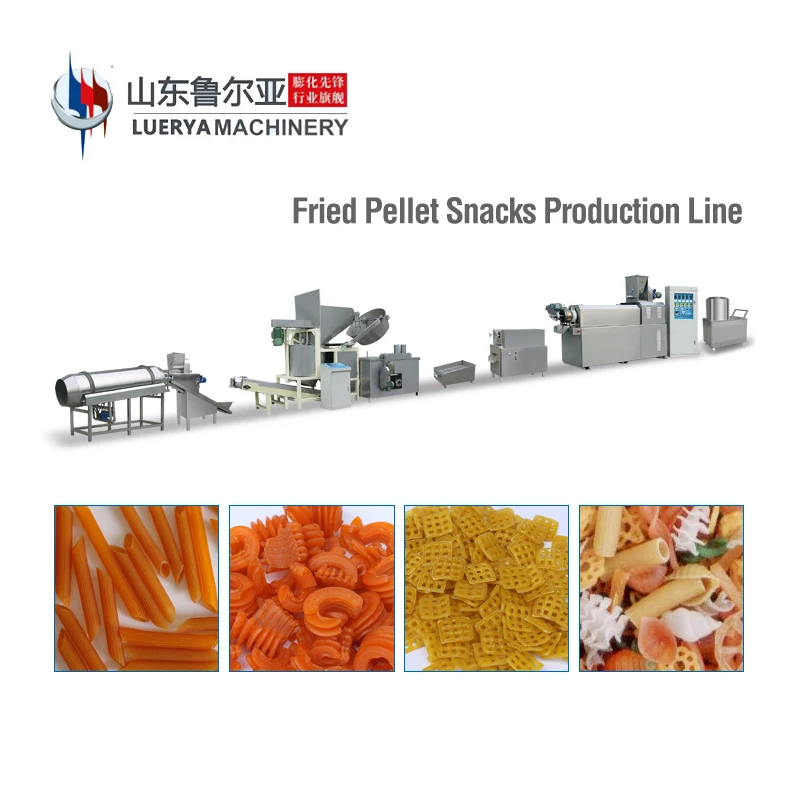

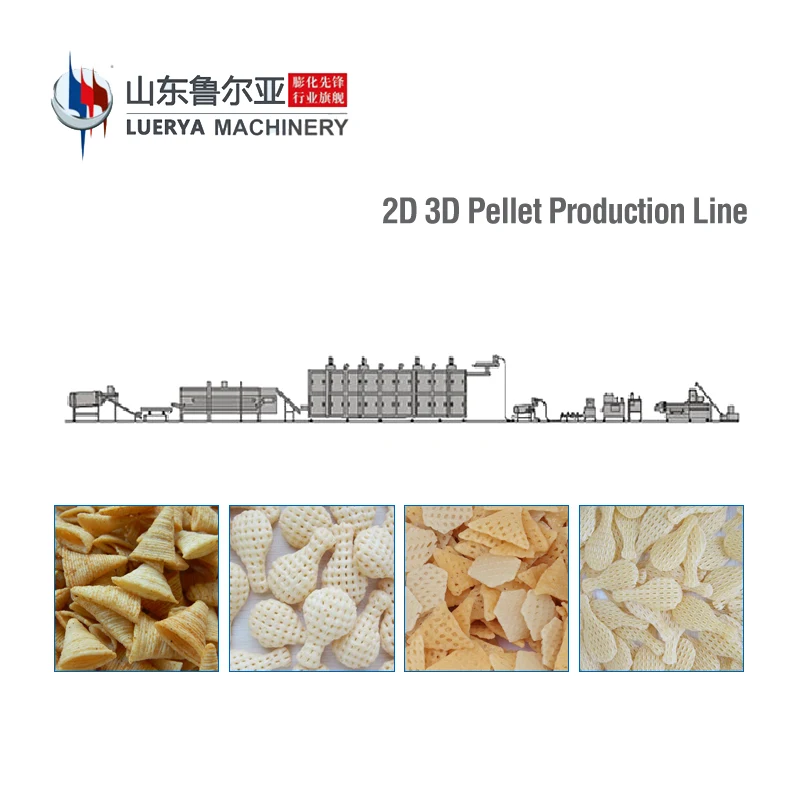

Flow chart of 3D pellet snacks extrusion machine
Mixer--- Screw Conveyor---- Pre Cooker -----Single screw extruder --- Vibrating Cooler --- Air Blower--- Hot Air Dryer---Air Blower--- Hot Air Circulation Drying Machine
Depending on different request, the line could adjust as your special request.
Product Paramenters
Voltage of 3D pellet snacks extrusion machine
Three phases of 3D pellet snacks extrusion machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' local voltage in different countries
Technical Parameter of 3D pellet snacks extrusion machine
Model | Installed Power | Power Cusumption | Throughput | Dimension |
SX2000-100 Single Screw Processing Line | 96KW | 80KW | 80~100KG/H | 25*1.5*2.3m |
Coating color chips
3D pellet chpis
2D Wave pellet chips

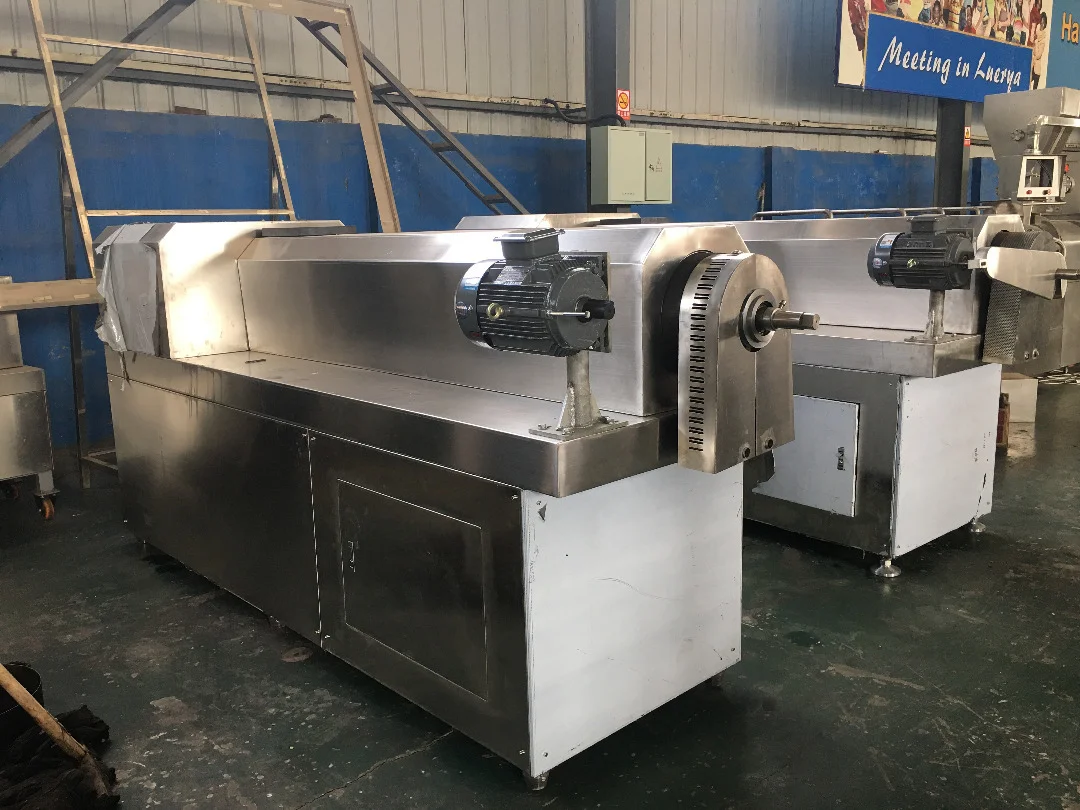

1.1 Single Screw Extruder
1. This equipment is made up of feeding system, extruding system, cutting system, heating system, driving system, cooling system, usually fit for frying food.
2. Feeding system, drive system and cutting system adopts inverter speed controlling, strong motivity, steady running.
3.Screw, barrel, moulds adopt circulating cooling system to keep temperature steady during working.

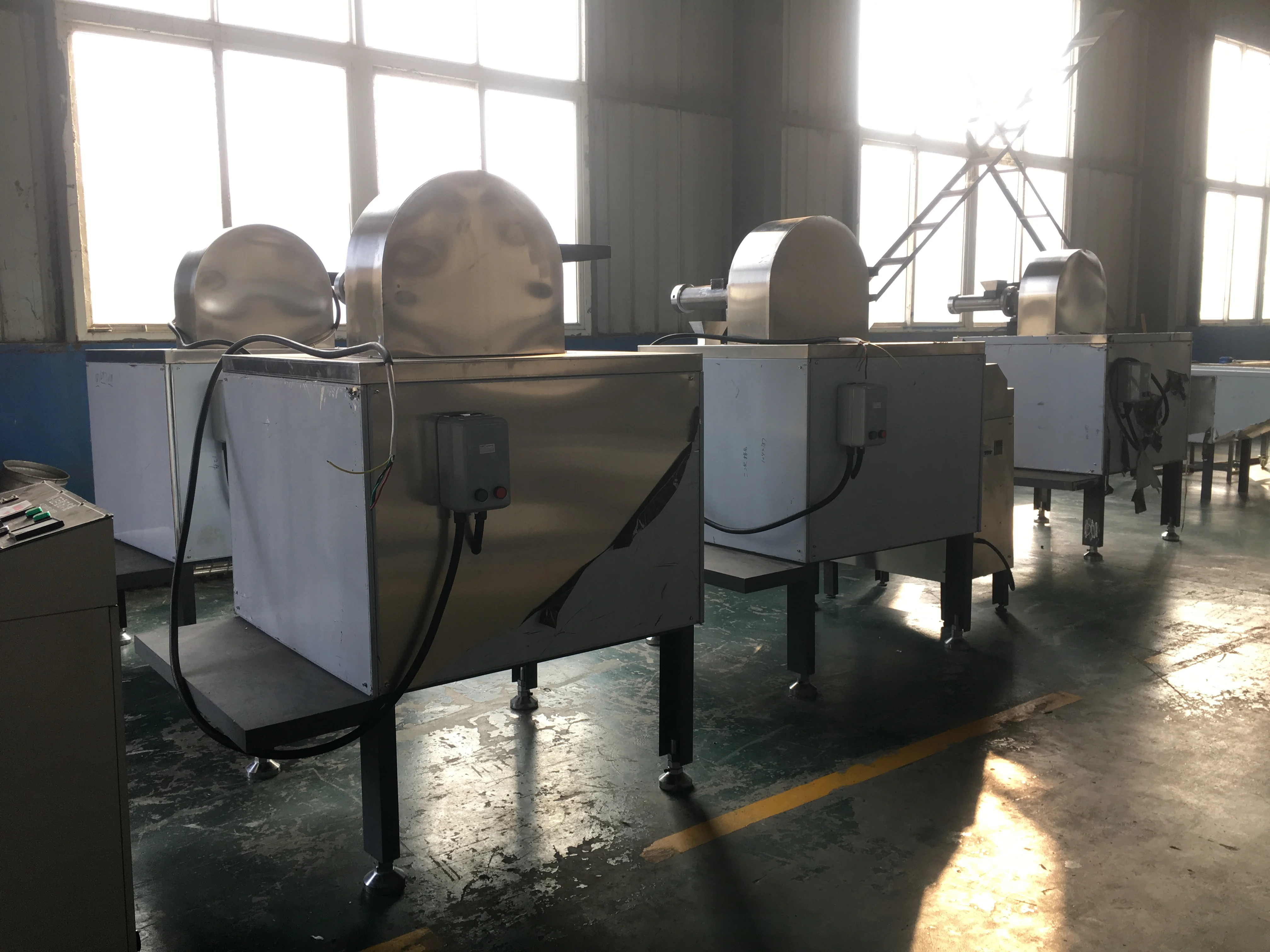

1.2 Single pre-cooking machine
1. Pre-cooking function: When raw materials use wheat flour, potato starch, corn starch, more easy to cooking by single screw extruder with single screw pre-cooking machine. So the flow should be pre-cooked first and then put into this extruder for shaped.
2. Pellet quanlity: The pellet quality will be better when add pre-cooking machine, because ripening.
2. Main Machine Dryer - New design
1. The oven is a five layers, 10 meters circulated continuous dryer, can be customized.
2. It mainly consist of Drive motor, Stainless steel drive belt, Circulating fan, Dehumidification equipment, Aircraft, PLC control system etc.
3. The Moisture of the dried material is around 9-10%.

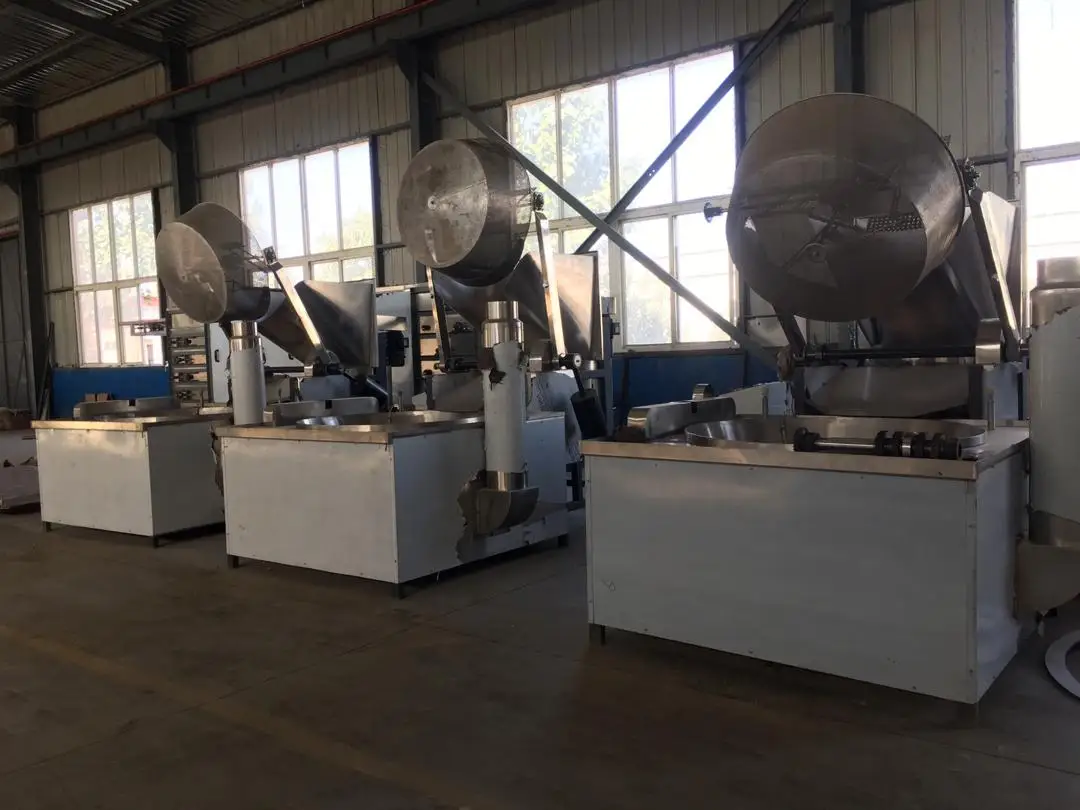

3.1 Batch Frying Machine (Electrical /Gas)
1. Oil can flow insiade the tunnel ensure oil temperature is steady.
2. Automatic filtrating system is responsible for collecting frying waste which keeping oil's cleanness.
3. Startup automatic rising system, convenient to clean and maintain.
4. Large output, low consumption, saving cost.
2. Automatic filtrating system is responsible for collecting frying waste which keeping oil's cleanness.
3. Startup automatic rising system, convenient to clean and maintain.
4. Large output, low consumption, saving cost.

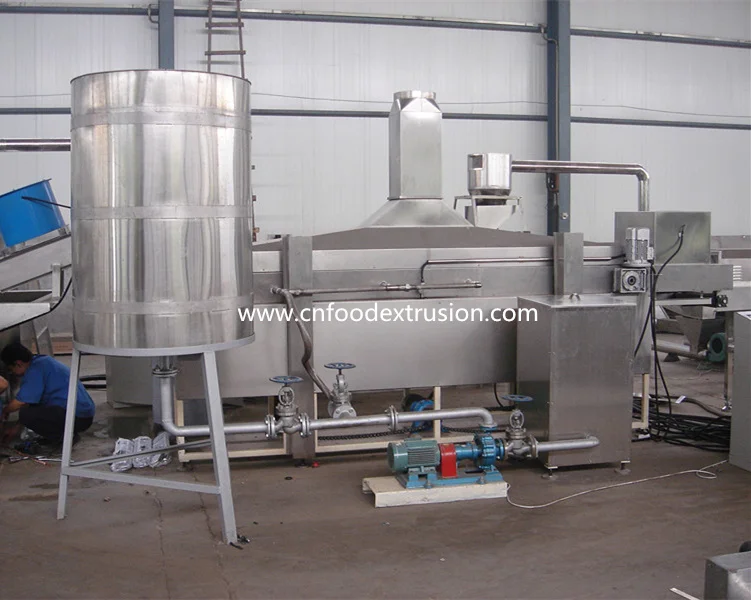

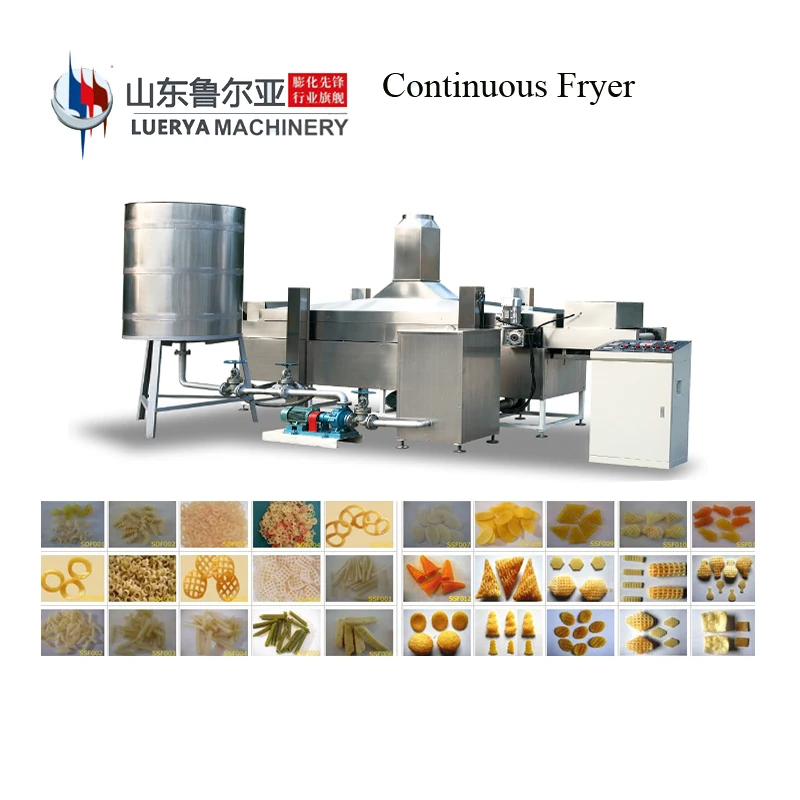

3.2 Automatic Continue Frying Machine (ELectrical/Gas/Diesel)
It is consisting of belt conveying system, auto lifting system, auto filter system, controlled system, oil tank, recycle system.
1. Use oil recycle system to keep the oil temperature stable.
2. Auto filter system can always clean scrapes and keep the oil quality.
3. Use lifting system to clean the oil.
2. Auto filter system can always clean scrapes and keep the oil quality.
3. Use lifting system to clean the oil.
