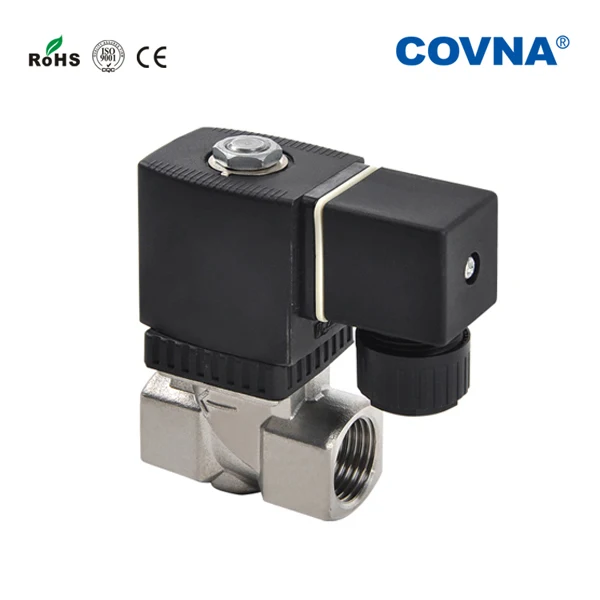

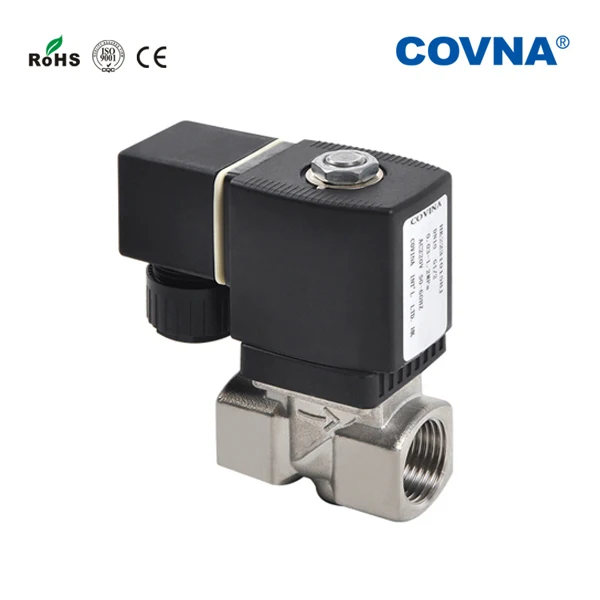

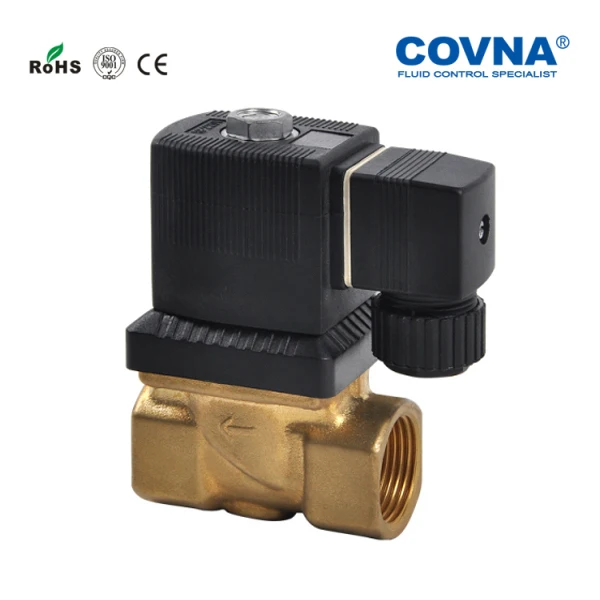

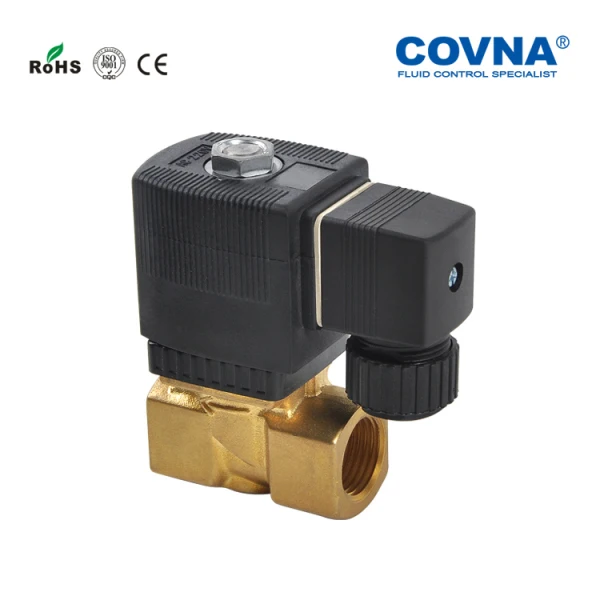

Miniature 1/8' Inch 12v 24v dc Flow Control Water Normally Closed Solenoid Valve
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (60705239131):
Product Overview
Description
Miniature 1/8'' Inch 12v 24v dc Flow Control Water Normally Closed Solenoid Valve
Product Features:
- Direct acting mini construction at low power consumption
- Compact design to save the space
- Appkied to low pressure system, zero pressure start
- Zero pressure or low pressure start
- Versatile, small, responsive, light and durable.
| Medium | Air, water, steam, oil etc. |
| Coil | BD-A-3 |
| Port Size | 1/8'', 1/4'' |
| Port Thread | BSPP, BSPT, NPT, Flange |
| Tolerance | +/-10% |
| Voltage | DC-12V,24V,36V. AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz |
| Material | Base- Brass or stainless steel Seal- VITON,NBR, EPDM, PTFE Armature Tube: Stainless steel 304 Plunger- Stainless steel 430F Stop- SS403F Spring- SS304 |

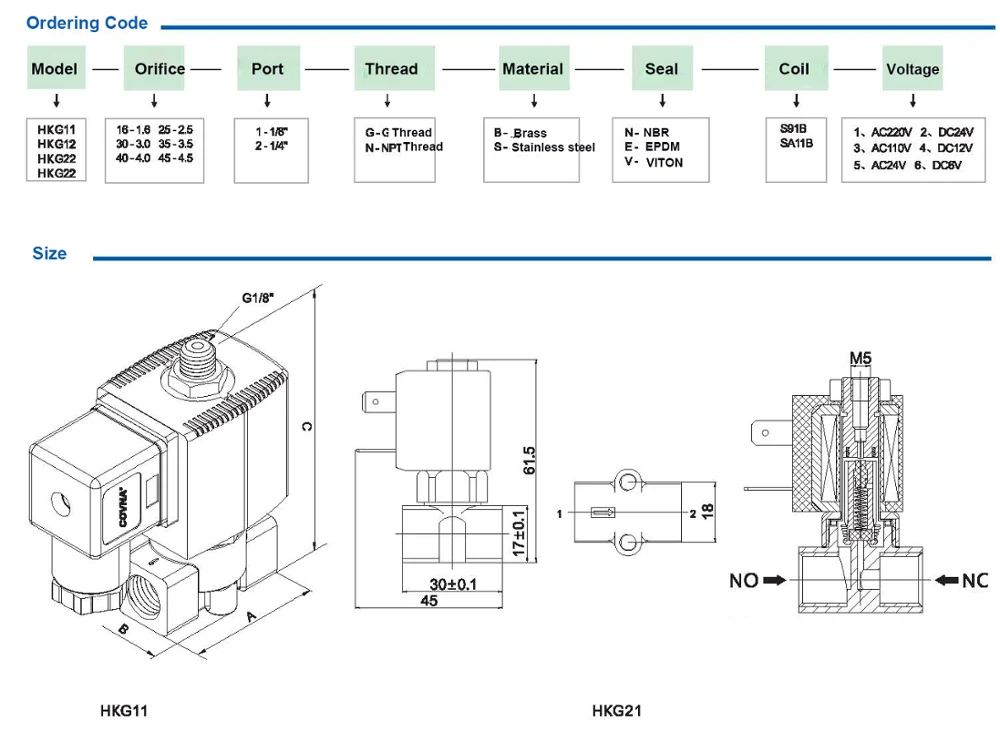

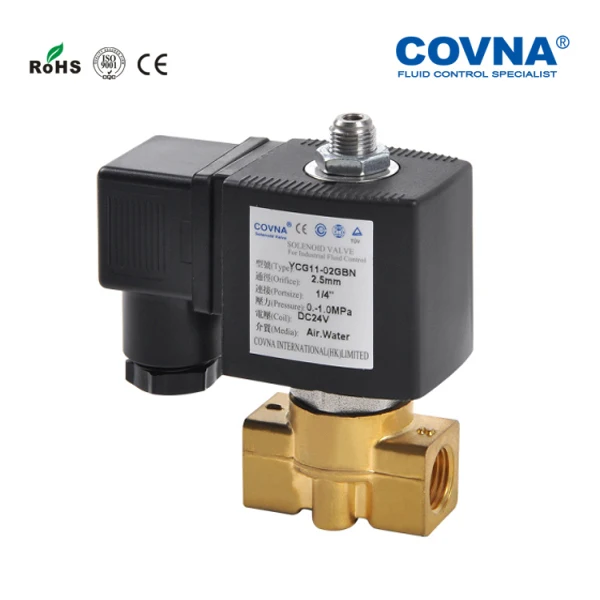

HG11 Series 3 Way, Normally Open, S91B Coil
| Model | Port Size | Valve(mm) | CV | Min Pressure | Max Pressure | Seal Material | Valve Material | Coil |
| HKG1106 | 1/8'' | 1.5 | 0.25 | 0.0Mpa | 1.5Mpa | NBR, EPDM, PTFE | Brass or Stainless steel | S91B |
| HKG1106 | 1/8'' | 2.5 | 0.25 | |||||
| HKG1106 | 1/8'' | 3.0 | 0.35 | |||||
| HKG1106 | 1/8'' | 4.0 | 0.50 | |||||
| HKG1108 | 1/4'' | 1.6 | 0.25 | |||||
| HKG1108 | 1/4'' | 2.5 | 0.35 | |||||
| HKG1108 | 1/4'' | 3.0 | 0.4 | |||||
| HKG1108 | 1/4'' | 3.5 | 0.5 | |||||
| HKG1108 | 1/4'' | 4.0 | 0.61 |
HKG2 Series 3 Way, Normally Closed, S91B Coil
| Model | Port Size
| Valve(mm) | CV | Min Pressure | Max Pressure AC(22VA) | Max Pressure DC(17W) | Seal Material | Valve Material | Coil |
| HKG2106 | 1/8'' | 1.6 | 0.25 | 0.0Mpa | 1.0Mpa | 0.8Mpa | NBR, EPDM, PTFE | Brass or Stainless steel | S91B |
| HKG2106 | 1/8'' | 2.5 | 0.25 | 0.8Mpa | 0.6Mpa | ||||
| HKG2106 | 1/8'' | 3.0 | 0.35 | 0.5Mpa | 0.4Mpa | ||||
| HKG2108 | 1/4'' | 1.6 | 0.20 | 1.0Mpa | 0.8Mpa | ||||
| HKG2108 | 1/4'' | 2.5 | 0.25 | 0.8Mpa | 0.8Mpa | ||||
| HKG2108 | 1/4'' | 3.0 | 0.35 | 0.5Mpa | 0.4Mpa |
