Vacuum Drying Furnace for Power and Distribution Transformer Parts And Elements Vacuum Drying Equipment

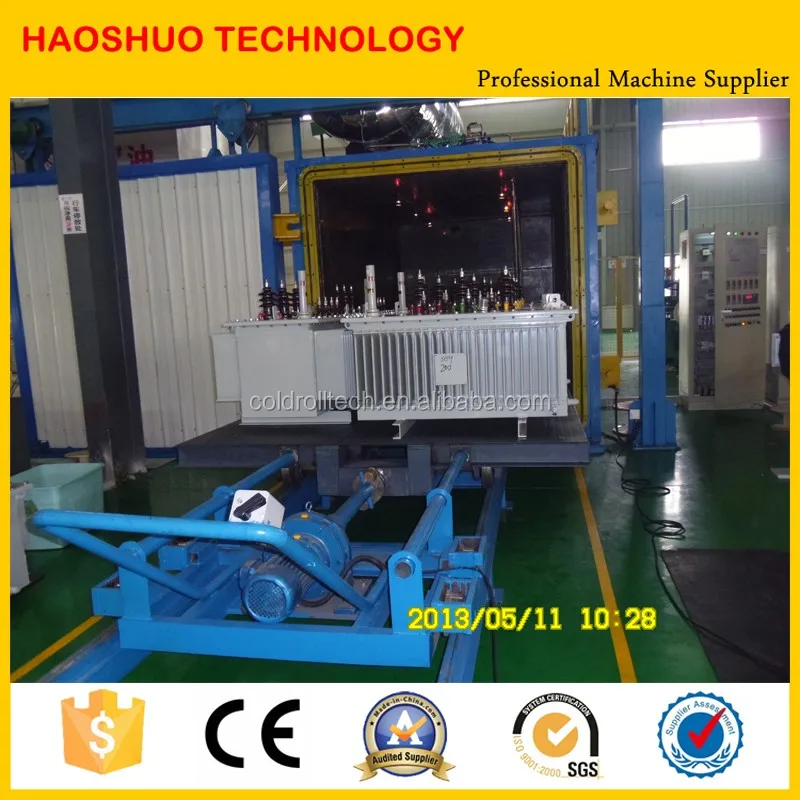

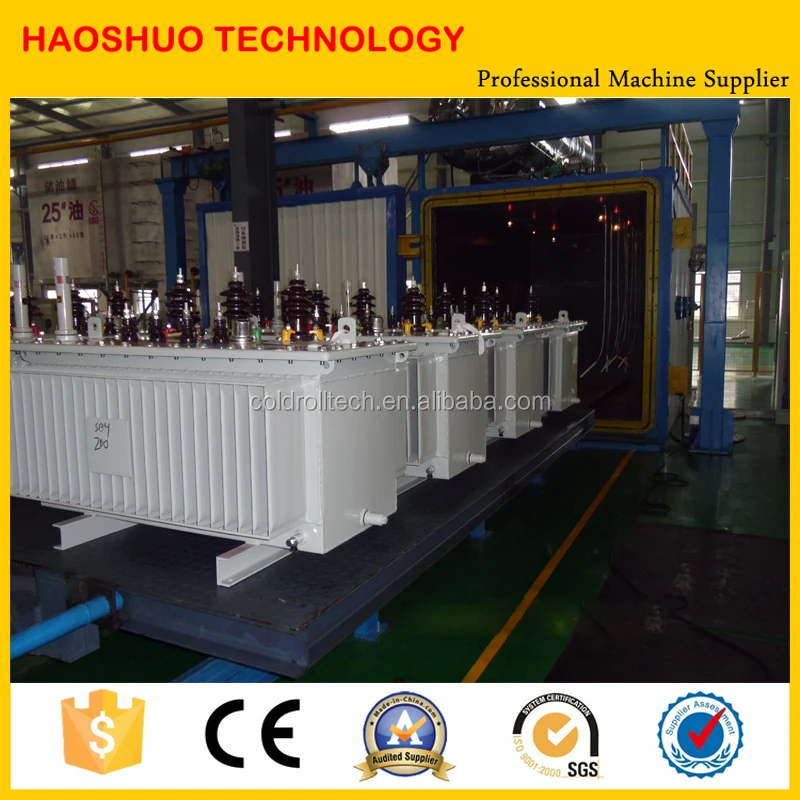

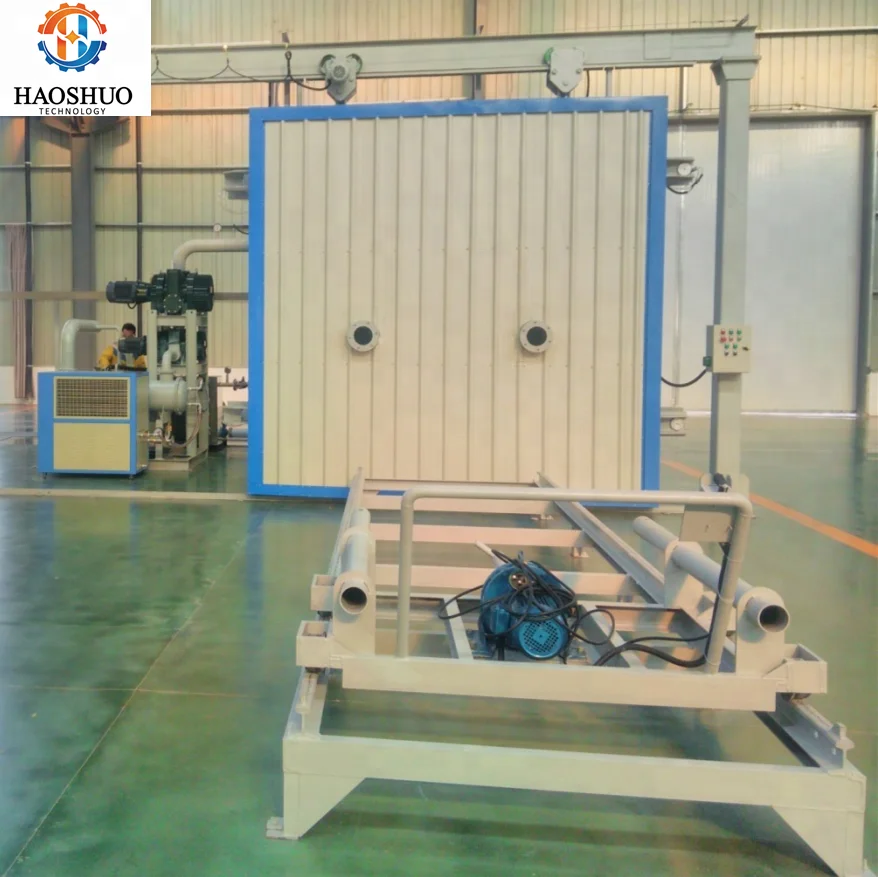

This vacuum drying oven is designed for drying the active parts of transformers under vacuum. The equipment is designed and manufactured with abundant experience and advanced technology, it can save about 40-50% time of drying compared with kindred products. It adopts automatically PLC control, supply drying processes (10KV & 33KV) for drying transformers 33KV 50MVA level products and other electric products.

10-110KV/100MVA level transformer body drying.

110-500KV level transformer winding drying.

110-1000KV level current/voltage reactor body drying.

Capacitor drying.

Other electrical material drying.

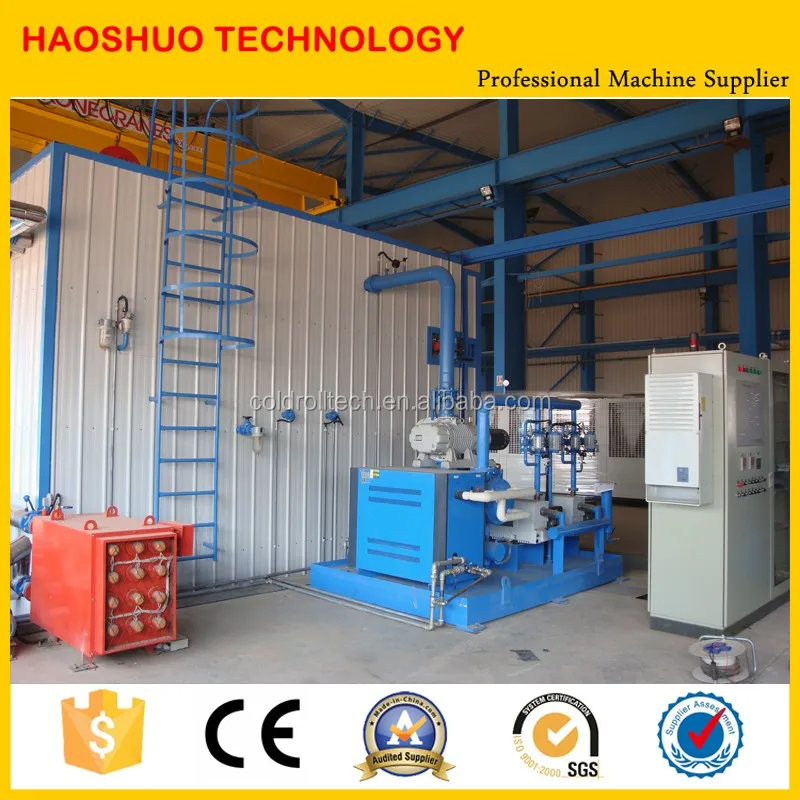

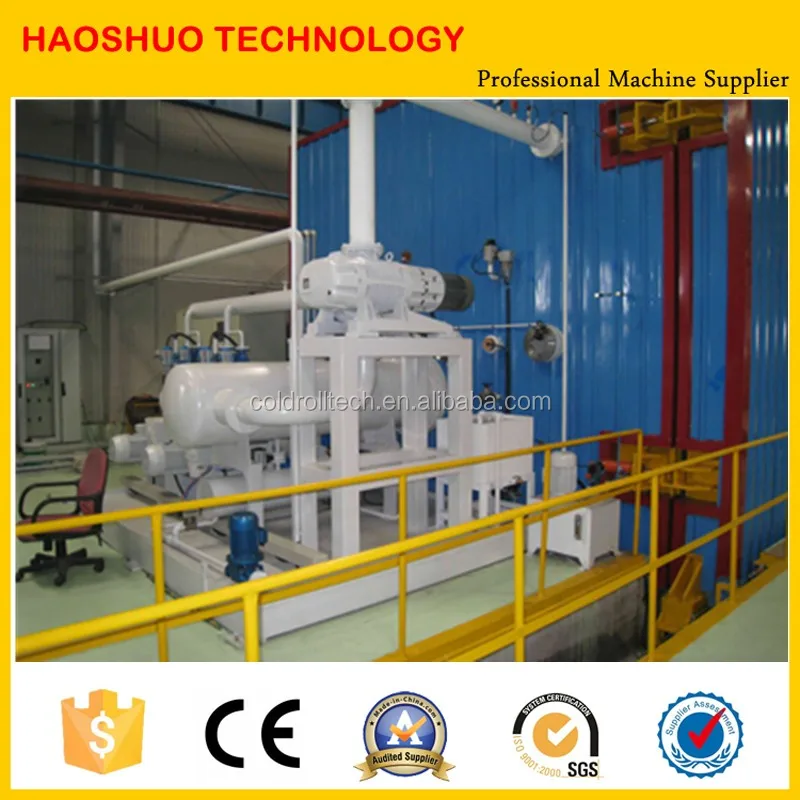

1.Advanced vacuum system design, enough condensate water release in the low temperature condenser, effectively prevent the contamination to the vacuum pump caused by the moisture in the drying process.

2.According to the b chamber body temperature during the heating process, adopt repeatedly alternating pressure automatically, periodically lower vacuum pressure in the tank to a certain value, to create the most suitable conditions for the evaporation of water within the insulation body, so that moisture from the drying vaporation process in a reasonable best state.

3.Through the alternating pressure drying process, product can effectively solve the rust problem of iron core during the drying process.

4.The level of automation and the level of the product of the treatment process of this equipment, reach advanced international level, and the product quality can reach the superior level product in the industry.
