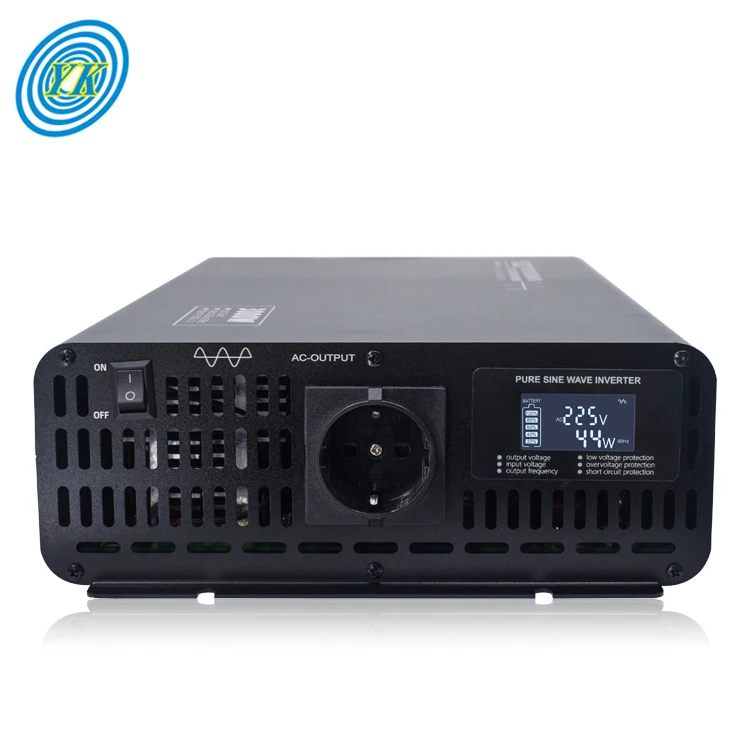

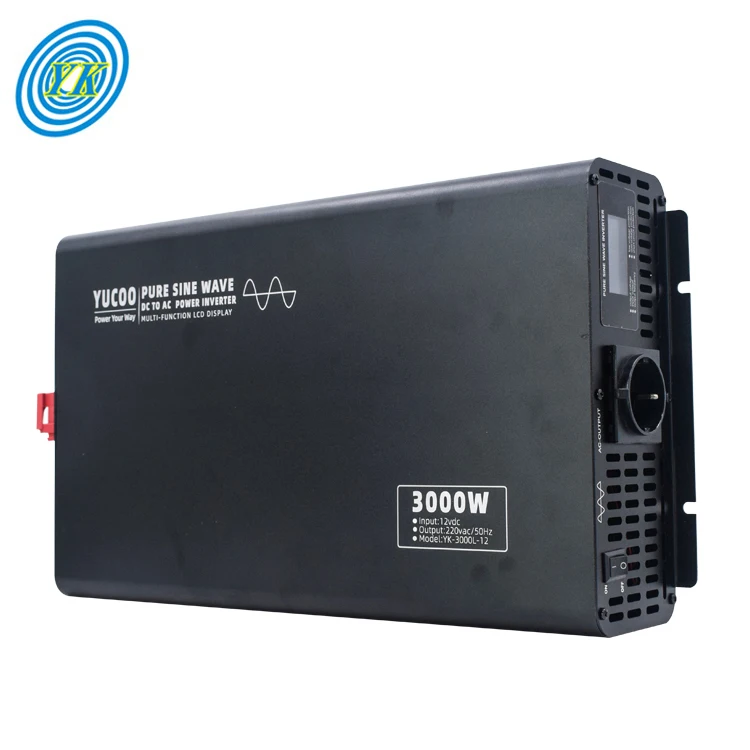

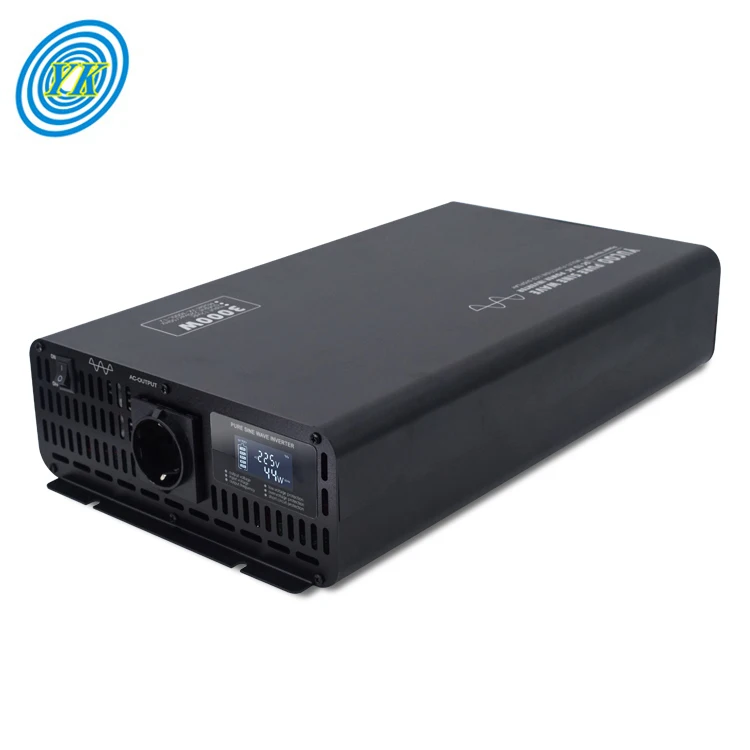

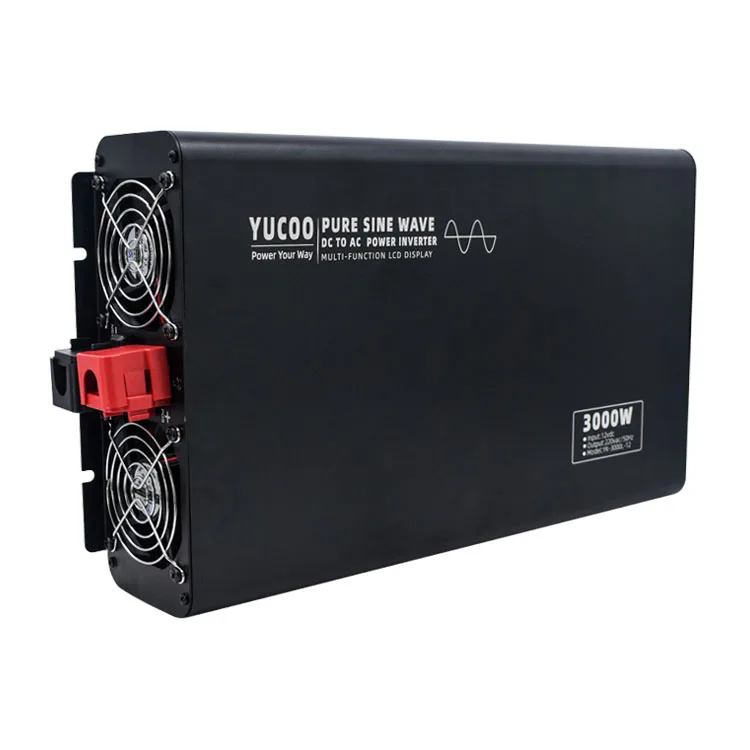

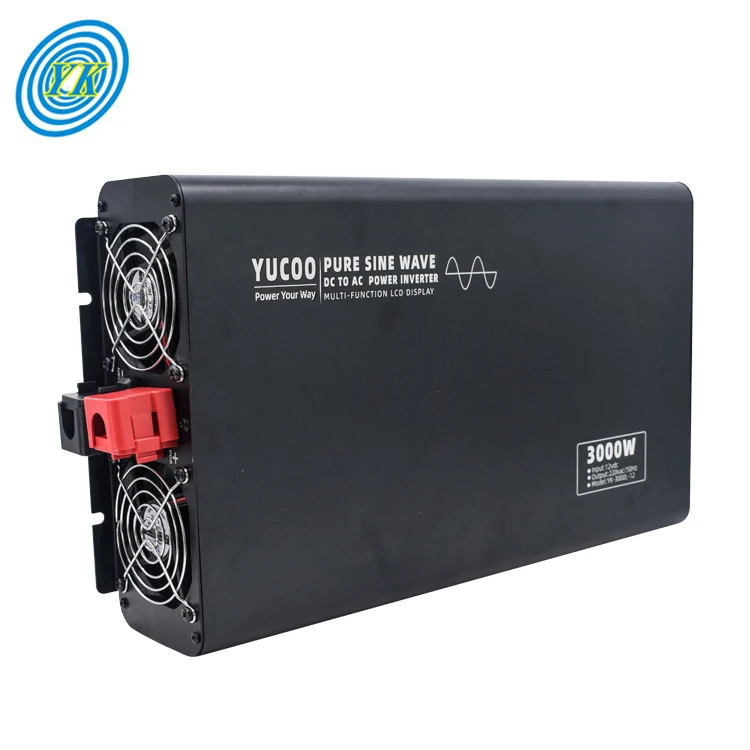

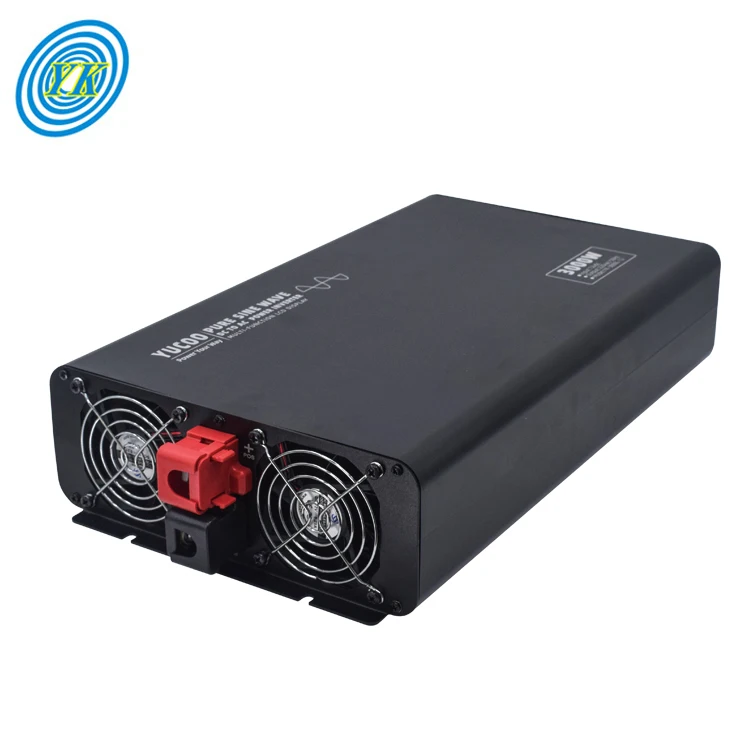

12v 24v 48v 230v 6000w 6kw pure sine wave solar power inverter
- Category: Power Supplies >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (60705252995):
Product Overview
Description
12v 24v 48v 230v 6000w 6kw pure sine wave solar power inverter
Product Description
Feature & advantage:
1. Efficiency: 85%-92%
2. The service life can reach a decade
3. Working noise is low and the efficiency is high
4. Strong ability of resist concussion
5. Good load ability: Inductive , capacitive load and Hybrid load
6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output Short/Overload
Product Parameter
|
Model |
YK-600L |
YK-1000L |
YK-1500L |
YK-2000L |
YK-3000L |
YK-4000L |
YK-5000L |
|

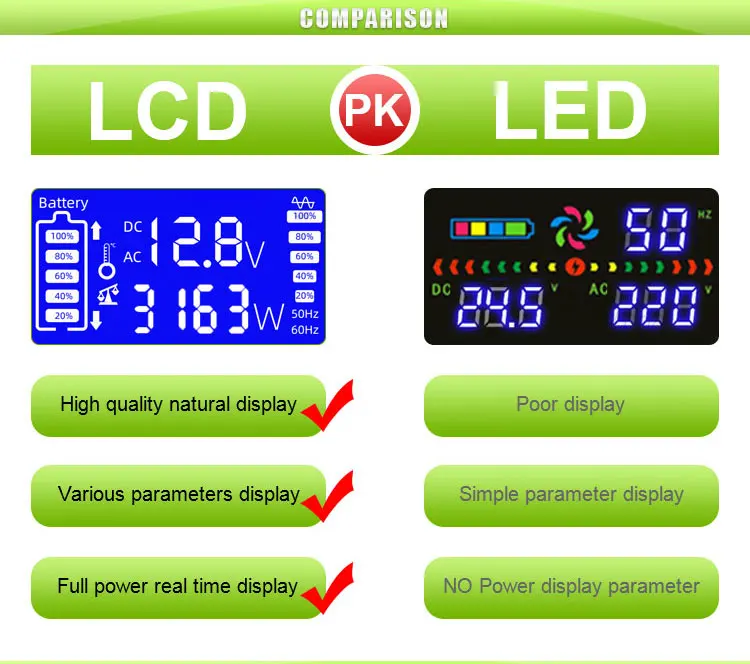

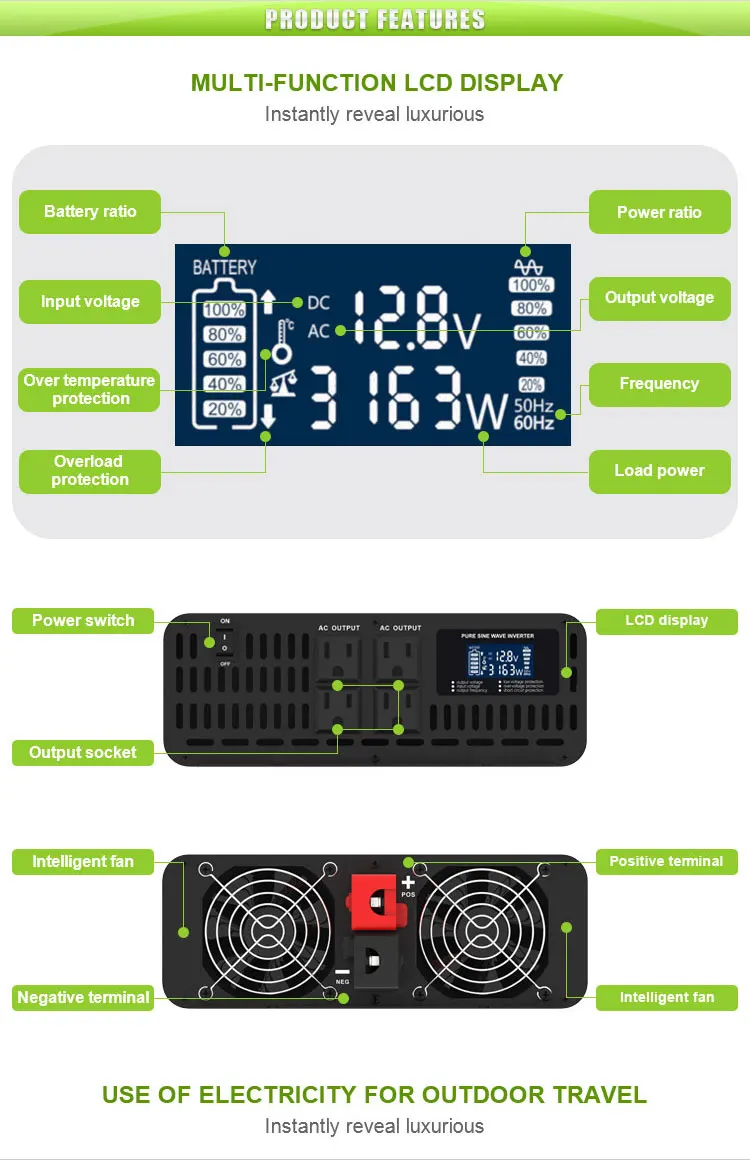

Display |
LCD Display |
||||||
|
DC Input |
|||||||
|
Rate voltage |
12Vdc/24Vdc/48Vdc/60Vdc/72Vdc |
||||||
|
Range voltage |
10-15Vdc/20-30Vdc/40-60Vdc/50-75Vdc/60-90Vdc |
||||||
|
Output |
|||||||
|
Output Voltage |
110Vac or 220vac±5% |
||||||
|
Output Frequency |
50Hz or 60Hz±0.1% |
||||||
|
Wave |
Pure Sine wave |
||||||
|
Output Power |
600W |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
|
Peak Power |
1200W |
2000W |
3000W |
4000W |
6000W |
8000W |
10000W |
|
Conversion Efficiency |
≥90% |
||||||
|
Protect function |
|||||||
|
Function-1 |

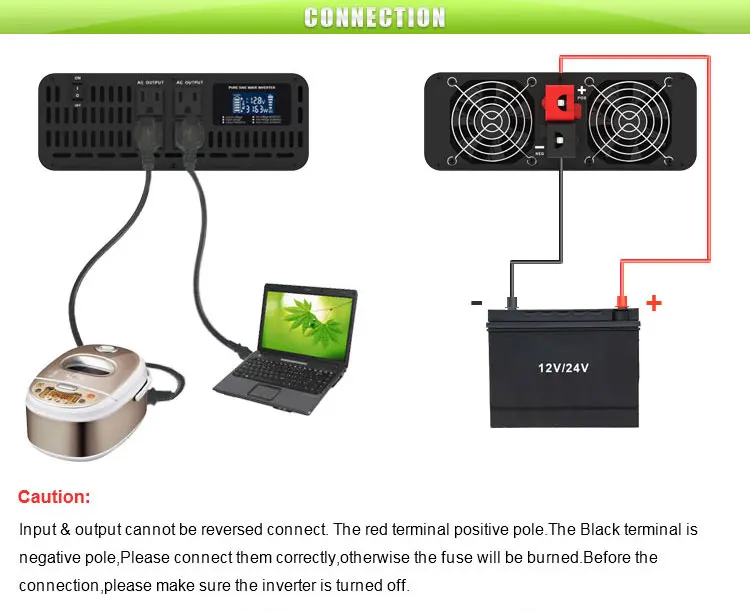

Input reverse connection protection: Fuse |
||||||
|
Function-2 |
Input low voltage protection : 20Vdc±0.3V |
||||||
|
Function-3 |
Recovery voltage : 24V(25.5V±0.3) |
||||||
|
Function-4 |
Input high voltage protection: 30Vdc±0.3V |
||||||
|
Function-5 |
Over temperature protect: 80°±5° |
||||||
|
No-load current |
0.3A |
0.6A |
0.7A |
0.7A |
1.0A |
1.0A |
1.0A |
|
Over load protection |
660±50W |
1100±50W |
1650±50W |
2200±50W |
3300±50W |
4000±50W |
5000±50W |
|
Total Harmonic Distortion |
≤3% |
||||||
|
Working temperature |
-5~+50℃ |
||||||
|
Storage temperature |
-20~+70℃ |
||||||
|

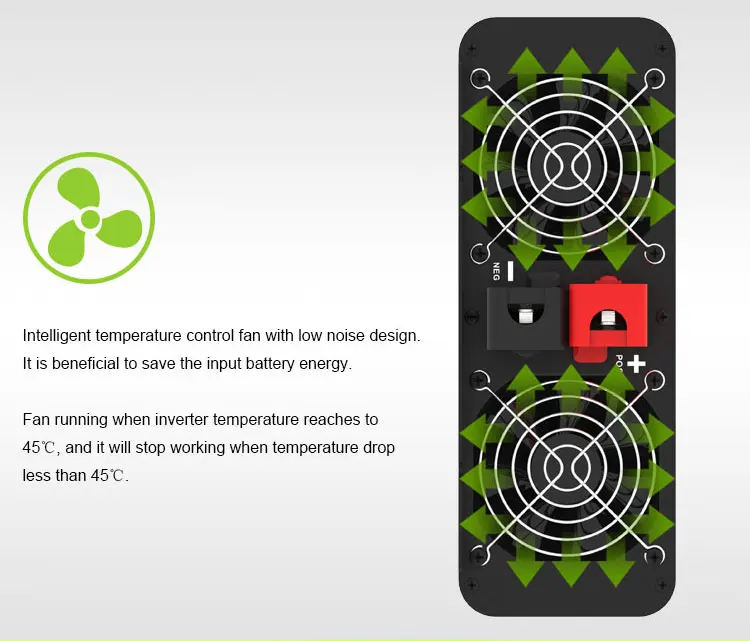

Cooling method |
Intelligent temperature controlled air cooling |
||||||
|
Mechanical properties |
|||||||
|
Input terminal |
Terminal form |
||||||
|
Output socket |
According request |
||||||
|
Housing material |
Auminum |
||||||
|
Size(mm) |
200*173*76 |
310*173*76 |
340*173*76 |
360*173*76 |
400*242*88 |
400*242*88 |
420*242*88 |
|
Weight (kg) |
2.1 |
3.2 |
3.5 |
4.5 |
8.5 |
9.5 |
10.5 |
Product Details
Customized range
Regard as the inverter we can customize different specification according to your request
- Input: 12Vdc/24Vdc/48Vdc/60Vdc /72vdc
- Output: 110Vac/220Vac 60/50Hz
- Rate Power : 300W/600W /1000W/1500W/2000W/3000W/4000W/5000W
- Peak Power : 600W /1200W/2000W/3000W/4000W/6000W/8000W/10000W
|
Rate Voltage input |
Rate power |
Peak Power |
|
12/24/48/60/72vdc |
600W |
1200W |
|
1000W |
2000W |
|
|
1500W |
3000W |
|
|
2000W |
4000W |
|
|
3000W |
6000W |
|
|
4000W |
8000W |
|
|
5000W |
10000W |
