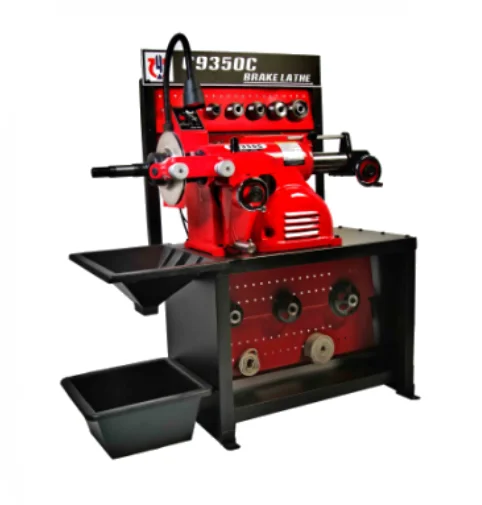

Popular brake disc lathe / car disc brake lathe for garage equipment

car brake lathe machine

RH-C9350C

Overall lathe height: 59" (1500 mm)

Lathe shipping weight: 290 kg

Floor space requirements-length :48"(1219.20 mm)

Floor space requirements- width :35.5" (901.70 mm)

Rotor Diameter:7"/180mm-15"/381mm

Rator Thickness:1-7/8"/48mm

Drum Diameter:6"/152mm-28:/711mm

Drum Depth:6-7/8"/175mm

Spindle to floor (mounted on optional bench):38"(965mm)

Electrical requirements Standard:

110 VAC, 60 Hz, single-phase,12A
Optional: 220 VAC, 60 Hz, single-phase, 5.21A

Motor:

Main motor 1 HP(0.75kW), 60 Hz, 115/230 VAC
Feed motor 36W (DC, magnetism forever)

Gross Weight:350kg

Dimension:970x920xx1140mm
