Lab Solid Phase Extraction Vacuum Manifolds Filtration Oil free Diaphragm Vacuum Pump

Share on (60705366802):


Price:$200.00 - $350.00

Quantity:


Product Overview

Description



Product Description

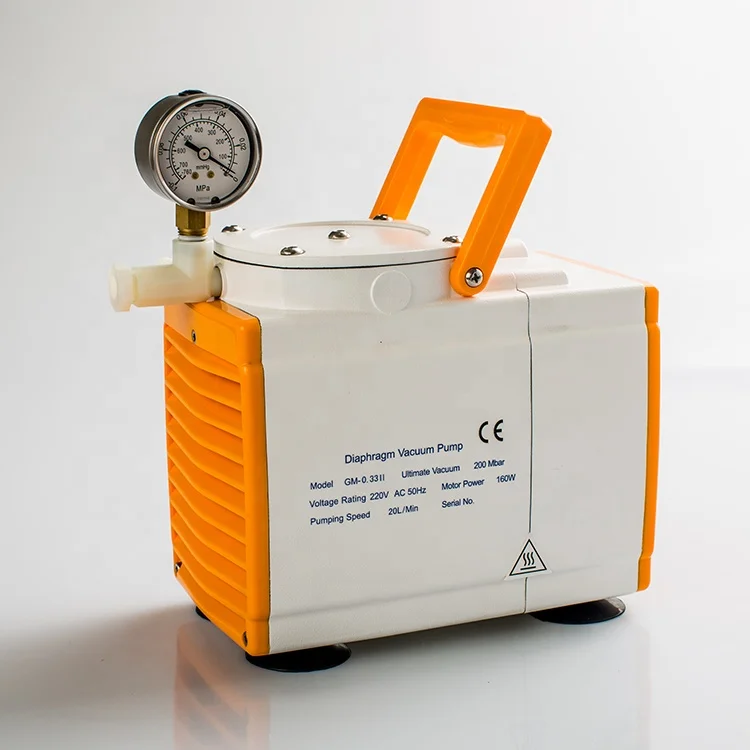

HEB GM series diaphragm vacuum pump

HEB GM-Series PTFE diaphragm vacuum pumps are ideal for pumping corrosive gases and organic solvents. They are light-weight, oil-free, chemical-resistant. We offer various models with end vacuum as low as 50 mbar and flow rate up to 120L/min. GM-Series are perfect for tough lab applications, as well as applications requiring a clean vacuum source.





Application

1, vacuum suction filter
2, vacuum distillation
3, vacuum adsorption
4, solvent filtration
5, solid phase extraction
6, degassed
7, for compressed and air-converted gases

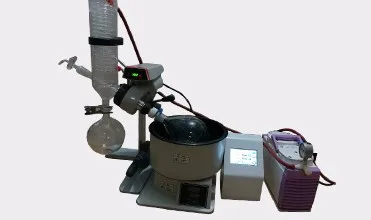

8,small rotary evaporator



Techincal parameter of the GM series diaphragm vacuum pump



Model
GM-0.20
GM-0.33II
GM-0.5
GM-0.5II
GM-1.0
pumping speed
12 L/min
20 L/min
20 L/min
30 L/min
60 L/min
Ultimate Pressure
0.075 Mpa
≥ 0.08 Mpa
≥ 0.08 Mpa
0.095 Mpa
≥0.08 Mpa
Vacuum
250 mbar
200 mbar
200 mbar
50 mbar
200 mbar
positive pressure
≥ 30 Psi
/
≥30 Psi
/
≥30 Psi
pump head
/
1
1
2
2
Inlet Diameter
Φ6 mm
Outlet Diameter
/
/
Φ6 mm
Φ6 mm
/
Motor Power(w)
75
160
160
160
160
Working Temp°C
7-40 ℃
Noise(DB)
<50
<50
<55
<55
<50
Dimension(mm)
195*98*156
235*120*215
210*160*235
300*120*235
300*160*235
Weight (Kg)
4
7.5
8
10
10
Remark
/
Negative pressure type
Negative&positive pressure dual use
Double pump head negative pr5essure type
Negative&positive pressure dual use
Note
All of these models  have a corresponding anti-corrosion style(PTFE)


Want more details?

Send  us enquiry now,we will send you the detailed specification  immediately.

Any custom services?

Customize the plugs as your country's requirements

Other custom service

Why choose our vacuum pump?

More than 10 years' experience,more professional.

CE&ISO certificated,make your import more smothly and easy.

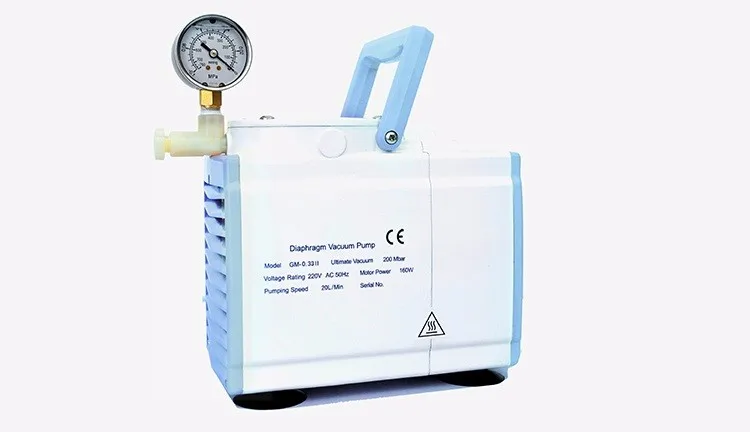

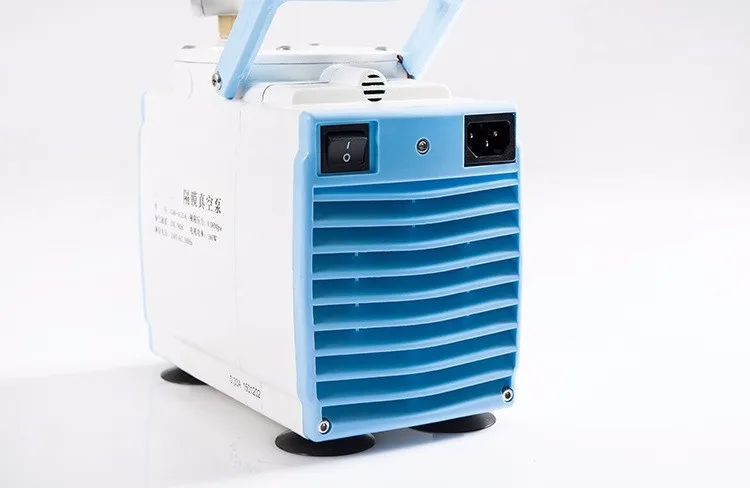

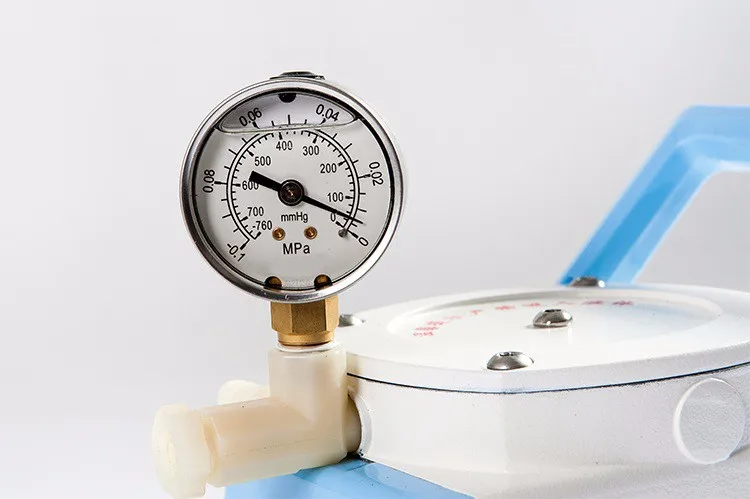

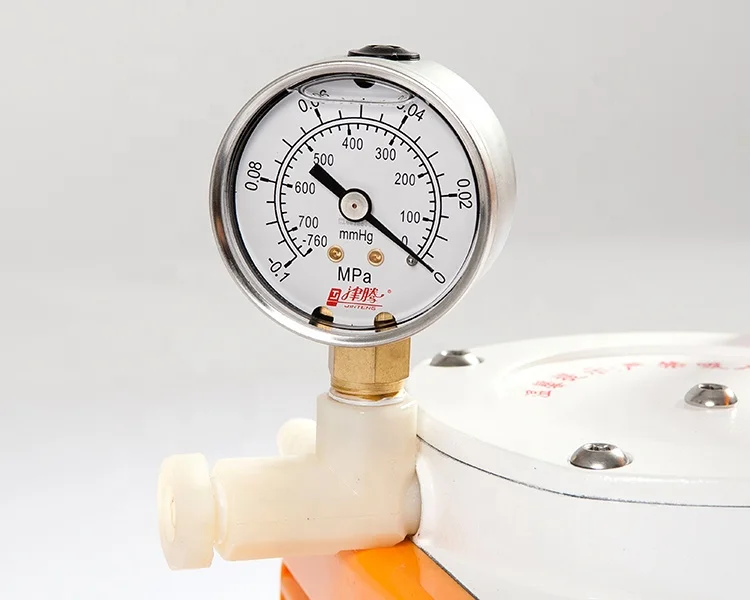

Detailed Images










Related Products




       HEATING AND COOLING CIRCULATOR

                                              VACUUM PUMP

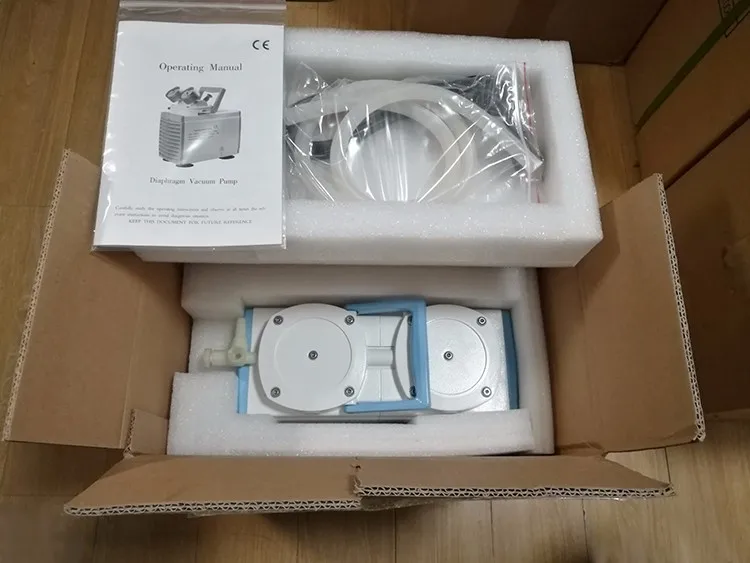

Packing & Shipping

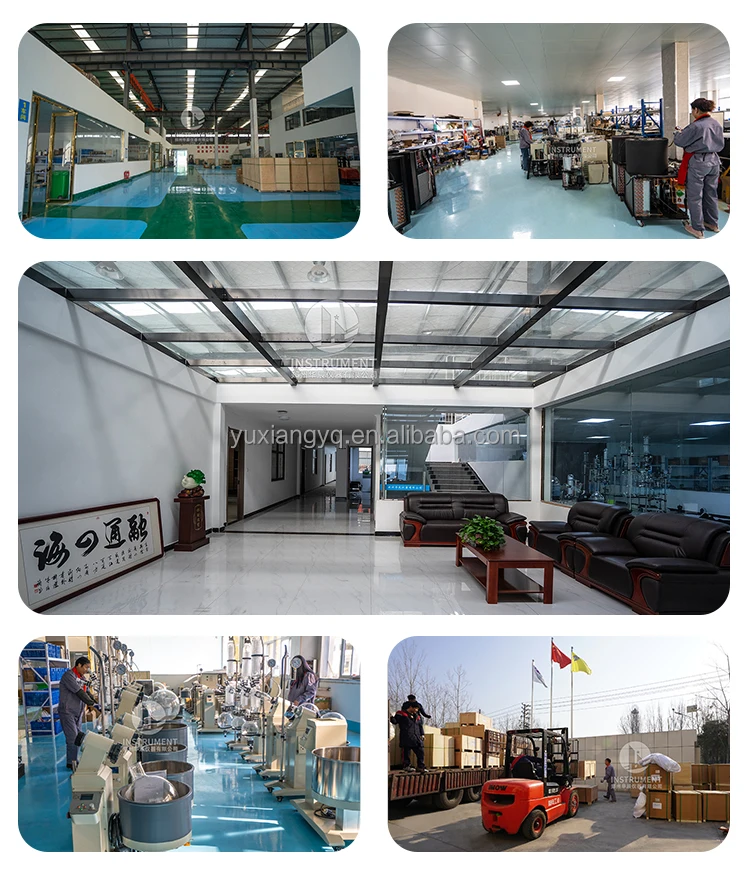

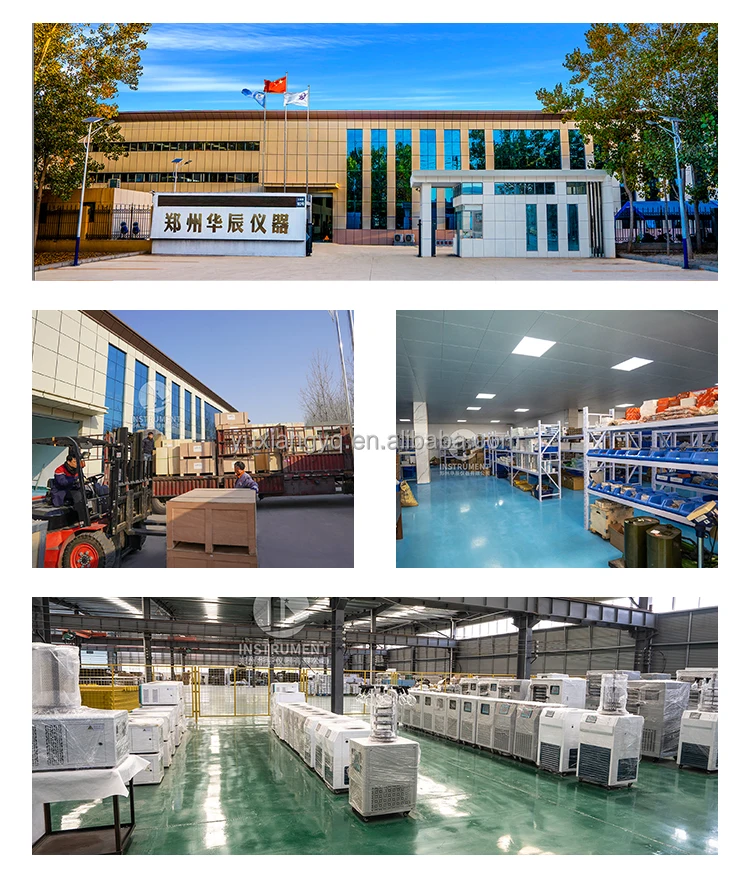

Company Profile



Gongyi City Yuxiang Instrument Co.,Ltd was established in year 2002, has passed more than 20 years, it has 7,400 square meter factory, it’s a technological innovation-based enterprise provided with integration of research, develop, manufacture and marketing. In year 2019, we expanded a larger sister company, Zhengzhou Huachen Instrument Co., Ltd, which has 11,000 square meter factory. Nowadays, our products has gotten extensive application in Asia, European and America, even spread all over domestic laboratories and Universities.






Main instruments in our company: jacketed glass reactor, rotary evaporator, low-temperature cooling liquid circulating pump (DLSB refrigerated circulator or chiller), multi-purpose circulating water vacuum pump, high and low temperature circulating system, high temperature oil bath(heating circulation bath), diaphragm vacuum pump, rotary vane vacuum pump, water bath/oil bath series, incubator series, drying oven series, centrifuge series, ultrasonic cleaner series etc.




Contact Us



Gongyi City Yuxiang Instrument Co.,Ltd
(Zhengzhou Huachen Instrument Co.,Ltd)

Add: Yingyu Industrial Park, Gongyi City, Henan, China
MT.: 86-13032992987
Tel: 86-029-89195057(Direct line)
Fax: 86-029-88265264
E-mail: hep(AT)heblab.com / heblab888(AT)yahoo.com
