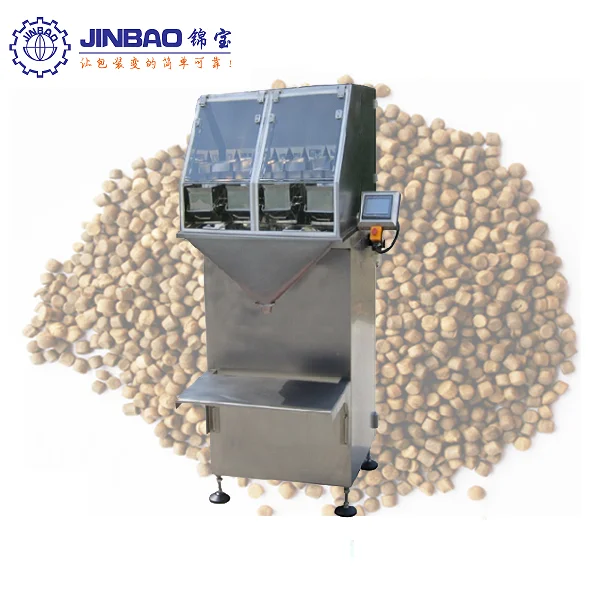

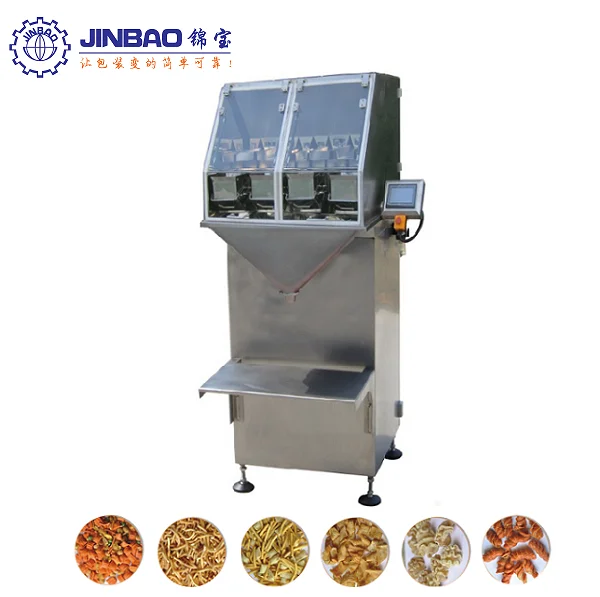

Granule bag filling and sealing machine, grain packing machine, sugar or salt packer
PRODUCT INFORMATION
A.General description
This series semi-automatic packing machine mainly consist of feeding equipment,weighing hoppers and electronic control system. It can complete feeding, weighing and packing work independently.Suitable for variety packaging containers(bags, cans, bottles, etc.) with various size,the packing weight varies from 500g to 5000g by changing amounts of its hopper.
B.Application
Suitable for many kinds of material packaging,such as rice,nuts,tea,essence spice,corns,gourmet powder,sugar,coffee beans ,sunflower seeds ,chemicals,wash powder,and solid drinks,and so on.
C.Technical parameters
Model

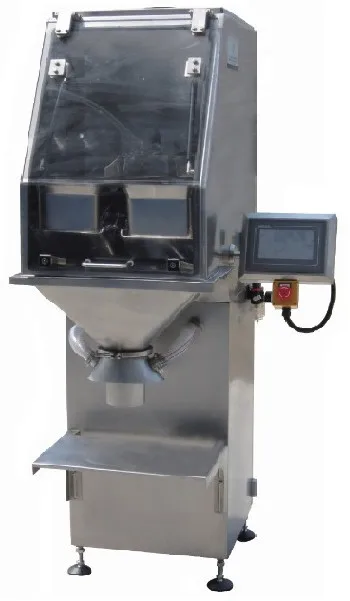

DCS-2.5B-ZD-DJ
DCS-5.5B-ZD-DJ
DCS-13B-ZD-DJ
Hopper volume
2.5L
5.5L
13L
Packing Weight
100g-1000g
250g-2500g
500g-5000g
Packing accuracy
≤±0.1%
≤±0.1%
≤±0.1%
Filling speed
25-35 bags/min
22-30 bags/min
15-25bags/min
Power supply
AC220V/50HZ 1.0KW
Machine weight
150kg
160kg
180kg
Overall dimension
1000*640*1400mm
1000*640*1400mm
1000*690*1530mm
D.Machine details
E.Product display
OTHER PRODUCTS
OUR SERVICE
Life-time warranty.
Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment.
After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
PACKAGING & SHIPPING
Packaging:
Machine packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping: Upon receipt of payment , delivery date will be in 3-15days By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
COMPANY OVERVIEW
We are direct manufacturers
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.
