JR 12L2/DC 12V 24V voltage relay module 12 channel protective omron relay module

Product Overview

Description

GINRI 12 Channel DPDT OMRON Relay Module (PLC Output Amplified Board)

JR-12L2/24VDC



♦ Features

  -- Standard DIN rain mounted

  -- Status indication for each input

  -- Special circuit for self anti-interference

  -- Isolation for each relay channel

  -- with relay base, easy to replace



♦ Typical Applications

    • Micro-controller    • PLC control  • Servo System

    • Electro-magnetic valve    • DC Motors

    • Home intelligent control



♦ Approvals

    • CE   • CCC

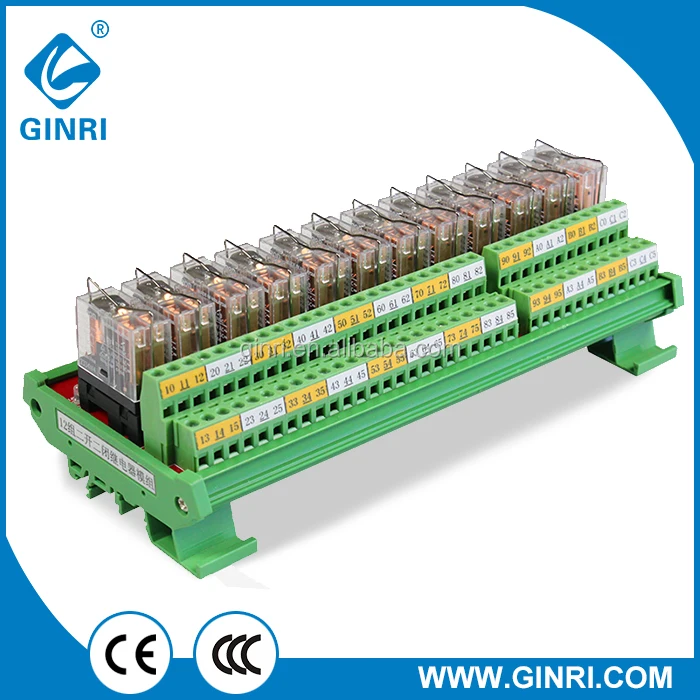

♦ Product Photo





♦ Technical date



Model	JR-12L2/24VDC
Output type	OMRON Relay
I/O points	12
Input signal	NPN and PNP compatible
Input voltage	DC24V * DC5V,DC12V,AC110V,AC220V can be customized.
Output voltage	AC/DC 0-250V
Output Contacts	2CO(DPDT)
Contact capacity(resistive)	5A 250VAC
Operation voltage/Release voltage	≥75%Un/≤10%Un
Operation time/Release time	≤15ms/≤8ms
Switching frequency	0.1Hz
Dimensions(WxH)	87×63mm
Mounting	DIN rail







♦ Wiring Diagram







 ♦ GINRI Selection Guide







♦ GINRI Packing







♦ GINRI Relay Family Photo





 FAQ

Q1. What advantages do you have?

A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and Connector-Terminal Conversion Units.

Q3. Could you print our own logo?

A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5.  It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.

Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.

Q7. How could I get your sample?

A7. You an request sample purchse through our alibaba trade assurance service.
