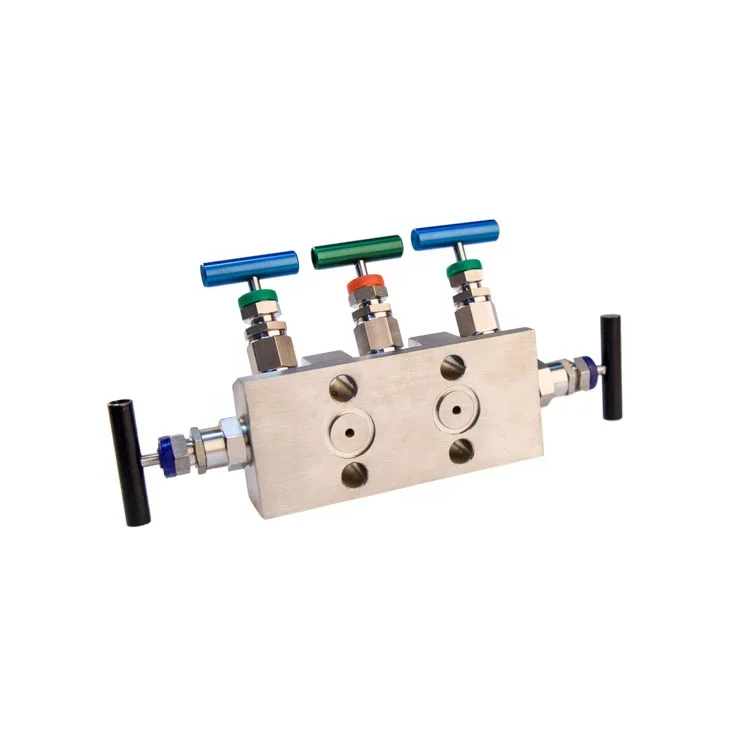

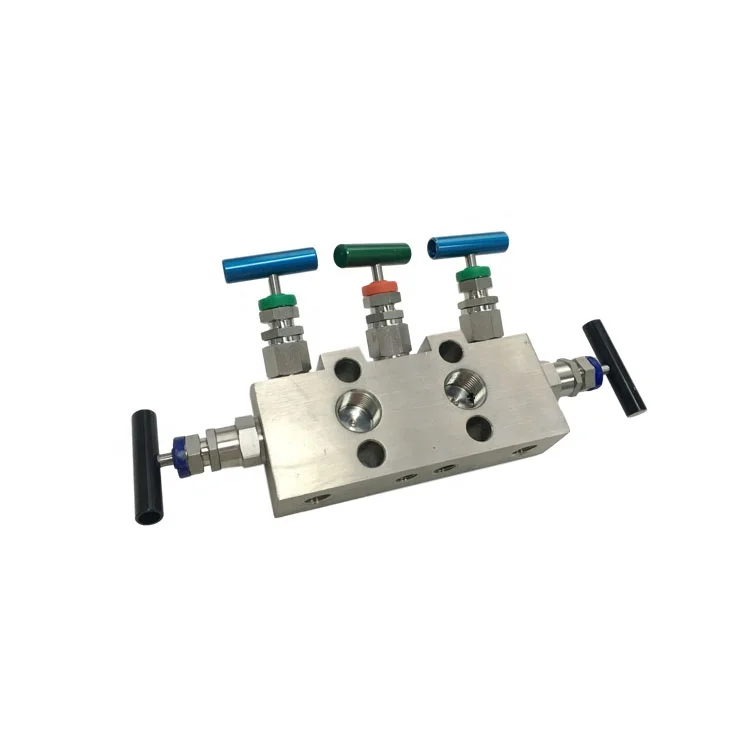

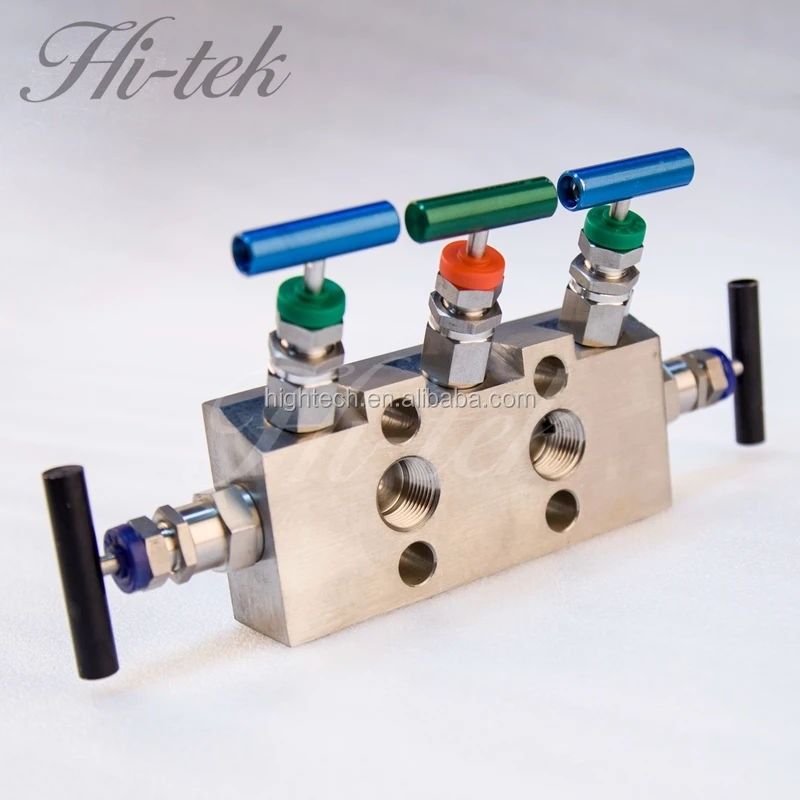

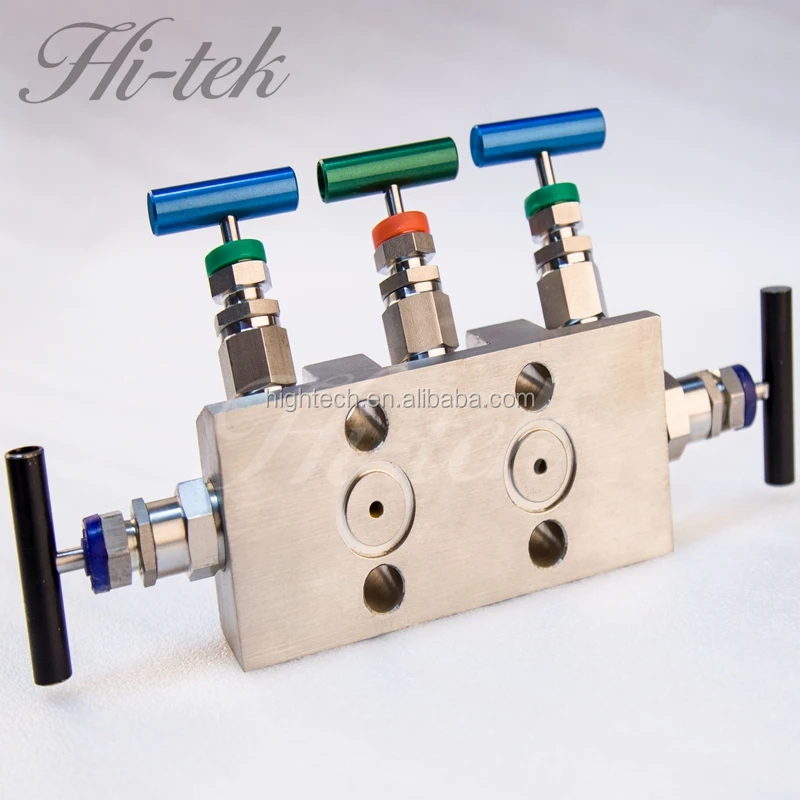

High Pressure Stainless Steel 316 Manifold Valves 5 way oxygen manifold
- Category: Needle Valves >>>
- Supplier: Hubei Hi-Tek Valve And Fitting Co. Ltd.
Share on (60705453611):
Product Overview
Description
Product Description
FEATURES
• Available in SS316, NACE certified on request
• Low operating torques
• PTFE packing standard, Graphite packing for high
temperature on request
• Available with 2 way, 3 way and 5 way valve.
• Available with Pipe to Pipe, Pipe to Flange, Flange to
Flange, Remote, Remote mounting Direct mounting.
• Convenient method of blocking, bleeding and calibrating
pressure instruments.
• Designed for connection system impulse line & transfer
• Combine the function of a tee, calibration valve, isolation
valve, all tubing and fittings in a sigle valve configuration.
• Standard port sizes up to 1/2” NPT/BSP/BSPT
• Every valve is factory tested
• Low operating torques
• PTFE packing standard, Graphite packing for high
temperature on request
• Available with 2 way, 3 way and 5 way valve.
• Available with Pipe to Pipe, Pipe to Flange, Flange to
Flange, Remote, Remote mounting Direct mounting.
• Convenient method of blocking, bleeding and calibrating
pressure instruments.
• Designed for connection system impulse line & transfer
• Combine the function of a tee, calibration valve, isolation
valve, all tubing and fittings in a sigle valve configuration.
• Standard port sizes up to 1/2” NPT/BSP/BSPT
• Every valve is factory tested
STANDARD BONNET DESIGN FOR SAFE AND RELIABLE PERFORMANCE
Description | Features and Benefits |
1. Bar Handle | To operate and control the valve flow. |
2. Set Screw | Lock the handle with stem. |
3. Stem | i) Rolled and silver plated stem threads for excellent performance and extended service life. ii) Burnished stem at packing area to ensure low torque operation of the valve & reduction in packing wear |
4. Stem Tip | 17-4 PH Stainless Steel hardened non rotational self centering stem tip for superior and repeatable positive bubble tight shut off. |
5. Packing Adjuster | Makes external adjustment to set the perfect sealing of gland packing. |
6. Lock Nut | For safety to prevent accidental valve disassembly. |
7. Bonnet | Directly screwed to the main body. |
8. Packing | Packing below the threads protects the flow stream from lubricant contamination on the threads or wash out and also protect the stem threads from potential damaging effects of the media. |
9. Washer | For sealing between body and bonnet assembly. |
10. Locking Pin | To prevent accidental loosening / disassembly of valve. |
11. Dust Cap | Protects the stem from foreign particles. |
OPERATING PARAMETERS
APPLICATIONS
• Pressure and Differential pressure Instrumentations
Pressure Rating : upto 6000 psig (408 bar) at CWP
Temperature Rating : -54ºC to 232ºC with PTFE packing
Temperature Rating : -54ºC to 232ºC with PTFE packing
APPLICATIONS
• Pressure and Differential pressure Instrumentations
TESTING :
• Standard Test : Each Valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and
packing, the maximum allowable leak rate of 0.1 sccm
• Optional Hydrostatic test : This test is performed with deionised water at 1.5 time the working pressure.
Customer Feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
B: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
