High Brightness 1000 nits 7.0 Inch TFT LCD Panel 50pin FPC RGB Interface TN Normally White Screen
- Category: >>>
- Supplier: Shenzhen Mind Electronics Co. Limited
Share on (60705471621):
Product Overview
Description
MIND High Brightness 1000nits 800x480p 7.0 inch TFT LCD Panel With 50pin FPC ,24bit*RGB Interface
Product Description
| Screen Size | 7.0 inch |

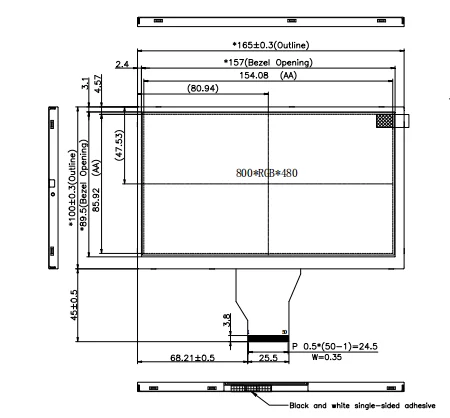

| Module Size(WxHxD,mm) | 165.0 x 100x 5.8 |
| Active Area(mm) | 154.08 × 85.92 |
| Display ModeDisplay Mode | Normally White, Transmissive |
| Display colors | 16.7M |
| Resolution | 800 × 3(RGB) × 480 |
| Viewing Angle (Tpy.)θT/θB/θL/θRV | 50/70/70/70 |
| Aspect Ratio | 16:9 |
| Luminance(nits) | 1000 |
| Contrast Ratio | 500 |
| Power Consumption (W) | 3.046 |
| Interface | 24bit*RGB |
| connecting type | 50pin FPC |
| Operation Temperature( ℃) | -20~70 |
| Storage Temperature (℃) | -30~80 |
| Driver IC | EK9713CA EK73002ACGB |
| HTHH.(op) | 60℃,90% RH |
| Response Time(ms) | 25 |
| Dot Pitch(WxH,mm) | 0.0642 × 0.1790 |
Company Information
Shenzhen Mind Electronics Co,Ltd, established in June 2007, is a high-tech enterprises dedicated to manufacturing, selling, researching and developing TFT panel modules.
Our Factory:We have our own factory and large warehouse.
Our Certification: We passed IATF 16949 and ISO 9001.With Standard production workshop.
Packaging & Shipping
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 7-10 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1000.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to
arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a
real sample for your second confirmation.if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specification.
