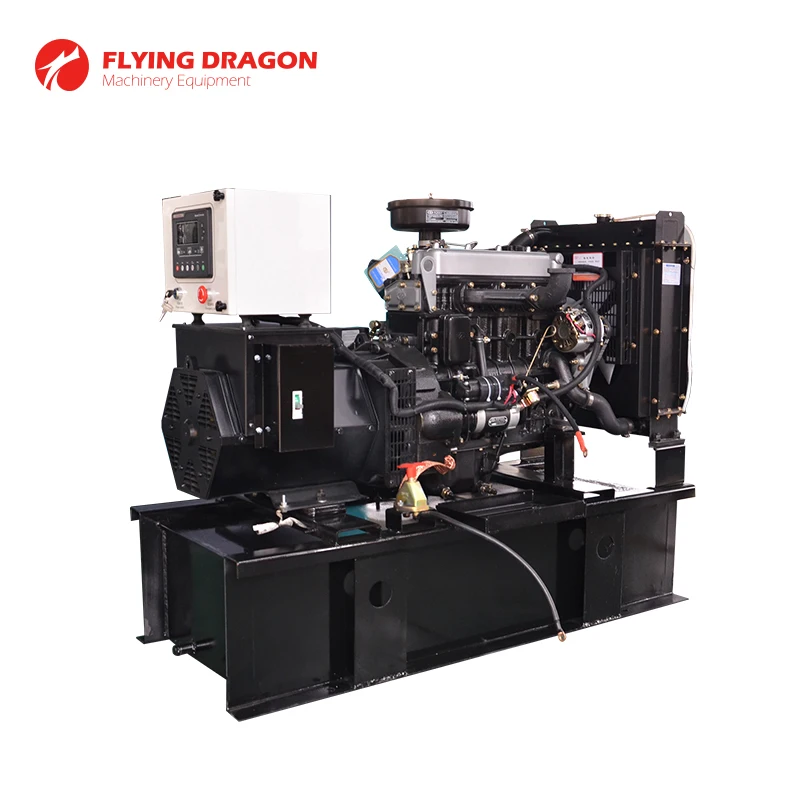

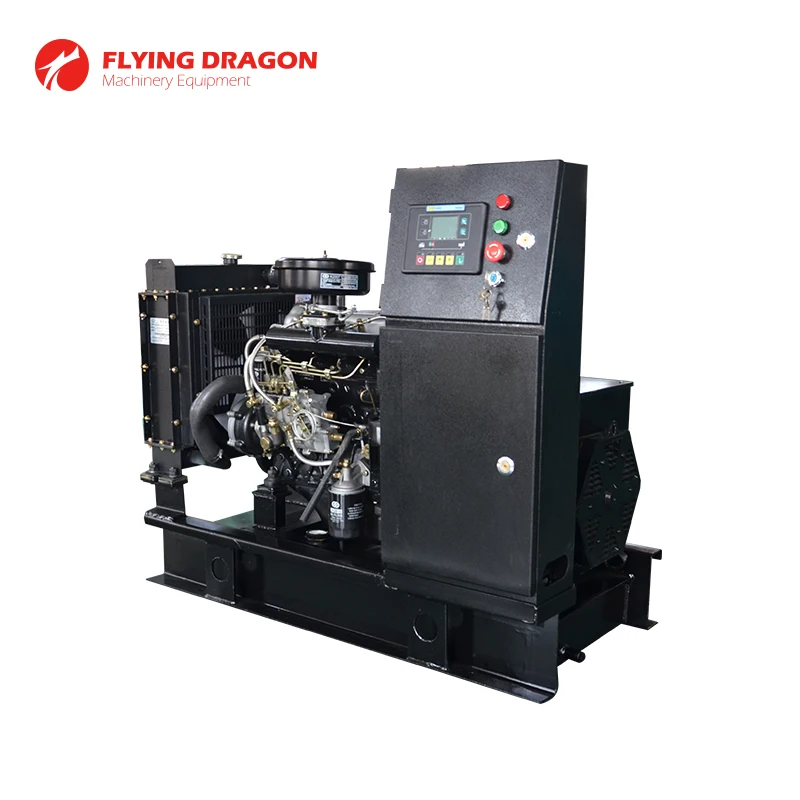

Chinese famous brand 50Hz 60Hz 10kw permanent magnet generator with yangdong engine YD385D
- Category: >>>
- Supplier: Taizhou Flying Dragon Machinery Equipment Co. Ltd.
Share on (60705493655):
Product Overview
Description
Diesel generator Details | |
| Model | CLYD-10GF |
| Power | 10kw/12.5kva |
| Frequency | 50Hz/60Hz |
| Voltage | 380/220v(voltage can be customized) |

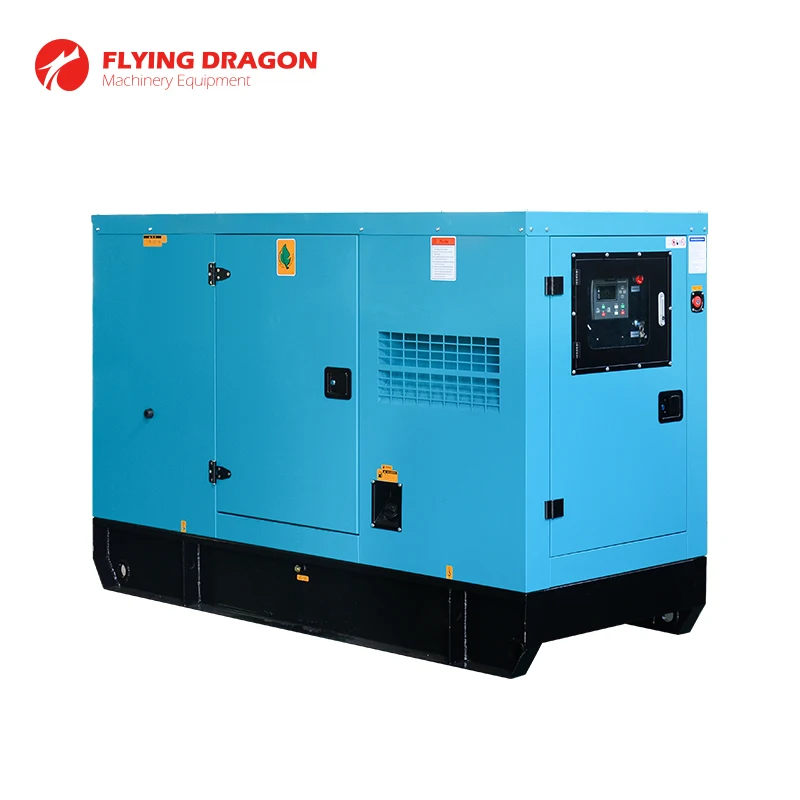

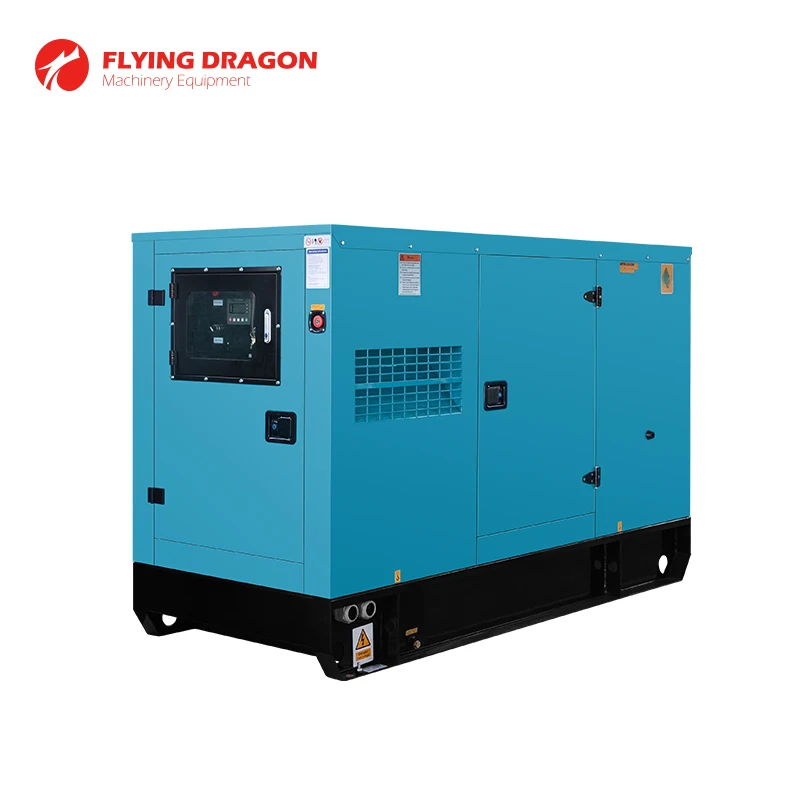

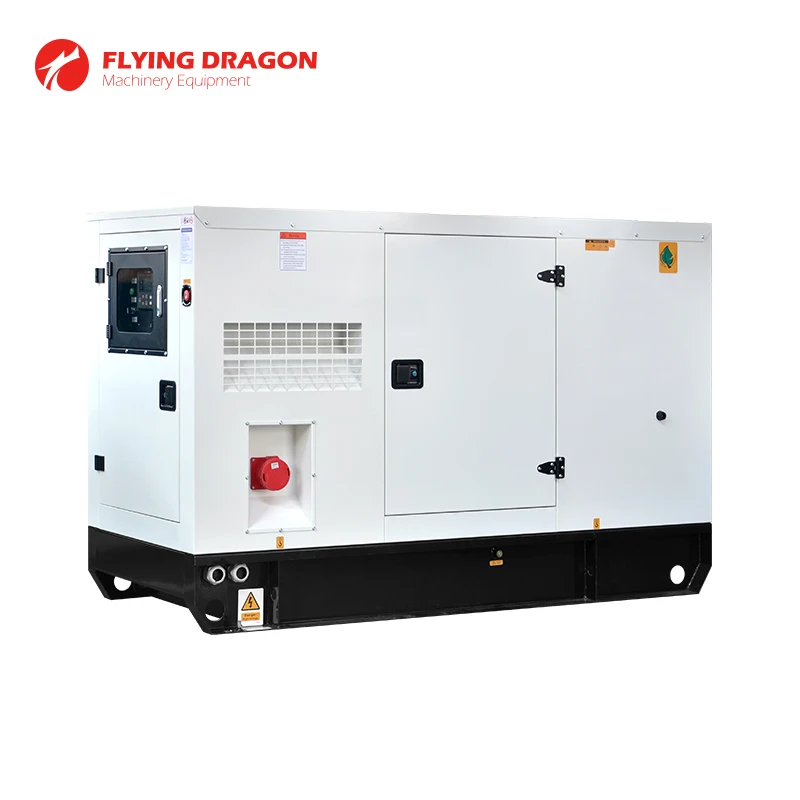

| Optional Type | Open/soundproof/trailer |
| Size of Open type | 1250*700*1100mm |
| Weight of Open type | 350kg |
| With Diesel Engine | |
| Brand&model | YangDong engine YD385D |
| Standby Power | 11kw |
| Cylinders | 3 in line arrangement |
| Bore*Stroke | 85*90mm |
| Displacement | 1.532L |
| Lubrication Oil Capacity | 5L |
| Fuel Consumption at 100% Load | 201g/kw.h |
| Speed Governor | Mechanical |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
| Standard equipment | |
| · Diesel engine | · 50℃ water cooled radiator |
| · Alternator | · Silencer and flexible exhaust hose |
| · Starting batteries and battery connect wires | · Digital control panel |
| · Output circuit breaker | · Steel base frame |
| Optional equipment | |
| · Sound proof | · Water heater |
| · Automatic parallel synchronizing control system | · ATS |
| · 50℃ water cooled radiator | |
