Flex digital vinyl printing machine printer infiniti/challenger fy3286j SK1 ink printer with good after sale service

Product Overview

Description

1.with 6 SPT 508 gray scale printheads
2.3.2m max printing width
3.full aluminum platform

4.6 corlor: C M Y K Lc Lm

5. Adopt USB2.0 output system,faster and more flexible

6. AC X,Y servo motor operate stably
7.speed data port, ensure high speed and quality and long scale output printing

Specification:

Model	FY-3286J
Printhead	Japan SPT508GS
Number of Printhead	6 Heads
Number of Model	SPT 508 gray scale head (12-36 pico liter)
Printhead Sequency	1x6
Printing Speed	Printing mode                        Output (m²/hr) Draf mode                            2 PASS 93 Production mode                      3 PASS 64 Quality mode                         4 PASS 49 High qualitiy mode                     6 PASS 32
Maximum Printing Width	3,200mm(125.98inch)
Ink	Type : Solvent Ink & ECO-Solvent Ink  Color: 6 Colors(C,M,Y,K,Lc,Lm)  Capacity :1L or 5L Per Main Tank of Each Color  Ink Supply System :Low Ink Detector, Auto or Manual Ink Supply System
Media	Width & Weight : Maximum3,300mm(129.92’’) 120KG   Type :Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc Roll Media or Sheet Media
Auto Media Feeding System	Equipped (Max. Media Weight 80kg)
Auto Cleaning System	Individual Positive Pressure Cleaning  Anti-clogged Flash Function & Capping System
Pre-heat & Dry System	Equipped (Drying System Optional)
Clamp	Equipped
Printing Interface	USB2.0 Cable
Printhead High	Above Media Adjustable
RIP Software	Maintop(equip) , UltraPrint ,Photoprint
Power	Printer :AC 220V, 50Hz  3.5A  770W Platen heating: AC  220V,50HZ  9A  1980W
Machine Dimension	L4, 500 x W905 x H1,260mm / 348KG
Package Dimension	L4, 590 x W1,050 x H890mm / 591KG
Operation Environment	Temperature : 20°C~28°C Humidity : 40%~60%

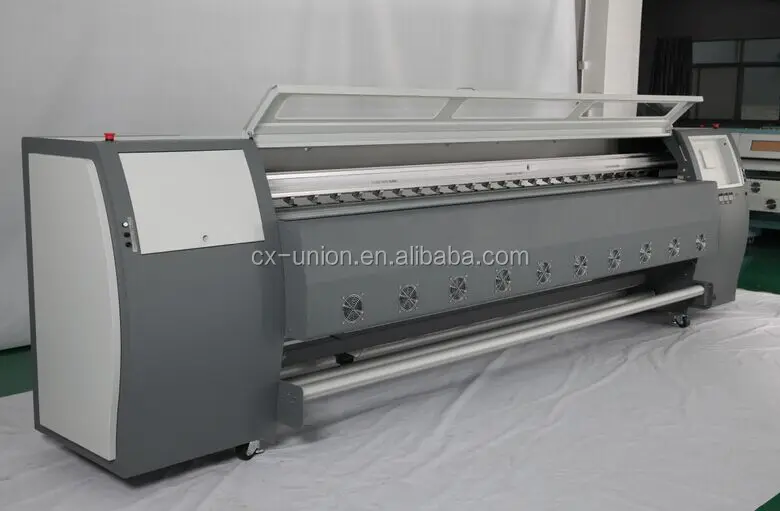

The printer body INFINITY Challenger fy-3286j

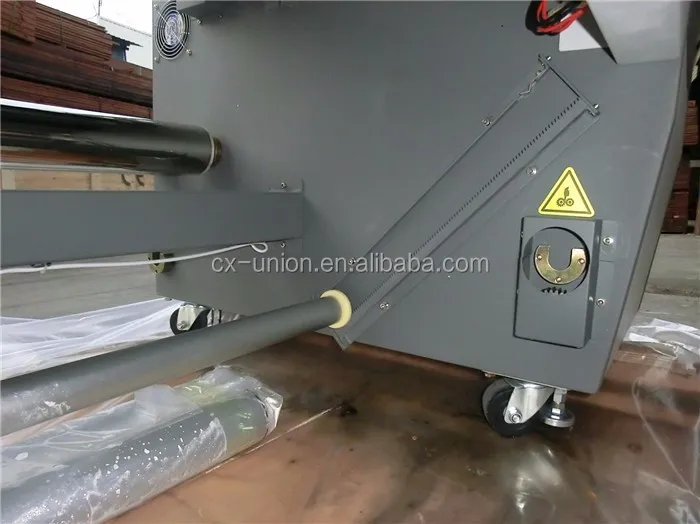

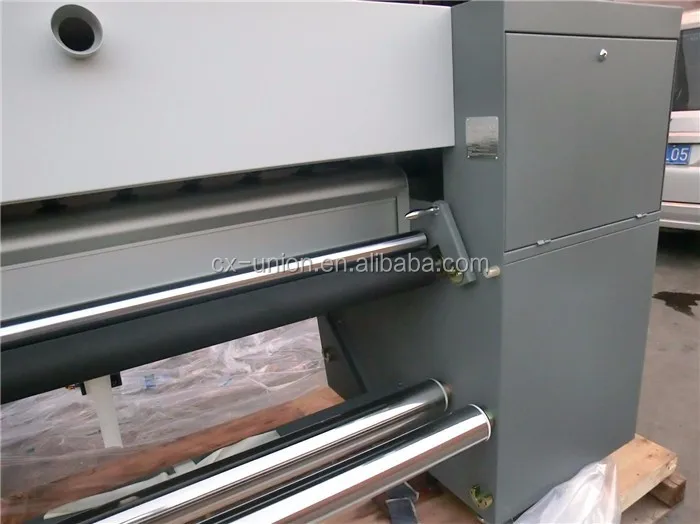

The back side of printer

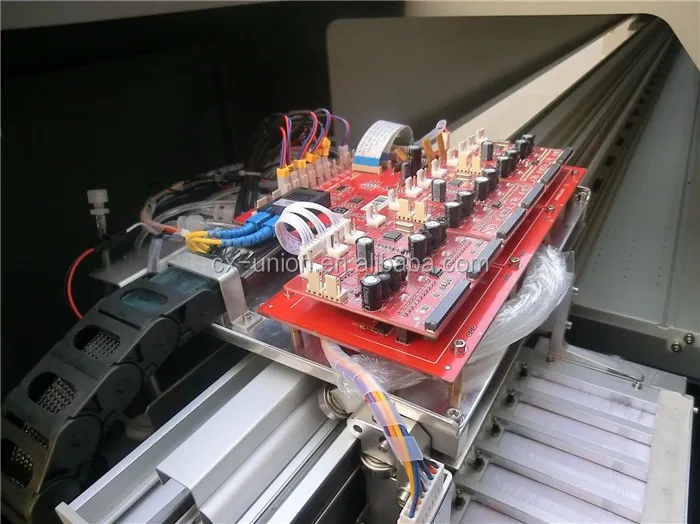

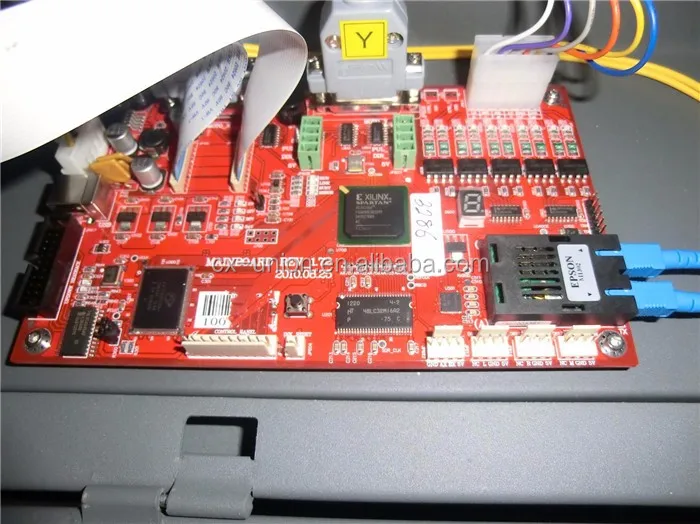

The printhead board The mainboard

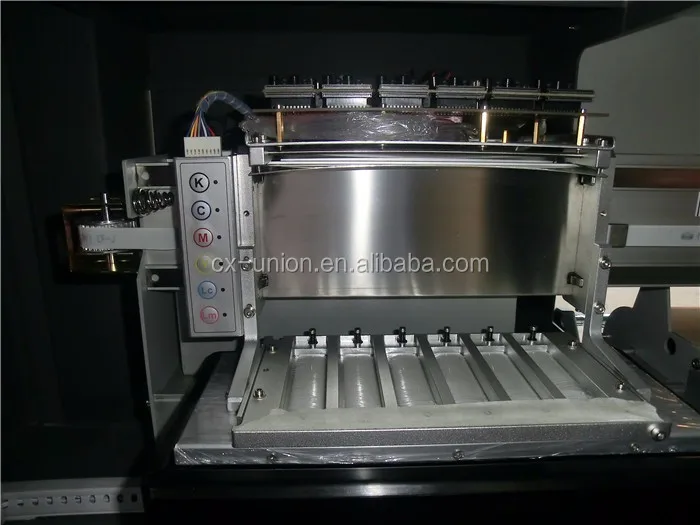

the printhead frame of spt508gs printheads

Guarantee and after-sale service:

1. one year guarantee for whole machine except the printhead

2. 24 hours on line technology support

3. use friendly english spftware

4. use manual and detailed video



1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .



2. All kinds of original spare parts for the machine to ensure your machine running smoothly .

What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .



This month our company has discount for the machine . And the shipping cost will be 30% off.Please feel feel to contact us.
