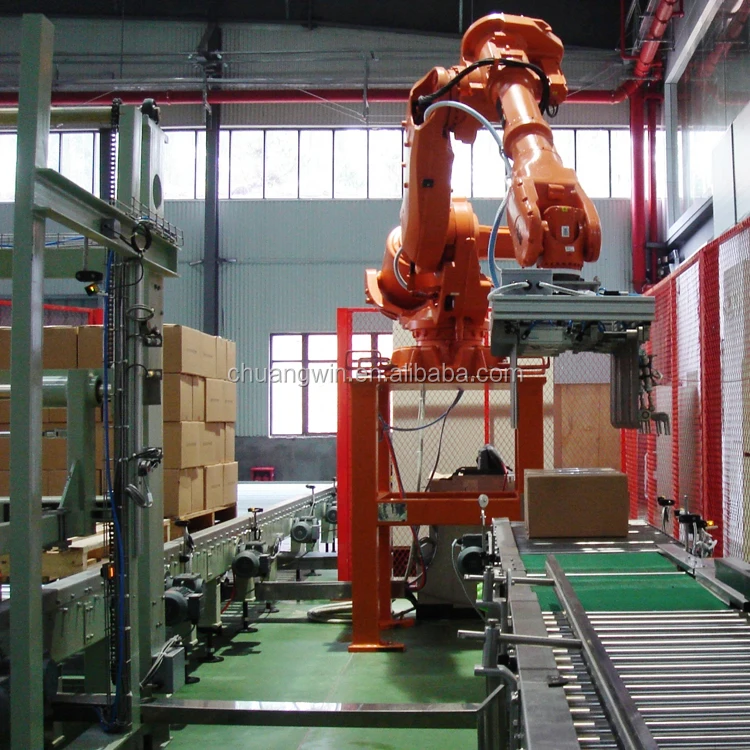

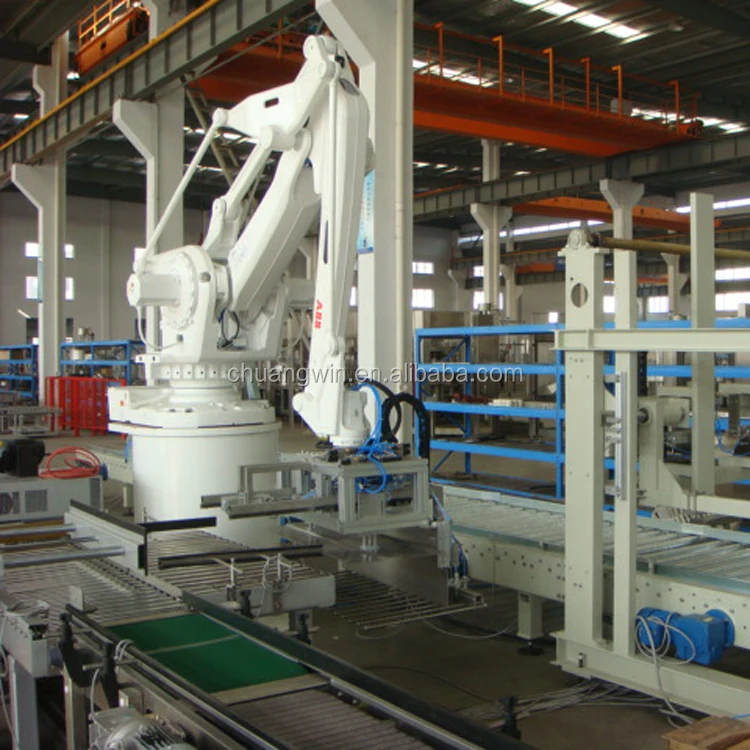

Robot palletizer

Robot Palletizing System

General description
The system is composed by robot, clamp, direction turning device, case conveyor, case catching table and etc.

Working procedure: The robot catches the pallet to the palletizing position, while the full bottle cases from the previous stage are transported through the case distribution belt and direction turning device and are arranged in row on the case catching table. Then robot grip packages onto pallet of pallet conveying machine. Repeat the procedure instructions doing palletizing operations. Stacking can be set according to the technical procedures for the quantity of row/column and layers, and the robot will operate following the instructions.

Main features
Working reliable: Robot put the packages on pallet from conveyor, working accurately and reliably.

Operation smoothly: Palletizing motion is completed by robot, packages elevating up and down smoothly and accurately.

High production efficiency: During machine working process, both of the start and stop slow and smooth, half-way movement faster, short non-work time and increase production efficiency.

Easy to operation: This machine is fully automatic operation can automatically adjust the running speed, keep synchronous with the whole production line.
Reasonable structure: The machine consists of a reasonable mechanical structure, reliable pneumatic devices and advanced electronic control technology. Has the advanced technology and simple structure.

Safe and reliable: The machine sets apart from the protective network, also has photoelectric security devices, when operators strayed into dangerous areas, it immediately stop automatically.

Low maintenance cost, long time usage and low power consumption.

This automatic palletizer machine adopts PLC touch screen and intelligent control system, easy to operate and maintain. It can put the bags on the pallet in a fixed order and stack them automatically. The multilayer of palletzing enables the fork moves them into warehouse.

Feature:

1. Touch screen shows the working capacity, reason and place of trouble has a high automatic degree. You can control the order of bags, stack layer, pallet feeding and output by putting them into the program with the help of PLC.

2. Only need to control the touch screen to adjust the type of palletzing. Stable and high effect palletzing may reduce labor a lot.

3. Bags supplying system is controlled by brake motor which can make the bags be conveyed according to the fixed order.

4. The pallet warehouse allow 12-15 empty pallets and realize supplying the pallets automatically,

5. Finish several kinds of palletizing without changing any parts.

6.Main brand of electric components

Q: How to get an appropriate offer from your company?

A: Please inform us:

     1, production capacity per hour/per day/per month ... ...

     2, filling liquid: water, juice, carbonated drink, beer or ... ...

     3, bottle type: plastic bottle, glass bottle, can or ... ...

     4, cap type: screw cap, crown cap, can lid or ... ...

     5, for water treatment, it's better offer us the raw water quality report ... ...

 Q: This is the first time I cooperate with your factory. How can I trust you about the machien quality?

A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory

Q:What’s your guarantee or the warranty of the quality if we buy your machines?

 A:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years

 Q:When can I get my machine after I paid?

 A:We will deliver the machines on time as the date we agreed both side.

Q: Can I run the machines in your factory if I buy the complete line in your factory?

A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;

 Q:How about the spare parts?

 A:After we deal down all the things , we will offer you a spare parts list for your reference.

Q: How can I install the machine and commissioning? Do you have the technician to my factory?

A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
