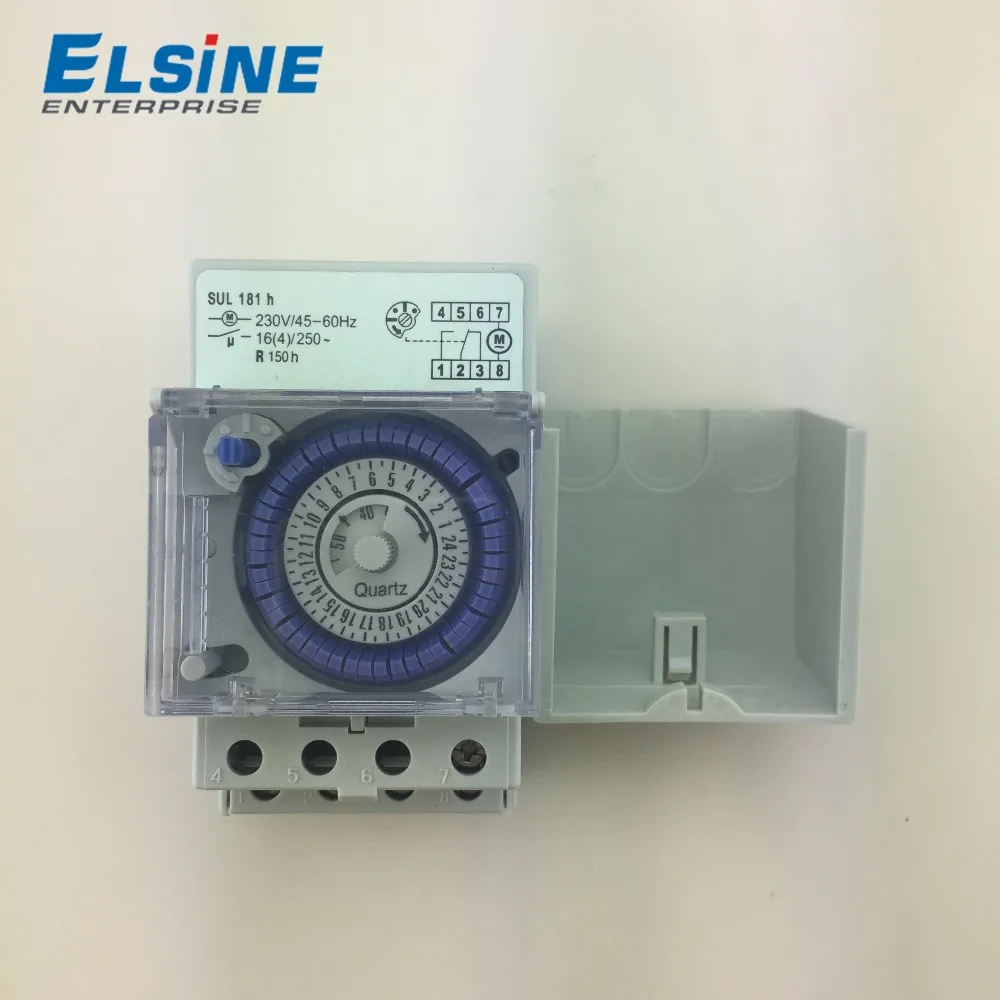

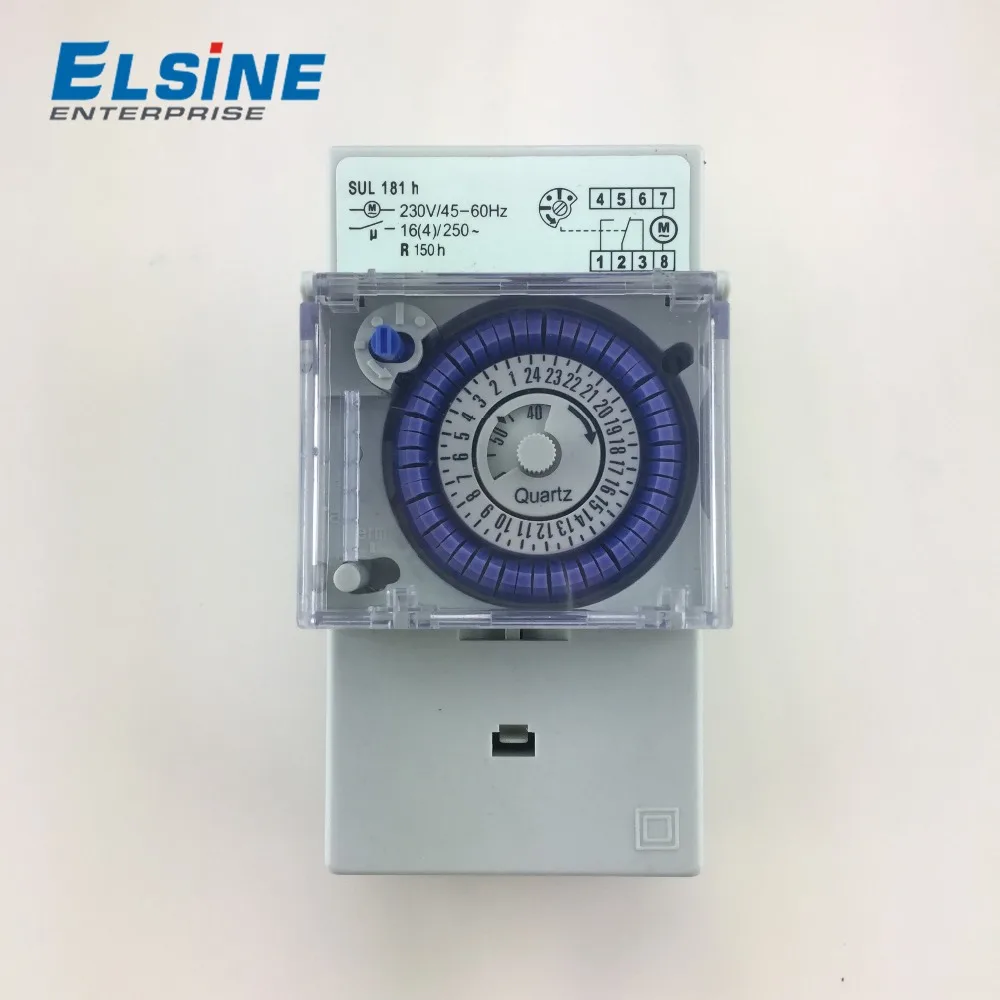

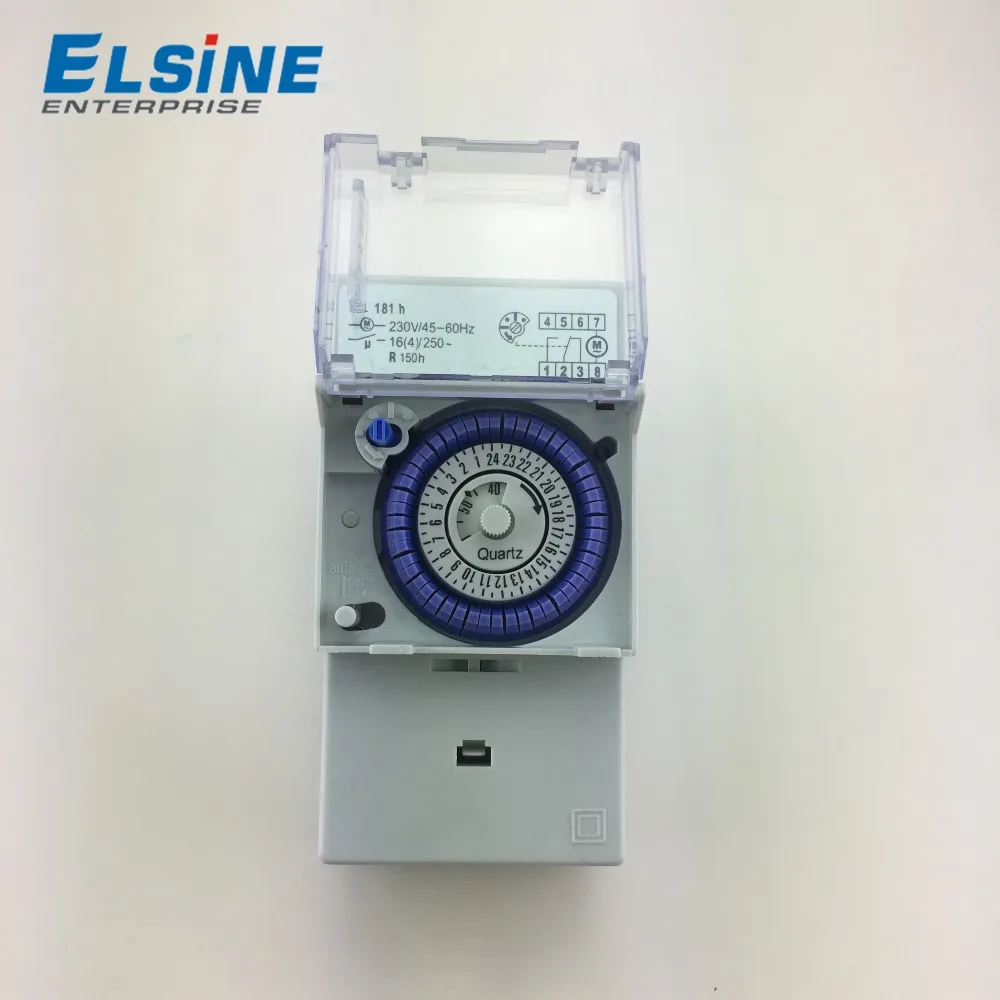

High Quality SUL181h 30 Minutes Din Rail Daily 24 Hours mechanical timer time switch
| 1. Analogue time switch |
| 2. 1 channel |
| 3. Daily program |
| 4. Without power reserve |
| 5. Quartz controlled |
| 6. Shortest switching time: 30 minutes |
| 7. Fine adjustment for time setting accurate to the minute |
| 8. Simple summer/winter time correction |
| Time can be changed clockwise |
| 9. 48 switching segments |
| 10. Screw terminals |
| 11. Switching preselection |
| 12. Early manual over-ride switching for on and off without influencing the subsequent program sequence |
| 13. Permanent ON/OFF switch |
| 14. Switching status display |
| 15. Operating indication |
| 16. Terminal with protective cover |
| Operating voltage | 230-240 VAC/110VAC/24VDC/12VDC |
| Frequency | 50-60Hz |
| Number of channels | 1 |
| Width | 3 modules |
| Installation type | DIN-rail |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 7 days |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Incandescent/halogen lamp load | 1100W |
| LED lamp < 2 W | 20W |
| LED lamp > 2 W | 180W |
| Shortest switching time | 30 min |
| Programmable every 30 min | 30 min |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
| Type of contact | Changeover contact |
| Switching output | Potential-free and phase-independent |
| Number of switching segments | 48 |
| Power consumption | 1.5VA |
| Test approvals | CE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II in accordance with EN 60730-1 |
| Ambient temperature | –10 °C … +50 °C |
Application:
Timer switch is a kind of time-controller, mainly applied in controlling variety
of electrical equipment automatically in a cycling way.
It’s easy to operate, and widely used in controlling system, such as mechanical equipments,advertisements lamp box, breeding, irrigation,Lighting, water heater,agriculture facilities, broadcasting equipment, home appliance, etc.
Specifications:
Rated voltage: 110/220VAC
Frequency: 50HZ/60HZ
Power Consumption: 1.5W
Driving method:AC Synchronous motor
Load Capacity: 15A 250V
Minimum Time set Interval: 15 Minutes
Ambient Temperature: -10℃~+50℃
Ambient Humidity: Below 85%
Size: 72×72×53mm
