Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00

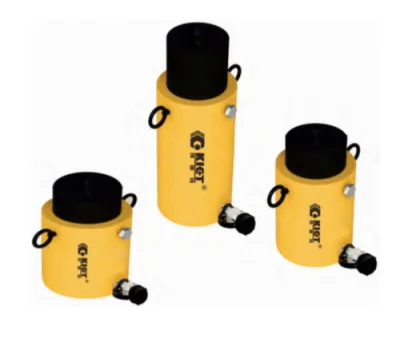

Enerpac low height small size Hydraulic bridge Jack For Sale
- Category: >>>
- Supplier: Jiangsu Canete Machinery Manufacturing Co. Ltd.
Share on (60705603707):
Product Overview
Description
Product Description
Features:
1.Small size, can be operated in confined spaces.
2. Overflow port functions as a stroke limiter.
3. Built-in, scraper seal reduces contamination, entending cylinder life.
4. Interchangeable, hardened grooved saddles.
5. Special treatment of cylinder surface for increaced corrosion resistance.
6. Single acting, load return.
6. 3/8''-18NPT coupler and dust cap included on all models.
Parameters:
| Model | Capacity | Max.Working | Closed | Stroke | Effective | Oil | Extended | Outside | Plunger | Weight |
| (T) | Pressure | Height | (mm) | Area | Capacity | Height | Diameter | Diameter | (kg) | |
| A | B | D | F | |||||||
| (Mpa) | (mm) | (cm²) | (cm³) | (mm) | (mm) | (mm) | ||||
| KET-CLS-502 | 50 | 70 | 128 | 50 | 70.9 | 355 | 178 | 125 | 95 | 14 |
| KET-CLS-504 | 178 | 100 | 709 | 278 | 18 | |||||
| KET-CLS-506 | 228 | 150 | 1064 | 378 | 23 | |||||
| KET-CLS-508 | 278 | 200 | 1418 | 478 | 28 | |||||
| KET-CLS-5010 | 327 | 250 | 1773 | 578 | 33 | |||||
| KET-CLS-5012 | 378 | 300 | 2127 | 678 | 38 | |||||
| KET-CLS-1002 | 100 | 70 | 143 | 50 | 132.7 | 664 | 193 | 165 | 130 | 24 |
| KET-CLS-1004 | 193 | 100 | 1327 | 293 | 32 | |||||
| KET-CLS-1006 | 243 | 150 | 1991 | 393 | 40 | |||||
| KET-CLS-1008 | 293 | 200 | 2654 | 493 | 49 | |||||
| KET-CLS-10010 | 343 | 250 | 3318 | 593 | 58 | |||||
| KET-CLS-10012 | 392 | 300 | 3981 | 693 | 66 | |||||
| KET-CLS-1502 | 150 | 70 | 165 | 50 | 198.6 | 993 | 215 | 205 | 160 | 43 |
| KET-CLS-1504 | 215 | 100 | 1986 | 315 | 55 | |||||
| KET-CLS-1506 | 265 | 150 | 2979 | 415 | 69 | |||||
| KET-CLS-1508 | 315 | 200 | 3972 | 515 | 82 | |||||
| KET-CLS-15010 | 365 | 250 | 4965 | 615 | 95 | |||||
| KET-CLS-15012 | 414 | 300 | 5958 | 715 | 108 | |||||
| KET-CLS-2002 | 200 | 70 | 193 | 50 | 265.6 | 1330 | 243 | 235 | 185 | 66 |
| KET-CLS-2006 | 293 | 150 | 3989 | 443 | 101 | |||||
| KET-CLS-20012 | 443 | 300 | 7977 | 743 | 154 | |||||
| KET-CLS-2502 | 250 | 70 | 193 | 50 | 366.1 | 1832 | 243 | 275 | 215 | 90 |
| KET-CLS-2506 | 293 | 150 | 5496 | 443 | 137 | |||||
| KET-CLS-25012 | 443 | 300 | 10996 | 743 | 208 | |||||
| KET-CLS-3002 | 300 | 70 | 235 | 50 | 456.2 | 2281 | 285 | 310 | 240 | 137 |
| KET-CLS-3006 | 335 | 150 | 6843 | 485 | 198 | |||||
| KET-CLS-30012 | 485 | 300 | 13710 | 785 | 288 | |||||
| KET-CLS-4002 | 400 | 70 | 265 | 50 | 559.9 | 2800 | 315 | 350 | 265 | 200 |
| KET-CLS-4006 | 365 | 150 | 8399 | 515 | 275 | |||||
| KET-CLS-40012 | 515 | 300 | 16770 | 815 | 390 | |||||
| KET-CLS-5002 | 500 | 70 | 295 | 50 | 731.1 | 3656 | 345 | 400 | 305 | 289 |
| KET-CLS-5006 | 395 | 150 | 10967 | 545 | 390 | |||||
| KET-CLS-50012 | 545 | 300 | 21800 | 845 | 540 | |||||
| KET-CLS-6002 | 600 | 70 | 310 | 50 | 854.8 | 4277 | 360 | 430 | 330 | 350 |
| KET-CLS-6006 | 410 | 150 | 12830 | 560 | 465 | |||||
| KET-CLS-60012 | 560 | 300 | 25710 | 860 | 640 | |||||
| KET-CLS-8002 | 800 | 70 | 355 | 50 | 1176.9 | 5882 | 405 | 505 | 385 | 549 |
| KET-CLS-8006 | 455 | 150 | 17645 | 605 | 709 | |||||
| KET-CLS-80012 | 605 | 300 | 35370 | 905 | 950 | |||||
| KET-CLS-10002 | 1000 | 70 | 385 | 50 | 1466.4 | 7329 | 435 | 560 | 430 | 729 |
| KET-CLS-10006 | 485 | 150 | 21986 | 635 | 921 | |||||
| KET-CLS-100012 | 635 | 300 | 43950 | 935 | 1210 |
Products pictures:

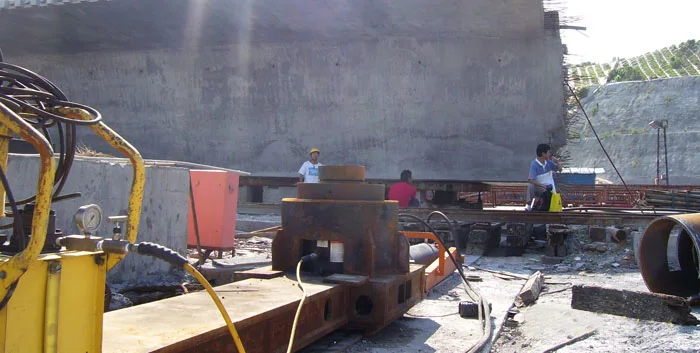

Applications

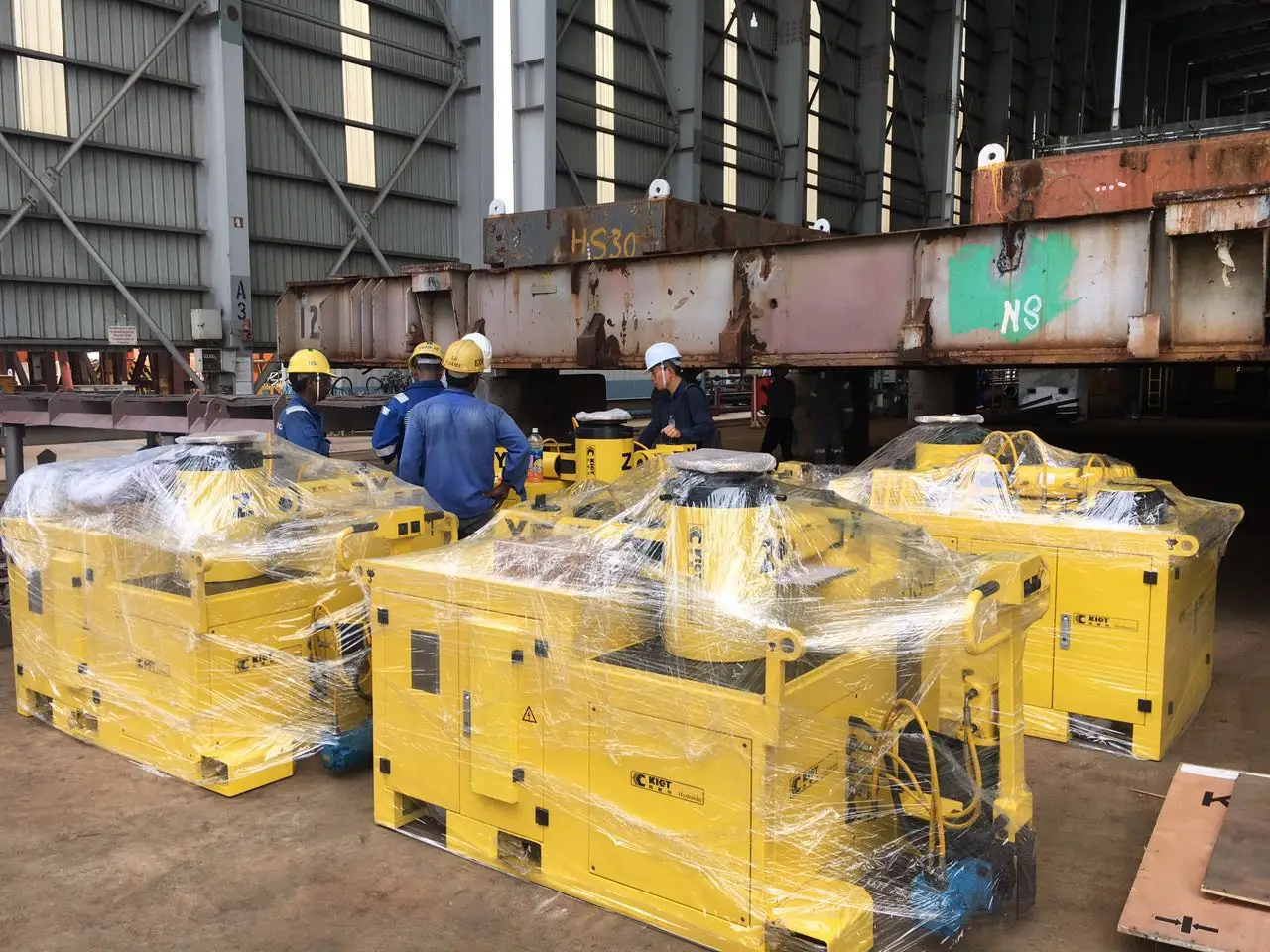

Packaging & Shipping
We provide wooden packing for each hydraulic cylinder, which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
