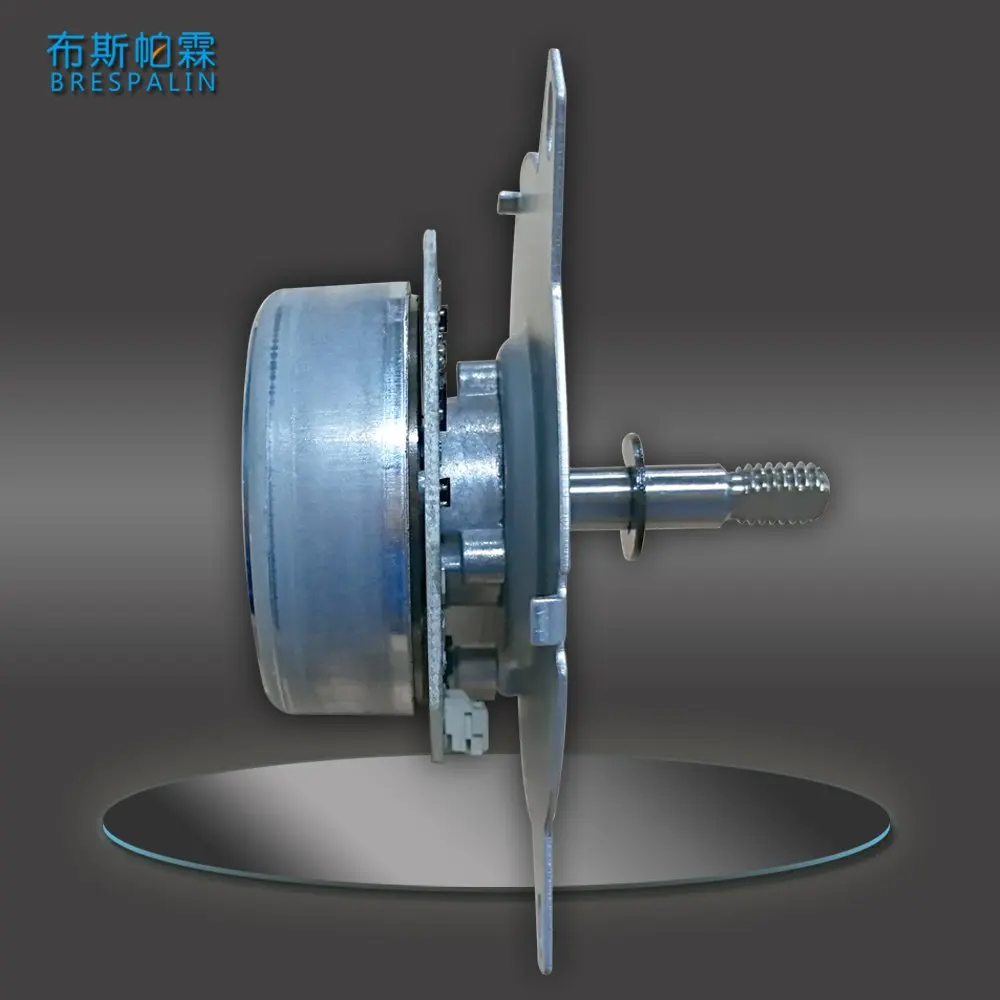

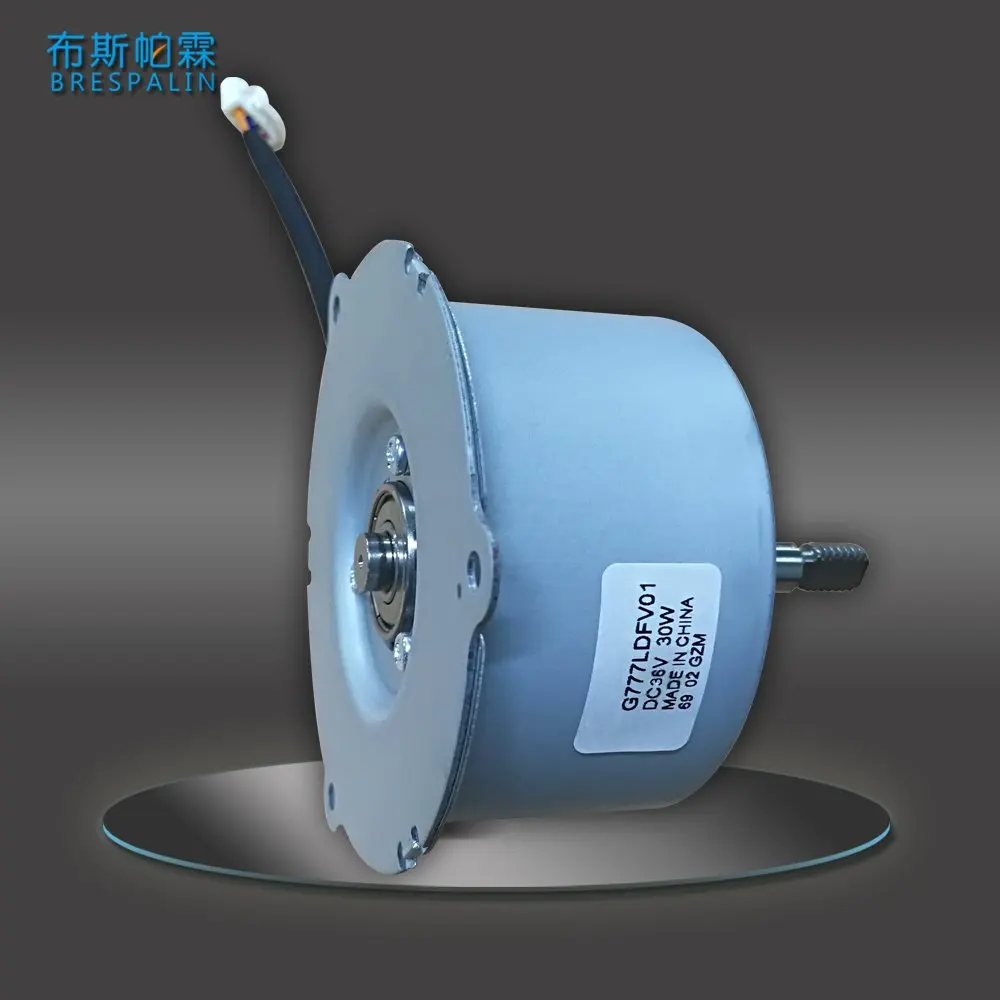

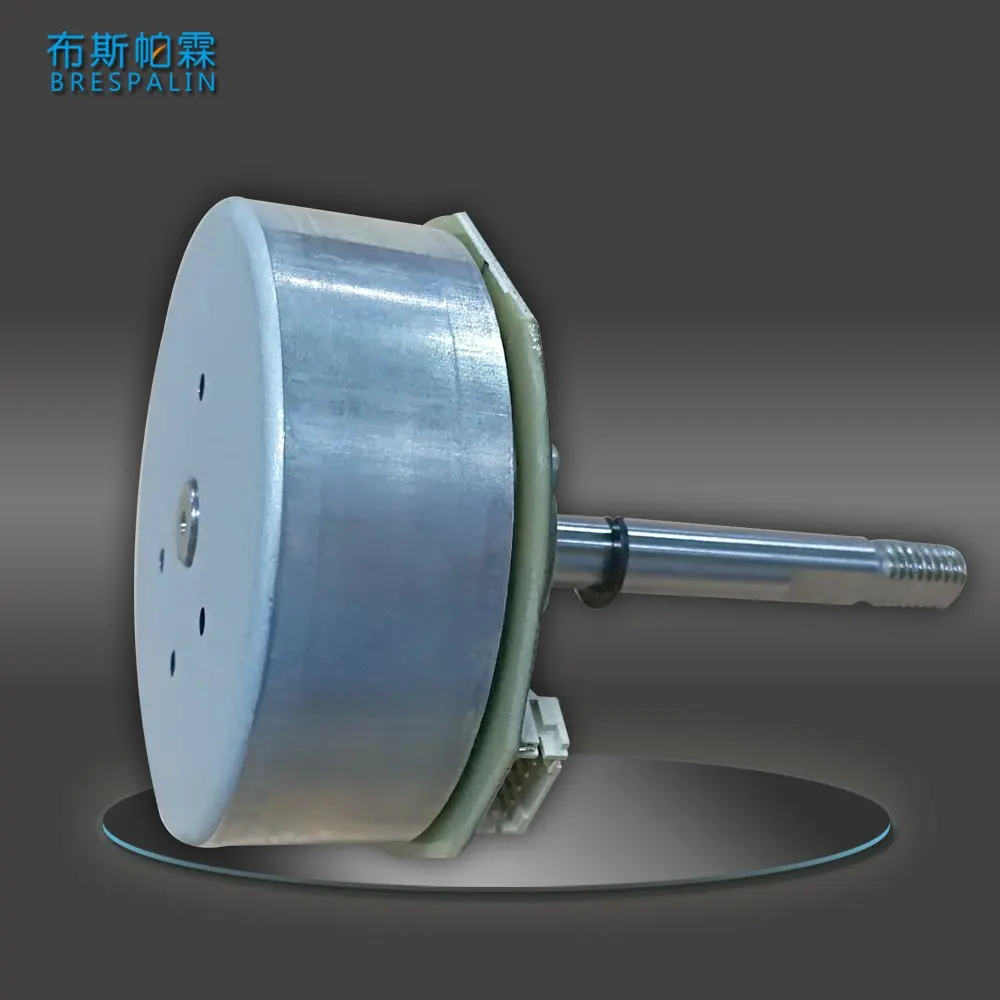

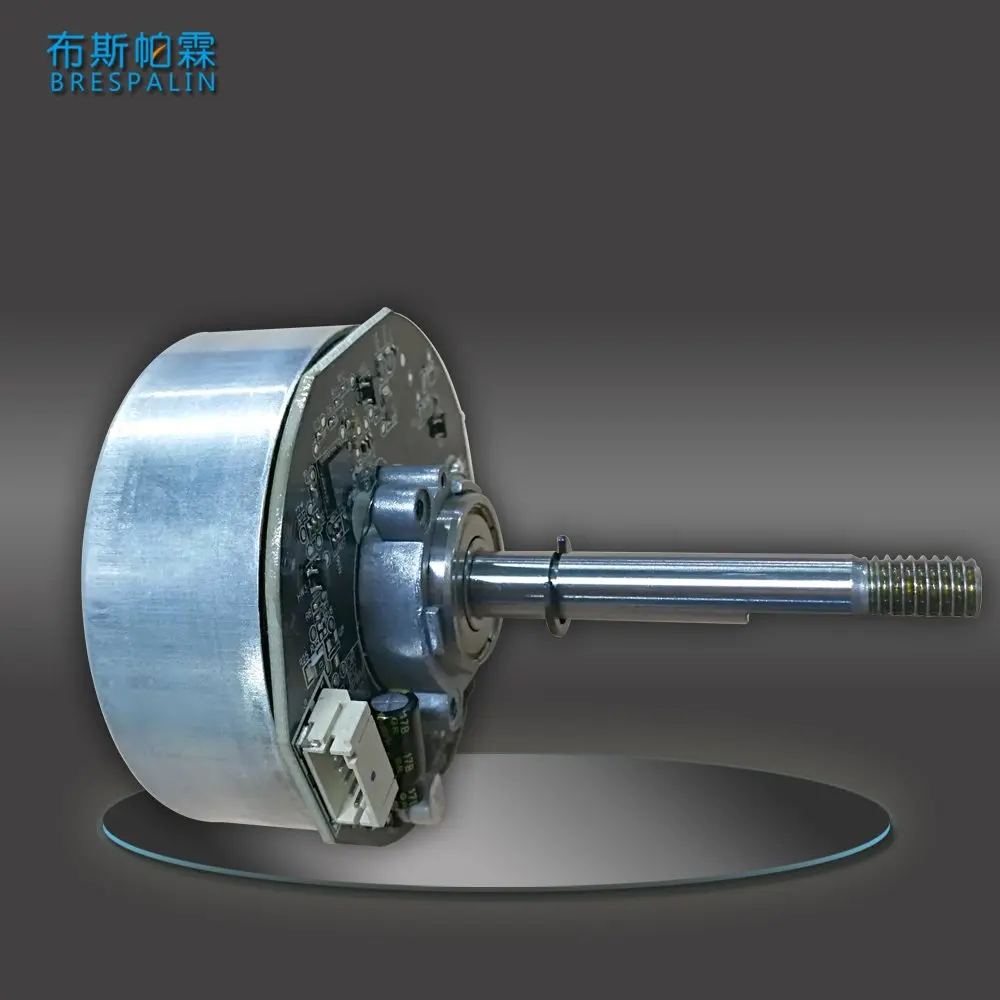

High Torque Brushless DC Motor 36V for Inline Duct Fan and Ventilator
- Category: Fan Parts >>>
- Supplier: Foshan Brespalin S&t Co. Ltd.
Share on (60705823043):
Product Overview
Description
**This Motor is customized. Please contact us to get information for your own specifications. Thank you!**
Customized DC Motor, we give you a solution for all kinds Household Electric Appliances.
Applications:
♦ Cooling Fan
♦ Home use Tower Fan
♦ Air Purifier
♦ Air Humidifier
♦ Range Hood
♦ Water Booster Pump
♦ Fresh Air Ventilation System
♦ Inline Duct Fan
♦ Robot
Features:
♦ High Efficient, higher than 80%
♦ Ultra low vibration, under 120 µm
♦ Super quiet, under 45dB
♦ Stepless speed adjustment, simple driving
♦ Small starting current and big torque
♦ Safe operation, protection for locked-rotor, overspeed, overcurrent, overtemperature, and so on.
♦ Long life for over 10 years
Outline Dimensional Drawing
Specifications
| Product Name | High Torque Brushless DC Motor 36V for Inline Duct Fan Heat Recovery Ventilator | ||||
| Power Range | 110 W | Voltage | 100/110/220/240V | Frequency | 50/60 Hz |
| Drive Mode | PWM (15.6KHz) | No-load Rotation | 2500RPM | Rated Rotation | 2000RPM |
| Rated Current | 3.05 A | Rated Torque | 354.2 mN.m | Noise | ≤45 dB |
Quality control that you can feel only from the photos.
Reassuring Service
We control every step of your order to make sure the goods arrive your side with good situation on time without any worry.
Strict testing for new products, OEM/ODM products, or customized products.
Our own molding factory (90T-1600T) provide us best cost, delivery time, quality for our Air Purifier, Anion generator, UV sterilizer, Fresh Air System, Exhaust Fan, Bathroom Fan, Heat Recovery Ventilator, Inline Duct Fan and so on.
Our own motor production line (two different department separated for different usage of motor.) provide us best cost, delivery time, quality for our own products.
Strictly required 5S workshop, regular staff training, in-process and final inspection, make sure every tiny mistake is stopped before delivery.
Specialized staff gives you an eye on your products. From our detailed loading report, you will know how are the products loaded. What you see will be what you received.
