Автомобильный подшипник с коническим упорные роликовые подшипники T199 T199 904A1

Product Overview

Description

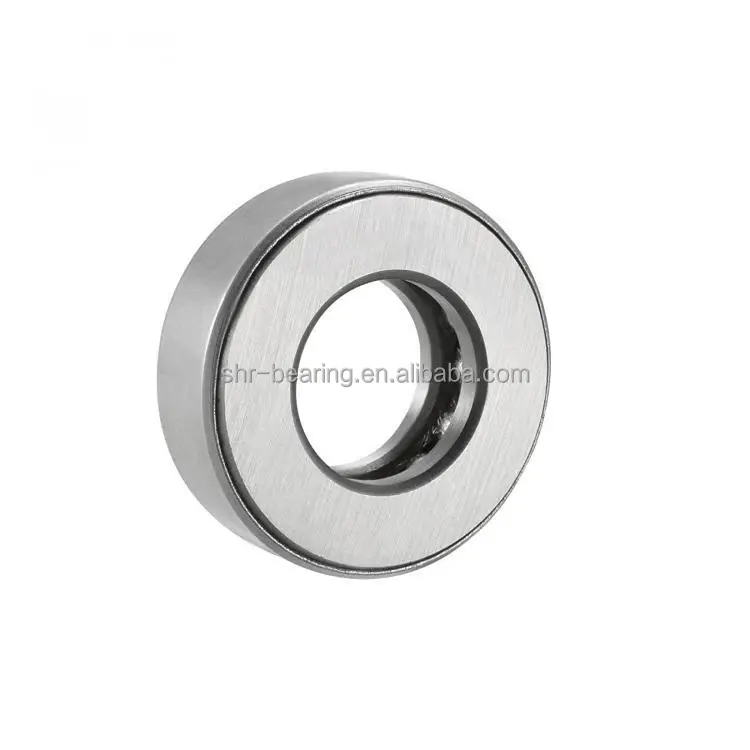

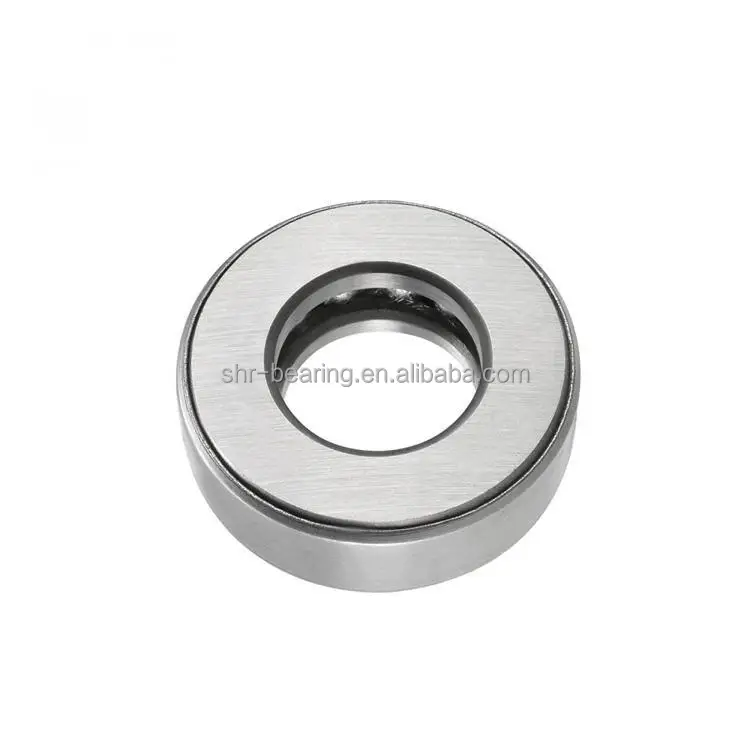

Automotive Taper Thrust roller bearings T199 T199-904A1







Automotive Taper Thrust roller bearings T199 T199-904A1 is a rolling-element bearing of thrust type that permits rotation with low friction, and permits angular misalignment. The bearing is designed to take radial loads, and heavy axial loads in one direction. Typically these bearings support a rotating shaft in the [bore] of the shaft washer that may be misaligned in respect to the housing washer. The misalignment is possible due to the spherical internal shape of the house washer. Bearing rings and rolling elements can be made of a number of different materials, but the most common is "chrome steel", a material with approximately 1.5% chrome content. Such "chrome steel" has been standardized by a number of authorities, and there are therefore a number of similar materials, such as: AISI 52100 (USA), 100CR6 (Germany), SUJ2 (Japan) and GCR15 (China)



Automotive Taper Thrust roller bearings T199 T199-904A1 design :



Cylindrical roller thrust bearings T199

Bearing number : T199

Size (mm) : 51.054x74.612x15.875

Brand : SYBR

Bore Diameter (mm) : 51,054

Outer Diameter (mm) : 74,612

Width (mm) : 15,875

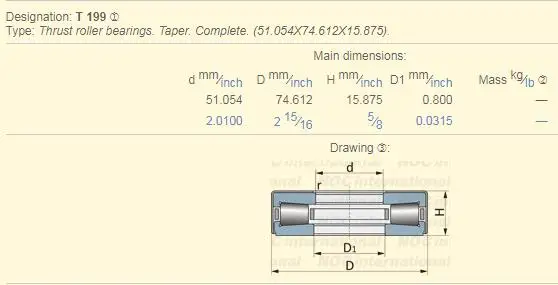

Bearing dimensions and specification in brand catalogue :

d - 51,054 mm

D - 74,612 mm

T - 15,875 mm

R - 0,8 mm

Weight - 0,2 Kg



Our range of products:
• Angular Contact Ball Bearing
• Ball Bearing
• Cylindrical Roller Bearing
• Deep Groove Ball Bearing
• Double Row Ball Bearing
• Extra Large Size Ball Bearing
• Linear Bushing
• Miniature Ball Bearing
• Needle Roller Bearing
• Pillow Block
• Precision Ball Bearing
• Radial Ball Bearing
• Roller Bearing
• Self-Aligned Ball Bearing
• Single Row Ball Bearing
• Spherical Roller Bearing
• Super Precision Ball Bearing
• Tapered Roller Bearing
• Thrust Ball Bearing
• Thrust Roller Bearing
• Wider Inner Ring Ball Bearing
• Etc.





BEARING NO.	DIMENSIONS (mm)
	d	D	T
T63	16.129	41.275	12.7
T77	19.304	41.275	12.7
T76	19.304	41.275	13.487
T86	20.256	39.688	14.288
T82	20.879	41.275	13.487
T83	20.879	42.164	13.487
T88	22.479	48.021	15.088
T89	22.479	48.021	15.875
T93	24.054	44.958	13.487
T94	24.054	48.021	15.088
T95	24.103	50.8	15.875
T101	25.654	50.8	15.875
T104	26.289	50.8	15.875
T107	27.229	50.8	15.875
T110	28.829	53.188	15.875
T113	28.829	55.562	15.875
T120	30.416	54.745	11.43
T119	30.416	55.562	15.875
T121	30.716	55.562	15.875
T126	32.004	55.562	15.875
T139	35.179	58.739	15.875
T142	35.179	62.708	19.431
T149	38.302	55.883	19.431
T158	40.234	65.883	19.431
T1760	44.623	76.2	10.922
T199	51.054	74.612	15.875
T309	78.583	102.395	15.875
T387	98.425	127	17.462
T484	123.012	152.4	17.462
T581	147.638	177	17.462
