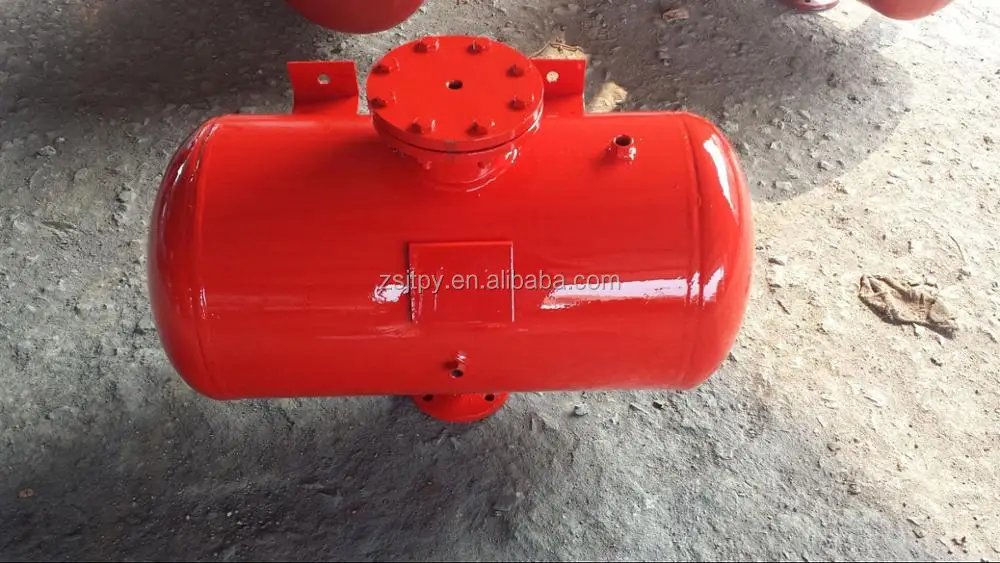

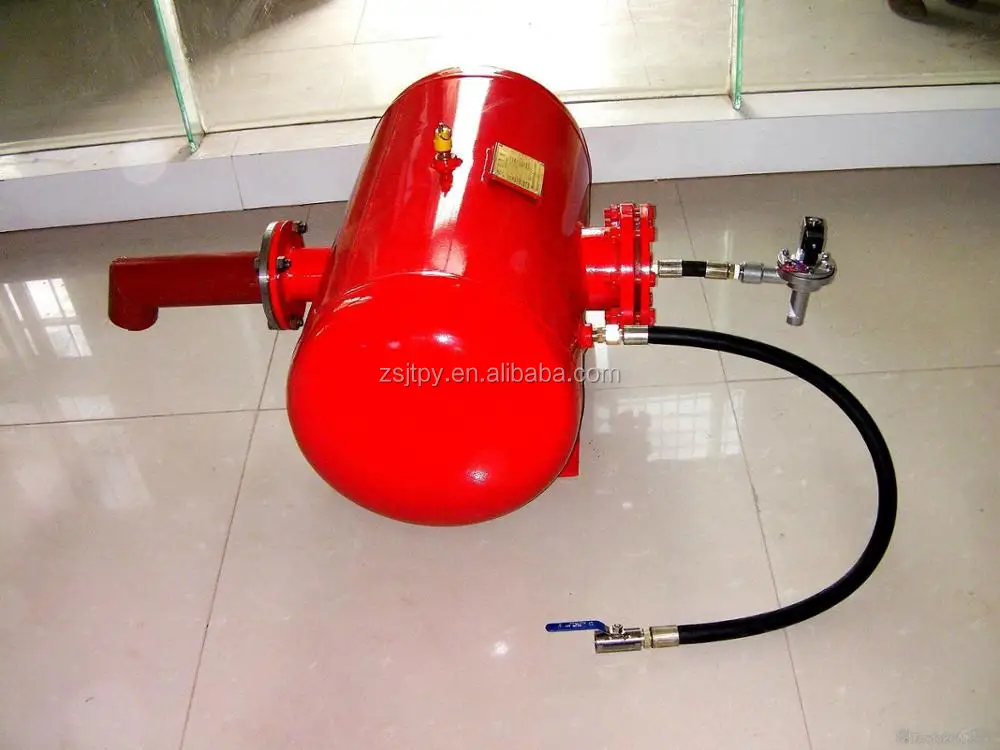

silo air blaster / air cannon at factory for price

Industry Applicable Air Cannon

1. Introduction

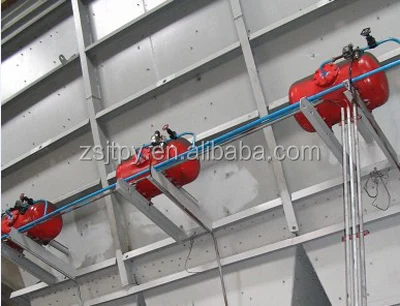

Air cannon or Air blaster, also known as air flow-aiding machine or bunker dredger (block clearer), is a special device for preventing and removing material arching and blocking in various types of silo, hopper, pre-heater kiln, piping crotch and draw shaft and slide slope. Air cannon, as a good flow assistant systems, it can effectively prevent the buildup of materials and solve the blocking problems in transfer chutes, storage vessels, and process equipment such as pre-heater towers and clinker coolers.

For the industrial and mining enterprises who posses the silo hopper, tube wells and draw shaft ,it replaces the means of the manually stabbed smash, wind blowing pressure, blasting explosives, machine vibration, slides and others which is old, unsafe and much expensive to help the flow. It not only reduces the labor intensity, ensures the safe production, but also has brought considerable economical efficiency for the enterprise.

The product can blast with strong impact energy, nuisance free, pollution free, environment friendly, is the most advanced, is the most advanced, most advanced, most economical, most ideal, most eco-friendly, most safe, dredge equipment.

Air cannon depends on the air flow of compressed air that squirt suddenly, the airflow dash into the blocked fault area where the scattered material is stored directly by the speed exceeding a Mach(sound velocity).The inflation shockwave that release suddenly, overcome the friction among material, make supplies of container flow again, it utilizes aerodynamic principle, use air as working fluid, based on one differential pressure device and automatically controlled fast vent valve, can change air pressure to air fluidics kinetic force penetrate, can produce strong shock power, it is a kind of clean, pollution-free, low power ideal slag-blowing equipment.

With bunker, hopper, pipes, and mine chute of the corporations, it replaces the artificial channel, pressure wind blowing, explosives are used, some old, such as mechanical vibration, skateboarding is not safe and a big broken arch help flow method, not only reduces the intensity of labor to ensure the safety in production, but also bring considerable economic benefits.

The blasting impact energy, pollution-free, pollution-free, is currently the world's most advanced, the most economical, the most ideal, the most environmental protection, the safety of arch flow equipment.

The air cannon is of simple structure, safe and convenient to handle. It has the basic characteristics such as: great shock power, safe, energy-conservation, auto control, easy to operate, no damage to storehouse, etc. It is the most ideal dredge equipment at present.

It is divided into three series A, B, C, a variety of models, and it can work normally in 1300°C after several technological transformations. It has low noise, more energy, simple operation, non-pipeline injury hopper, and other basic characteristics. It is the best break device to help arch-flow, and is the strong opponent of hopper block!

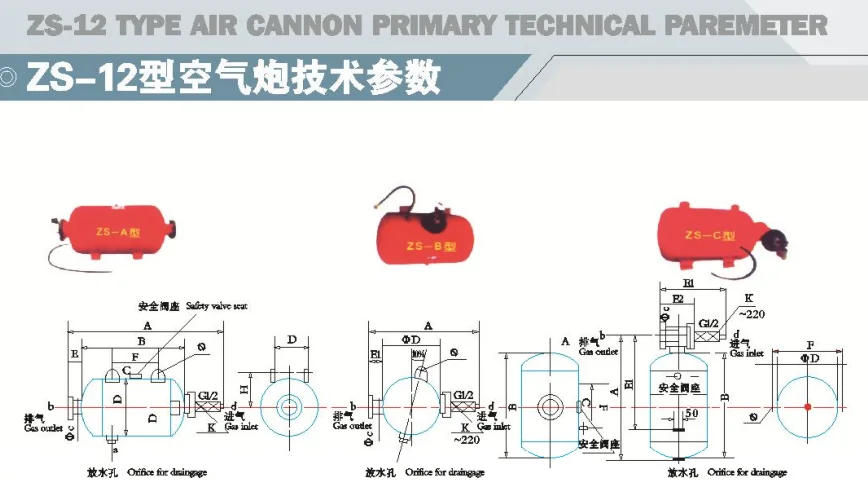

Technical Specification

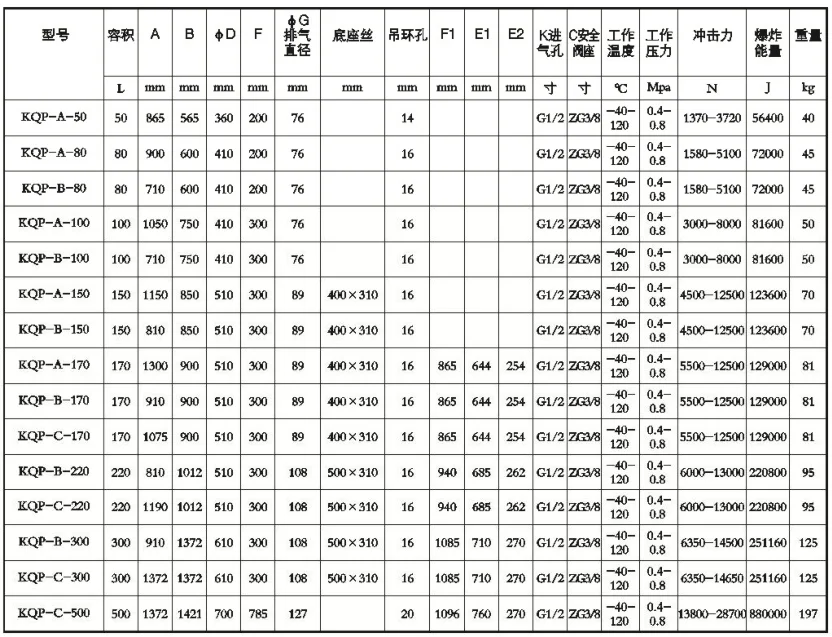

KQP-A/B/C  Series  of  Air cannon parameter list
No	Model	Valume	Diameter	Diameter of exhaust pipe	Diameter of Ring Hole	Air Intake	Safety Valve	Working Temperature	Working Pressure	Impulse Force	Blasting Power	Weight
	KQP-A/B/C	L	mm	mm	mm	"	"	℃	Mpa	N	J	Kg
1	KQP-B-70	50	350	76	16	G1/2	ZG3/8	-1240	0.4-0.8	4500-10000	123600	45
2	KQP-B-100	100	410	89	16	G1/2	ZG3/8	-1240	0.4-0.8	5800-12600	129000	60
3	KQP-B-150	150	510	108	16	G1/2	ZG3/8	-1240	0.4-0.8	6800-14600	221000	70
4	KQP-B-170	170	510	108	16	G1/2	ZG3/8	-1240	0.4-0.8	8800-15600	251000	75
5	KQP-B-200	200	510	108	16	G1/2	ZG3/8	-1240	0.4-0.8	9800-17600	271000	85
6	KQP-B-300	300	510	108	16	G1/2	ZG3/8	-1240	0.4-0.8	1200-19600	321000	110

Cannon body: Store air. Cannon body is made of Q235-B steel plate. Mainly adopt automatic submerged arc welding and carbon dioxide arc welding for steel plate welding. After X-ray crack detection, mechanical properties test, water pressure test for strength and blasting performance test, it is qualified and safe for use.
Outrigger or rings: Fix air cannon.
Water Discharge Machine: In the course of time water and oil may be accumulated in the body. Unload the twisted wire then blocking dirt can be discharged out.
Safety valve: It is spring-loaded safety valve, whose start pressure is 0.4-0.8Mpa(users can self-adjust). If there is a reliable safety valve on the gas source, the safety valve on the cannon may be cancelled.
Piston: It’s made of nylon 66, and is sealed by its piston ring. There’re a number of rubber plates at the top of the piston. There is a spring at the rear of the Pistons, so that Piston’s reduction activities can buffer spring in order to prevent materials entering the Piston and cannon body.
Solenoid valve: It is the main components in air-cannon’s action which can be prepared in accordance with the user’s requirement. Remarks: air control valve and explosion-proof solenoid valve are used under ground while the effect is the same.
Cylinder: Adopt alloy steel, and is manufactured by the advanced coating technology.
Piston Rubber Seat: Rubber seat is added to the rear piston to ensure that the compressed spring is not overloaded, to keep flexible energy of the spring.
Asbestos rubber gasket: Play the role of pressing and sealing.
Sealing surface: The cannon exhaust pipe end in the body with specialized technology and equipment for grinding, good sealing performance, preventing from leaking when store gas, energy conservation, ensures the air pressure in the cannon body so that make sure the impact effect when it’s blasting.

 Air Cannon can be used for steel, concrete and wood-based hopper. It is widely used in the coal, metallurgical, chemical, thermal power, cement and other industries.

Our packing is iron case or polywood case with Standard Overseas Shipping Packing style, and also can be packed according to the requirement of the clients

 All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.

 Puyang Zhongshi Group Co.,Ltd. is a formal reformation enterprise from Zhongshi Oil Field a modernized corporation integrated science, industry and trade, it belongs to Hi & New Tech Enterprise of Henan Province and Sci-Tech Enterprise. The group not only deals in exporting of machinery for petroleum drilling and mining machinery, but also importing and exporting following products: special equipment for petroleum and petrochemical, electronic instruments, various kinds of furniture and crafts & arts products, steels, plating armor plates, non-ferrous metal, construction materials, petrochemical products, dopes and oil paint, etc.Zhongshi Group has passed ISO9001 International Quality Certification, and its primary Petroleum Machinery Products such as pumping unit, subsurface oil pump, sucker rod and wellhead have been certified by American Petroleum Institute. Among these products, fifteen of them gain national patent. The Group is granted AAA credit rate enterprise by Industrial & Commercial Bank of China, and a member of Sinopec Corporation Materials Resources Market.

Puyang Zhongshi Group Co.,Ltd. is a professional manufacturer of various oilfield equipment and cementing accessories since 1997, restructured enterprise of SINOPEC. We have the certificatesof API-5CT, API-10D, API-11E, API-6A, API-11AX, ISO9001:2008, ISO14001:2004 etc. and 15 of products have gained national patents .We are the first-class supplier of resources market of SINOPEC and CNPC. Domestic:our products are widely used in power plants, coal mines, cement factories, fertilizer plants, petroleum industry, machinery industry, steel mills and other industries. Overseas:our main customers come from America,Russia,Vietnam,Middle East,Southeast Asia,Central Asia and Sudan,Yemen, Egypt etc.African countries .

Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.
