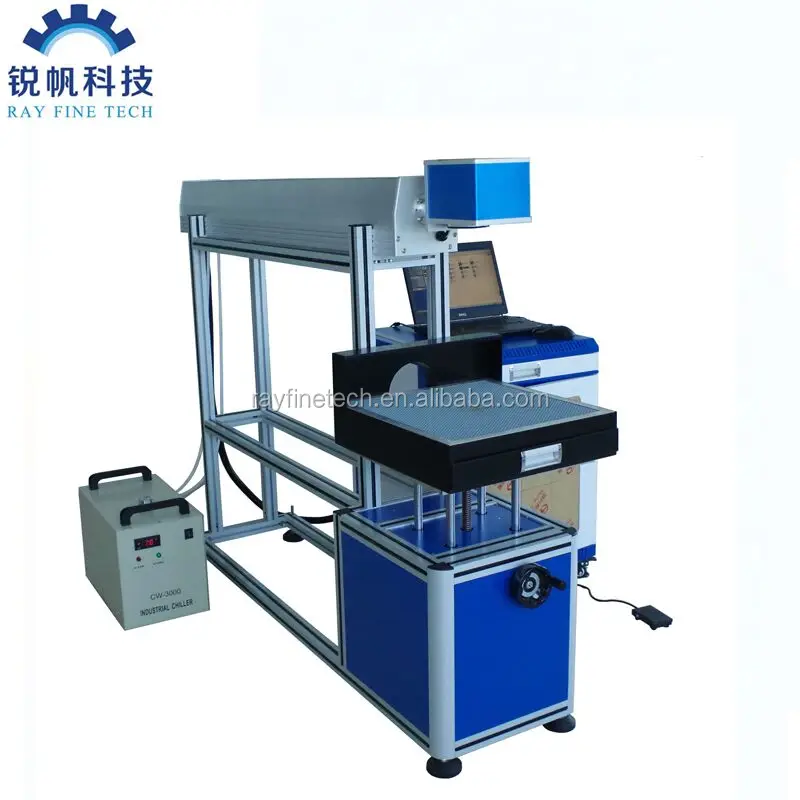

Китайские Производители 60 Вт CO2 лазерная маркировочная машина для пластиковых бутылок свадебные приглашения бумажная упаковочная коробка
- Category: Laser Engraving Machines >>>
- Supplier: Liaocheng Ray Fine Technology Co. Ltd.
Share on (60705934737):
Product Overview
Description
Product Description

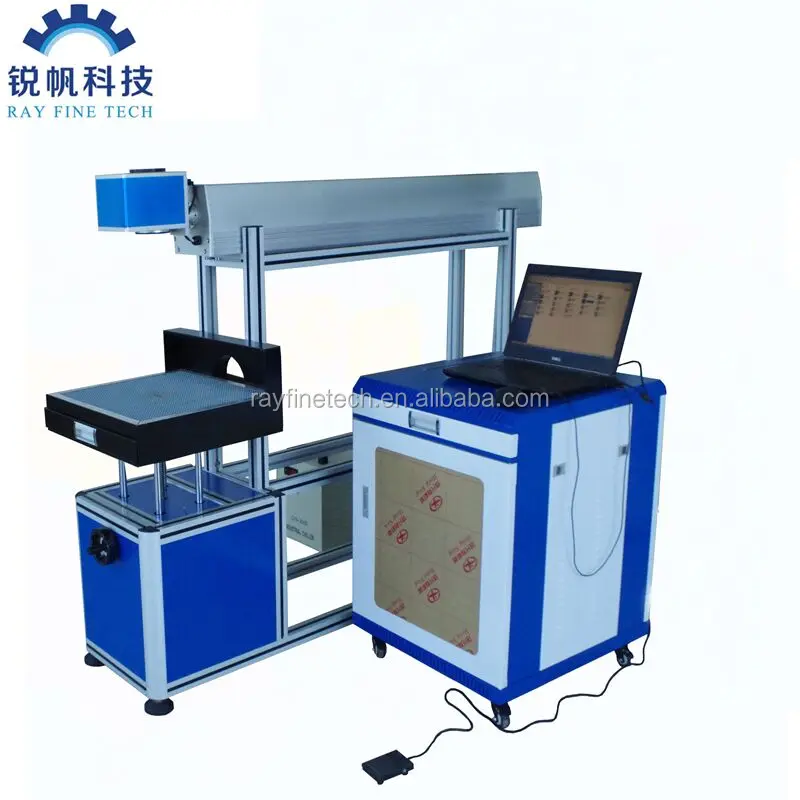

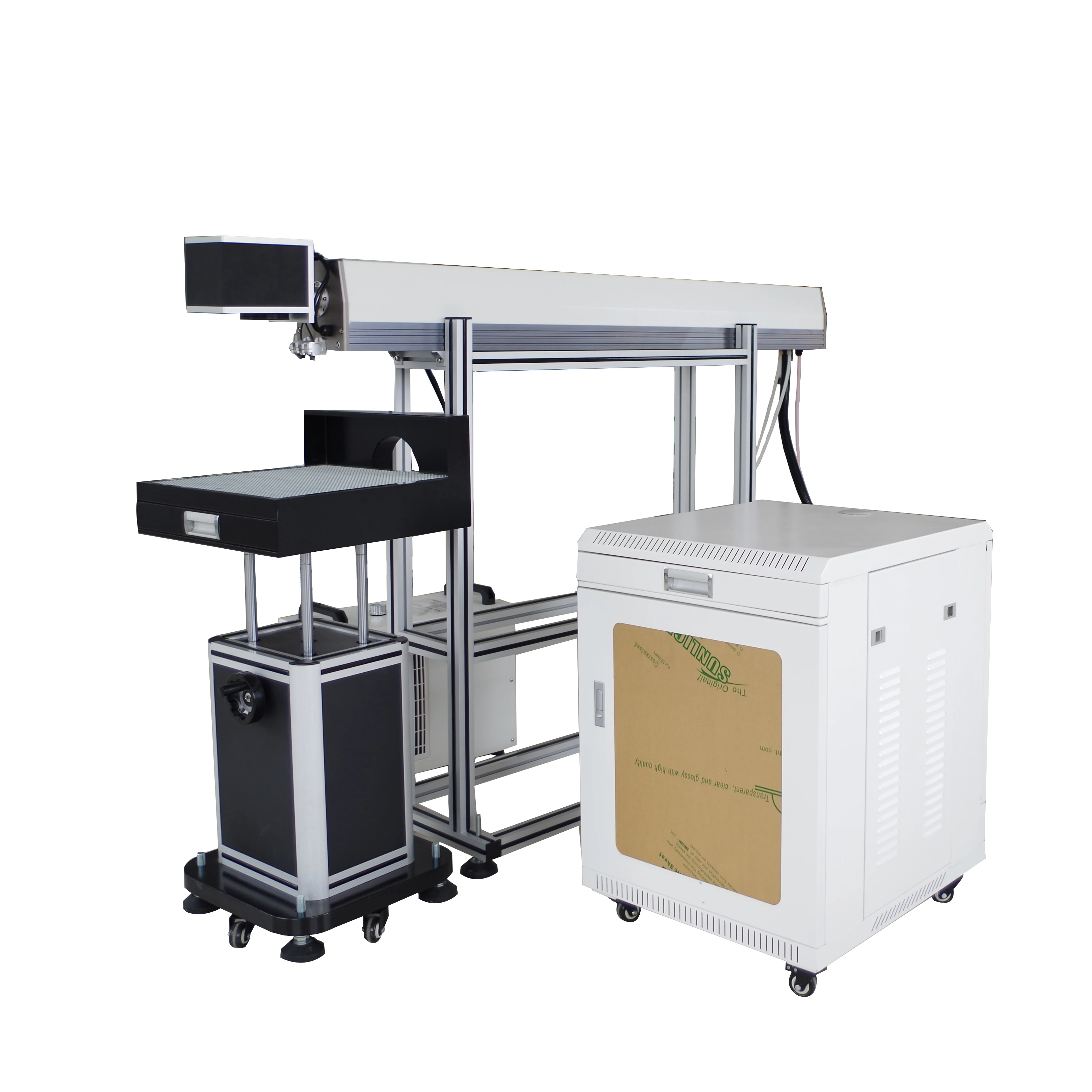

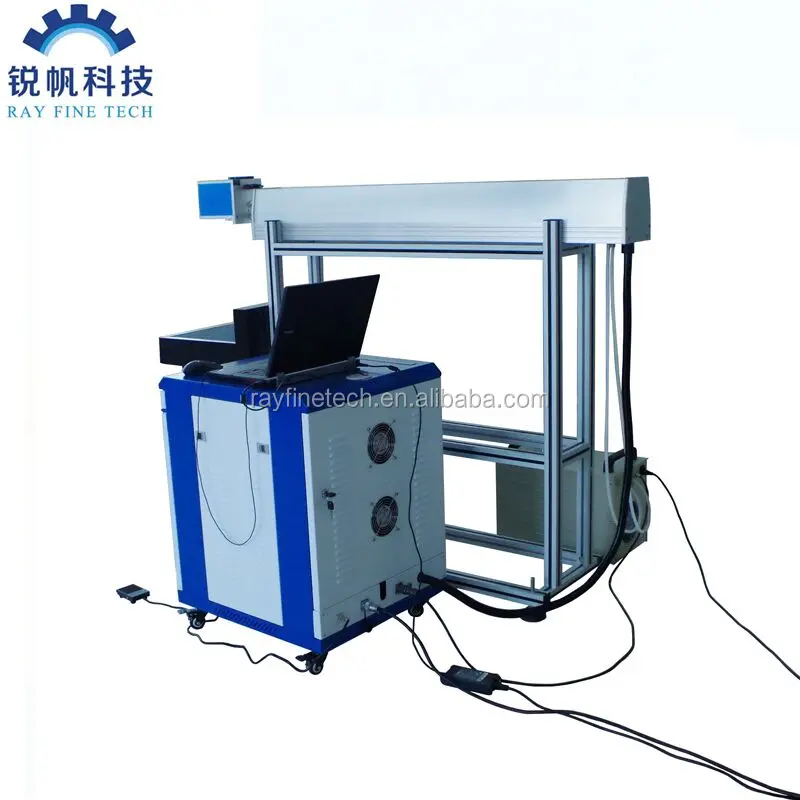

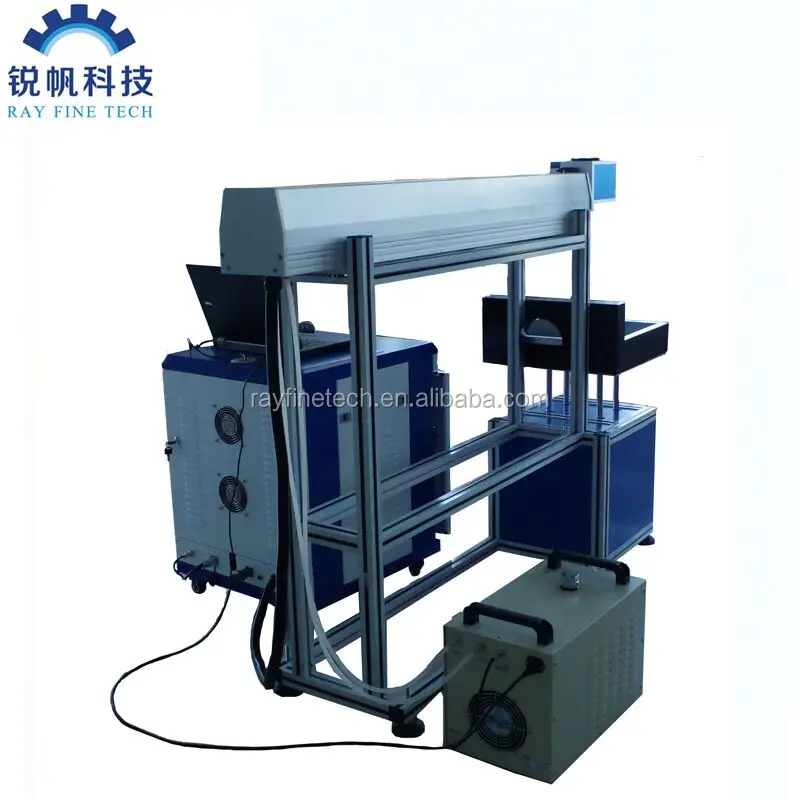

China manufactures 60w CO2 laser marking machine for plastic bottles wedding invitation paper packing box
Product Introduction
The machine adopts the industrial standardization module design, adopt new generation glass sealed Co2 laser tube, with high speed scaning vibrating lens and extending focusing system, high stability, anti-intervention industrial computer system, high precise vertical up-and-down working table. The machine can work on a continuous 24 hours in high stability, high precision, high speed and whole work cost very low, high cost performance. Widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking.
Specification
Model | RF-CO2-60W/80w/100w |
Work Area (cm) | 110x110/150x150/200x200/300x300mm(Optional) |
Laser Generator | EFR/RECI CO2 Glass Laser Tube |
Laser Power | 60/80/100W |
Wavelength | 10.6μm |
Min Character | 0.4mm |
Max positioning Speed | ≤8000mm/s |
Marking Depth | ≤0.3mm |
Repeat Precision | ±0.003mm |
Cooling Style | Water Cooling |
Power Supply | 220V(±10%)/50Hz/15A |
Gross Power | <1.5KW |
Operating Temperature | 10℃-45℃ |
Software Supported | PLT, DXF, BMP file, the |
Standard Fittings Parts | sequence number,bar code and the two-dimensional code. Simple up/down honeycomb working table Dust collector Industry chiller |
Warranty | 12 Months |
Dimension (cm) | 97*87*155cm |
Gross weight | 260kg |
Applicable materials
Suitable for wood,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other
non-metal materials.
Applicable industries
Widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other
industries, can be combined with streamlinefor online marking.
Features
2.Supported by rich software.enable to collect and manufacture various labels,non-contact processing.
3.Ensure original precision of the surface of work piece to the max limit.
4.Suitable for engraving on various materials.long time preserve.simple installation and convenient.
5.The optical system is fully sealed,it can prevent the dust entering laser body and reduce the equipment failure rate,
Detailed Images

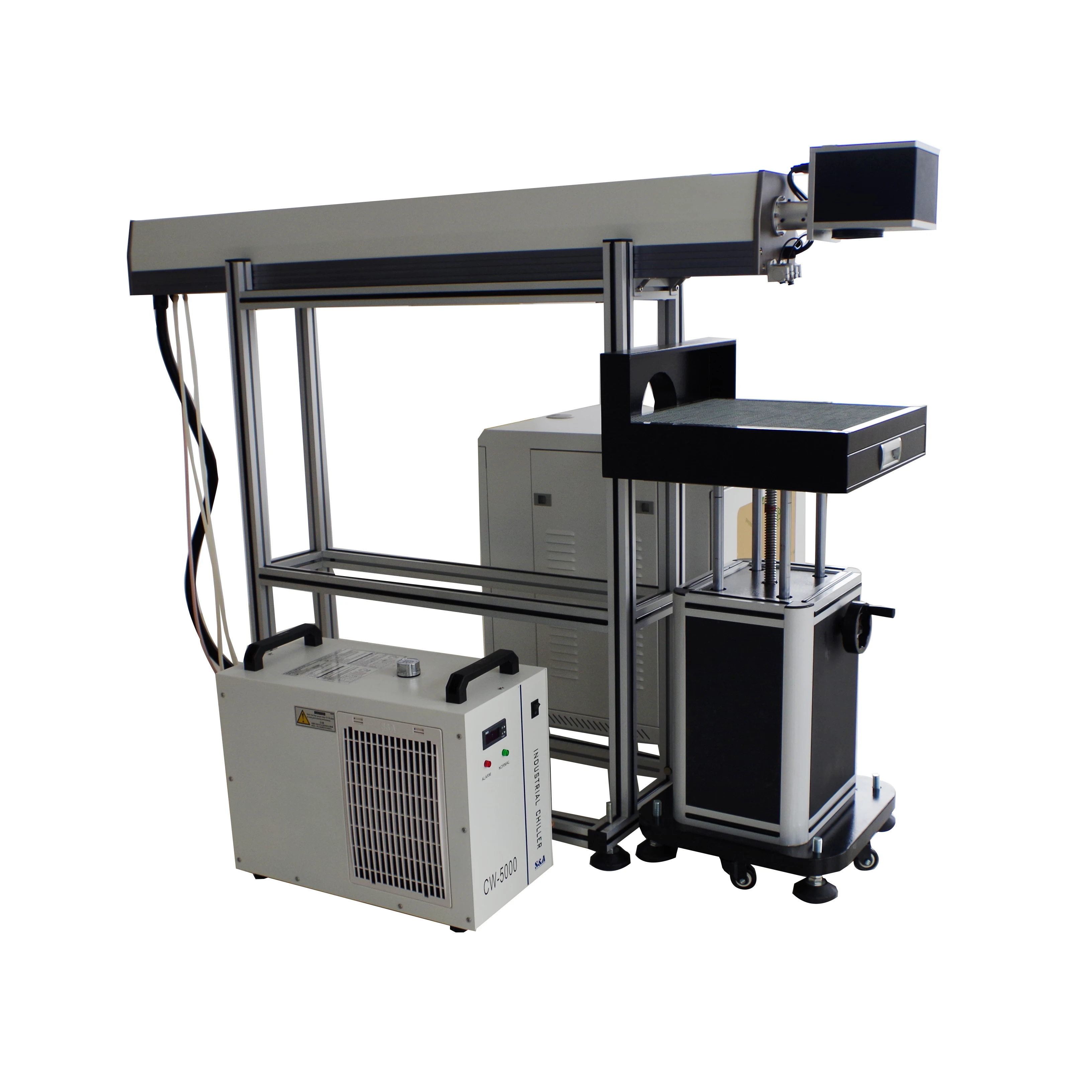

Name:CW5000 high grade water chiller
60W(CW3000)
80W/100W(CW5000)

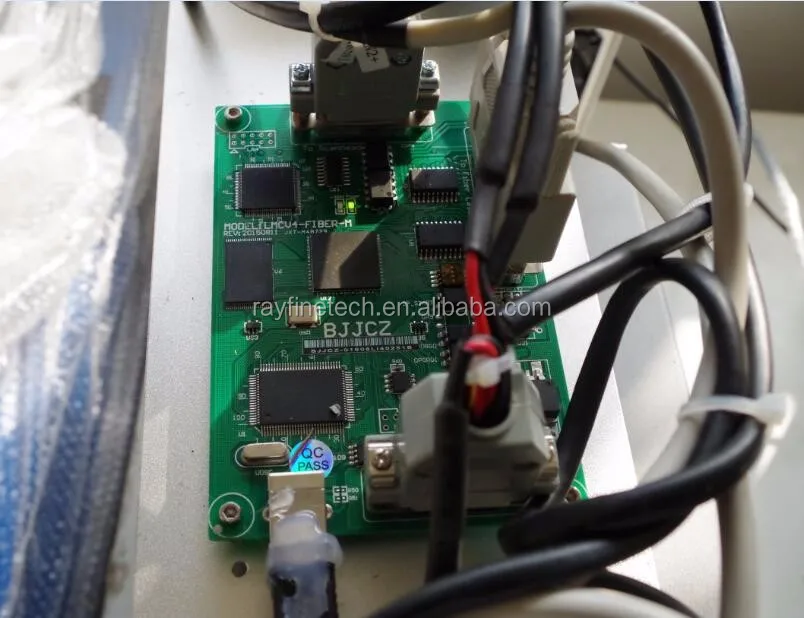

Name:EZCAD
Brand: BJJCZ brand
Original: BeiJing
Quality Genuine EZCAD control board and program(BJJCZ brand) which support XP WIN7 /8 /10 32/64 bit operating system

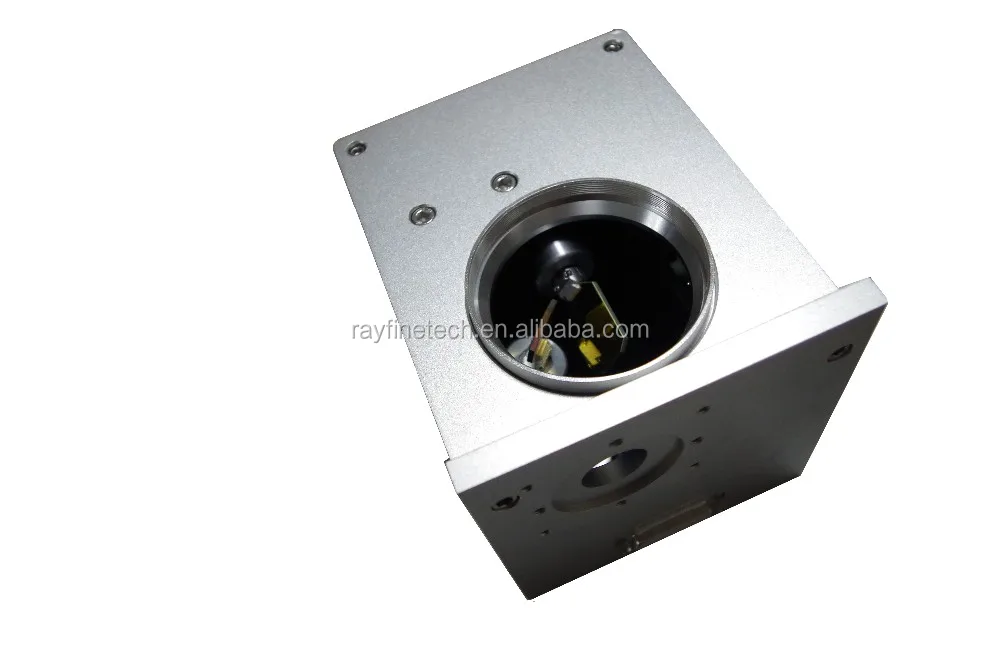

Name: Scan head
Brand: SINO
Original: China
High speed and precision digital Galvotech brand Scan head

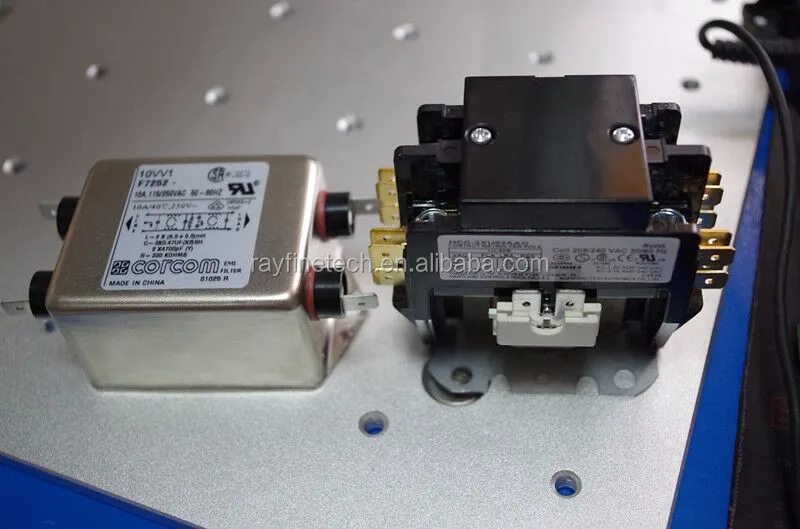

Name: conductor
Brand: schneider AC conductor
Original: Germany
High quality schneider AC conductor in Machine

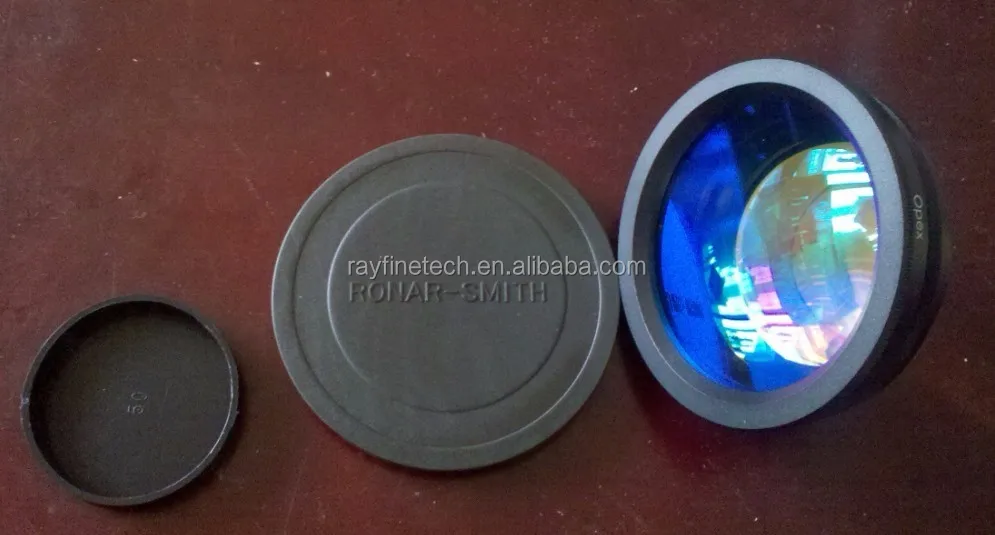

Name: field lens
Brand: Wavelength/Huaying
High quality tech optical lens
Machine Parts

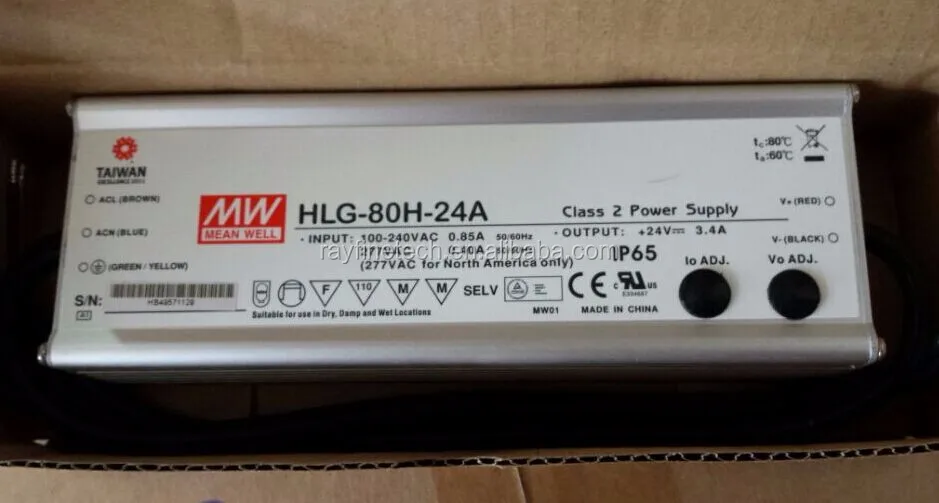

Name:power supply
Brand: MEAN WELL
High quality TAIWAN Genuine MEAN WELL Switchingpower supply
Optional parts

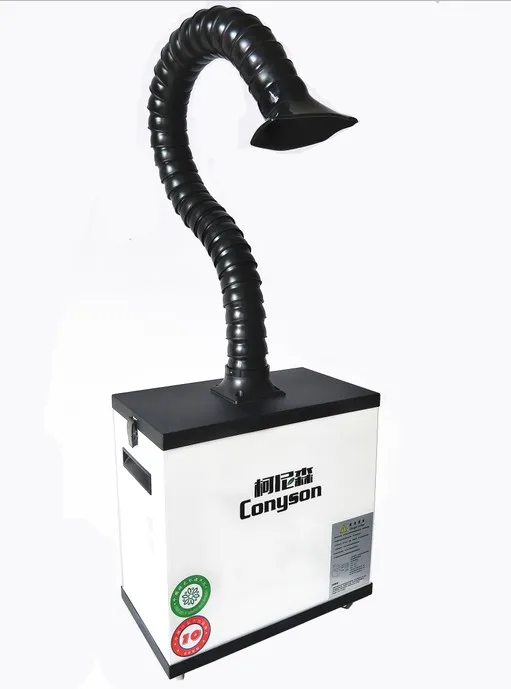

Name: Airfilter
Brand: Conyson
Sample
About us

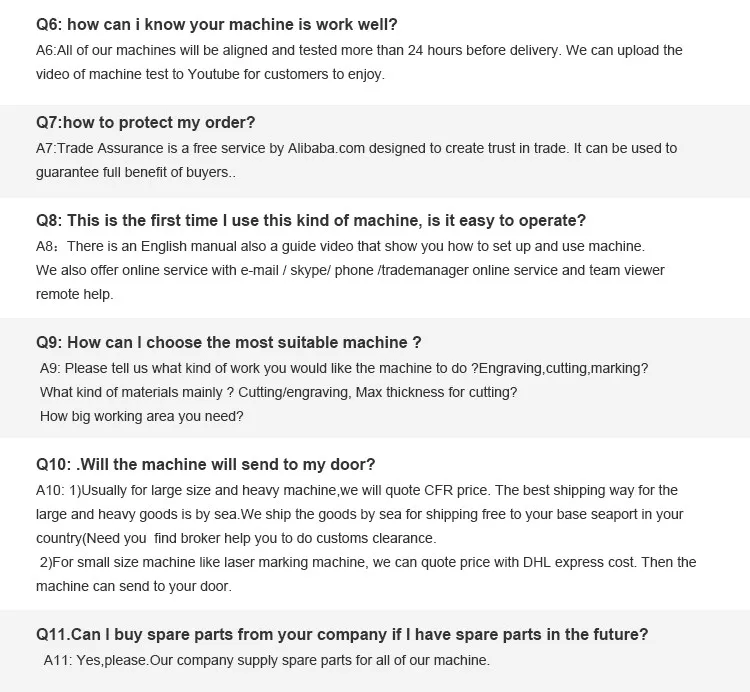

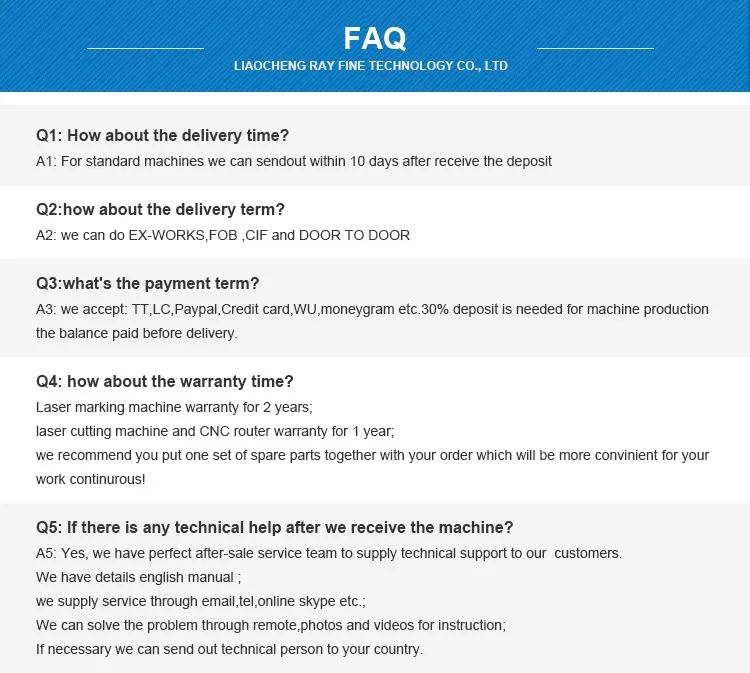

FAQ
